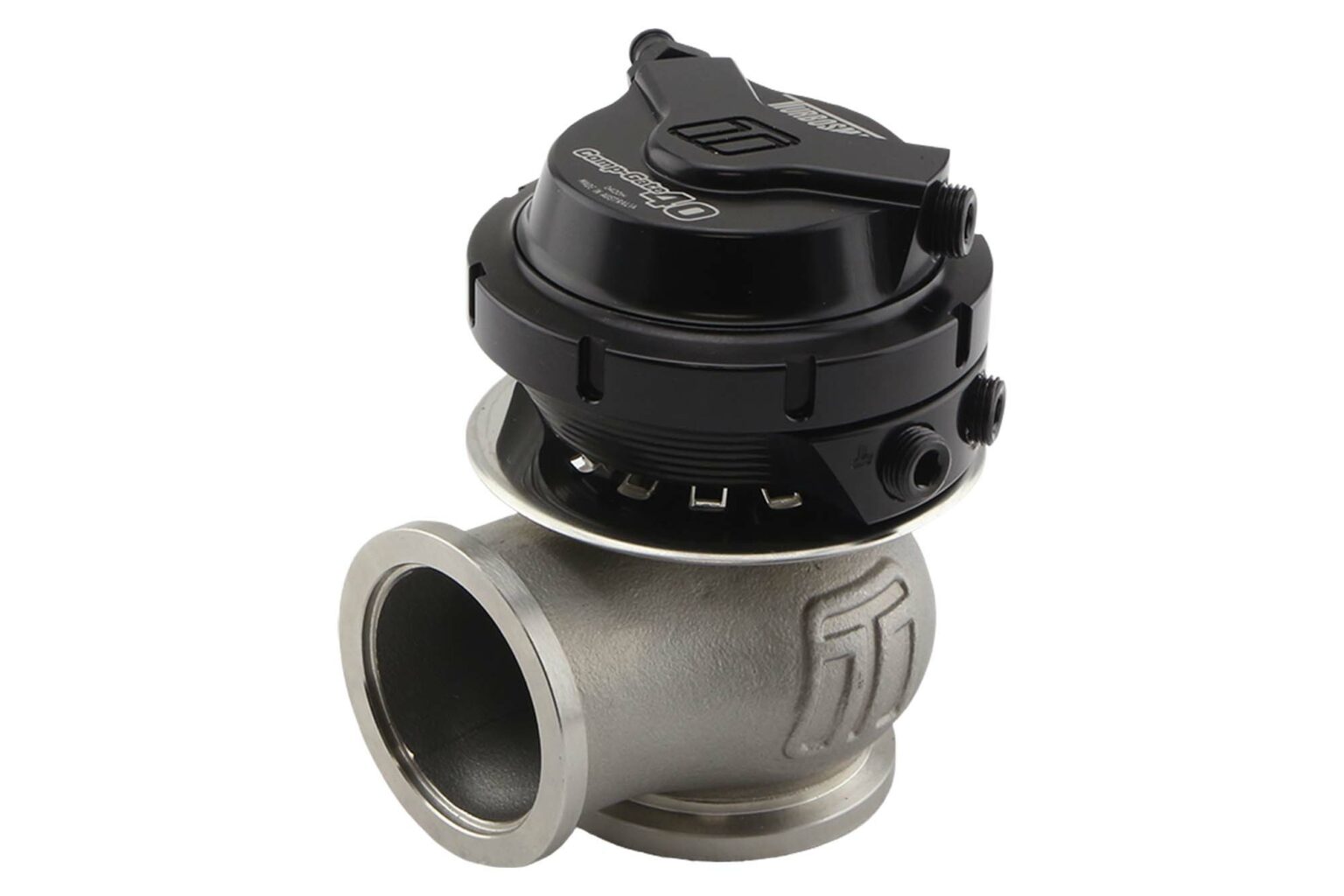

WG40 GenV CompGate 40 14psi Sleeper

Turbosmart - Water cooled EXTERNAL Wastegate: 3 - 26 psi - Sleeper Version
Complete with flanges and full configurable!

The valve comes complete with V-band's and stainless steel weld-on flanges for easy installation. The actuator housing is made of anodised aluminum and is available in the two colors blue and black. The valve can be operated with or without water cooling. Due to the compact design, the valve can be installed almost anywhere. The housing cover can be rotated in 12 different positions.

Product features summary:

• Modular interchangeable actuators
• preconfigured at 14 psi
• New strap type V band clamps
• Stainless Steal Valve Housing
• Available in Black and Blue
• Independently orientated actuator base
• 1/8″ NPT actuator ports
• water cooling ports
• Integrated 1/8″ NPT water cooling ports (if required)

Included in box:

• Turbosmart GenV Waste Gate Valve Sleeper Version
• Valve seat
• Inlet V-band clamp
• Inlet weld flange
• Outlet V-band clamp
• Outlet weld flange
• Collar tool
• Spring kit
• Fitting kit

Increased thermal and flow performance, and a diaphragm design that offers linear travel, regardless of spring, pressure and valve positioning, while improving response.
