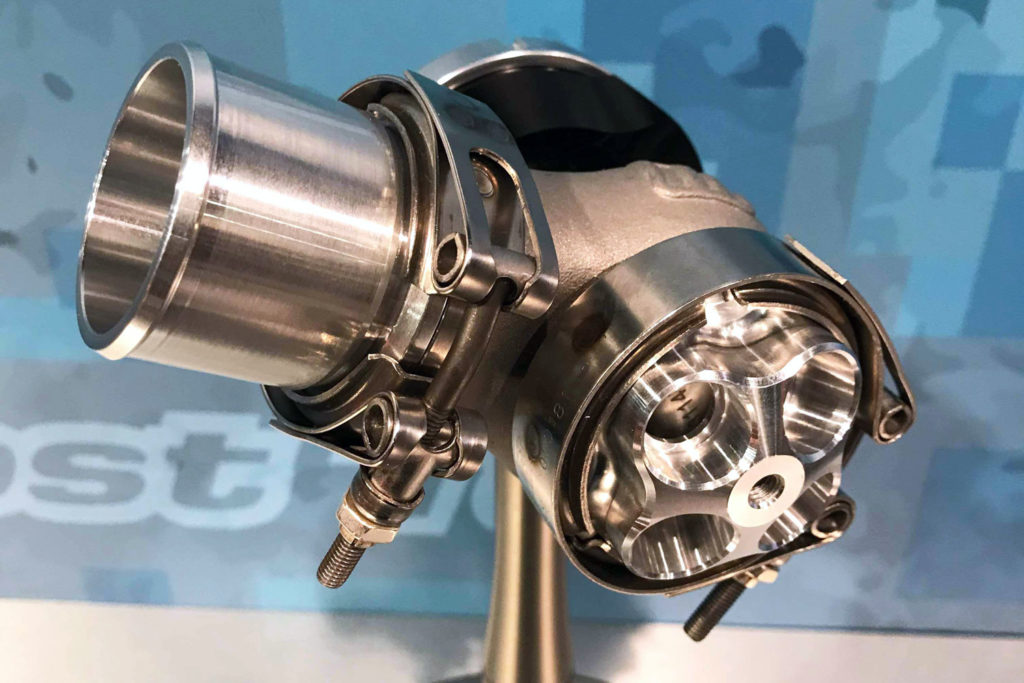

Turbosmart Gen-V EALV40 Electronic Anti-Lag Valve Black

Turbosmart - REAL ALS System: EALV40 Gen-V in Black

The all-new addition to the Turbosmart line-up is the fresh air EALV40 (Electronic-Anti-Lag Valve) for motorsport applications. Featuring a 40mm valve diameter and a purpose designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication.

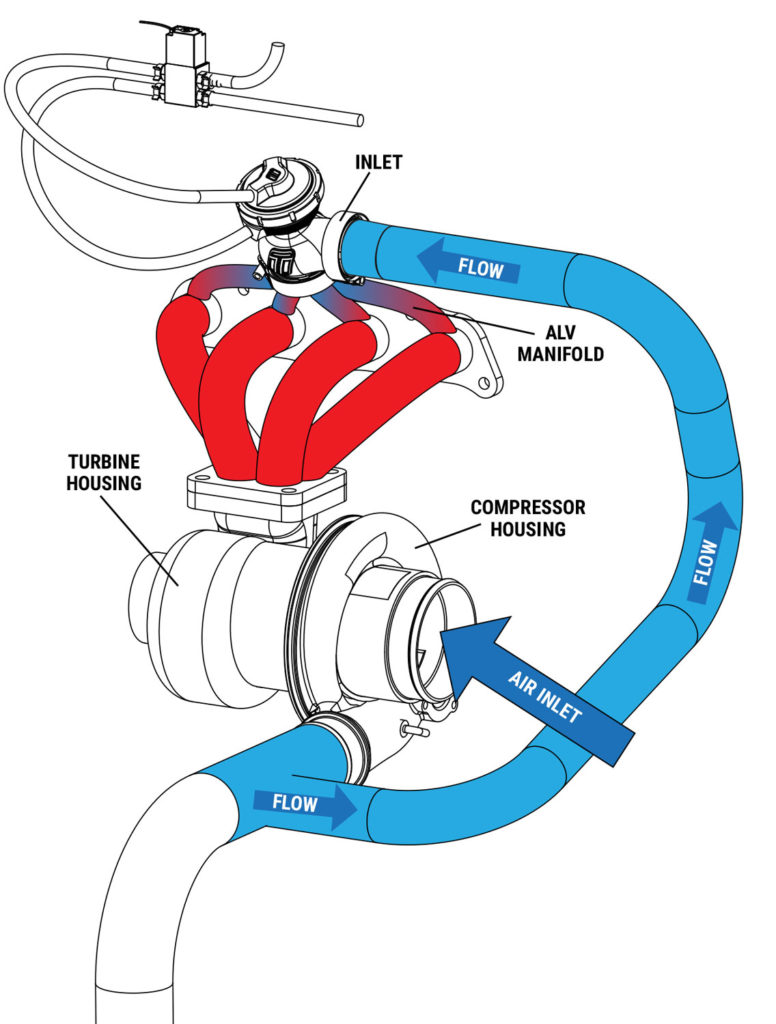

The fresh air valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel with the throttle at low opening angles to allow for safer spooling of the turbocharger without the potentially damaging throttle based late combustion event style anti-lag that can induce high engine stresses and break connecting rods.

The Turbosmart eALV40 (Fresh-Air bypass Anti-Lag Valve) for motorsport & high Performance Applications featuring fully electronic actuation, removing the need for the solenoids & tanks of traditional pneumatic systems. Featuring a 40mm valve diameter and a purpose designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication.

Included in box:

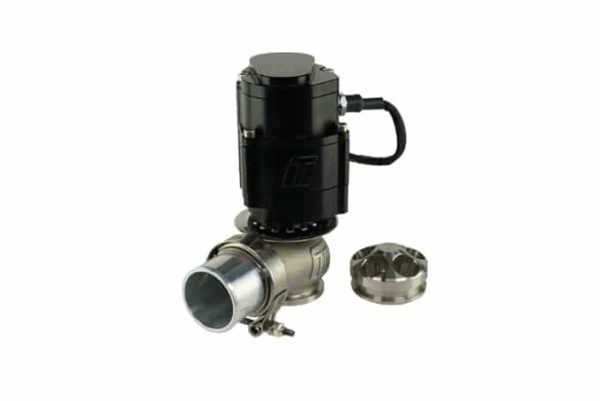

• Turbosmart Gen-V EALV Valve Black
• Valve seat
• Inlet V-band clamp
• Inlet Hose Adapter 1-1/2" OD
• Outlet V-band clamp
• Inlet Weld Flange 1-1/2" OD
• Un-Terminated Flying Lead

Due to the variety of engine applications, an outlet weld flange is required to be purchased separately:

• 6 cylinder: TS-0550-3114 ALV 6-1 Weld Flange (6 outlet)
• 5 cylinder: TS-0550-3104 ALV 5-1 Weld Flange (5 outlet)
• 4 cylinder/V8: TS-0550-3098 ALV 4-1 Weld flange (4 outlet)
• 3 cylinder/6 cylinder: TS-0550-3099 ALV 3-1 Weld flange (3 outlet)
• 2 cylinder: TS-0550-3100 ALV 2-1 Weld flange (2 outlet)
• For custom outlet plenums, use Single Outlet to allow for fabrication of your own solution: TS-0505-3101 ALV 1-1 Weld Flange (1 outlet)
• A larger 1-3/4" OD inlet pipe adapter is also available -TS-0550-3102
