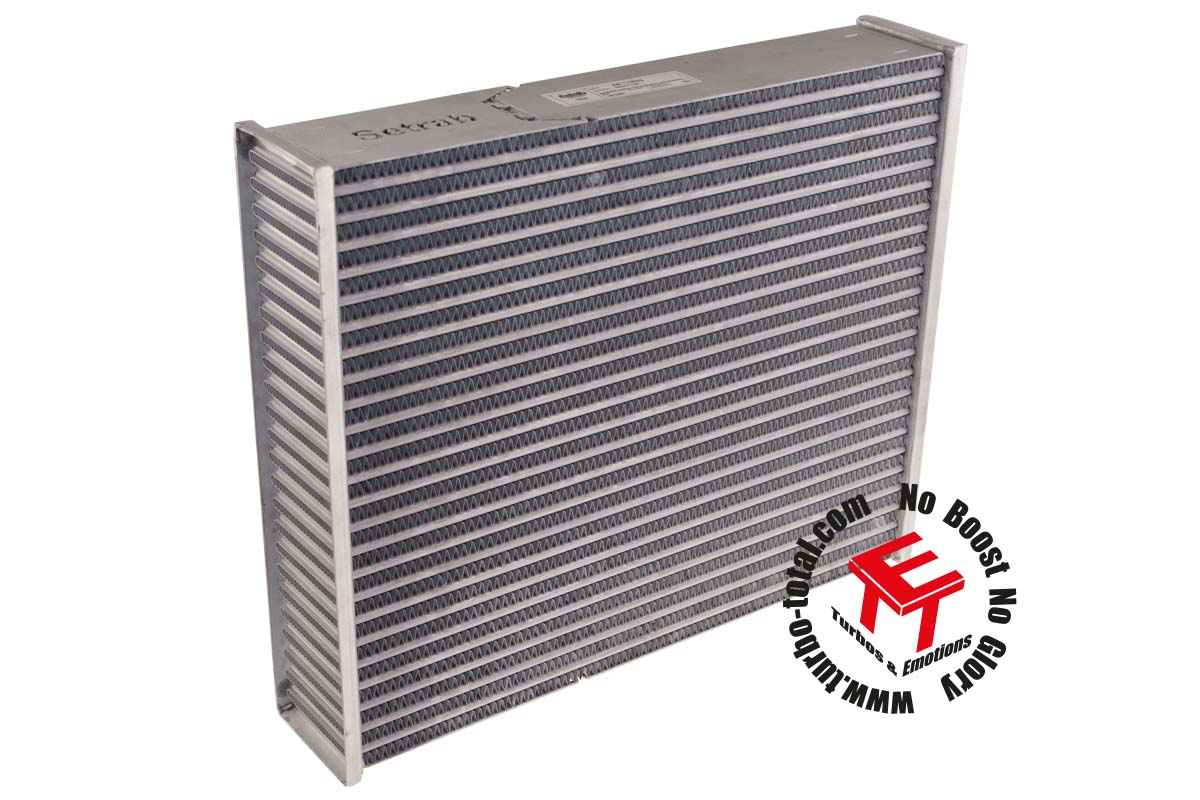

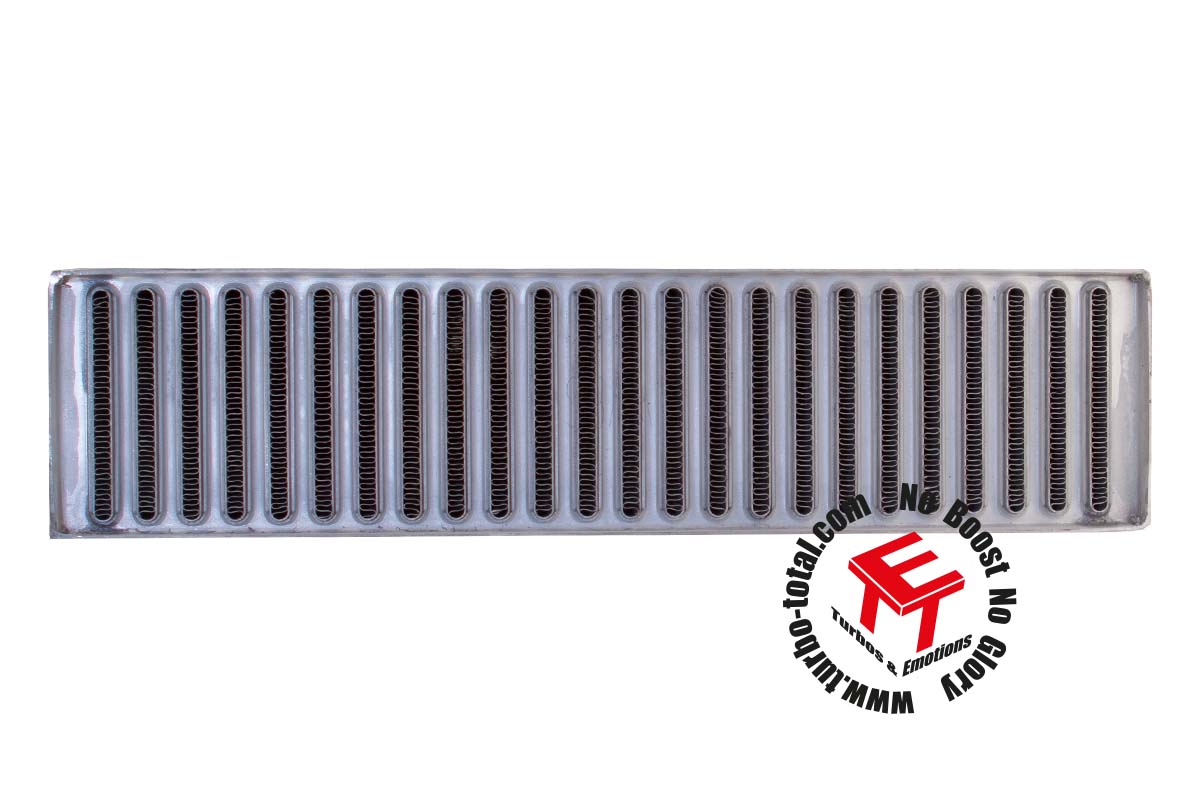

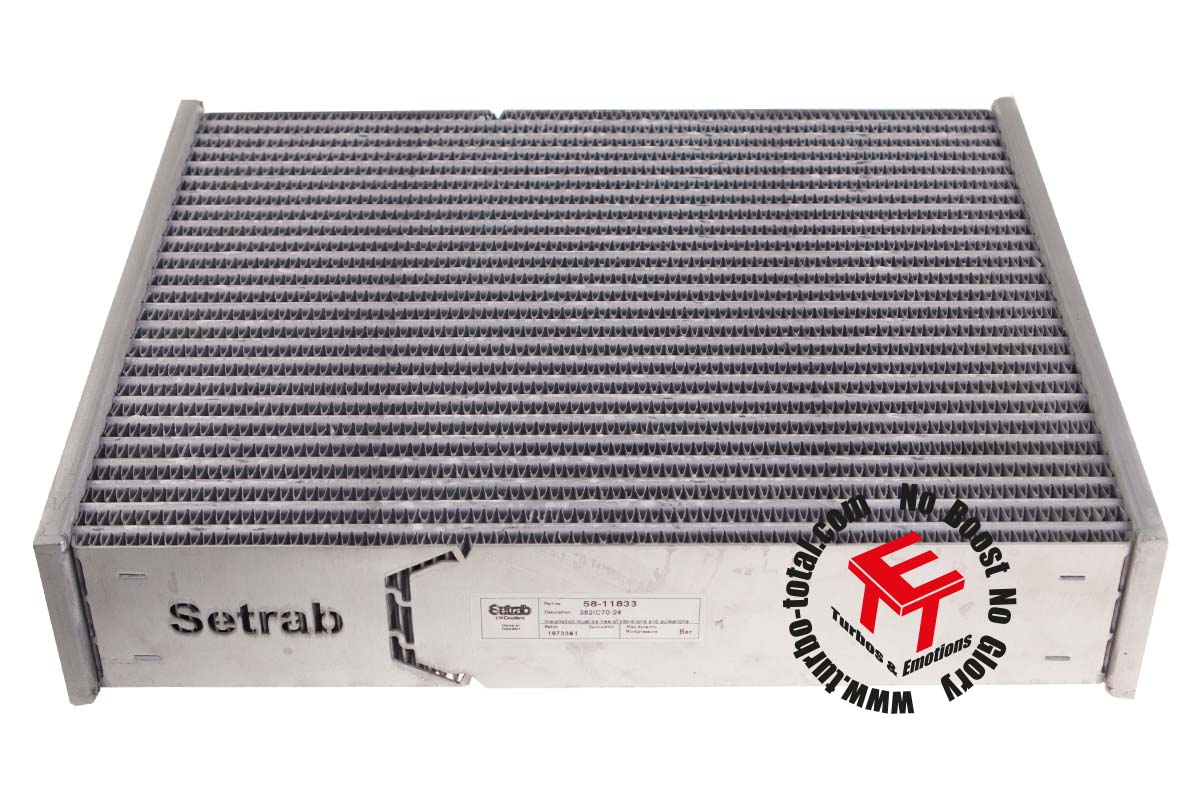

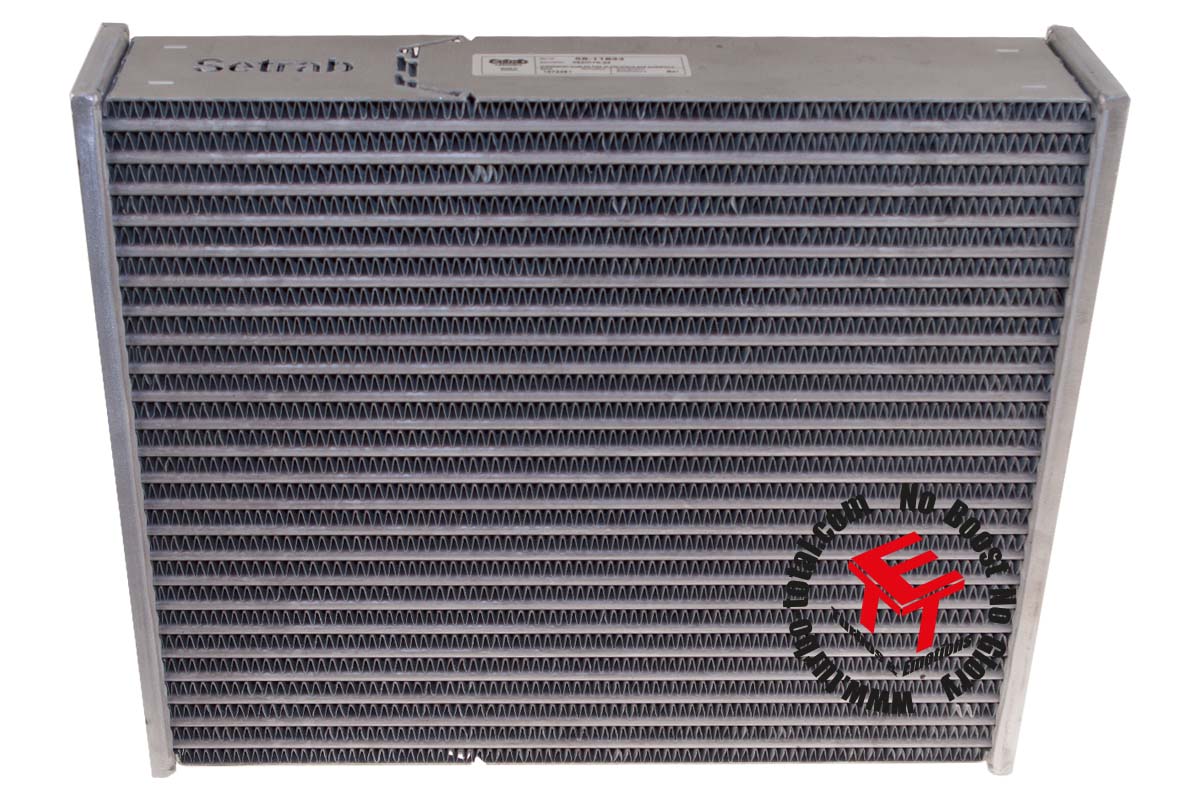

Setrab ProLine IC 382IC-24 Intercooler Core
This product is currently not available.
€550.85 €612.05 (10% Saved)
Prices incl. VAT plus shipping costs
Delivery time approx. 5 working days
- Order number: 58-11833
L 382mm x H 329mm x T 70mm Extremely low weight, only 3.3 KG Maximum heat... more
Setrab ProLine IC 382IC-24 Intercooler Core

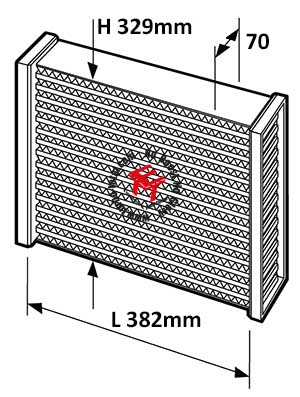

L 382mm x H 329mm x T 70mm
- Extremely low weight, only 3.3 KG
- Maximum heat dissipation with low pressure loss
- 100% tested for leakage
- Extremely resistant to corrosion
- Superior finishing quality
| Technical Specifications | |
| Working Pressure | 0-2.5 bar(g) dynamic |
| Pressure Pulsation Endurance | 100k pulsations, 0-3 bar(g), 0.5-1 Hz, 200 °C air temp |
| Max Pressure | 4 bar(g) |
| Burst Pressure | 6 bar(g) |
| Leak Test | 1.5 bar(g) (Core) |
| Working Temperature | -40 °C to 220 °C |
| Corrosion Endurance | 20 Days SWAAT G85-94 A3 960h ISO 9227 NSS |
| Inner Cleanliness | ISO 16232:10, CCC=V(B-K21/C-K18/F-K12/I-K3/J-K00), <10 mg impurities total |
| General Dimensional Tolerances | ISO 2768-v |
| Material | Aluminium alloys |
