SDM-500 DASH Display-Logger-GPS Kit
Prices incl. VAT plus shipping costs
Delivery time approx. 5 working days
- Order number: TT10607
Plex Tuning® Motorsport Quality 4.3” Dash Display
fully configurable | smart features | compact size

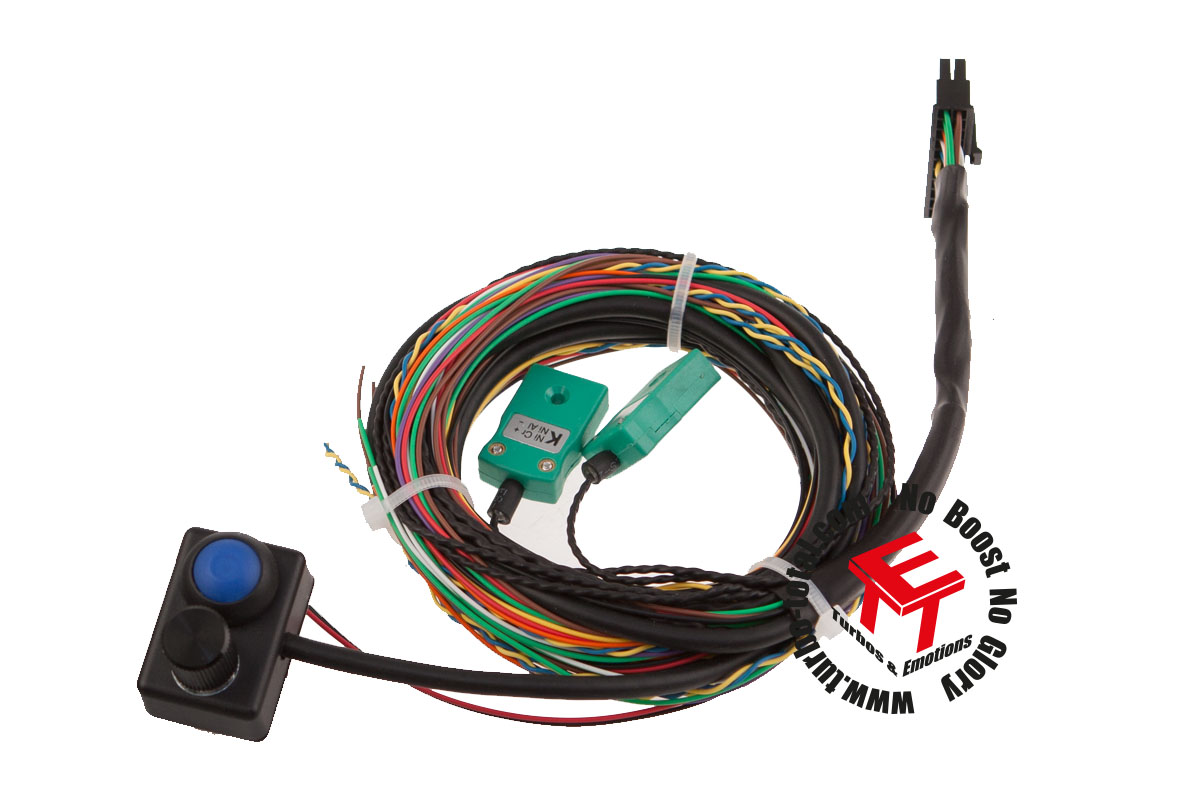

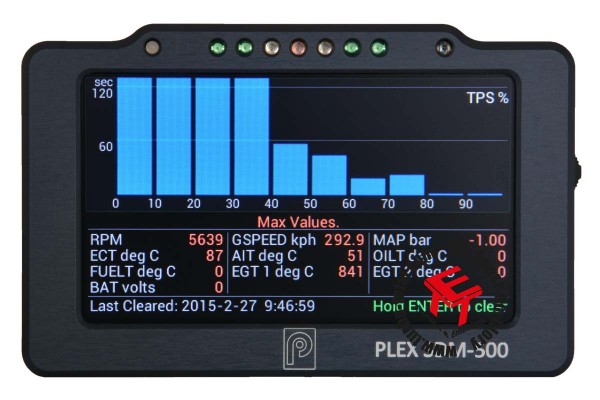

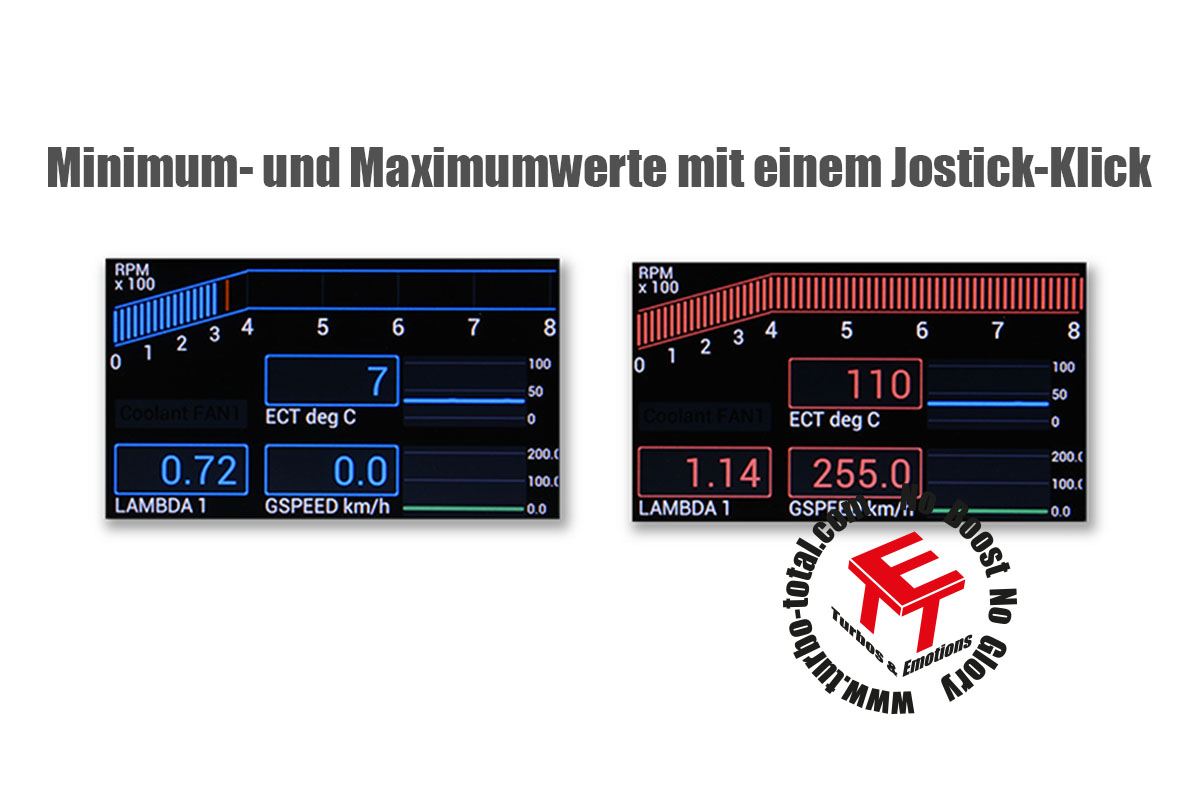

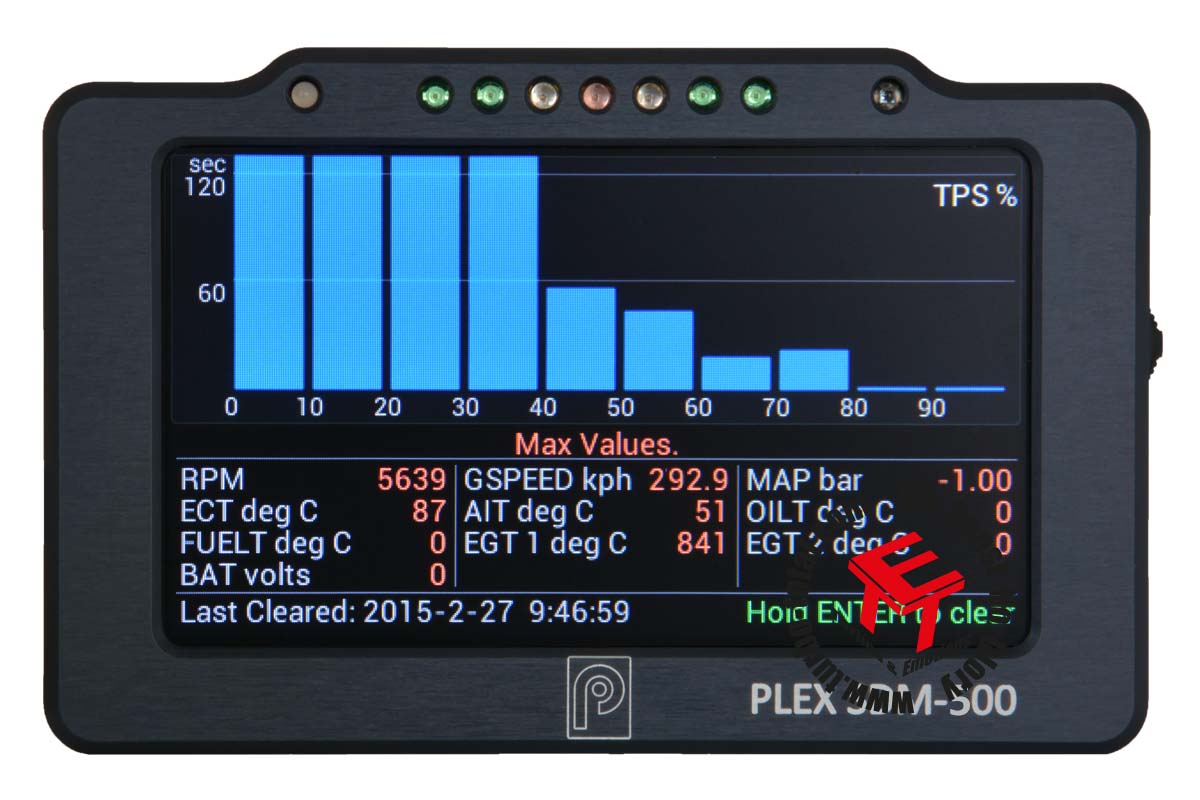

SDM-500® is our most advanced 4.3” display logger with built-in 20Hz GPS/Performance Meter. It has fully configurable CAN BUS, preloaded Smart Alarms, Auto-display Page Changing, a permanent Engine Log, 1-click Min/Max values function and the capacity to display up to 256 different ECU parameters. The 256MB internal datalogger lets users record up to 7.5hours and review the logged files also on the device. Comes with a 4D wired joystick and is compatible with most after-market ECUs and with OBDII.
KEY FEATURES:
- On the fly Programmable
- 4.3'' High-Brighness TFT Display

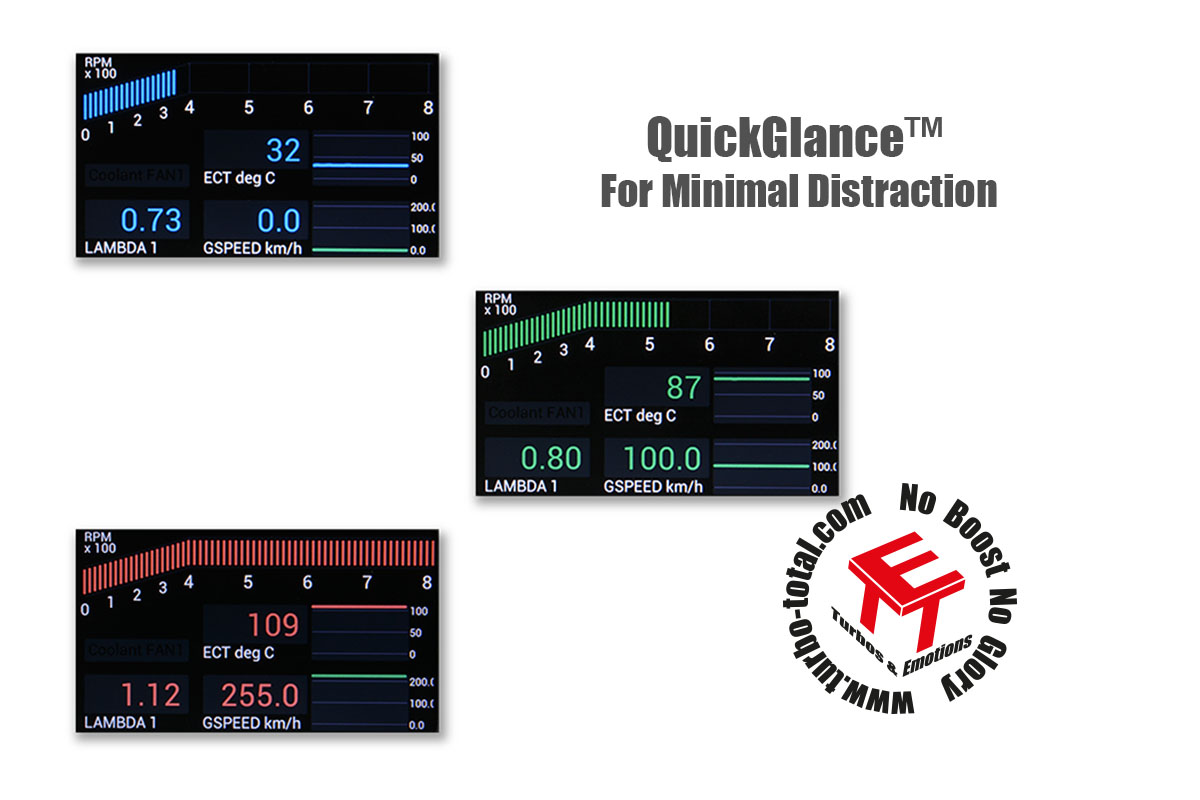

- QuickGlance™ UI
- Small depth 19mm

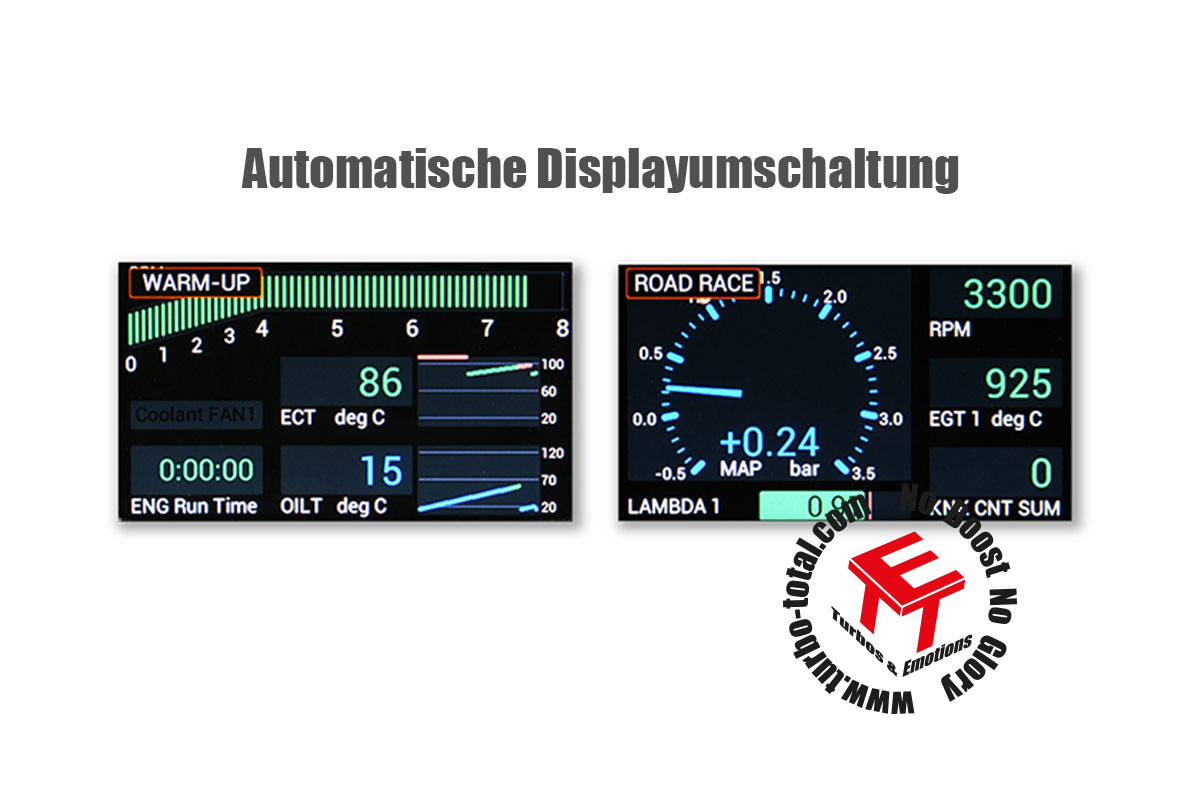

- Automatic Page Changing

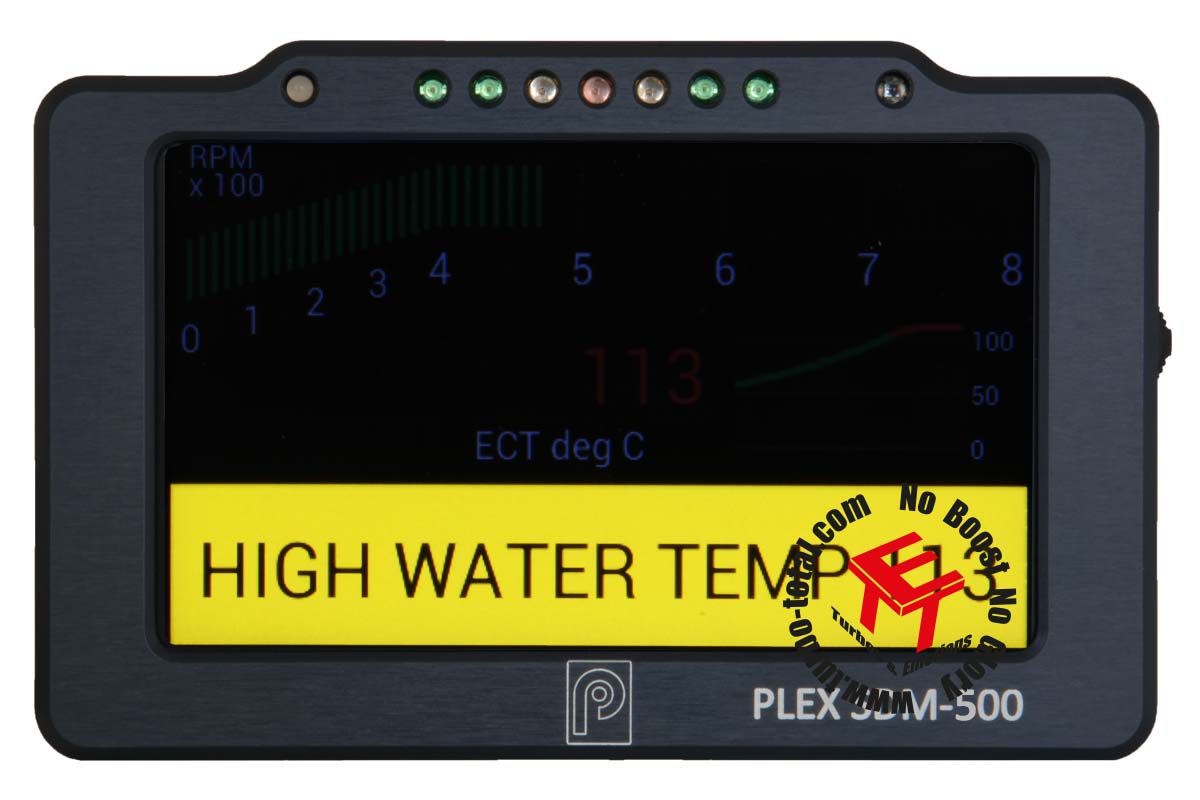

- Smart Alarms / Warnings
- Custom CAN BUS Functionality
- Up to 256 ECU Channels

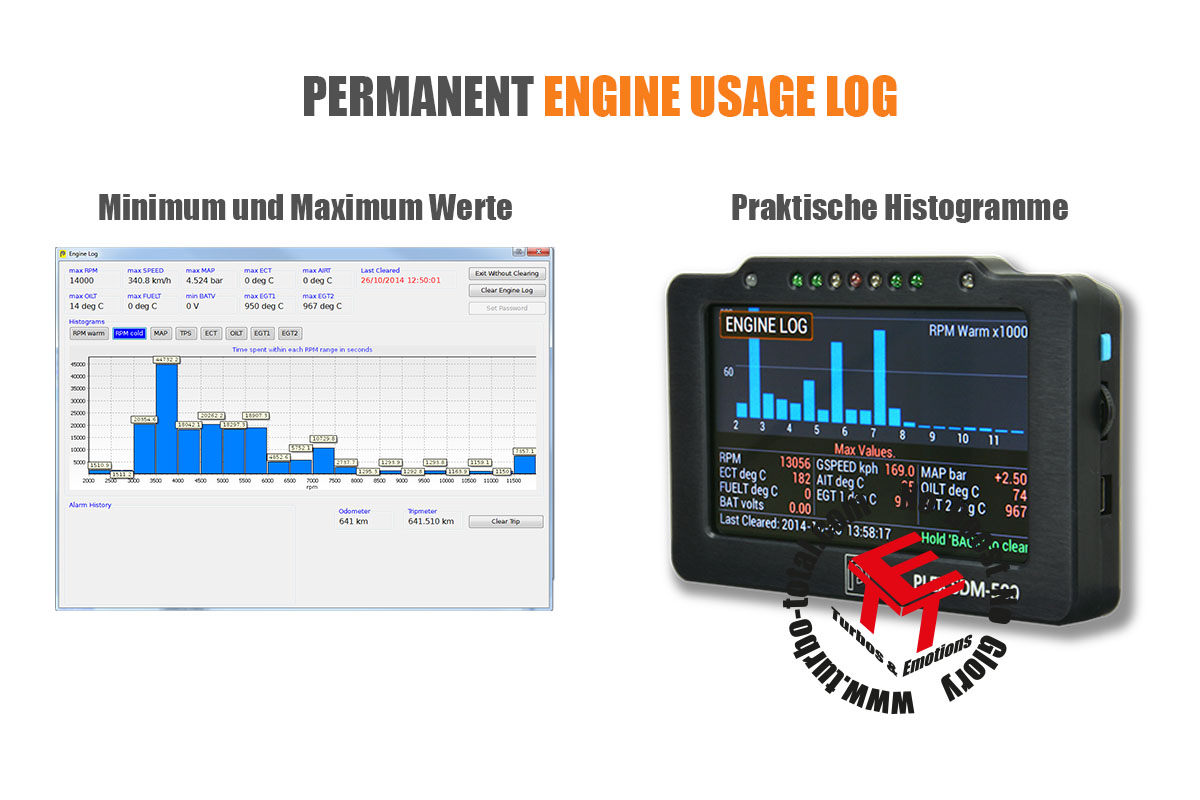

- Permanent Engine Log

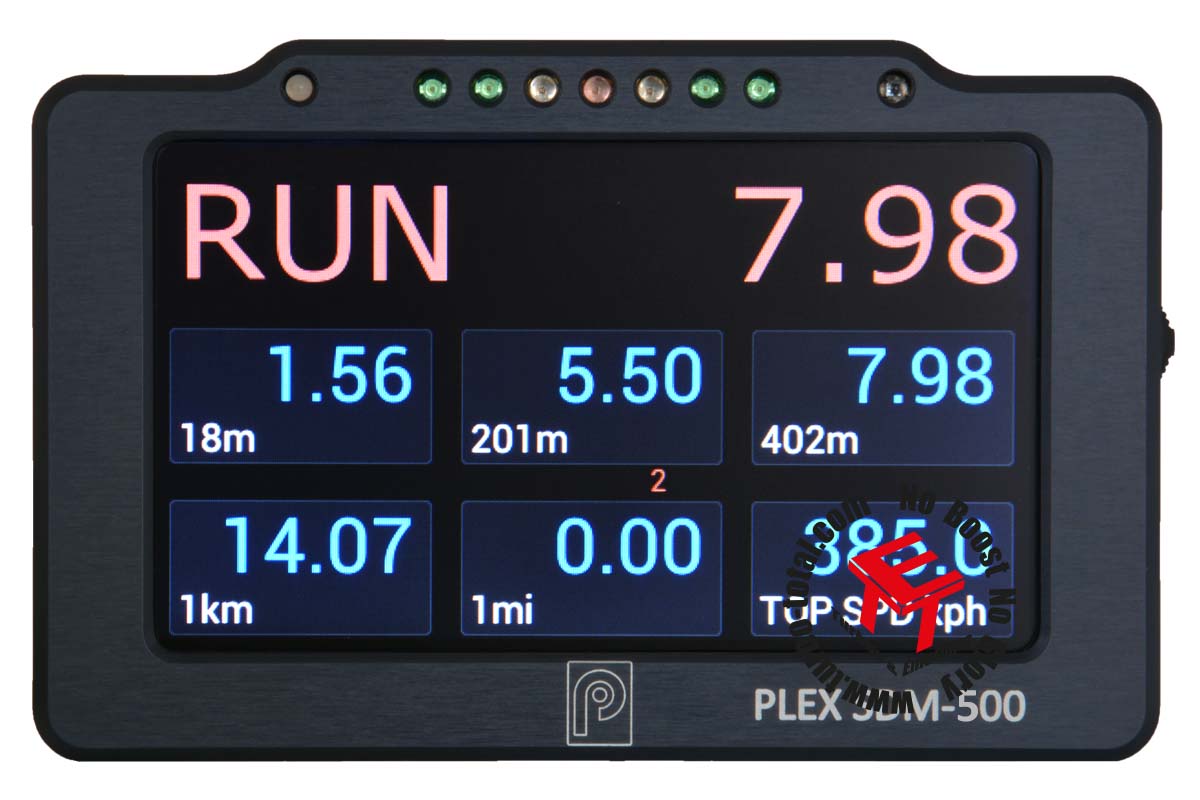

- Integrated Performance Meter

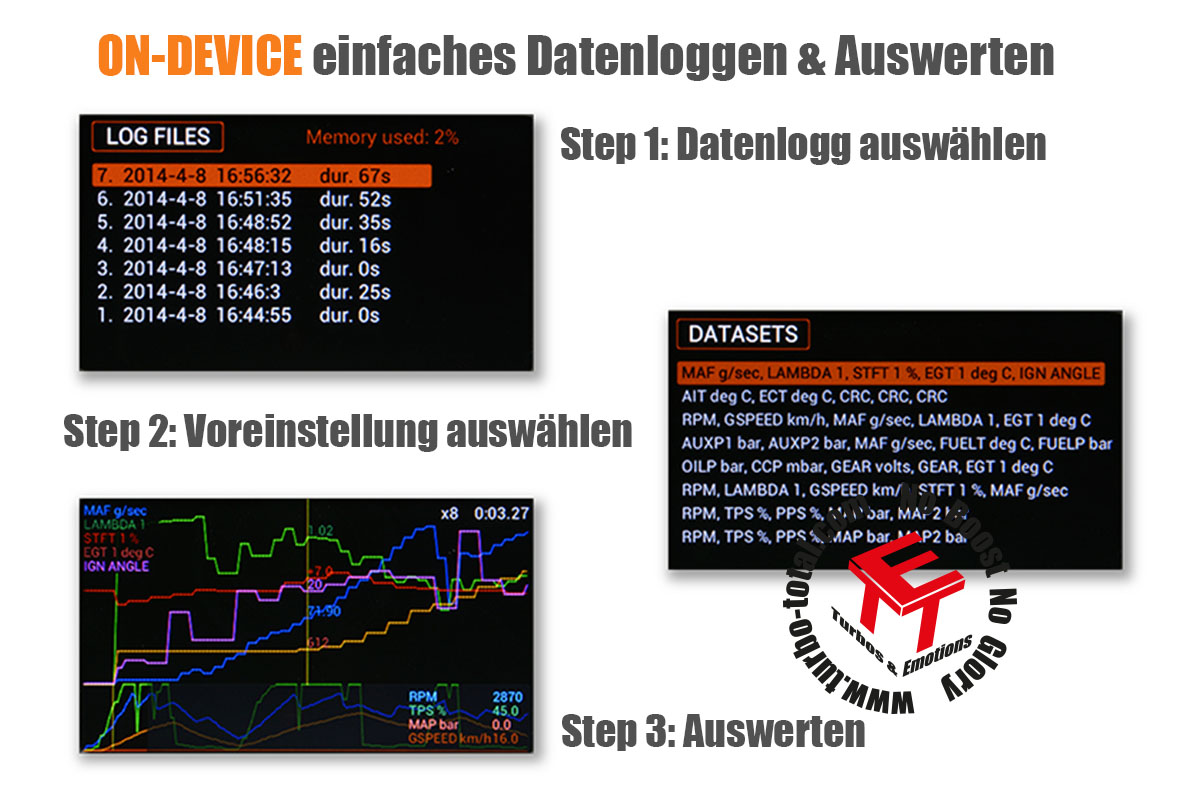

- On-Device Data Log Review

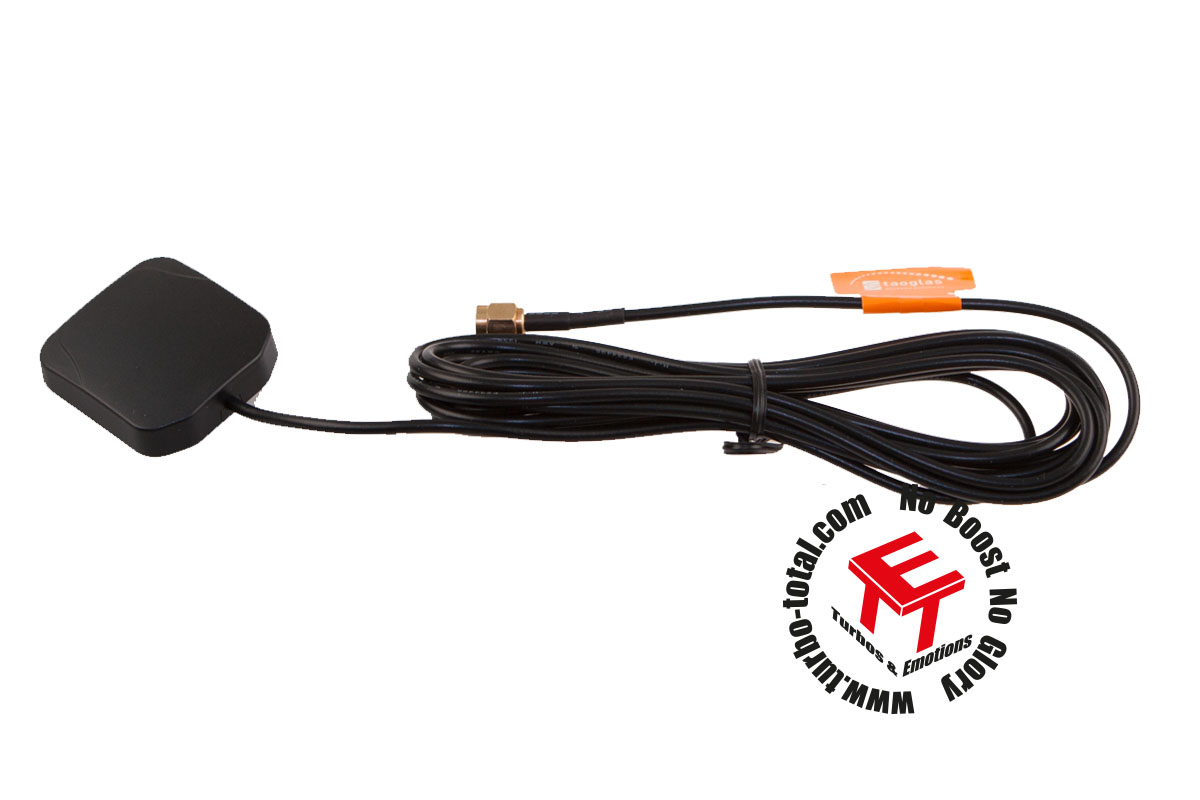

- 20Hz GPS & 3-Axis Accelerometer

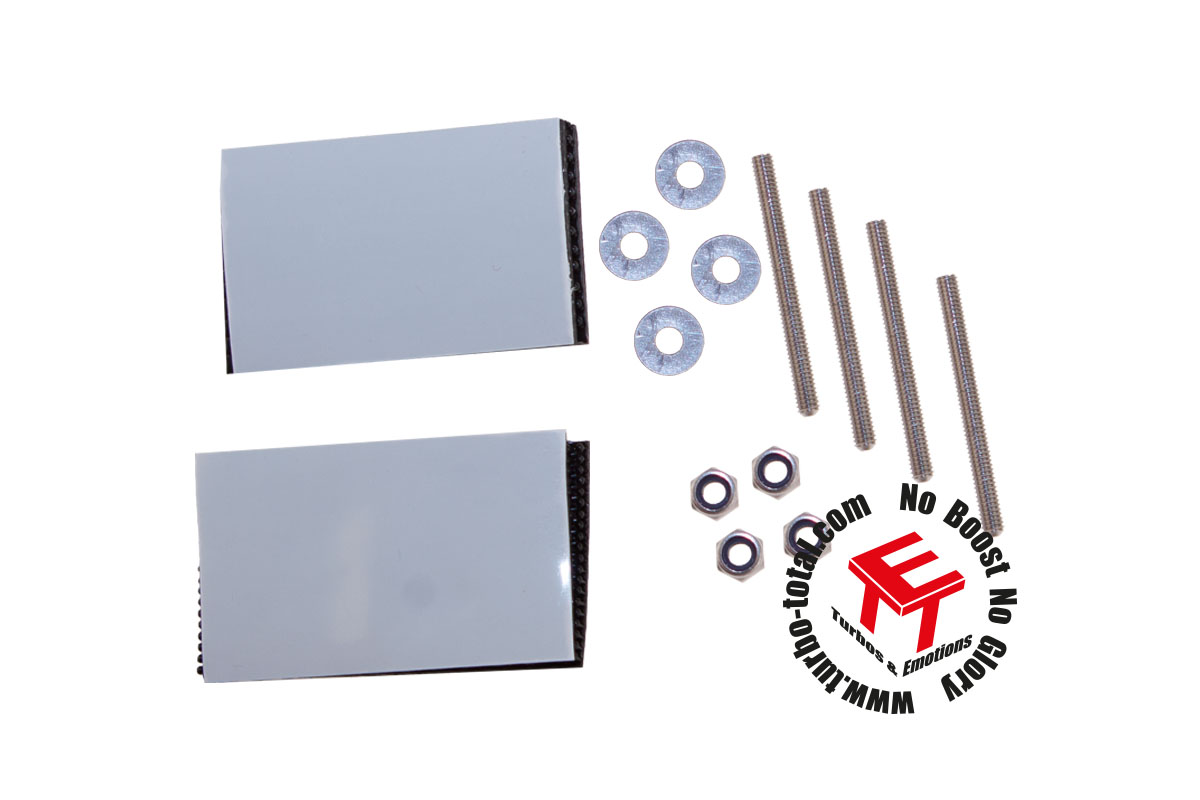

- Dashboard Friendly Installation
- 4 Different Display Colour Themes
Compatibility:
- AEM Electronics
- Autronic
- DTA
- ECU Master
- EFI Technology
- EMtron
- Haltech
- LifeRacing
- Link
- MBE
- MegaSquirt
- MecTronic
- Motec
- Specialist Components
- Sybele
- Syvecs
- Trijekt
- Ultra Tech
- Vipec
The SDM®-500 communicates with all OEM ECUs that provide the ISO15765 OBD protocol (OBD II). So far, Volkswagen, Audi, Skoda, Seat, Toyota GT and Smart stock ECU are supported. Additional protocols will be added shortly.
