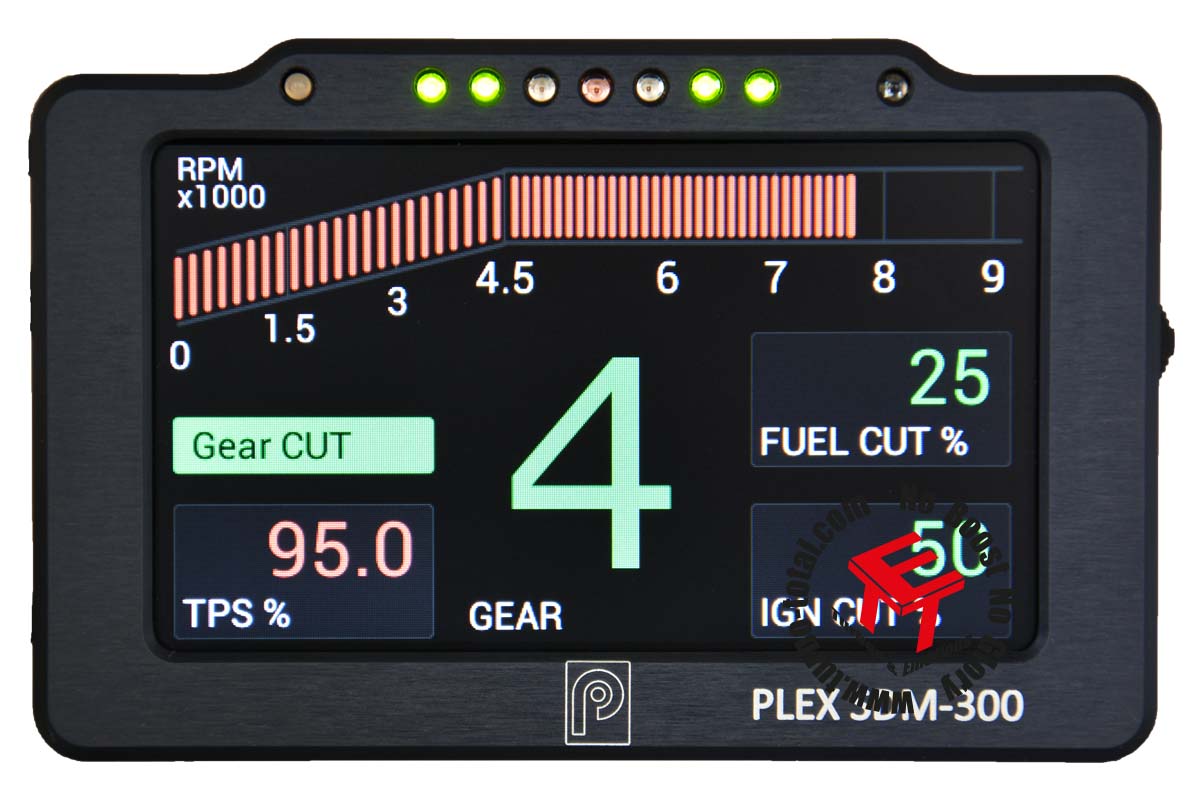

SDM-300 DASH Display

Plex Tuning® Entry-Level, Motorsport Quality 4.3” Display
fully configurable | smart features | compact size

SDM-300® is the most affordable, motorsport quality dash display in its size range. It houses a vivid high-brightness 4.3” TFT display which together with the QuickGlance™ UI ensures best viewing ergonomics along with minimal driver distraction. Comes with fully configurable custom CAN BUS, 20 preloaded Smart Alarms, Auto-display Page Changing, a permanent Engine Log, 1-Click Max. / Min. values function & the capacity to display up to 256 different ECU channels.

KEY FEATURES:

• On the fly Programmable
• 4.3'' High-Brighness TFT Display
• QuickGlance™ UI
• Small depth 19mm
• Automatic Page Changing

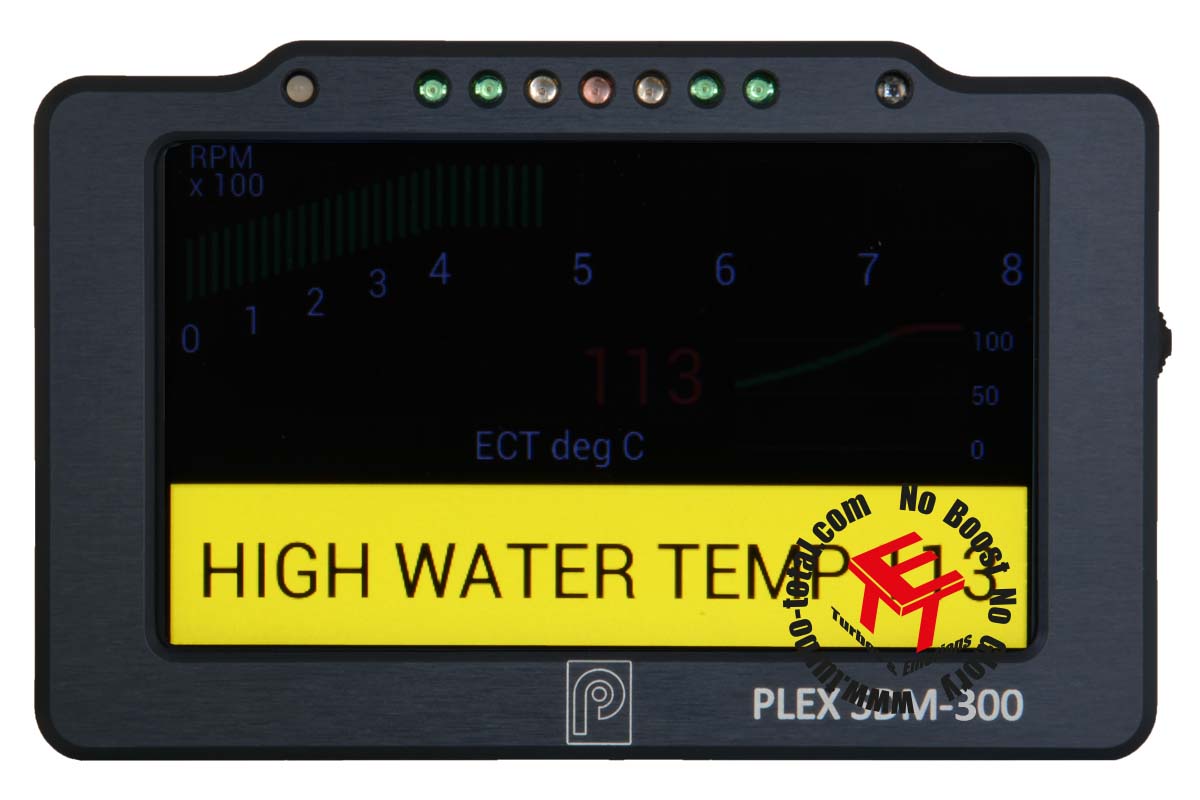

• Smart Alarms / Warnings
• Custom CAN BUS Functionality
• Up to 256 ECU Channels
• Permanent Engine Log
• Dashboard Friendly Installation
• 4 Different Display Colour Themes

Compatibility:

• AEM Electronics
• Autronic
• DTA
• ECU Master
• EFI Technology
• EMtron
• Haltech
• LifeRacing
• Link
• MBE
• MegaSquirt
• MecTronic
• Motec
• Specialist Components
• Sybele
• Syvecs
• Trijekt
• Ultra Tech
• Vipec

The SDM®-300 communicates with all OEM ECUs that provide the ISO15765 OBD protocol (OBD II). So far, Volkswagen, Audi, Skoda, Seat, Toyota GT and Smart stock ECU are supported. Additional protocols will be added shortly.
