GTX5533R Garrett 85mm Gen II Super Core 851285-5001S

€3,740.45
Content: 1 Stück

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 851285-5001S
Horsepower: 1750 - 2450 HP Displacement: 3.0 - 12.0 L Gen II Aero forged milled... more
GTX5533R Garrett 85mm Gen II Super Core 851285-5001S

Horsepower: 1750 - 2450 HP
Displacement: 3.0 - 12.0 L

  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port
  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • External Wastegate

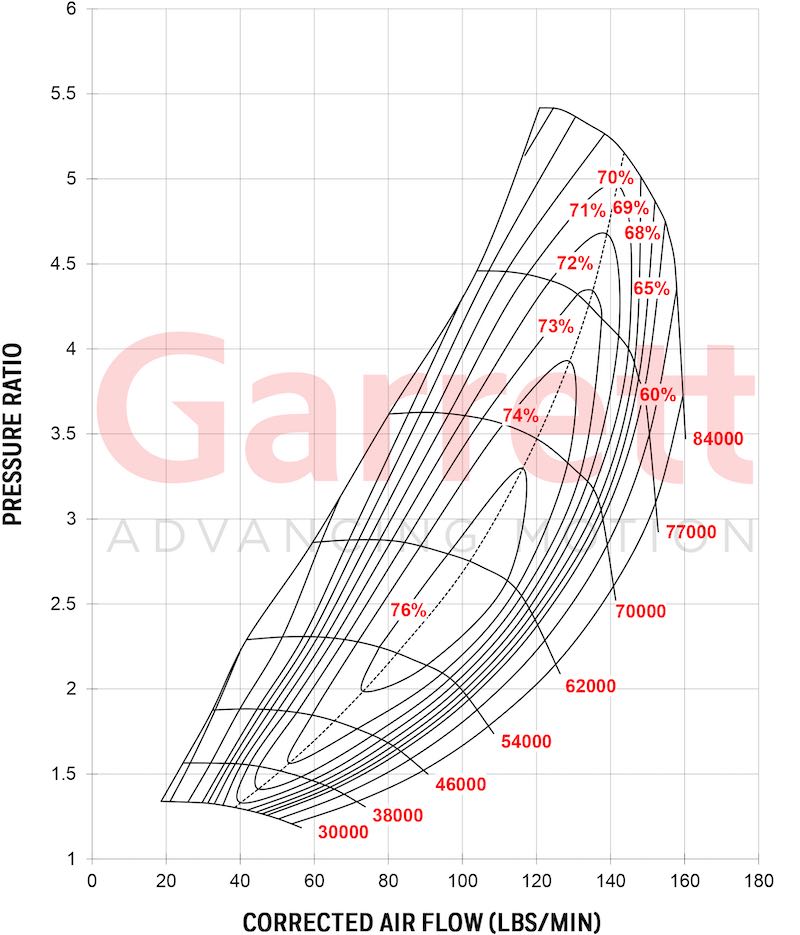

Compressor side:
Inducer ø
85.00mm
Exducer ø
133.00mm
Trim
41
A/R
0.88
Turbine side:
Inducer ø
112.00mm
Exducer ø
102.00mm
Trim
84
A/R
--
