GTX4709R Garrett 76mm Gen II Turbocharger 851285-5011S

GARRETT
Preview: GTX4709R Garrett 76mm Gen II Turbolader 851285-5011S Preview: GTX4709R Garrett 76mm Gen II Turbolader 851285-5011S Preview: GTX4709R Garrett 76mm Gen II Turbolader 851285-5011S Preview: GTX4709R Garrett 76mm Gen II Turbolader 851285-5011S
GTX4709R Garrett 76mm Gen II Turbolader 851285-5011S
GTX4709R Garrett 76mm Gen II Turbolader 851285-5011S
GTX4709R Garrett 76mm Gen II Turbolader 851285-5011S
GTX4709R Garrett 76mm Gen II Turbolader 851285-5011S

€3,403.50

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 851285-5011S
Description Maps Evaluations 0
Description
Horsepower: 825 - 1625 HP Displacement: 2.0 - 10.0L Gen II Aero forged milled compressor... more
Close menu
GTX4709R Garrett 76mm Gen II Turbocharger 851285-5011S

Horsepower: 825 - 1625 HP
Displacement: 2.0 - 10.0L

  • Gen II Aero forged milled compressor wheel
  • 15% increased flow
  • GTX4709R features a 109 mm comp exducer ( + 1mm) and has 39% lower inertia*
  • High-Flow Compressor Housing with integrated speed sensor port
  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • Compatible with GT and GTX turbine housings
  • External Wastegate
Compressor side:
Inducer ø
76.00mm		 Exducer ø
109.00mm		 Trim
49		 A/R
0.88
Turbine side:
Inducer ø
93.00mm		 Exducer ø
84.00mm		 Trim
82		 A/R
--
Available downloads:
Maps
more
Zurück

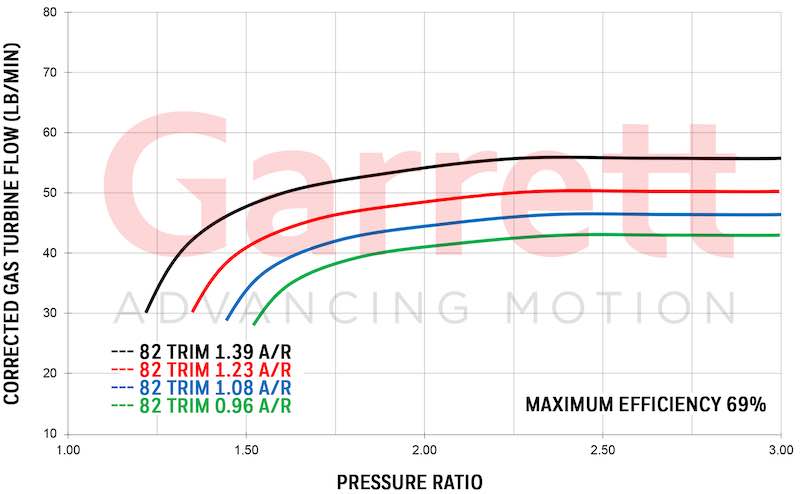

Turbine-Flow-GT47
