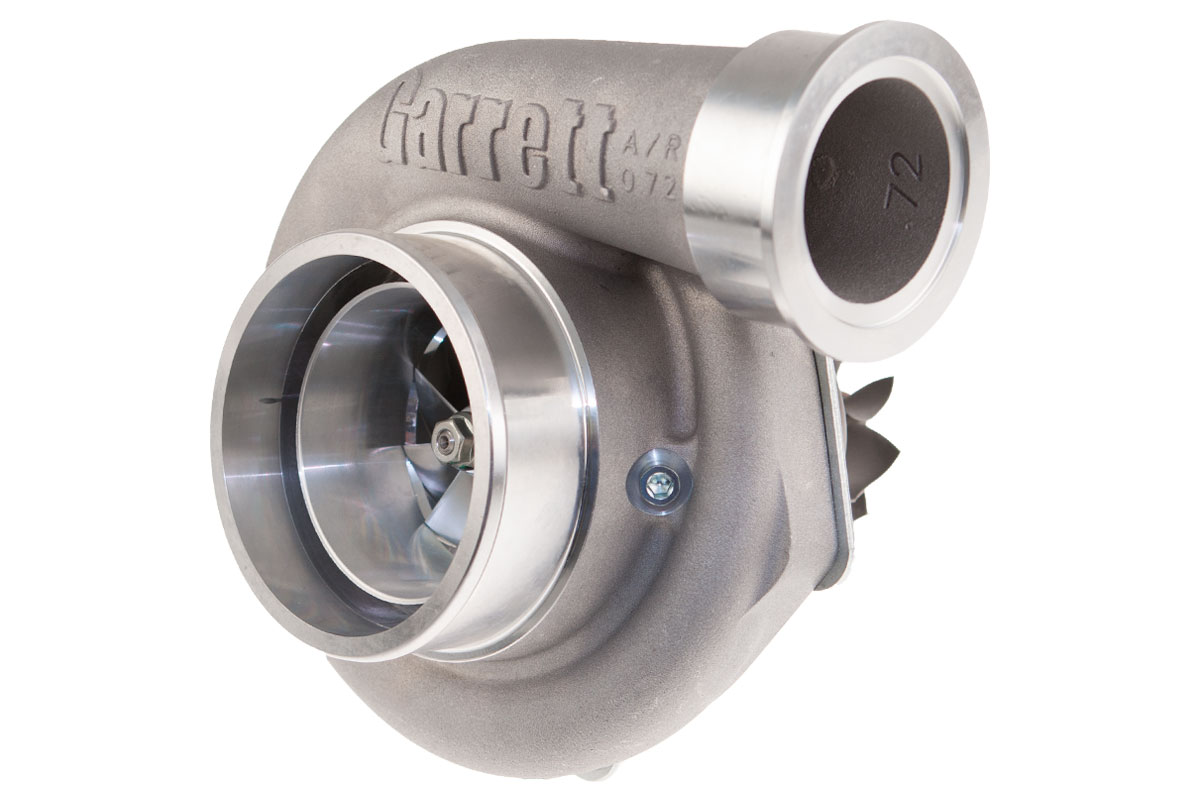

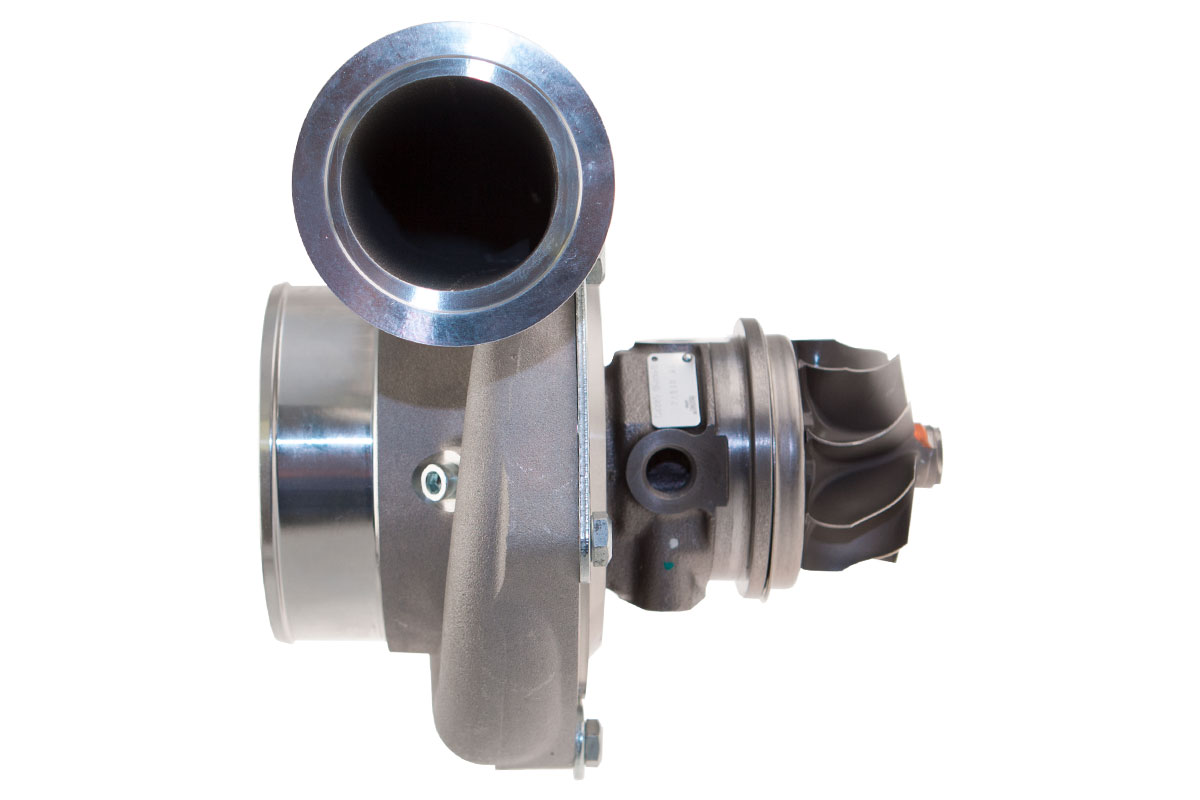

GTX3584RS Garrett Gen II Turbocharger 856804-5006S

€2,745.95
Content: 1 Stück

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 856804-5006S
Horsepower: 550 - 1000 HP Displacement: 2.0 - 5.5 L V-Band Inlet - V-Band Outlet - Single... more
GTX3584RS Garrett Gen II Turbocharger 856804-5006S

Horsepower: 550 - 1000 HP
Displacement: 2.0 - 5.5 L
V-Band Inlet - V-Band Outlet - Single Scroll - A/R 1.21

  • Compressor Outlet: V-Band
  • "S" Denotes High Horsepower turbine wheel
  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port

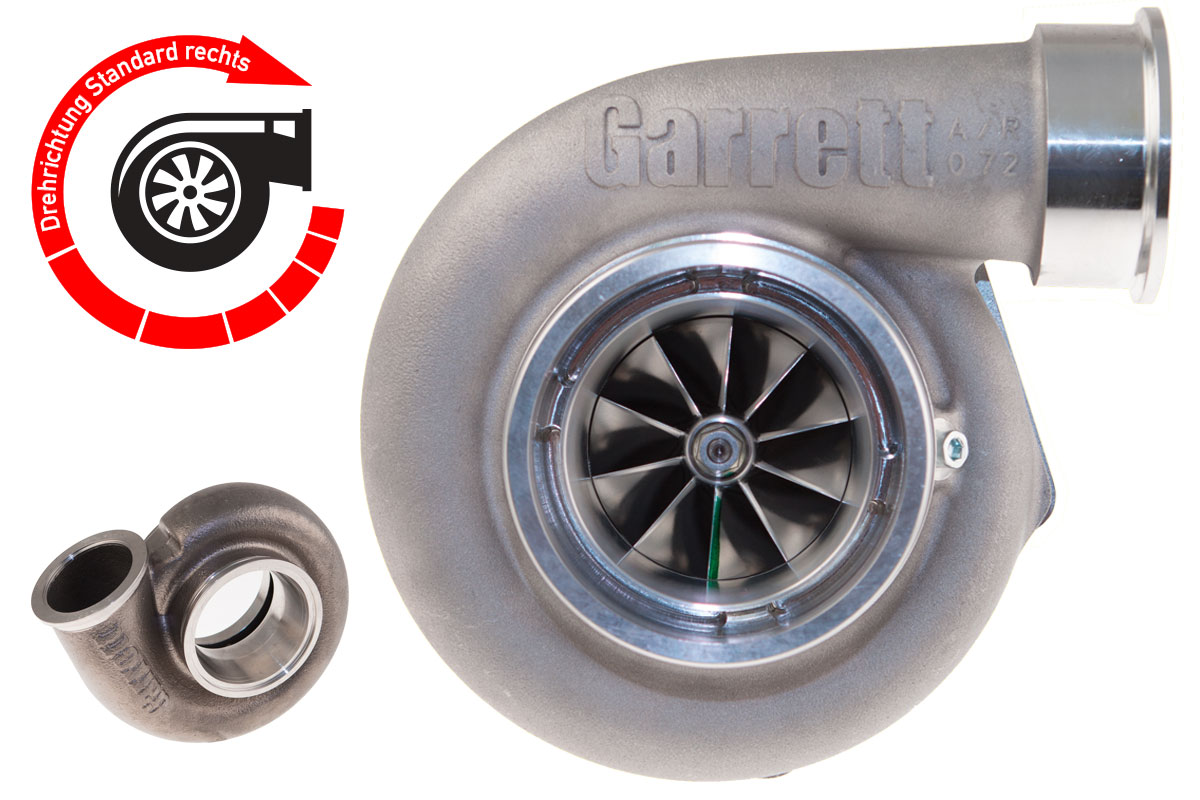

  • Rotation: Standard (Clockwise)

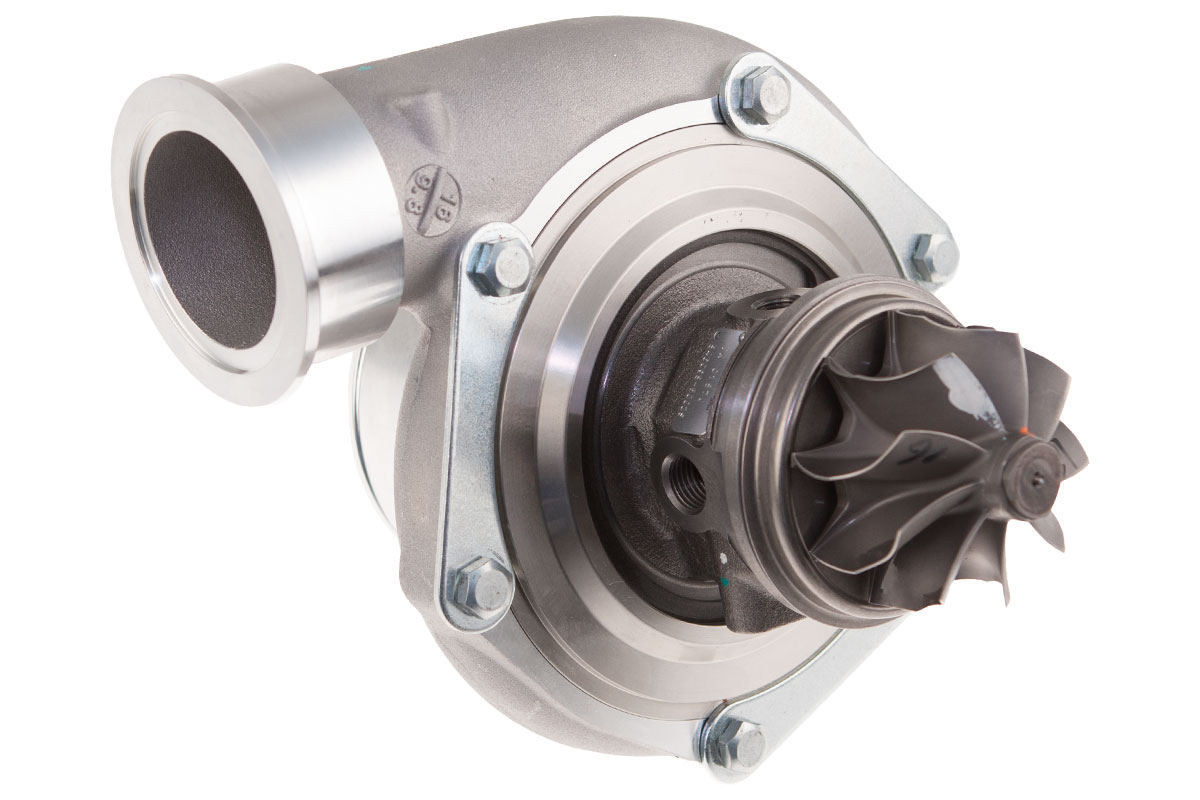

  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • External Wastegate
Compressor side:
Inducer ø
67.00mm
Exducer ø
84.00mm
Trim
64
A/R
0.72

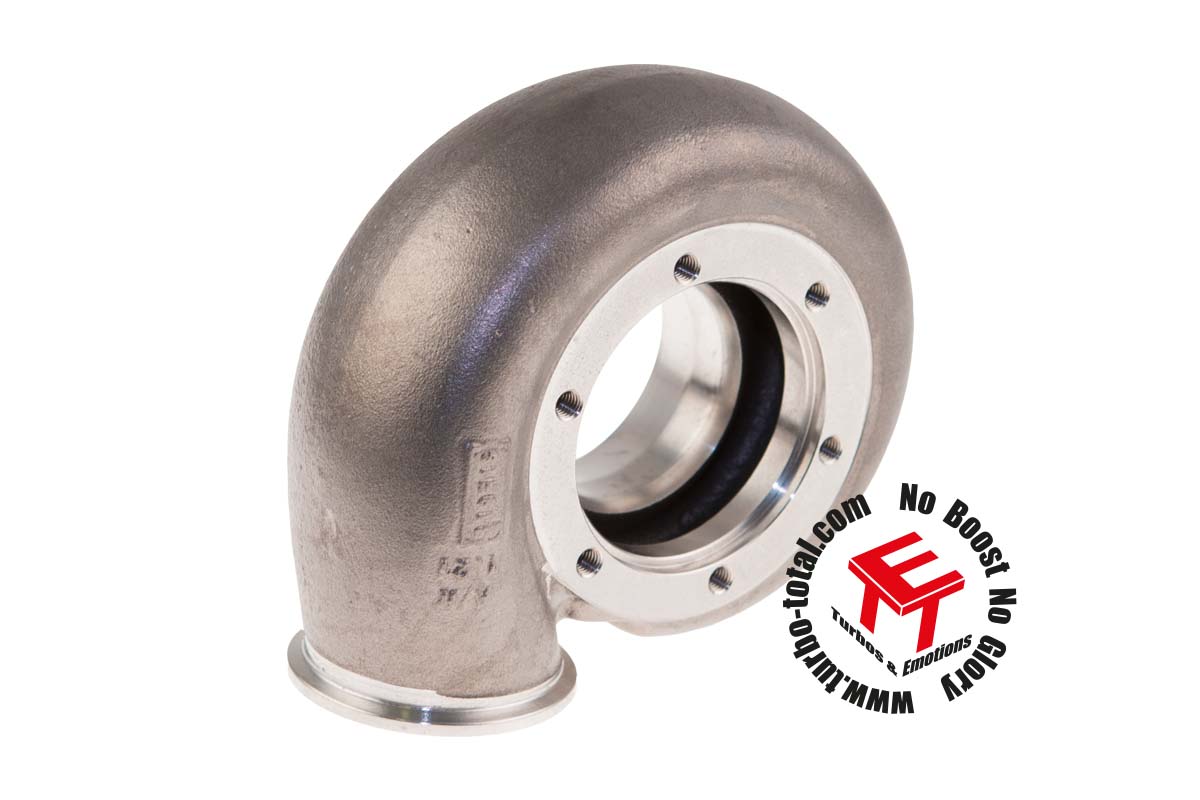

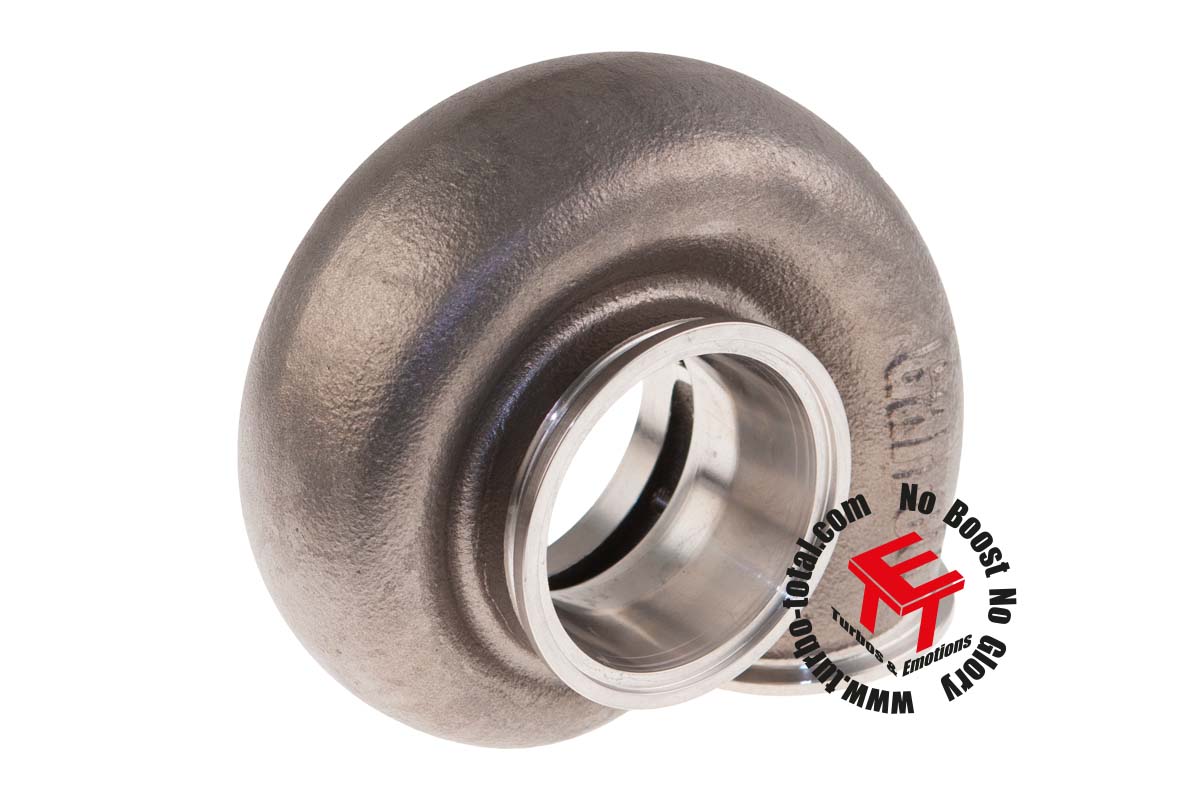

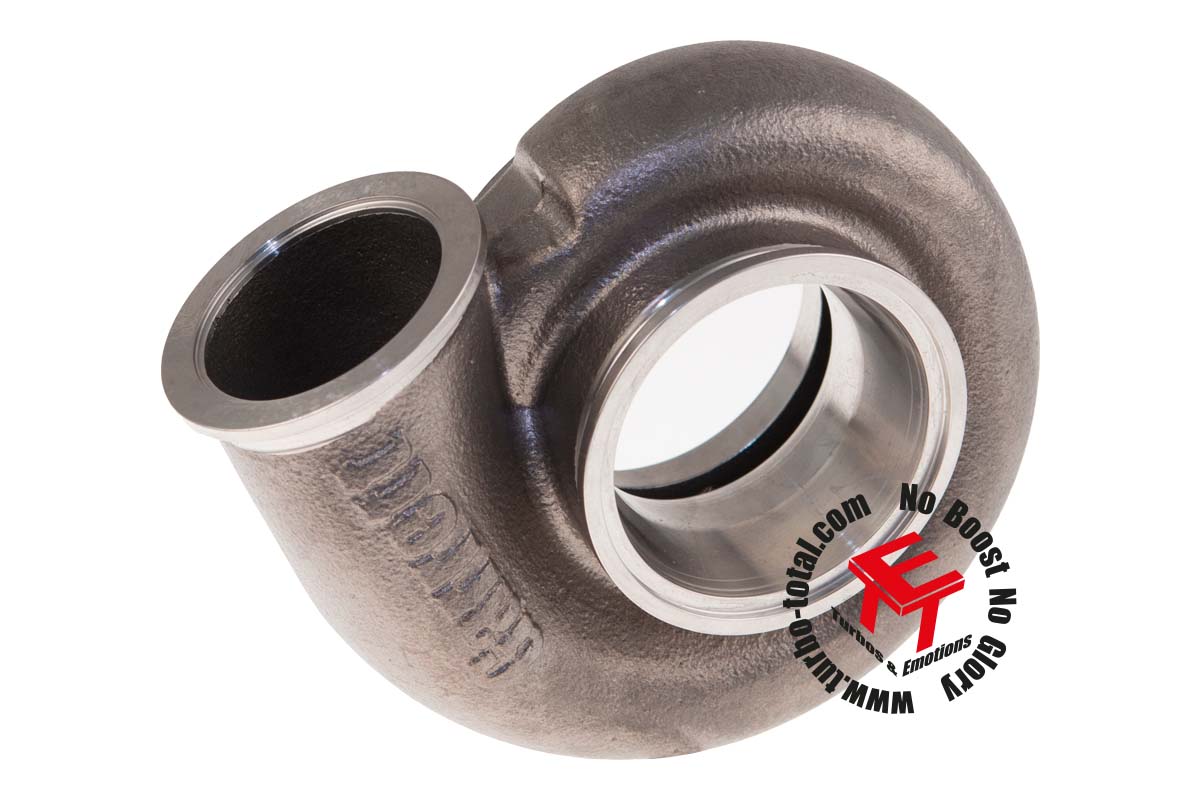

Turbine side:
Inducer ø
68.00mm
Exducer ø
62.00mm
Trim
84
A/R
1.21

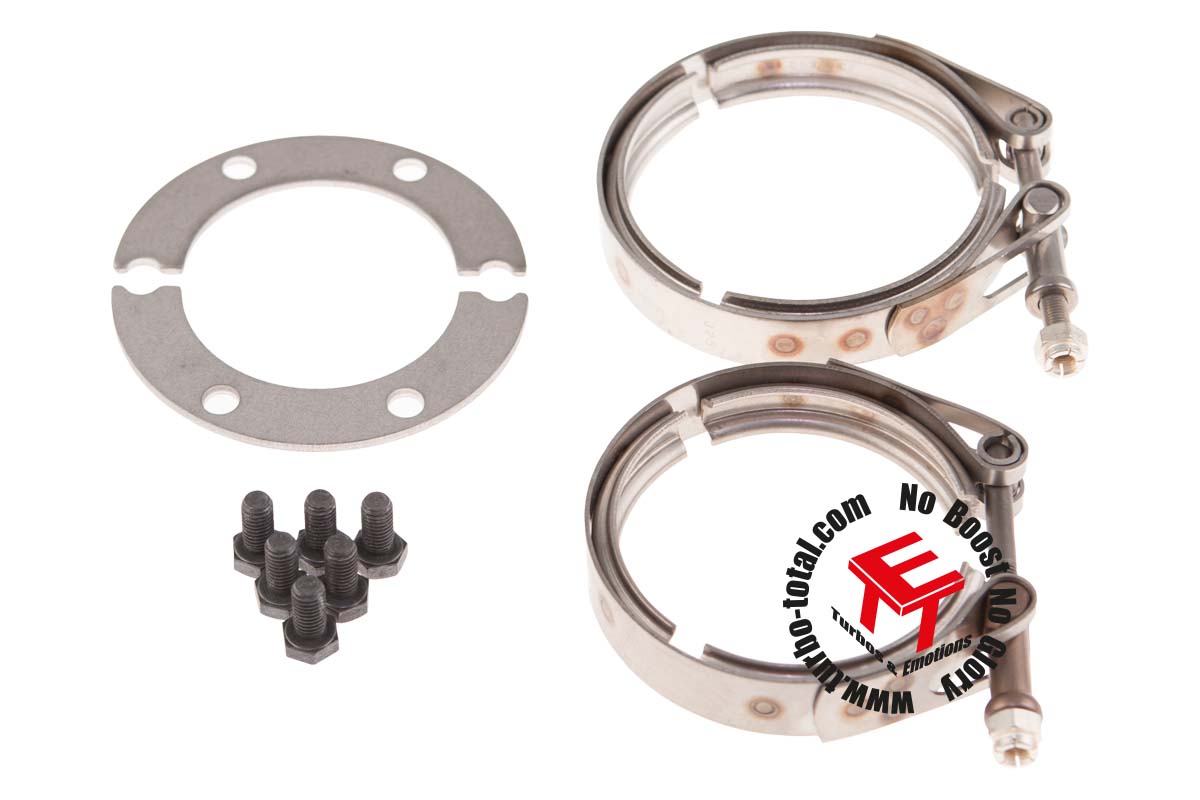

This set contains the following items:
