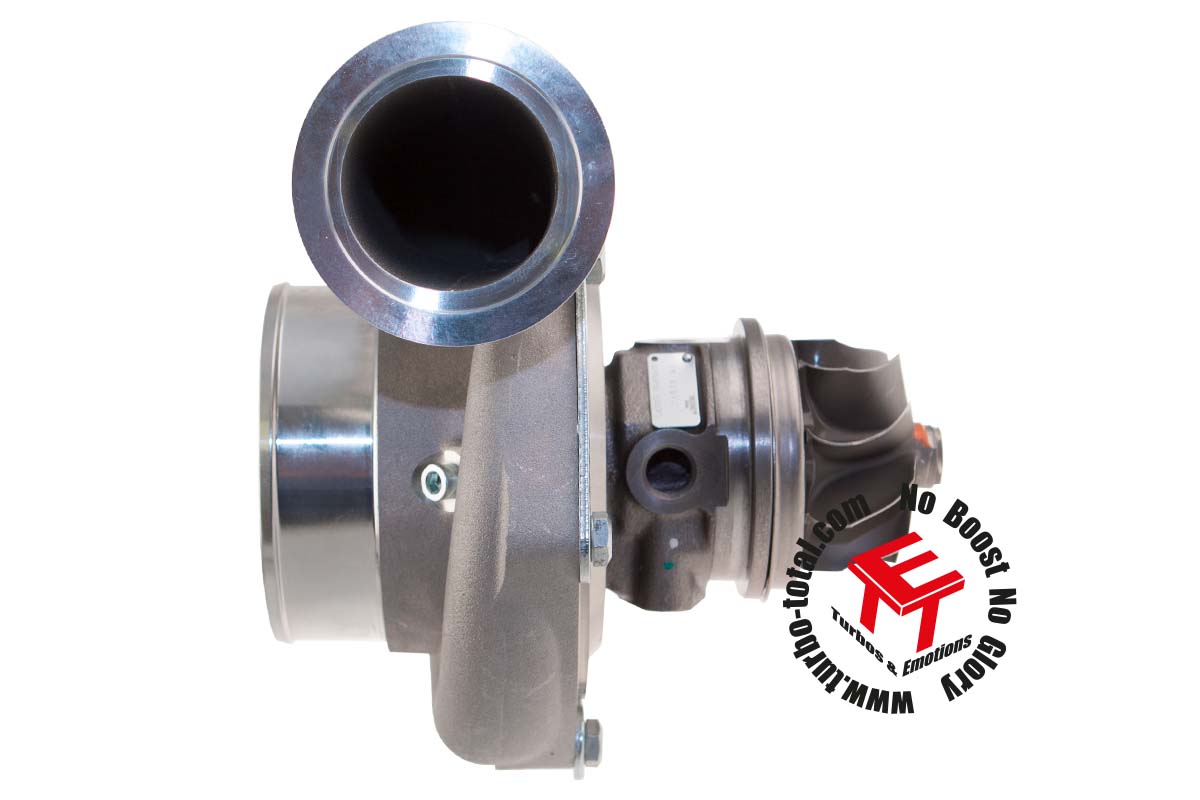

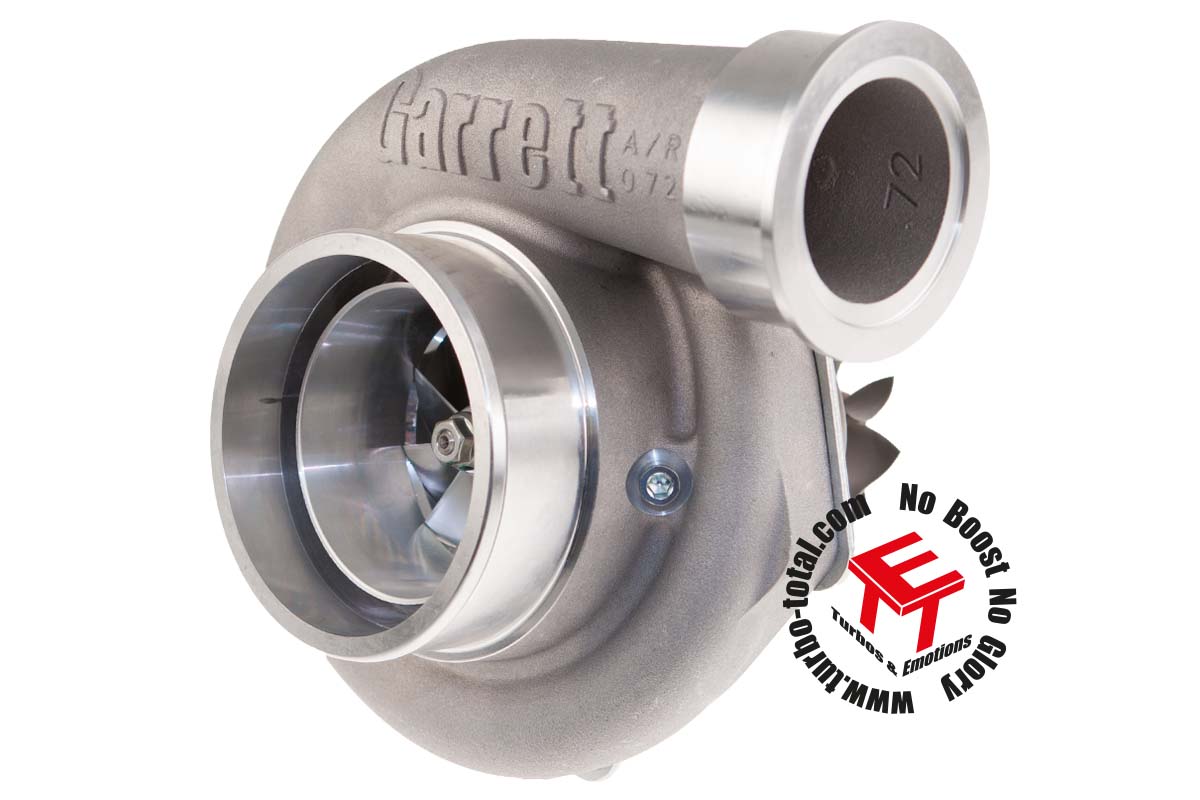

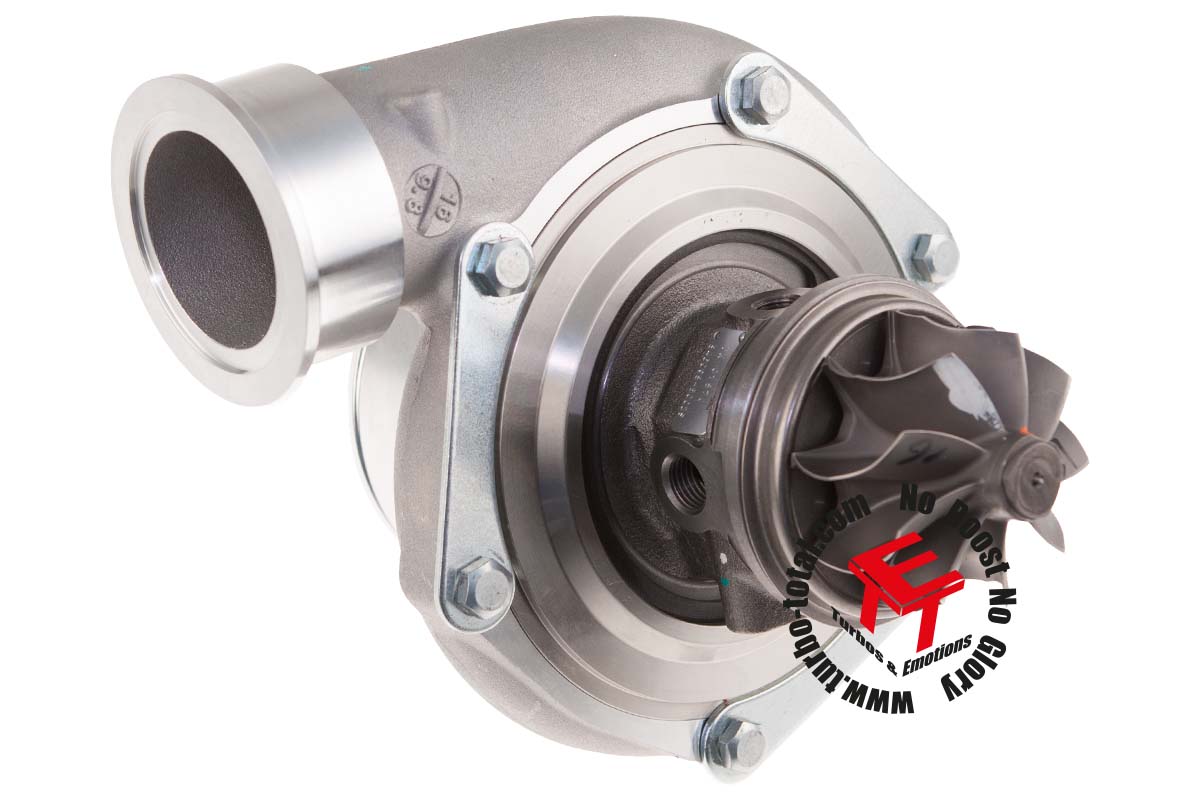

GTX3584RS Garrett Gen II Super Core 846098-5002S

GARRETT
Preview: GTX3584RS Garrett Gen II Super Core 846098-5002S Preview: GTX3584RS Garrett Gen II Super Core 846098-5002S Preview: GTX3584RS Garrett Gen II Super Core 846098-5002S Preview: GTX3584RS Garrett Gen II Super Core 846098-5002S
GTX3584RS Garrett Gen II Super Core 846098-5002S
GTX3584RS Garrett Gen II Super Core 846098-5002S
GTX3584RS Garrett Gen II Super Core 846098-5002S
GTX3584RS Garrett Gen II Super Core 846098-5002S

€2,111.85
Content: 1 Stück

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Buy at www.bartek.com
  • Order number: 846098-5002S
Description Maps Evaluations 0
Description
Horsepower: 550 - 1000 HP Displacement: 2.0 - 5.5 L Compressor Outlet: V-Band "S"... more
Close menu
GTX3584RS Garrett Gen II Super Core 846098-5002S

Horsepower: 550 - 1000 HP
Displacement: 2.0 - 5.5 L

  • Compressor Outlet: V-Band
  • "S" Denotes High Horsepower turbine wheel
  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port

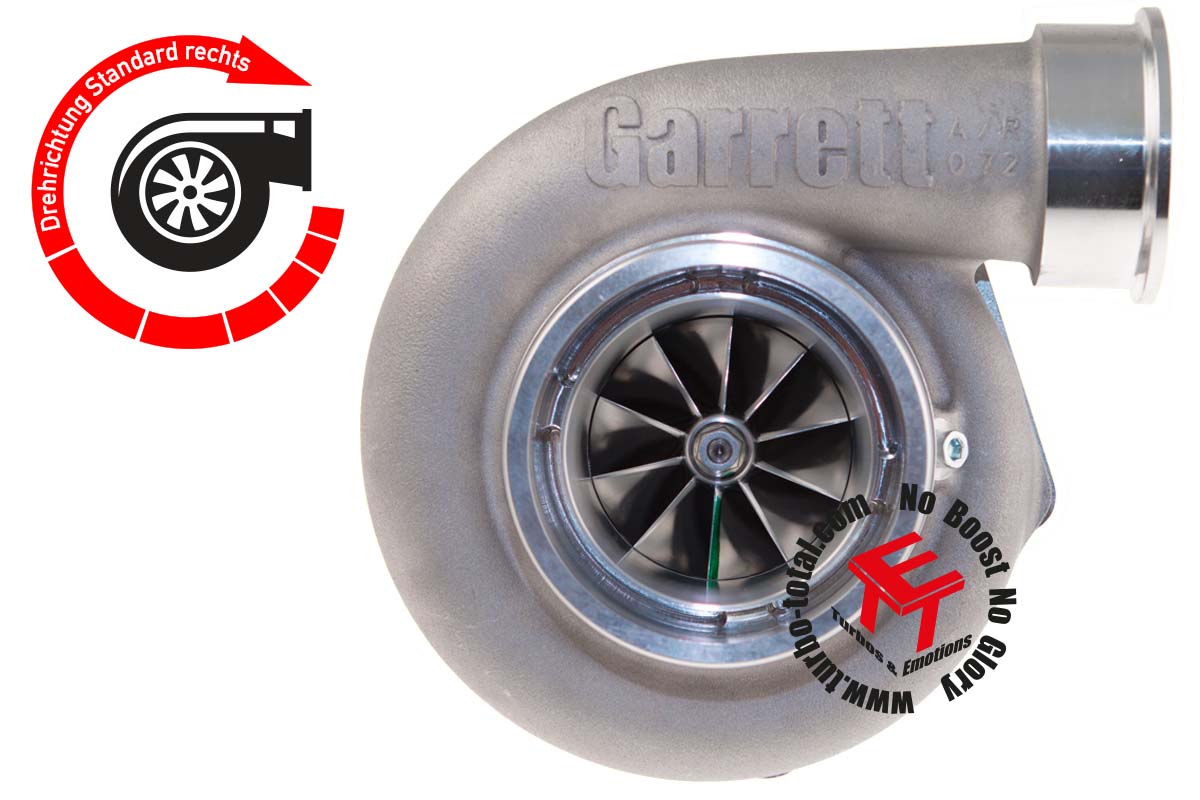

  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
Compressor side:
Inducer ø
67.00mm		 Exducer ø
84.00mm		 Trim
64		 A/R
0.72
Turbine side:
Inducer ø
68.00mm		 Exducer ø
62.00mm		 Trim
84		 A/R
--
Available downloads:
Maps
  more
Zurück

GTX3584_COMP_0s

GTX3584_FLOW_1s
