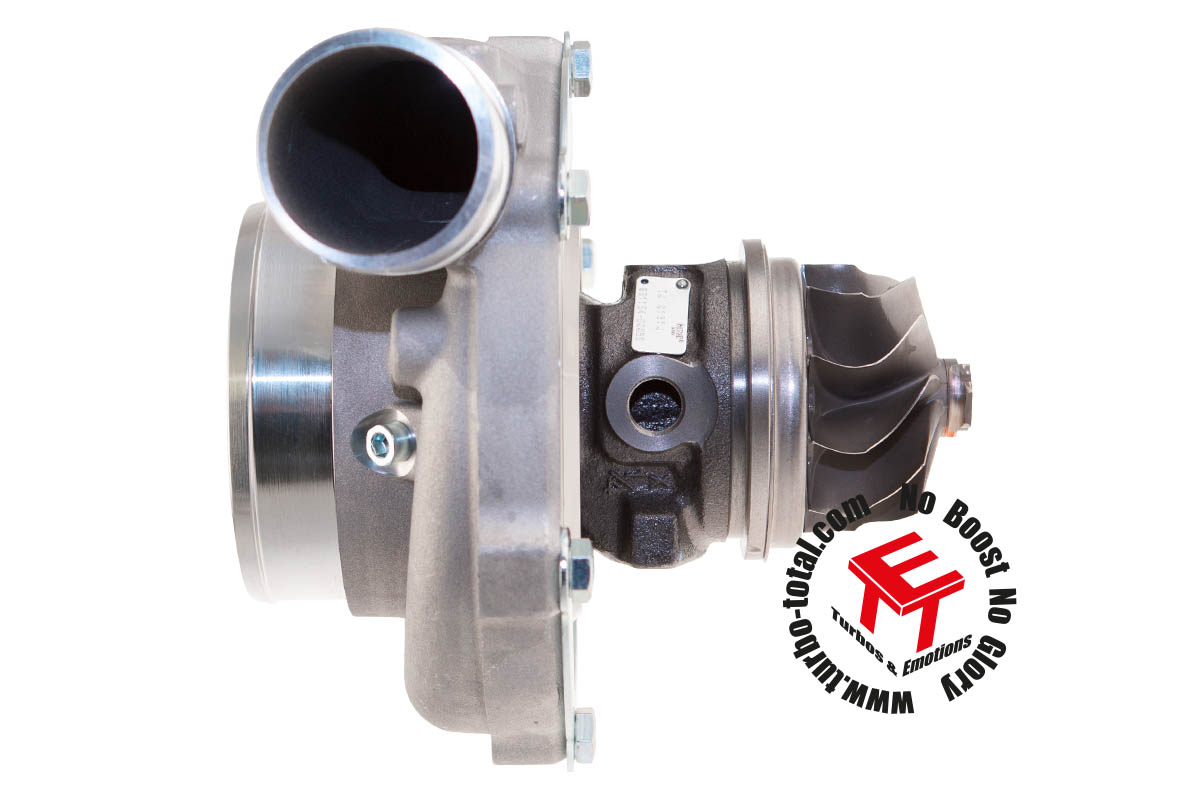

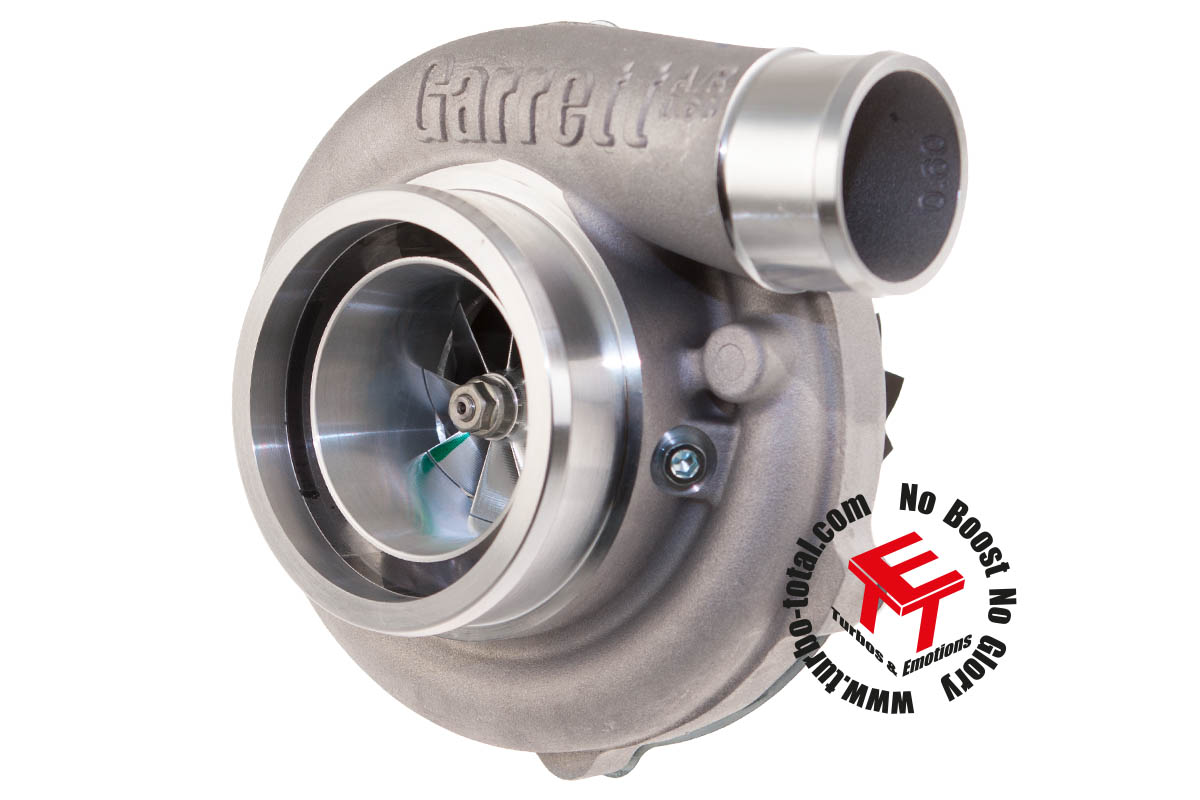

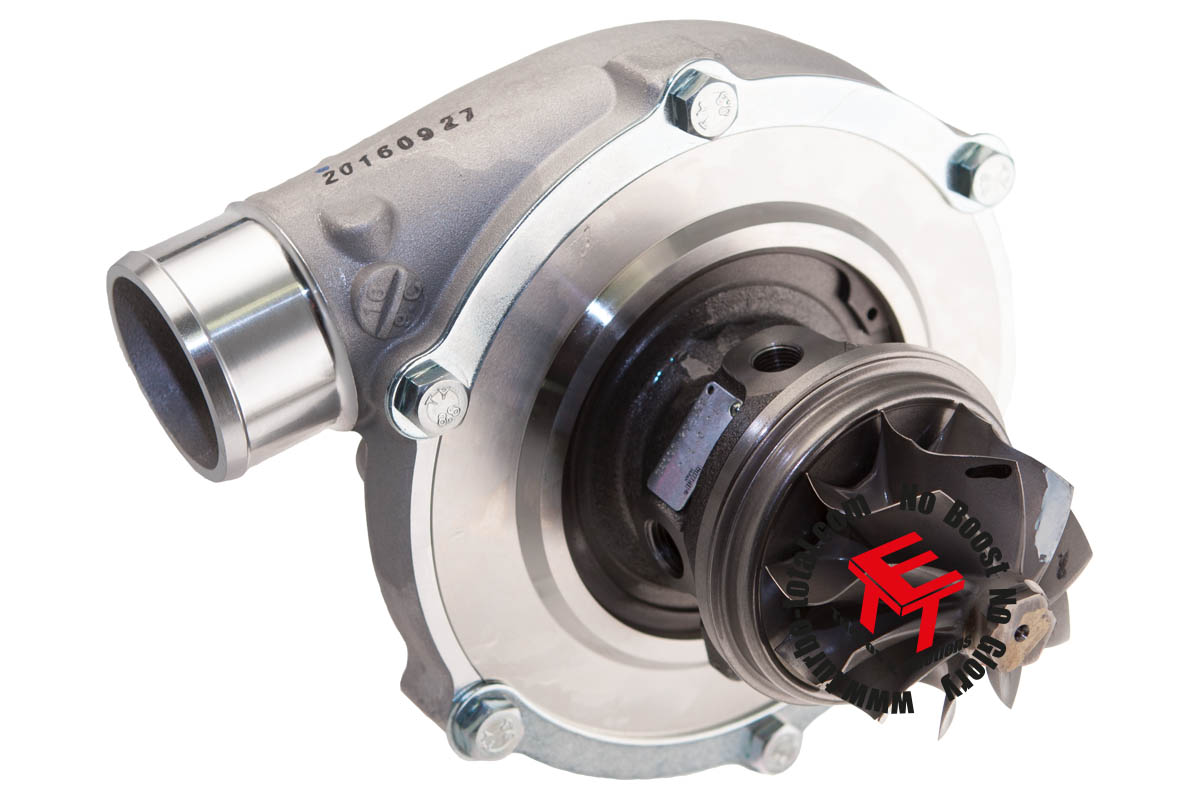

GTX3576R Garrett Gen II Turbocharger 856801-5049S

€2,423.05
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 856801-5049S
Horsepower: 400 - 750 HP Displacement: 2.0 - 4.5 L T4 Inlet - V-Band Outlet - Single... more
GTX3576R Garrett Gen II Turbocharger 856801-5049S

Horsepower: 400 - 750 HP
Displacement: 2.0 - 4.5 L

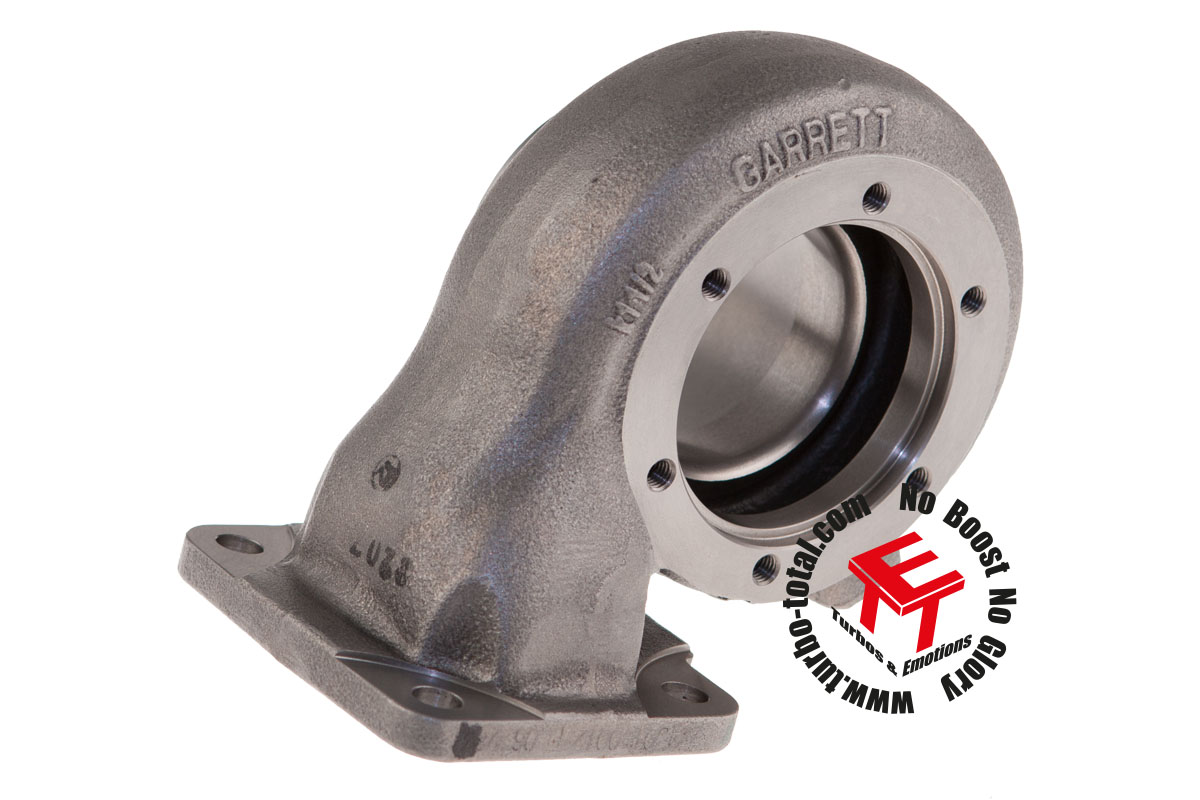

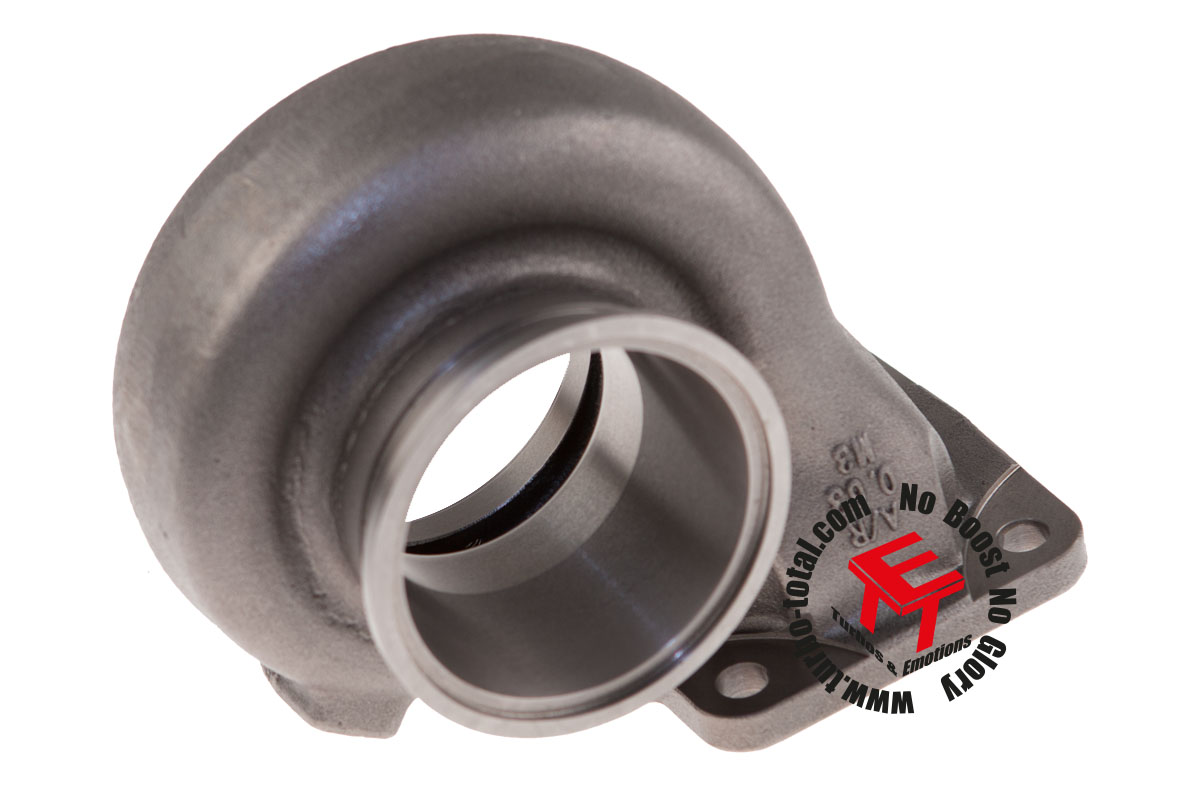

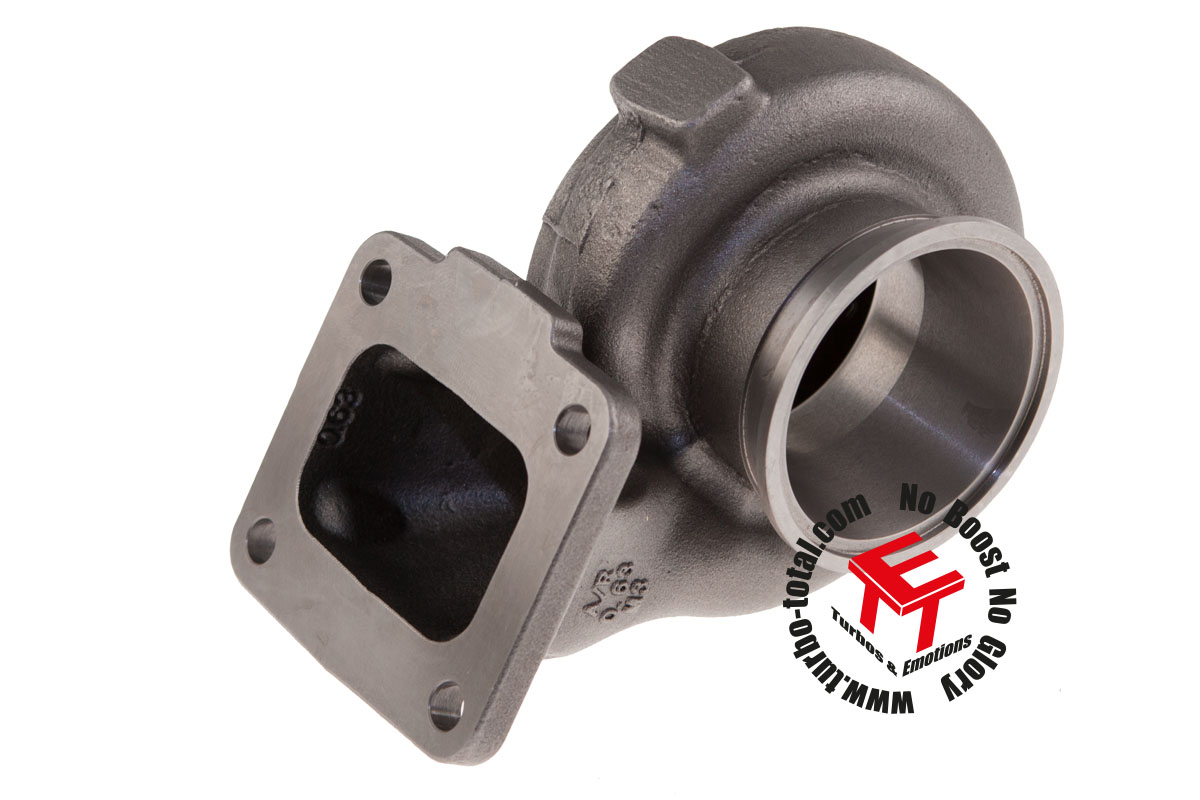

T4 Inlet - V-Band Outlet - Single Scroll - A/R 1.06

  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port

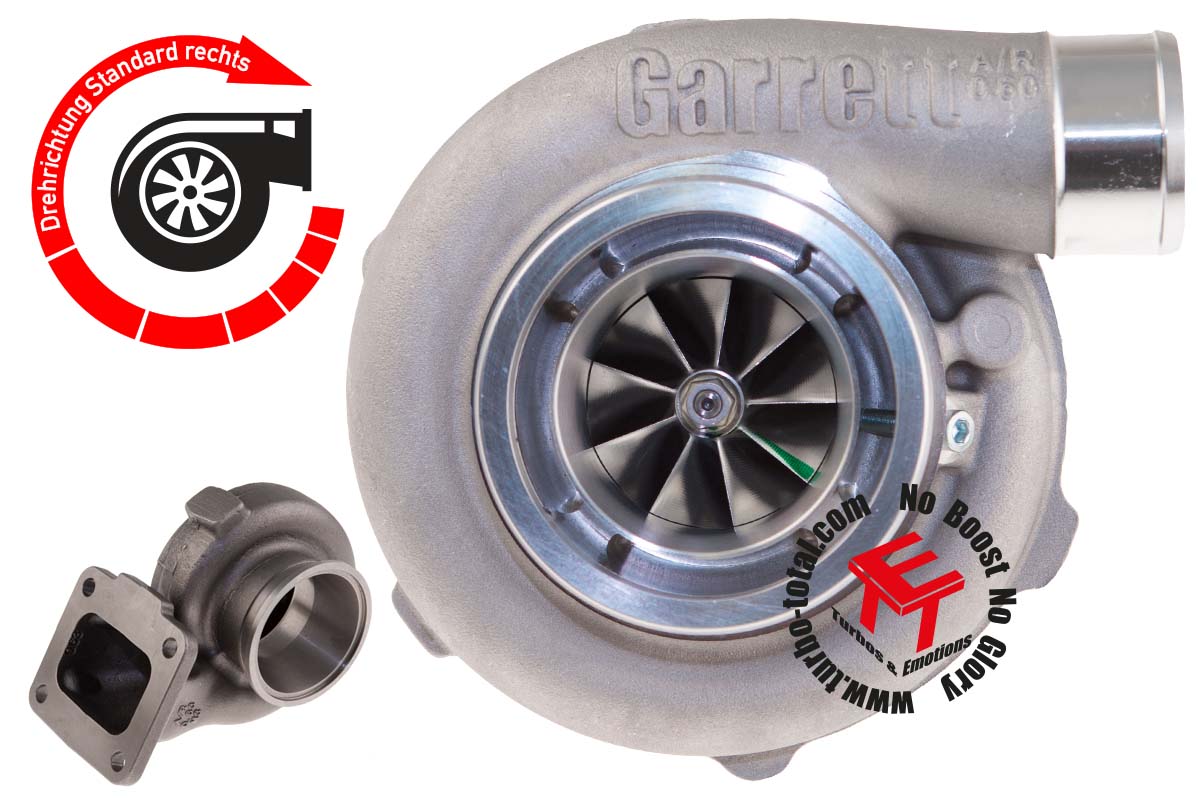

  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • External Wastegate
  • Replaces: 836047-5001S
Compressor side:
Inducer ø
58.00mm
Exducer ø
76.00mm
Trim
58
A/R
0.60
Turbine side:
Inducer ø
68.00mm
Exducer ø
62.00mm
Trim
84
A/R
1.06

This set contains the following items:
