GTX3576R Garrett Gen II Super Core Reverse 844626-5003S

GARRETT
Preview: GTX3582R Garrett Gen II Super Core Reverse 844626-5004S Preview: GTX3582R Garrett Gen II Super Core Reverse 844626-5004S Preview: GTX3582R Garrett Gen II Super Core Reverse 844626-5004S Preview: GTX3582R Garrett Gen II Super Core Reverse 844626-5004S

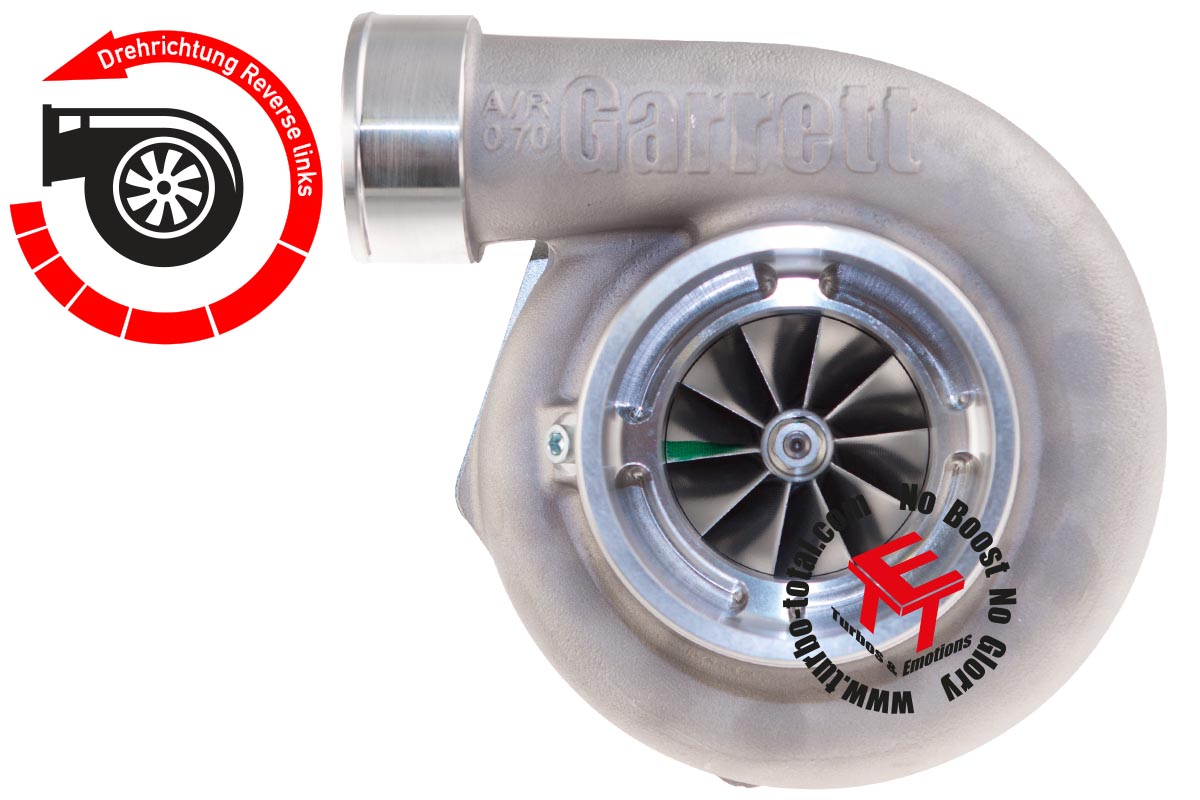

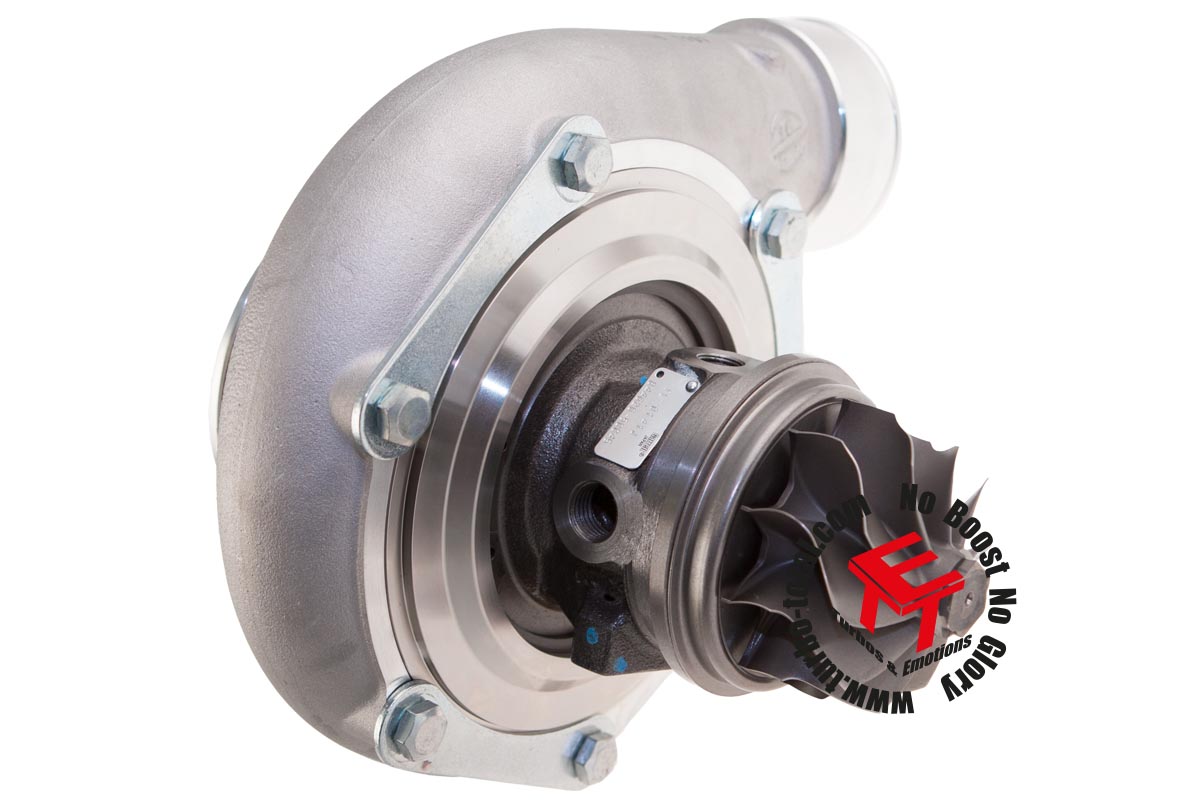

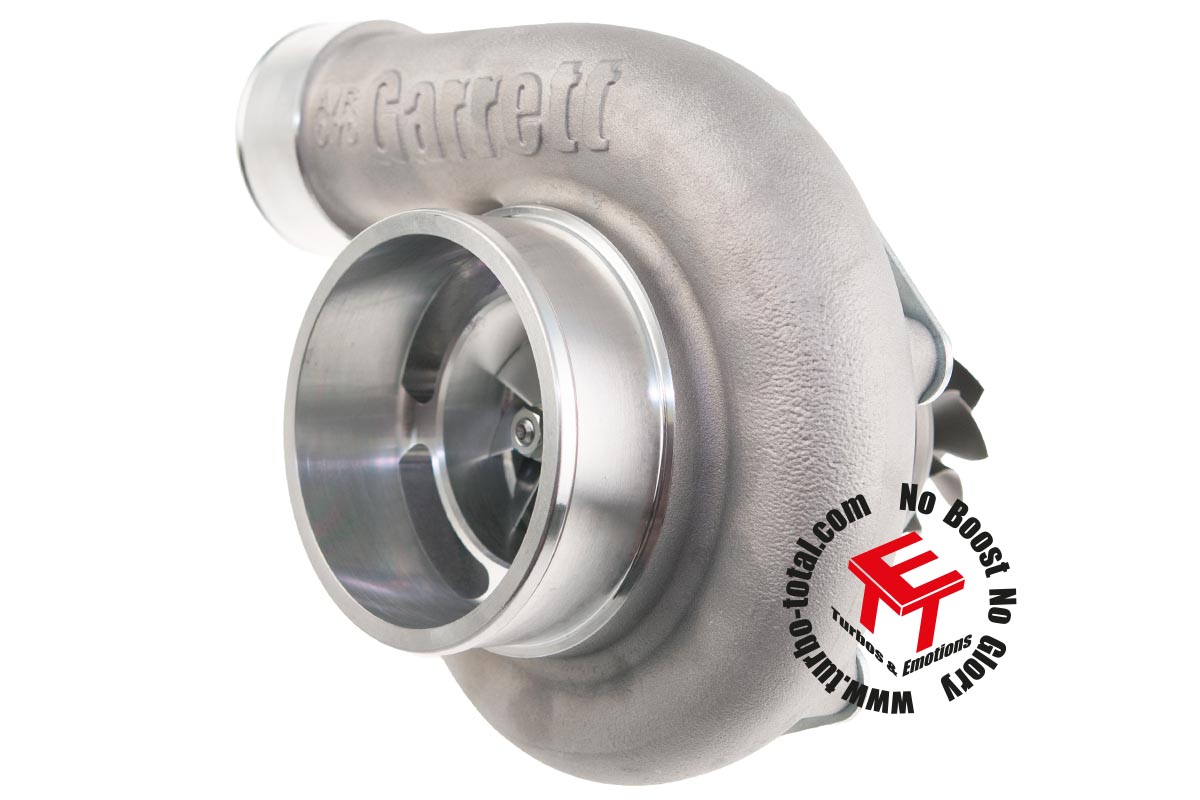

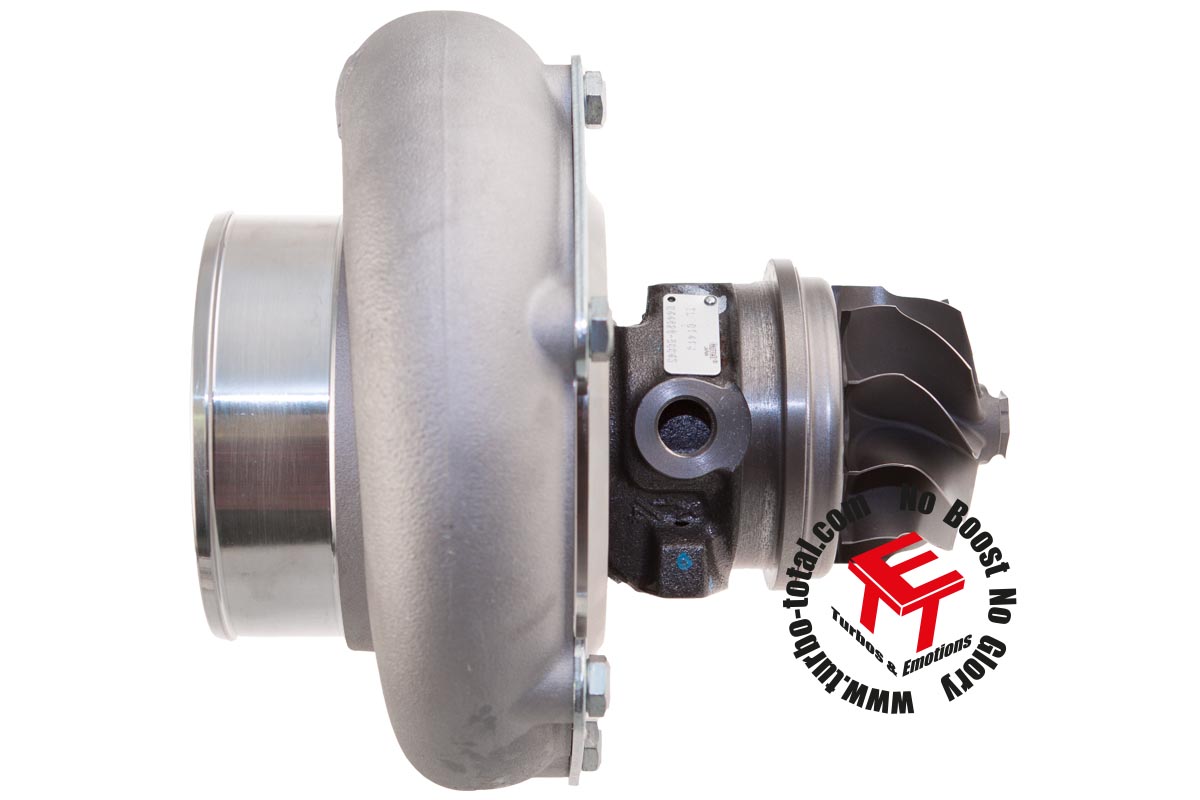

GTX3582R Garrett Gen II Super Core Reverse 844626-5004S
GTX3582R Garrett Gen II Super Core Reverse 844626-5004S
GTX3582R Garrett Gen II Super Core Reverse 844626-5004S
GTX3582R Garrett Gen II Super Core Reverse 844626-5004S

€2,032.25
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 844626-5004S
Description Maps Evaluations 0
Description
Horsepower: 450 - 850 HP Displacement: 2.0 - 4.5 L Gen II Aero forged milled compressor... more
Close menu
GTX3576R Garrett Gen II Super Core Reverse 844626-5003S

Horsepower: 450 - 850 HP
Displacement: 2.0 - 4.5 L

  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port
  • Rotation: Reverse (Counterclockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
Compressor side:
Inducer ø
66.00mm		 Exducer ø
83.00mm		 Trim
64		 A/R
0.70
Turbine side:
Inducer ø
68.00mm		 Exducer ø
62.00mm		 Trim
84		 A/R
--
Available downloads:
Maps
more
Zurück

GTX3582R_COMPKLGTX3582R_FLOWKL
