GTX3576R Garrett CHRA 836019-5001S - 706451-5035S

GARRETT
Preview: GTX3576R Garrett Rumpfgruppe 836019-5001S - 706451-5035S Preview: GTX3576R Garrett Rumpfgruppe 836019-5001S - 706451-5035S Preview: GTX3576R Garrett Rumpfgruppe 836019-5001S - 706451-5035S
GTX3576R Garrett Rumpfgruppe 836019-5001S - 706451-5035S
GTX3576R Garrett Rumpfgruppe 836019-5001S - 706451-5035S
GTX3576R Garrett Rumpfgruppe 836019-5001S - 706451-5035S

€1,922.00

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 836019-5001S
Description Evaluations 0
Description
Power rating:  400 - 600 HP Displacement:  2,0 - 4,5L Dual ceramic ball bearing assembly... more
Close menu
GTX3576R Garrett CHRA 836019-5001S - 706451-5035S

Power rating: 400 - 600 HP
Displacement: 2,0 - 4,5L

  • Dual ceramic ball bearing assembly with metal cage

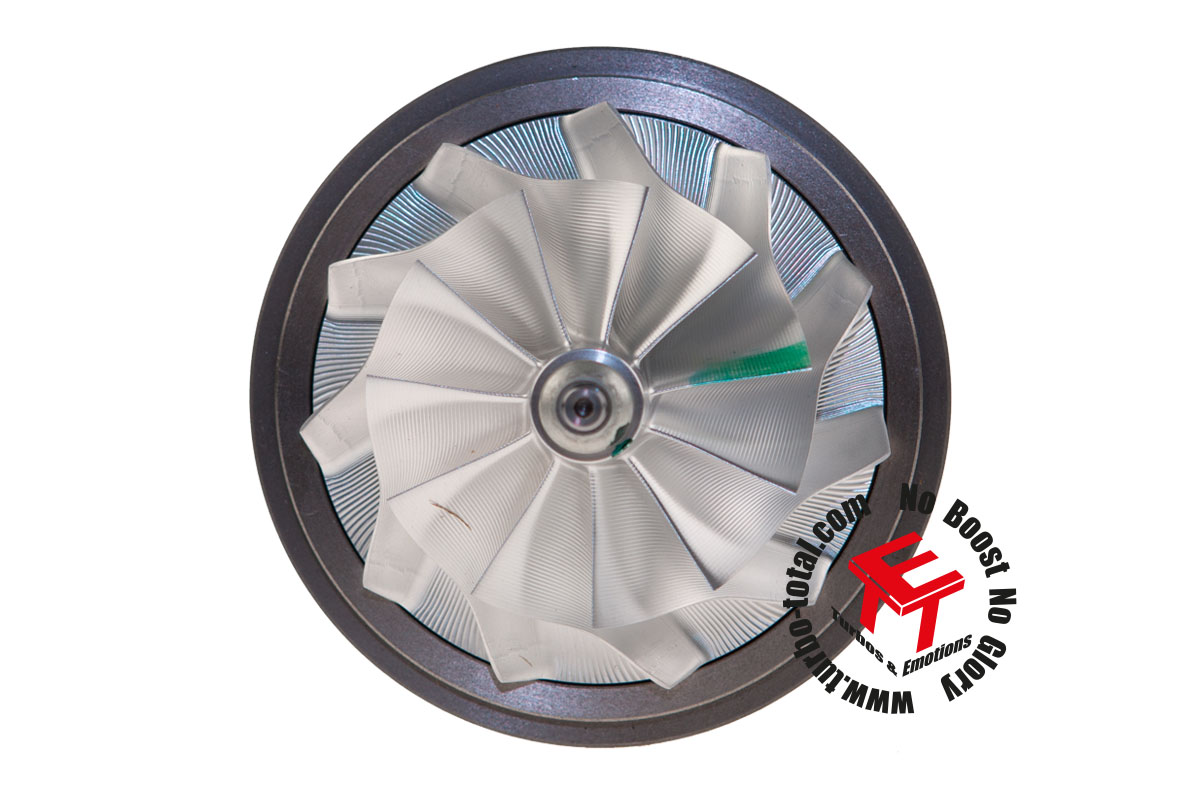

  • Forged Milled Compressor Wheel
  • Inconel Turbine Wheel
  • Water- and Oil cooled
  • Old Number: 706451-5035S
Compressor side:
Inducer ø
58,00mm		 Exducer ø
76,60mm		 Trim
58		 A/R
--
Turbine side:
Inducer ø
68,00mm		 Exducer ø
62,20mm		 Trim
84		 A/R
--
