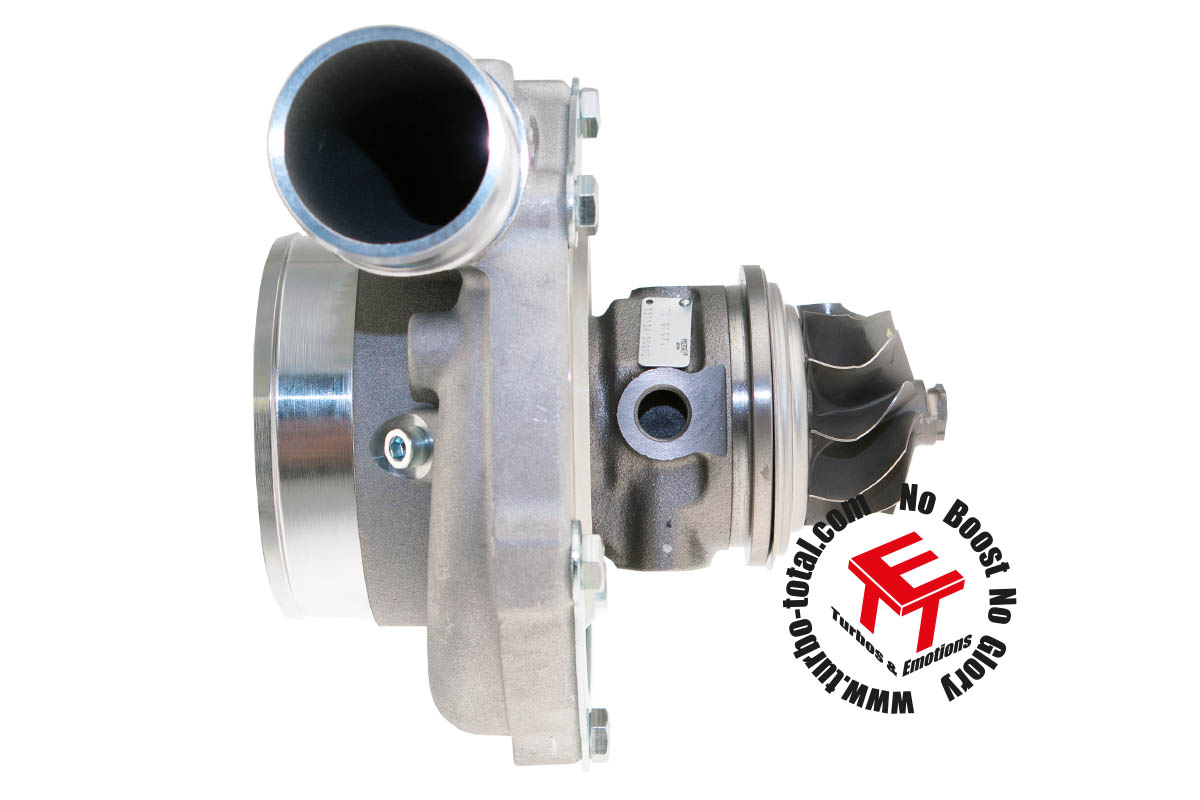

GTX3076R Garrett Gen II Turbocharger 856801-5041S

GARRETT
Preview: GTX3076R Garrett Gen II Turbolader 856801-5041S Preview: GTX3076R Garrett Gen II Turbolader 856801-5041S Preview: GTX3076R Garrett Gen II Turbolader 856801-5041S Preview: GTX3076R Garrett Gen II Turbolader 856801-5041S Preview: GTX3076R Garrett Gen II Turbolader 856801-5041S Preview: GTX3076R Garrett Gen II Turbolader 856801-5041S Preview: GTX3076R Garrett Gen II Turbolader 856801-5041S Preview: GTX3076R Garrett Gen II Turbolader 856801-5041S
GTX3076R Garrett Gen II Turbolader 856801-5041S
GTX3076R Garrett Gen II Turbolader 856801-5041S
GTX3076R Garrett Gen II Turbolader 856801-5041S
GTX3076R Garrett Gen II Turbolader 856801-5041S
GTX3076R Garrett Gen II Turbolader 856801-5041S
GTX3076R Garrett Gen II Turbolader 856801-5041S
GTX3076R Garrett Gen II Turbolader 856801-5041S
GTX3076R Garrett Gen II Turbolader 856801-5041S

€2,113.00
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

Buy at www.bartek.com
  • Order number: 856801-5041S
Description Drawings Maps Evaluations 0
Description
Horsepower: 400 - 750 HP Displacement: 1.8 - 3.0 L T3 Inlet - 5-Bold Outlet - Single... more
Close menu

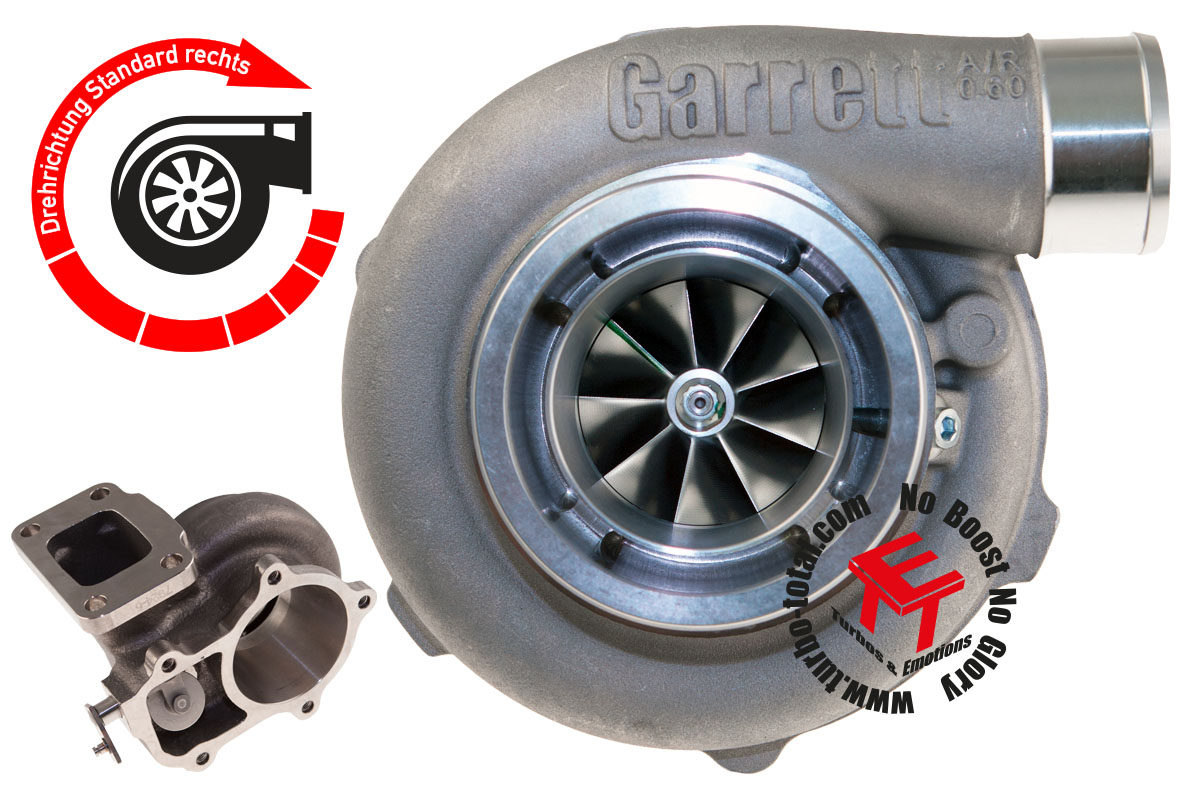

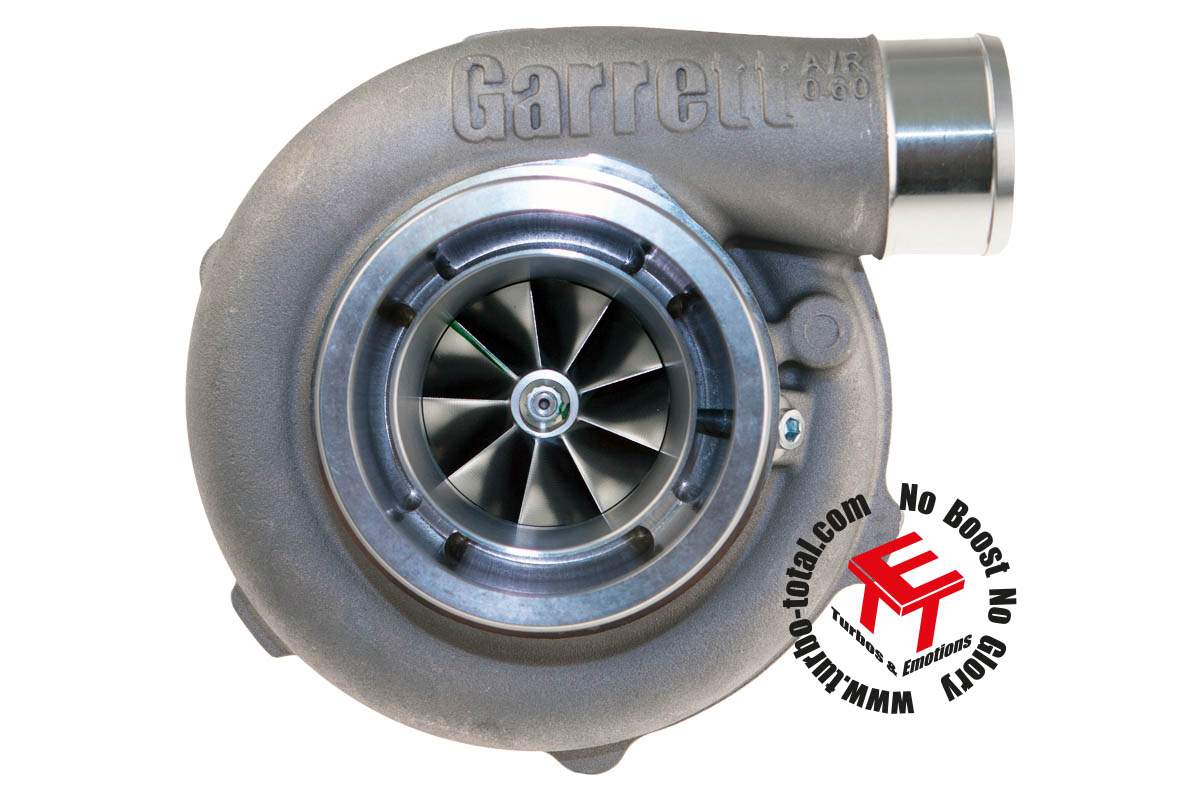

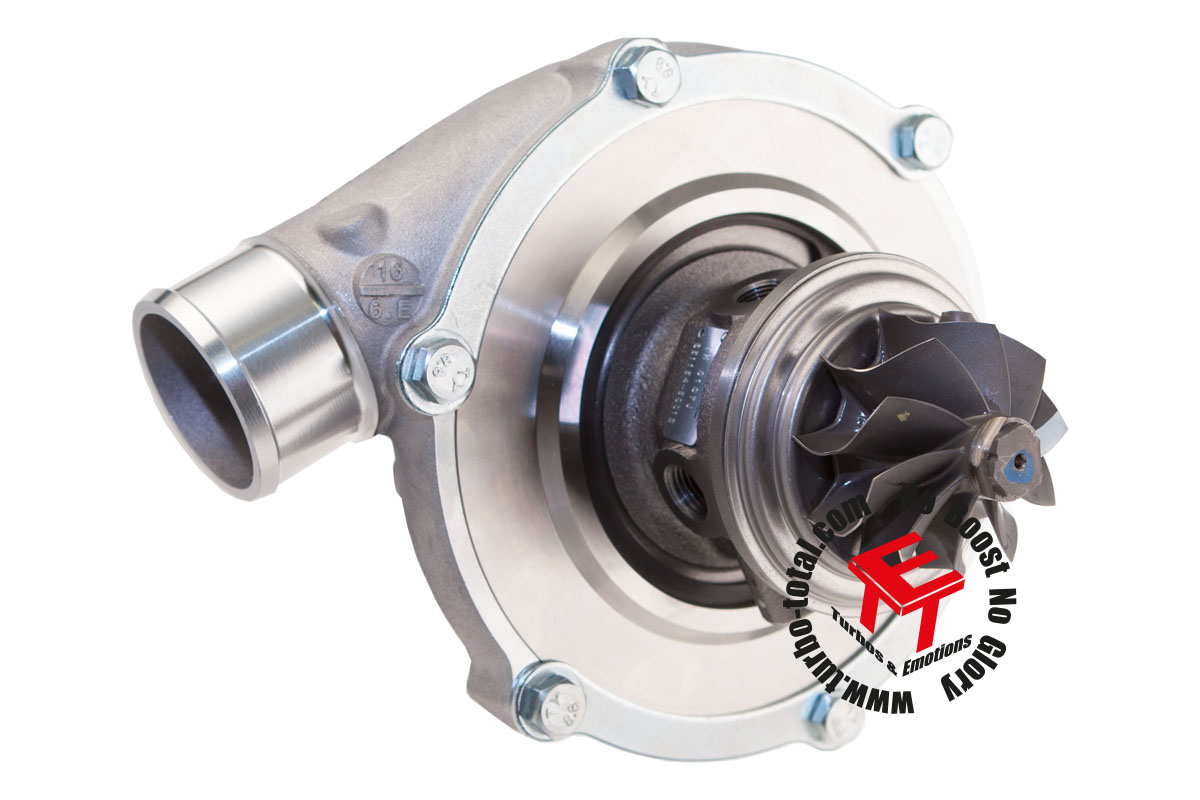

GTX3076R Garrett Gen II Turbocharger 856801-5041S

Horsepower: 400 - 750 HP
Displacement: 1.8 - 3.0 L
T3 Inlet - 5-Bold Outlet - Single Scroll - A/R 0.82

  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port
  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • Internal Wastegate
  • Replaces: 836042-5003S
Compressor side:
Inducer ø
58.00mm		 Exducer ø
76.00mm		 Trim
58		 A/R
0.60
Turbine side:
Inducer ø
60.00mm		 Exducer ø
55.00mm		 Trim
84		 A/R
0.82

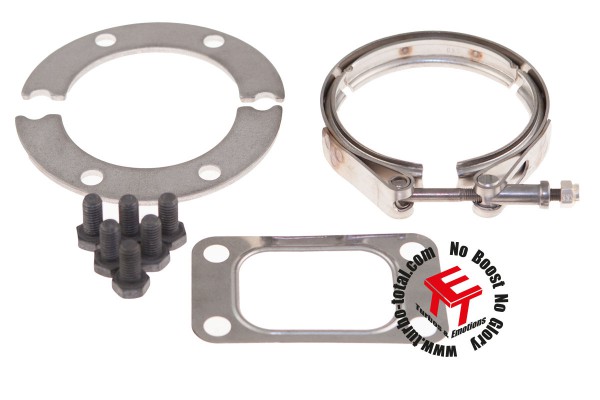

This set contains the following items:

Available downloads:
Drawings
more
Zurück

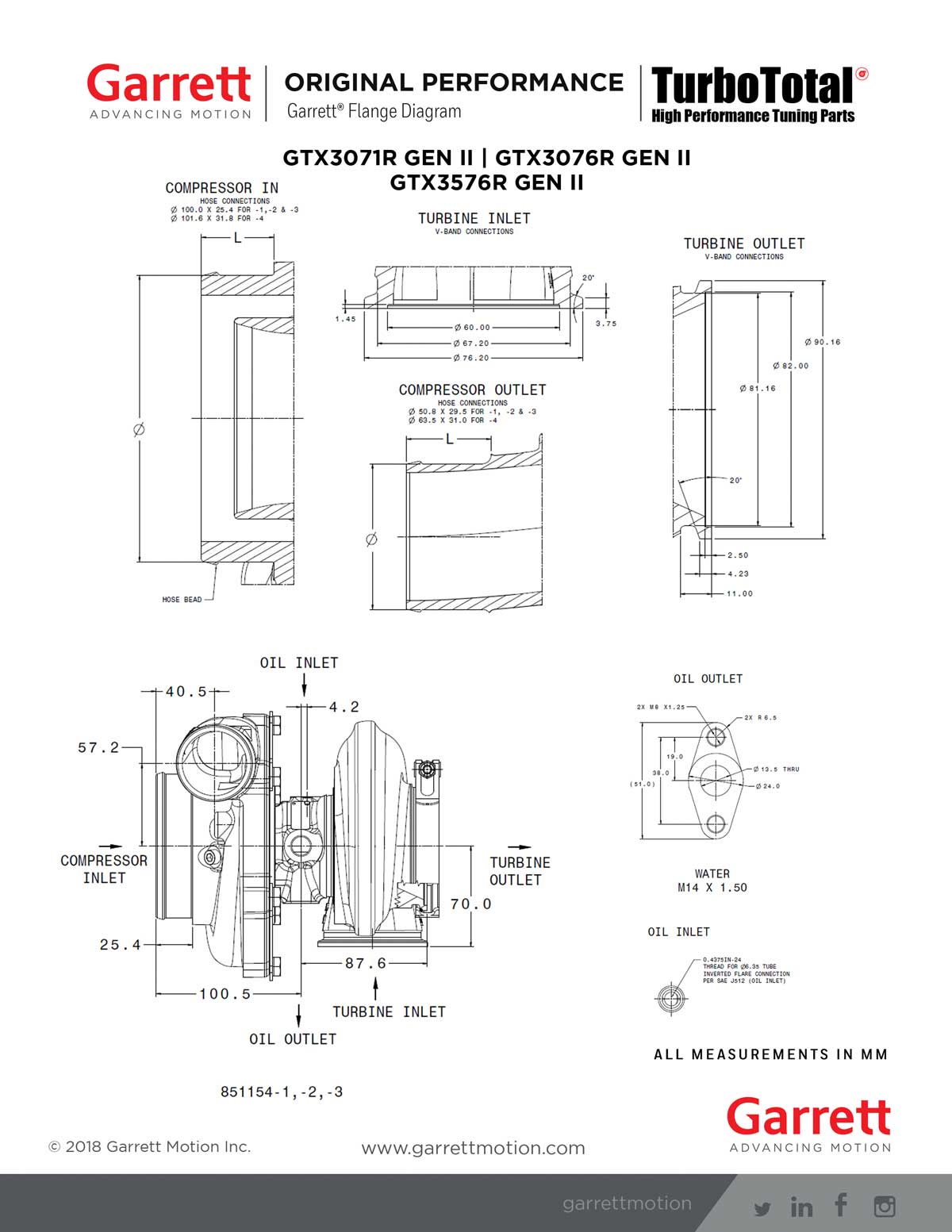

GTX3076R_DIAGRAM

Maps
more
Zurück

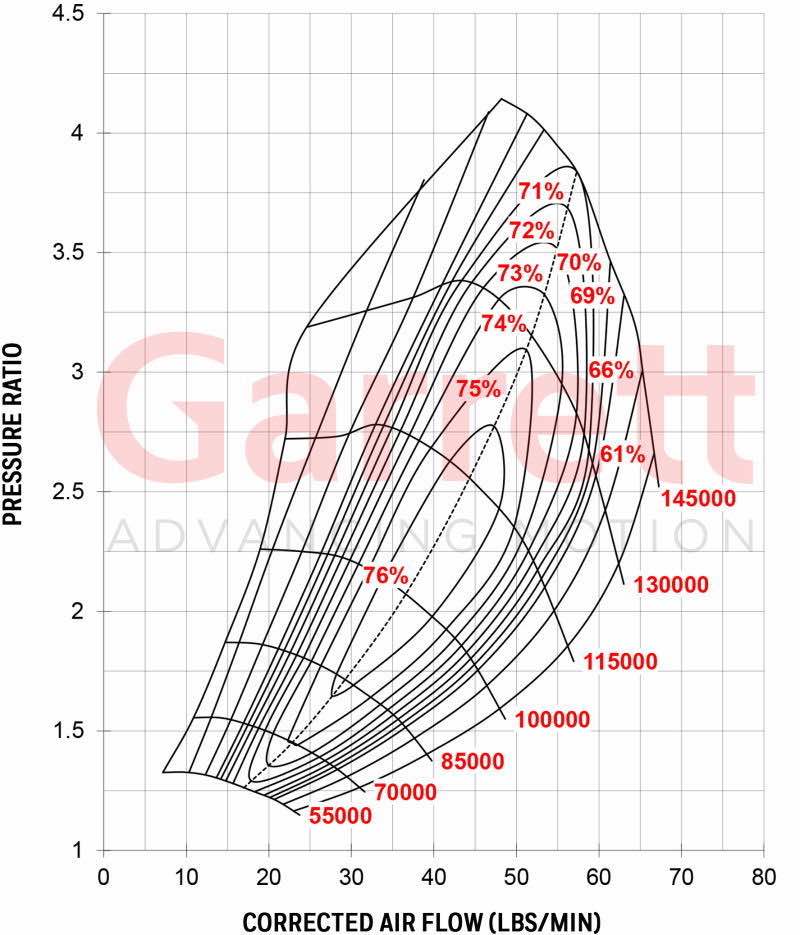

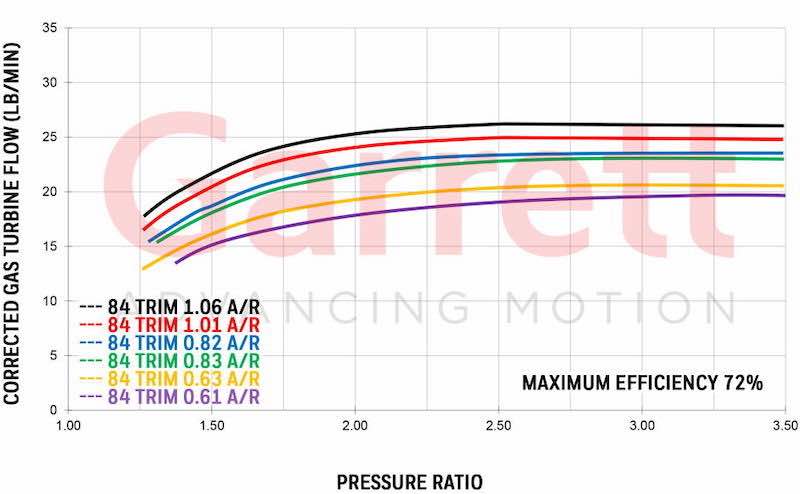

GTX3076R_COMPKLGTX3076R_FLOWKL

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "GTX3076R Garrett Gen II Turbocharger 856801-5041S"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.

The fields marked with * are required.

Accessories 21 Similar products
Accessories 21
Universal Ölrücklauf Turbolader G GT GTX GTW EFR 5° Universal Ölrücklauf Turbolader G GT GTX GTW EFR 5°
Quick view
Universal Oil Return for Turbo G GT GTX EFR 5°
€14.35

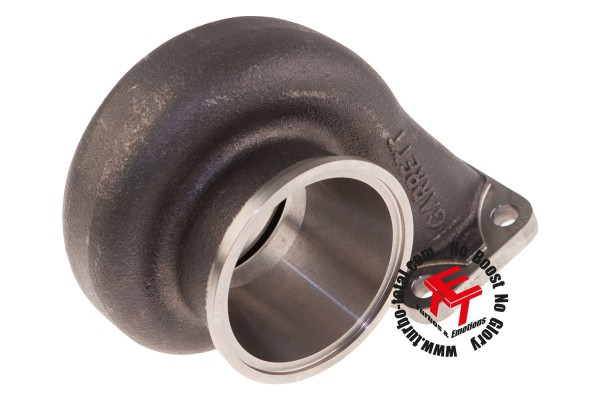

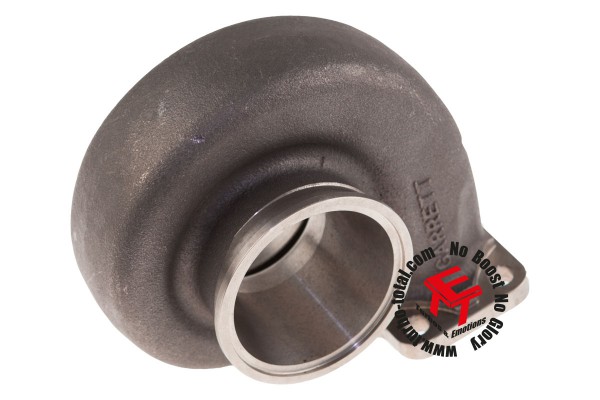

Turbinengehäuse GT30/GTX30 - 1.06 A/R - T3 Eingang / V-Band Ausgang 740902-0007 Turbinengehäuse GT30/GTX30 - 1.06 A/R - T3 Eingang / V-Band Ausgang 740902-0007 Turbinengehäuse GT30/GTX30 - 1.06 A/R - T3 Eingang / V-Band Ausgang 740902-0007 Turbinengehäuse GT30/GTX30 - 1.06 A/R - T3 Eingang / V-Band Ausgang 740902-0007
Quick view
Turbine Housing GT30/GTX30 - 1.06 A/R - T3...
€618.90
Turbinengehäuse GT30/GTX30 - 0.82 A/R - T3 Eingang / V-Band Ausgang 740902-0008 Turbinengehäuse GT30/GTX30 - 0.82 A/R - T3 Eingang / V-Band Ausgang 740902-0008 Turbinengehäuse GT30/GTX30 - 0.82 A/R - T3 Eingang / V-Band Ausgang 740902-0008 Turbinengehäuse GT30/GTX30 - 0.82 A/R - T3 Eingang / V-Band Ausgang 740902-0008
Quick view
Turbine Housing GT30/GTX30 - 0.82 A/R - T3...
€618.90
Turbinengehäuse GT30/GTX30 - 0.82 A/R - T3 Eingang / V-Band Ausgang 740902-0008 Turbinengehäuse GT30/GTX30 - 0.82 A/R - T3 Eingang / V-Band Ausgang 740902-0008 Turbinengehäuse GT30/GTX30 - 0.82 A/R - T3 Eingang / V-Band Ausgang 740902-0008 Turbinengehäuse GT30/GTX30 - 0.82 A/R - T3 Eingang / V-Band Ausgang 740902-0008
Quick view
Turbine Housing GT30/GTX30 - 0.63 A/R - T3...
€618.90
T25 Ölrücklauf Dichtung
Quick view
T25 Oelruecklaufdichtung
€1.10
Kupferdichtring 14mm Wasserleitung Anschluss
Quick view
Kupferdichtring 14mm Wasserleitung Anschluss
€0.35
Garrett retaining ring compressor housing GT/GTX 28/30 + T2/25/28 Garrett retaining ring compressor housing GT/GTX 28/30 + T2/25/28
Quick view
Garrett retaining ring compressor housing...
€5.85
Öl-Restriktor für Garrett GT-R Turbolader
Quick view
-4 size Oil inlet restrictor for Garrett GT-R...
€10.25
Turbinengehäuse GT30/GTX30 - 1.06 A/R - T3 Eingang / Internes Wastegate 5-Loch Ausgang 771300-0004 Turbinengehäuse GT30/GTX30 - 1.06 A/R - T3 Eingang / Internes Wastegate 5-Loch Ausgang 771300-0004 Turbinengehäuse GT30/GTX30 - 1.06 A/R - T3 Eingang / Internes Wastegate 5-Loch Ausgang 771300-0004
Quick view
Turbine Housing GT30/GTX30 - 1.06 A/R - T3...
€635.30

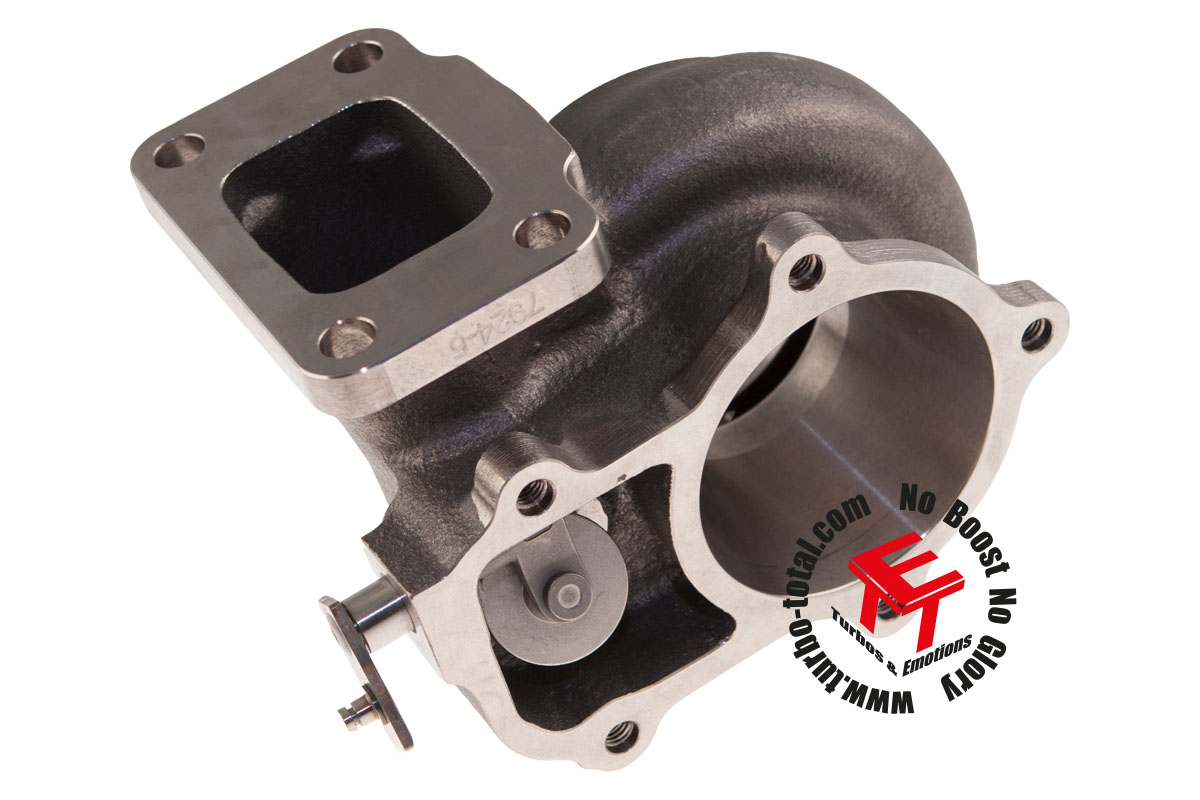

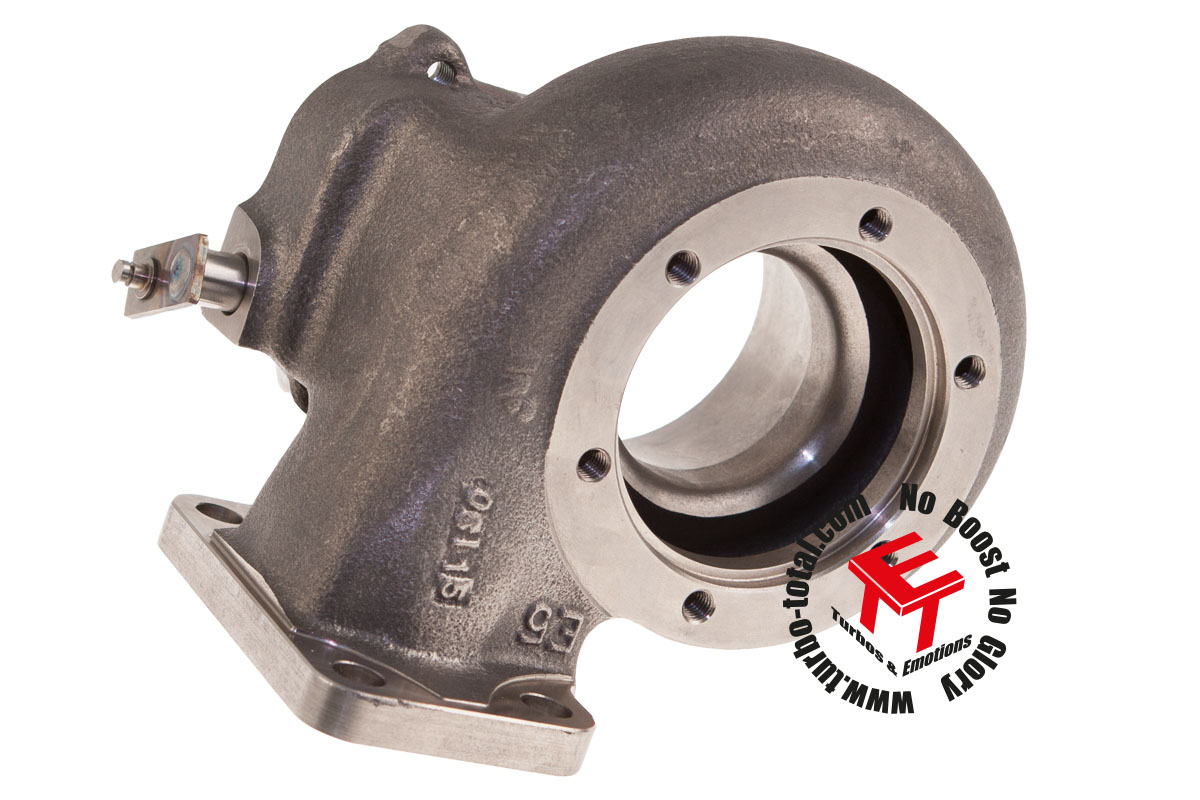

Turbinengehäuse GT30/GTX30 - 0.82 A/R - T3 Eingang / Internes Wastegate 5-Loch Ausgang 771300-0005 Turbinengehäuse GT30/GTX30 - 0.82 A/R - T3 Eingang / Internes Wastegate 5-Loch Ausgang 771300-0005 Turbinengehäuse GT30/GTX30 - 0.82 A/R - T3 Eingang / Internes Wastegate 5-Loch Ausgang 771300-0005
Quick view
Turbine Housing GT30/GTX30 - 0.82 A/R - T3...
€635.30
Turbinengehäuse GT30/GTX30 - 0.63 A/R - T3 Eingang / Internes Wastegate 5-Loch Ausgang 771300-0006 Turbinengehäuse GT30/GTX30 - 0.63 A/R - T3 Eingang / Internes Wastegate 5-Loch Ausgang 771300-0006 Turbinengehäuse GT30/GTX30 - 0.63 A/R - T3 Eingang / Internes Wastegate 5-Loch Ausgang 771300-0006
Quick view
Turbine Housing GT30/GTX30 - 0.63 A/R - T3...
€635.30

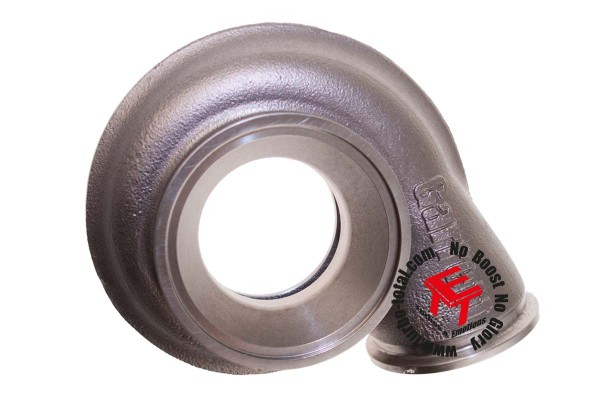

Turbinengehäuse GT30/GTX30 - 0.61 A/R - V-Band Eingang / V-Band Ausgang 740902-0036 Turbinengehäuse GT30/GTX30 - 0.61 A/R - V-Band Eingang / V-Band Ausgang 740902-0036 Turbinengehäuse GT30/GTX30 - 0.61 A/R - V-Band Eingang / V-Band Ausgang 740902-0036 Turbinengehäuse GT30/GTX30 - 0.61 A/R - V-Band Eingang / V-Band Ausgang 740902-0036
Quick view
Turbine Housing GT30/GTX30 - 0.61 A/R - V-Band...
€597.85

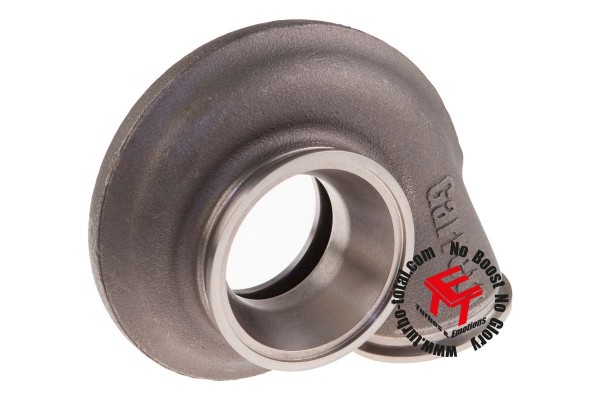

Turbinengehäuse GT30/GTX30 - 0.83 A/R - V-Band Eingang / V-Band Ausgang 740902-0035 Turbinengehäuse GT30/GTX30 - 0.83 A/R - V-Band Eingang / V-Band Ausgang 740902-0035 Turbinengehäuse GT30/GTX30 - 0.83 A/R - V-Band Eingang / V-Band Ausgang 740902-0035 Turbinengehäuse GT30/GTX30 - 0.83 A/R - V-Band Eingang / V-Band Ausgang 740902-0035
