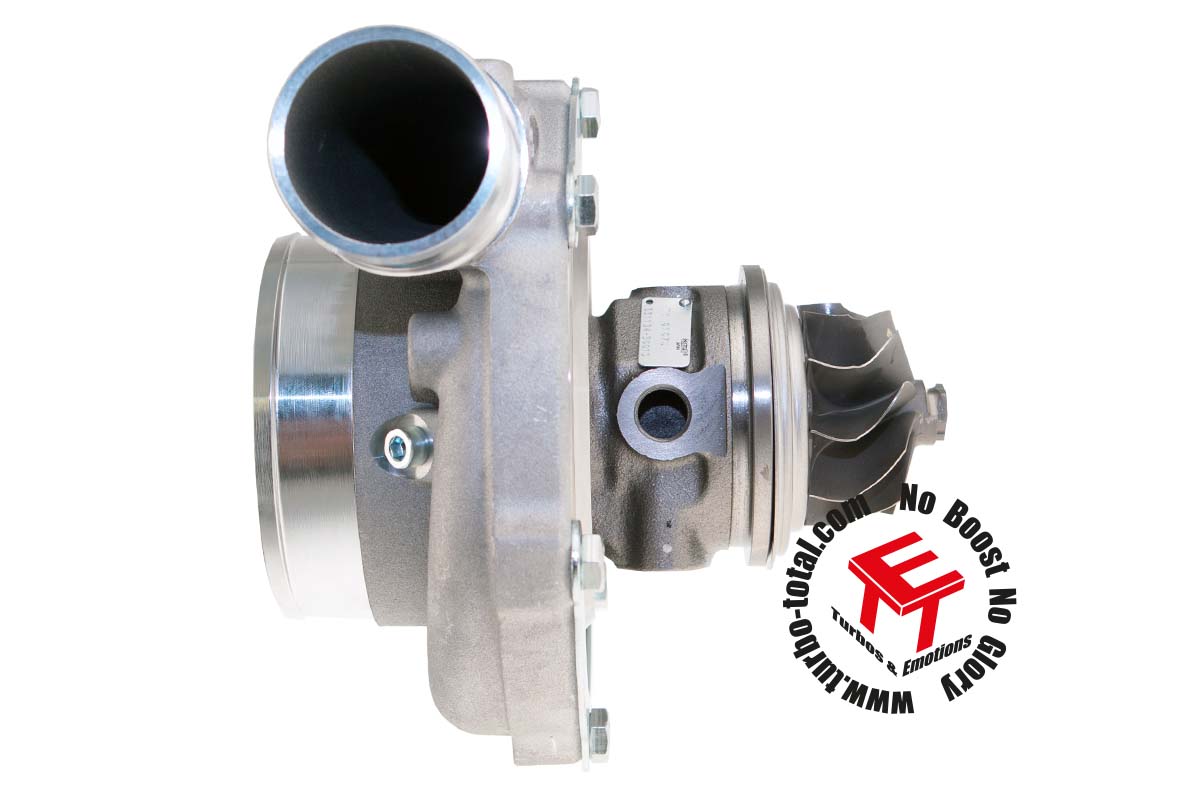

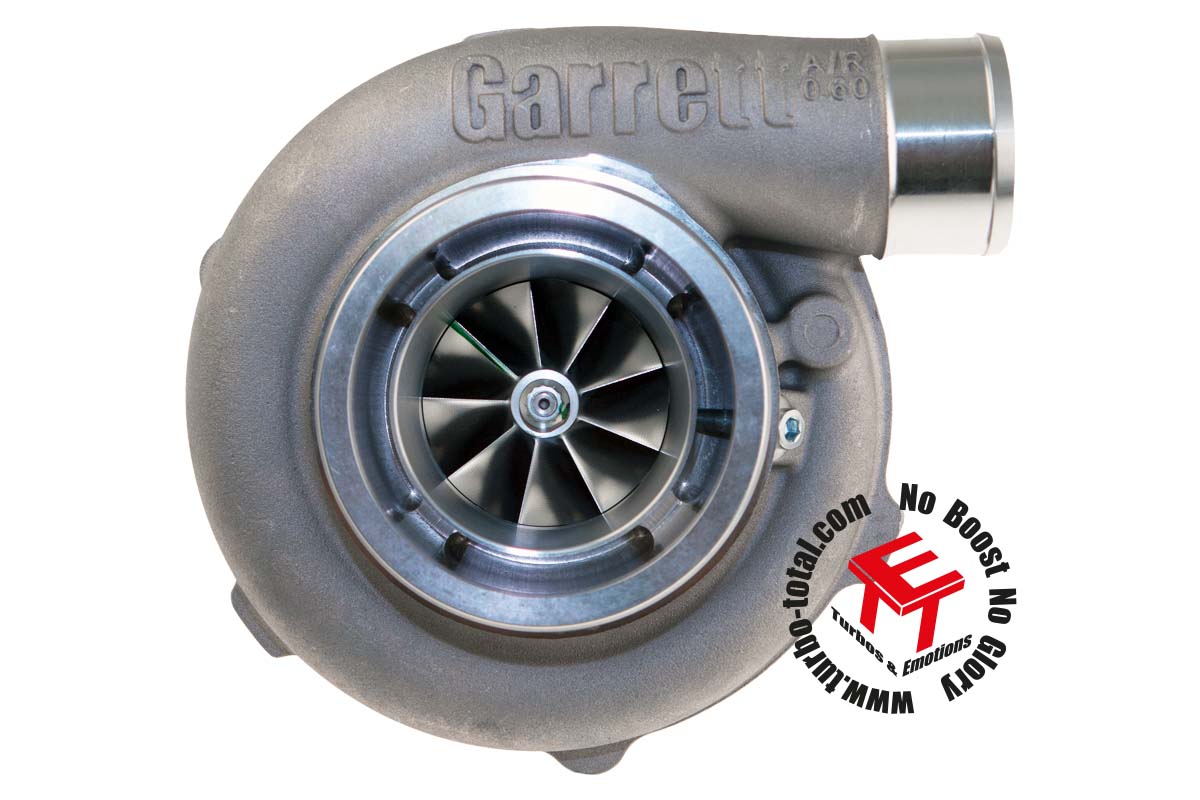

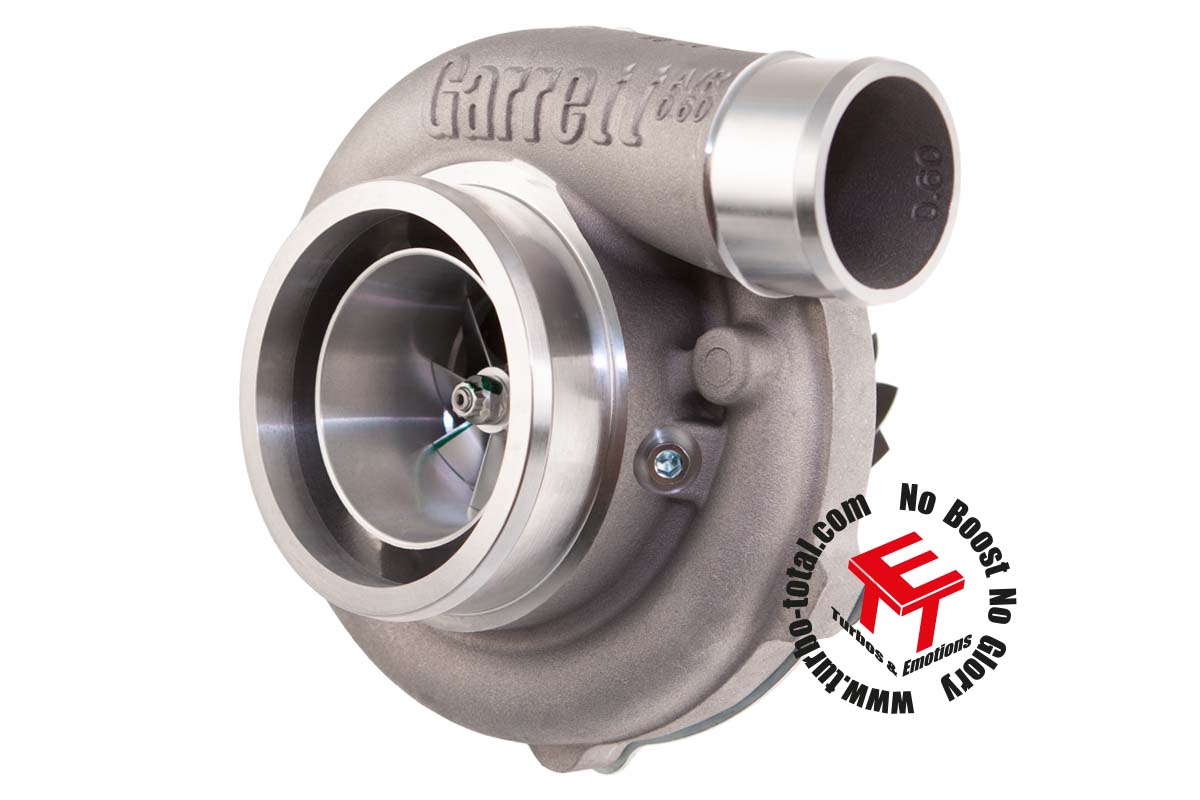

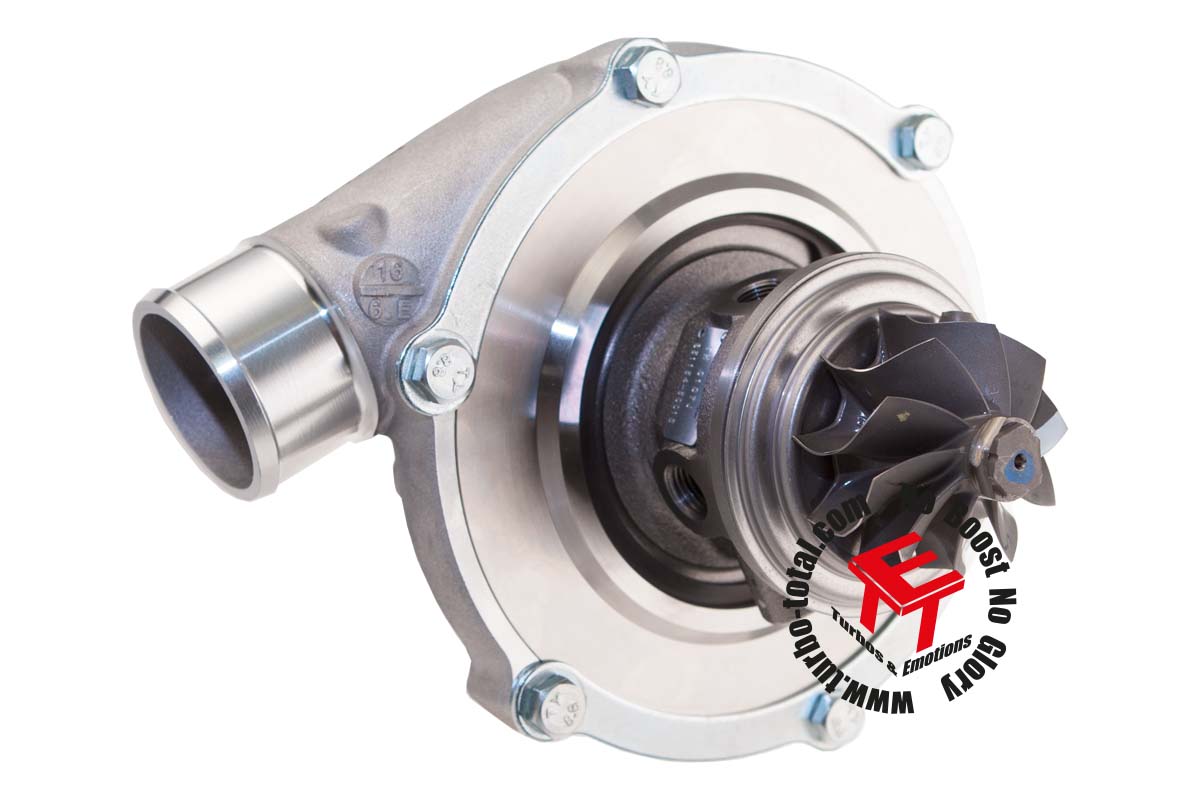

GTX3076R Garrett Gen II Turbocharger 856801-5038S

GARRETT
Preview: GTX3076R Garrett Gen II Turbolader 856801-5038S Preview: GTX3076R Garrett Gen II Turbolader 856801-5038S Preview: GTX3076R Garrett Gen II Turbolader 856801-5038S Preview: GTX3076R Garrett Gen II Turbolader 856801-5038S Preview: GTX3076R Garrett Gen II Turbolader 856801-5038S Preview: GTX3076R Garrett Gen II Turbolader 856801-5038S Preview: GTX3076R Garrett Gen II Turbolader 856801-5038S Preview: GTX3076R Garrett Gen II Turbolader 856801-5038S
GTX3076R Garrett Gen II Turbolader 856801-5038S
GTX3076R Garrett Gen II Turbolader 856801-5038S
GTX3076R Garrett Gen II Turbolader 856801-5038S
GTX3076R Garrett Gen II Turbolader 856801-5038S
GTX3076R Garrett Gen II Turbolader 856801-5038S
GTX3076R Garrett Gen II Turbolader 856801-5038S
GTX3076R Garrett Gen II Turbolader 856801-5038S
GTX3076R Garrett Gen II Turbolader 856801-5038S

€1,869.66
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

Buy at www.bartek.com
  • Order number: 856801-5038S
Description Drawings Maps Evaluations 0
Description
Horsepower: 400 - 750 HP Displacement: 1.8 - 3.0 L V-Band Inlet - V-Band Outlet - Single... more
Close menu
GTX3076R Garrett Gen II Turbocharger 856801-5038S

Horsepower: 400 - 750 HP
Displacement: 1.8 - 3.0 L
V-Band Inlet - V-Band Outlet - Single Scroll - A/R 0.83

  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port

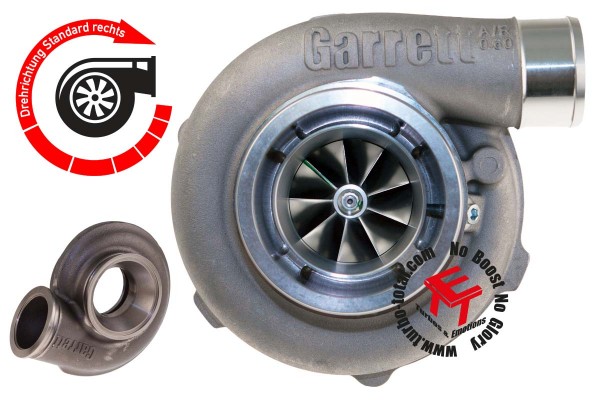

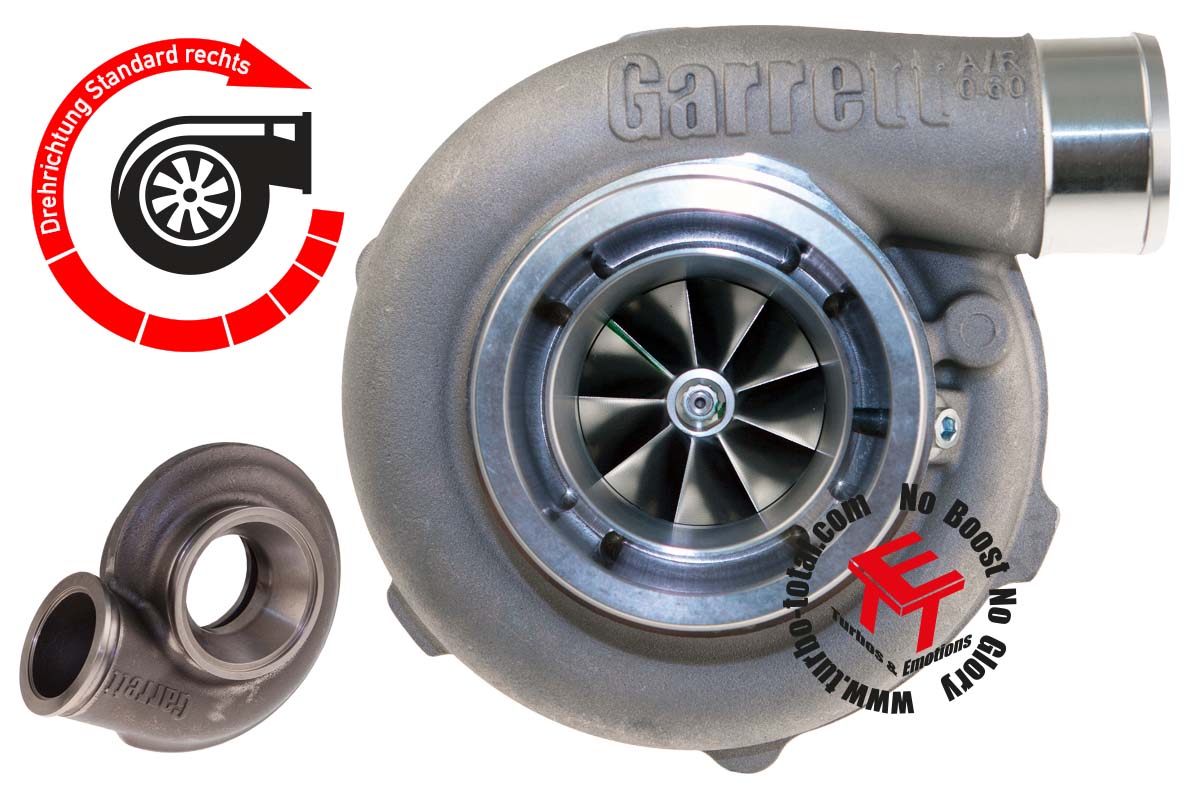

  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • External Wastegate
  • Replaces: 836042-5003S
Compressor side:
Inducer ø
58.00mm		 Exducer ø
76.00mm		 Trim
58		 A/R
0.60

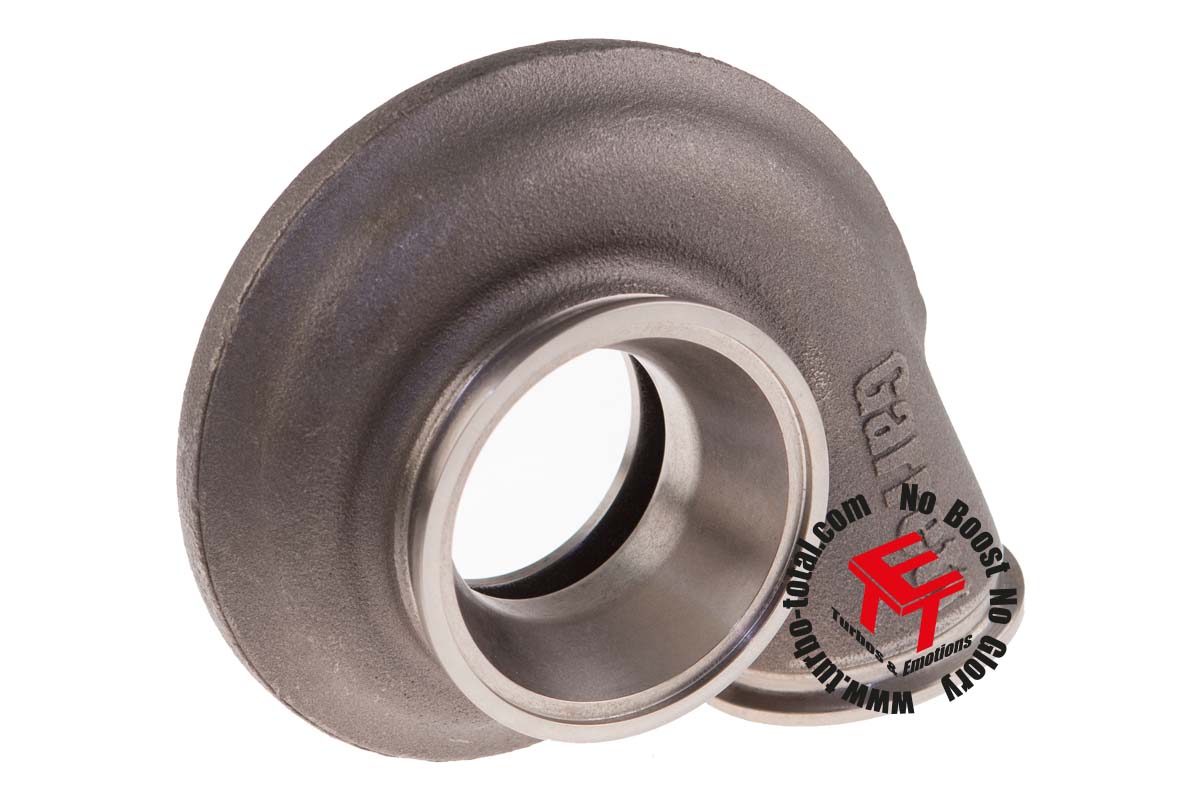

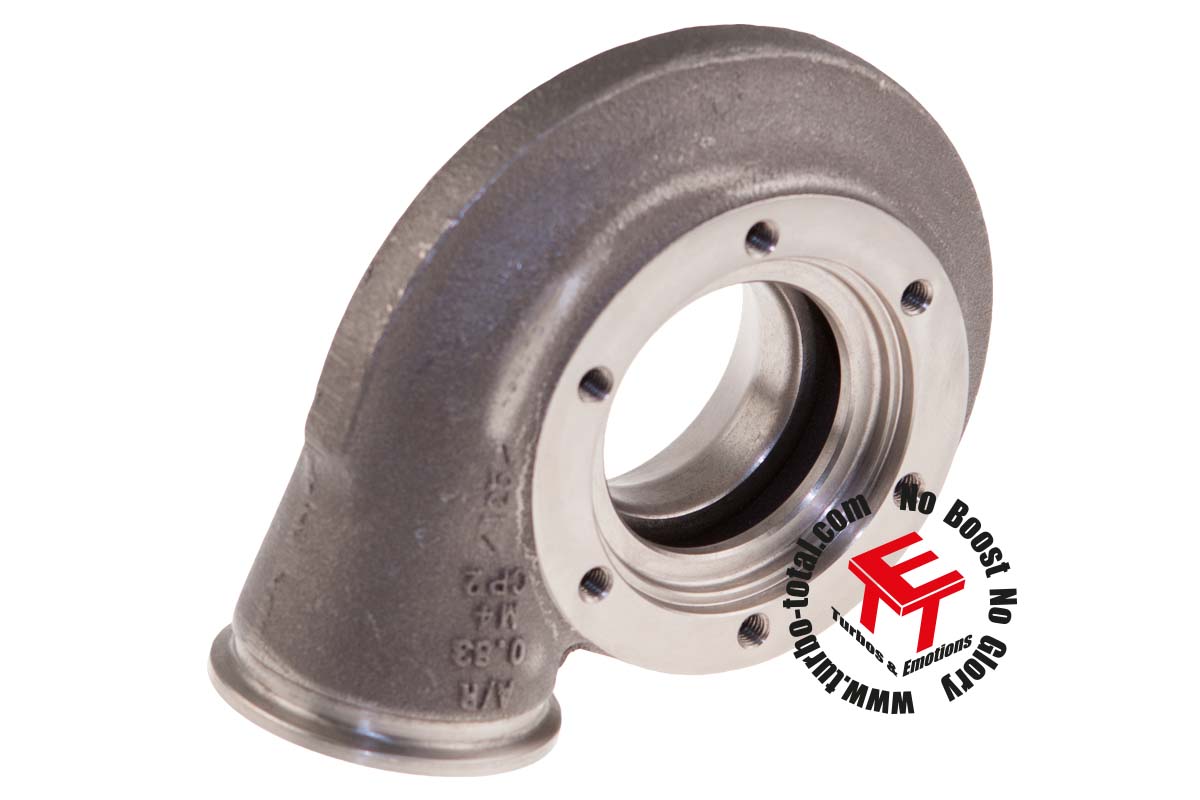

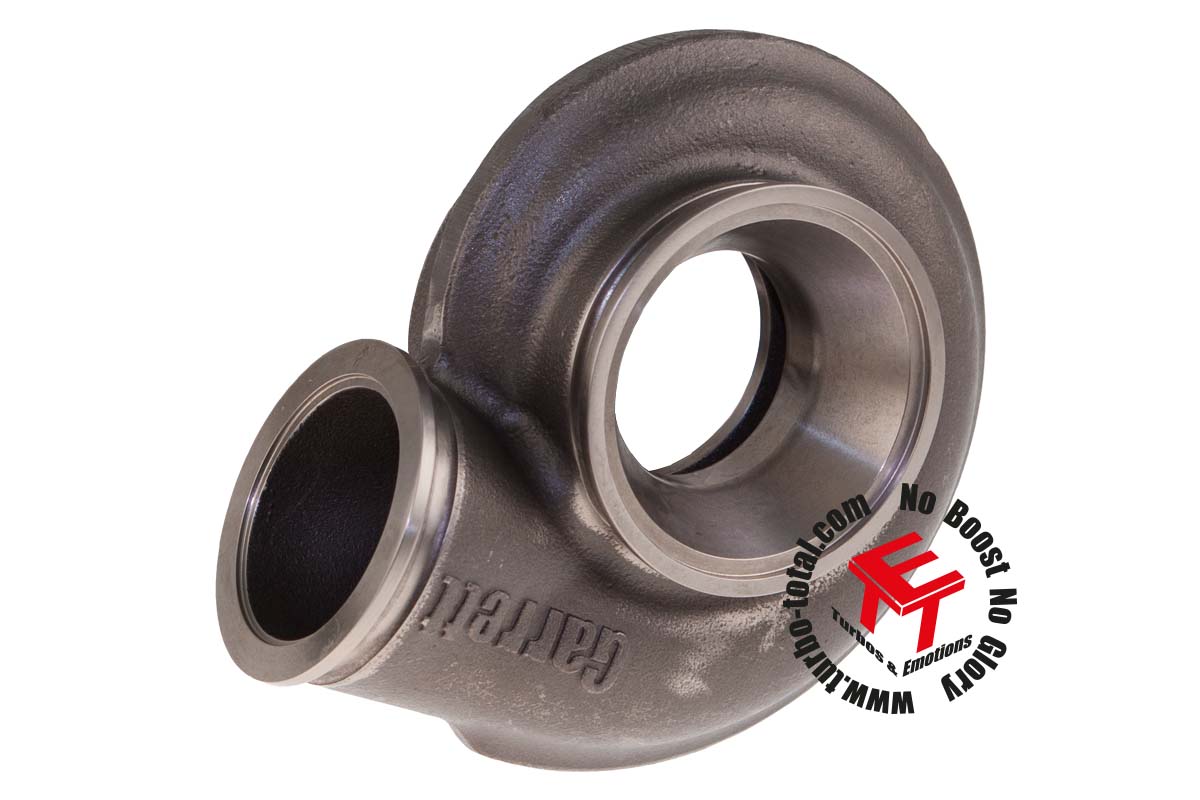

Turbine side:
Inducer ø
60.00mm		 Exducer ø
55.00mm		 Trim
84		 A/R
0.83

This set contains the following items:

Available downloads:
Drawings
more
Zurück

GTX3076R_DIAGRAM

Maps
more
Zurück

GTX3076R_COMPKLGTX3076R_FLOWKL
