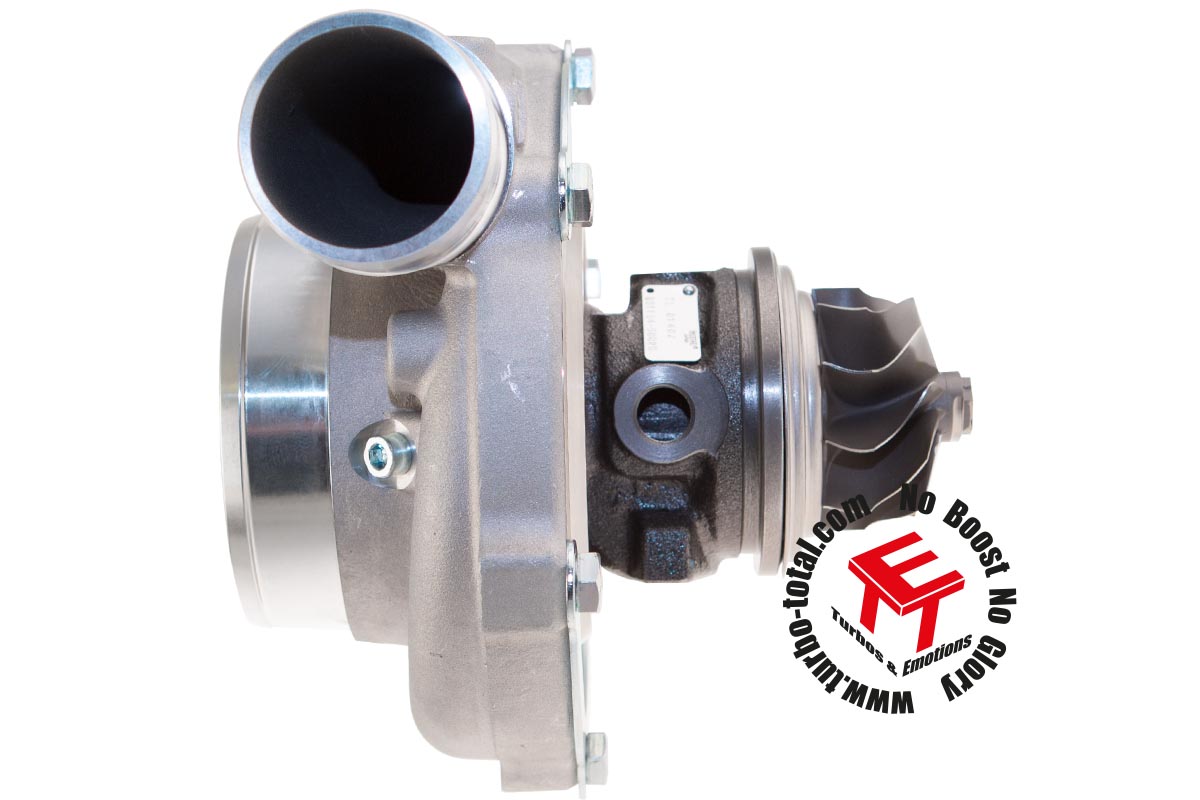

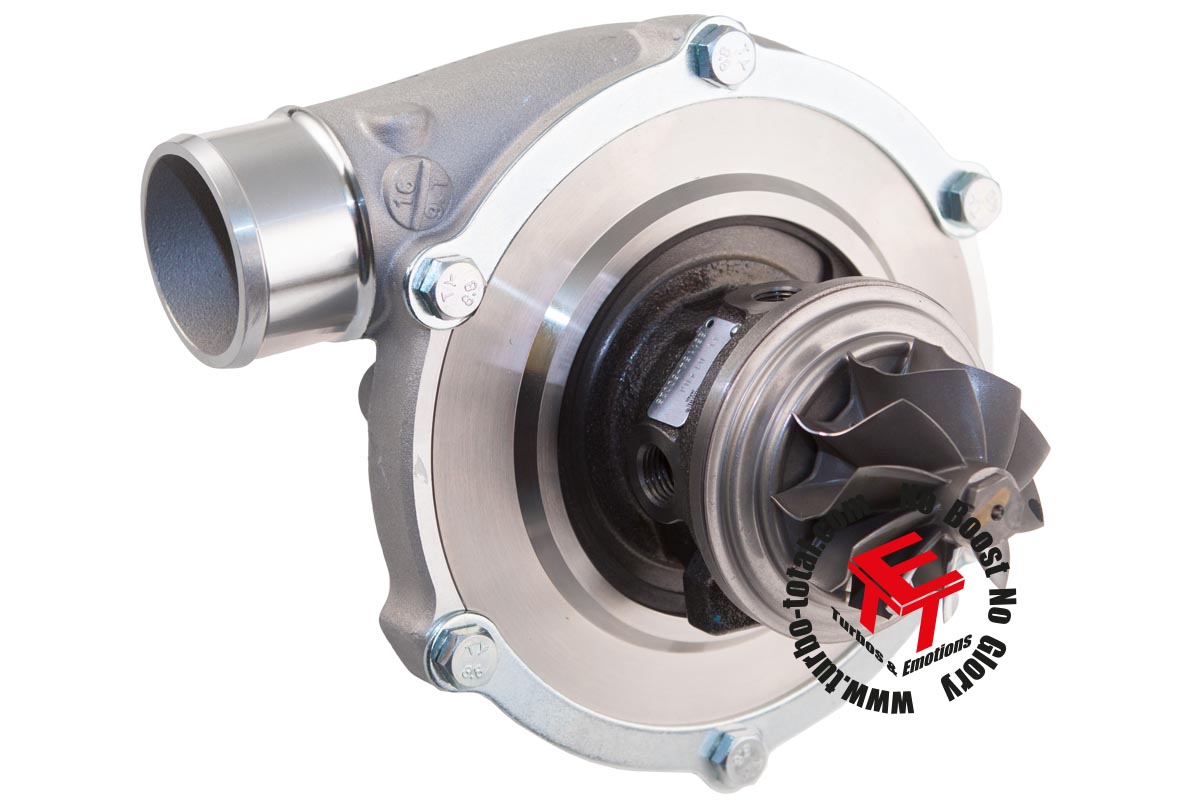

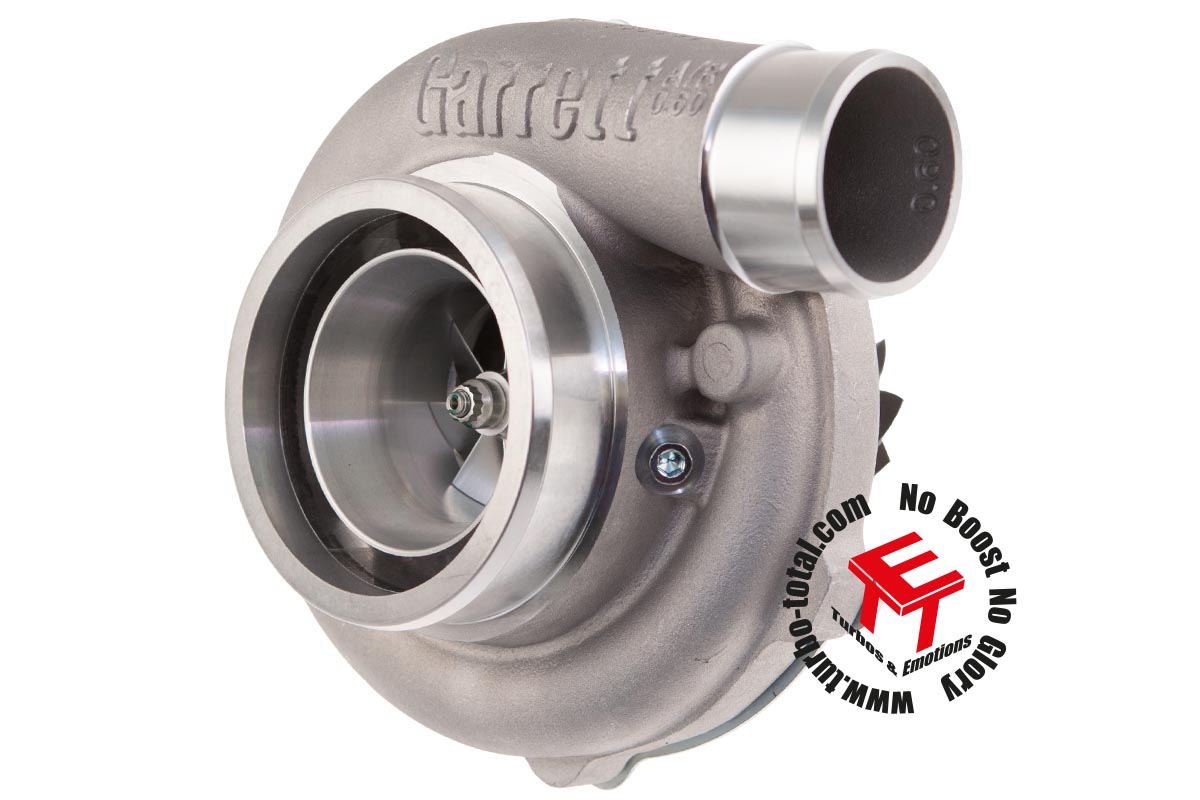

GTX3071R Garrett Gen II Turbocharger 856801-5016S

€2,032.25
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 856801-5016S
Horsepower: 340 - 650 HP Displacement: 1.8 - 3.0 L V-Band Inlet - V-Band Outlet - Single... more
GTX3071R Garrett Gen II Turbocharger 856801-5016S

Horsepower: 340 - 650 HP
Displacement: 1.8 - 3.0 L
V-Band Inlet - V-Band Outlet - Single Scroll - A/R 1.01

  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port

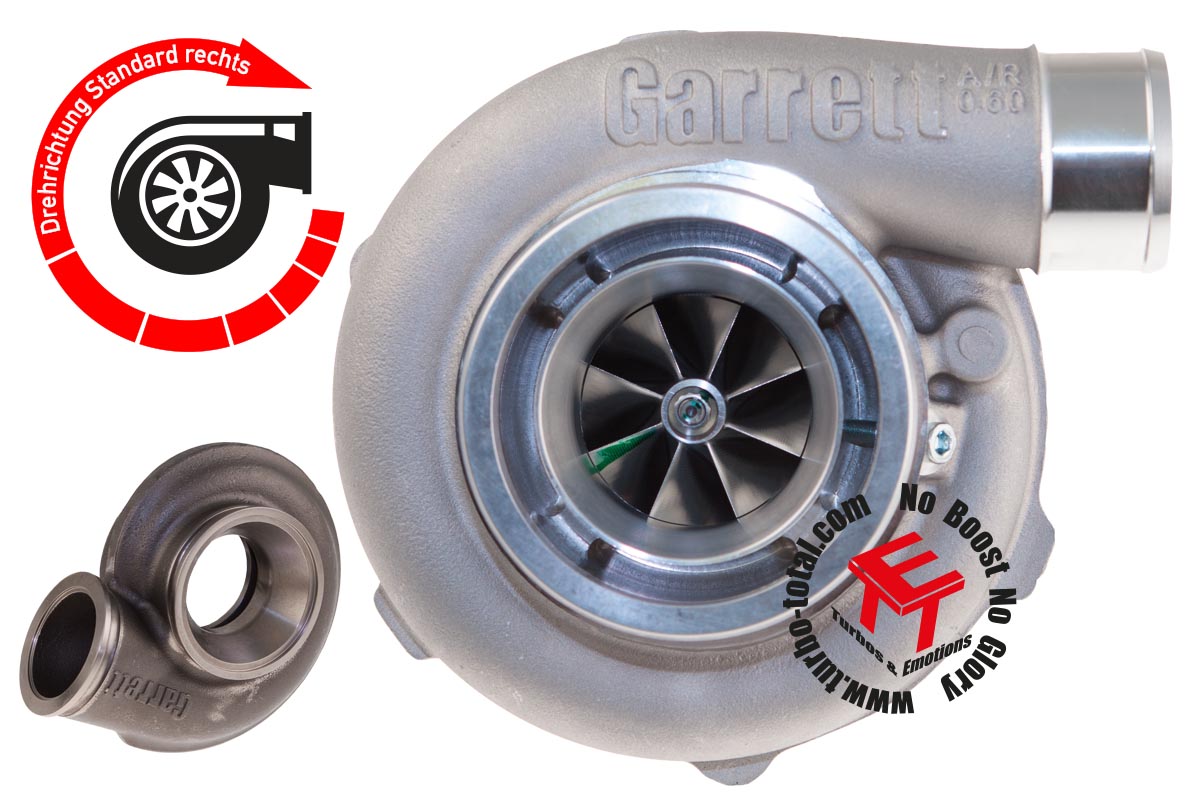

  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • External Wastegate
  • Replaces: 836042-5002S
Compressor side:
Inducer ø
54.00mm
Exducer ø
71.00mm
Trim
58
A/R
0.60
Turbine side:
Inducer ø
60.00mm
Exducer ø
55.00mm
Trim
84
A/R
1.01
