GTX3071R Garrett CHRA 836014-5002S - 700177-5046S

GARRETT
Preview: GTX3071R Garrett Rumpfgruppe 836014-5002S - 700177-5046S Preview: GTX3071R Garrett Rumpfgruppe 836014-5002S - 700177-5046S Preview: GTX3071R Garrett Rumpfgruppe 836014-5002S - 700177-5046S
GTX3071R Garrett Rumpfgruppe 836014-5002S - 700177-5046S
GTX3071R Garrett Rumpfgruppe 836014-5002S - 700177-5046S
GTX3071R Garrett Rumpfgruppe 836014-5002S - 700177-5046S

€1,295.95

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 836014-5002S
Description Evaluations 0
Description
Power rating:  340 - 560 HP Displacement:  1,8 - 3,0L Dual ceramic ball bearing assembly... more
Close menu

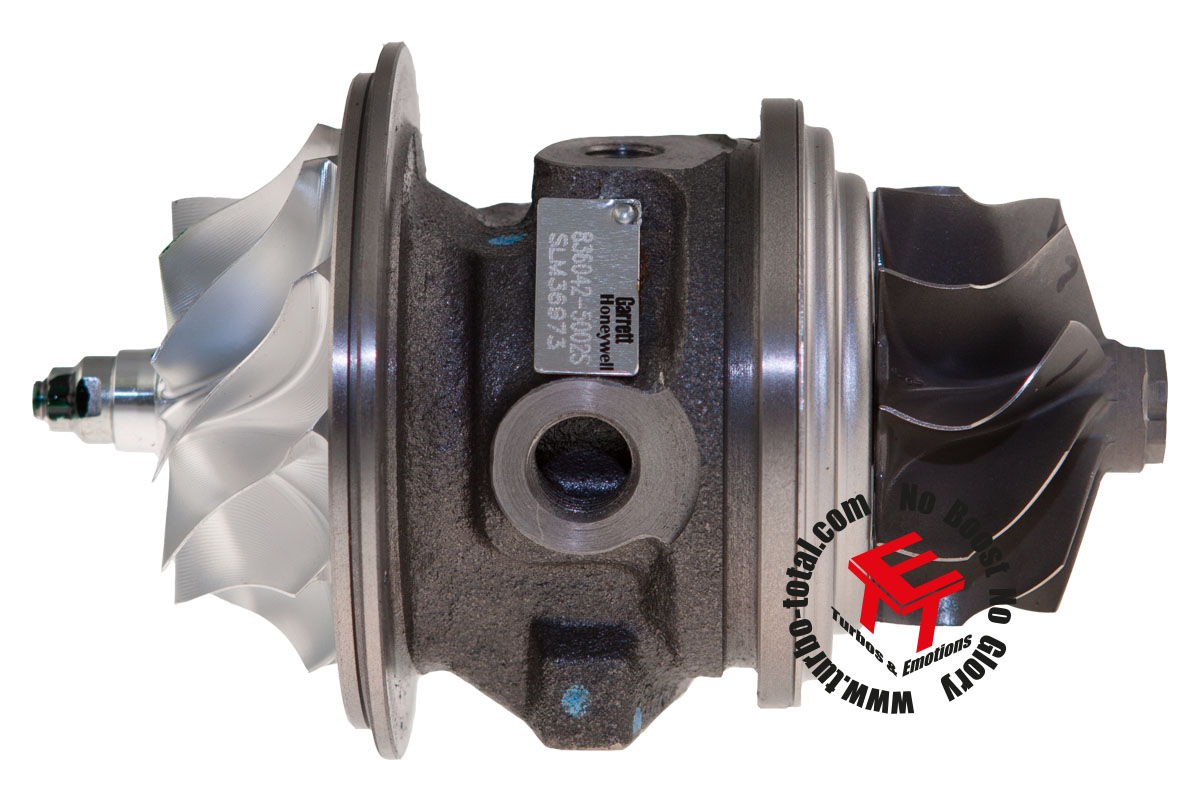

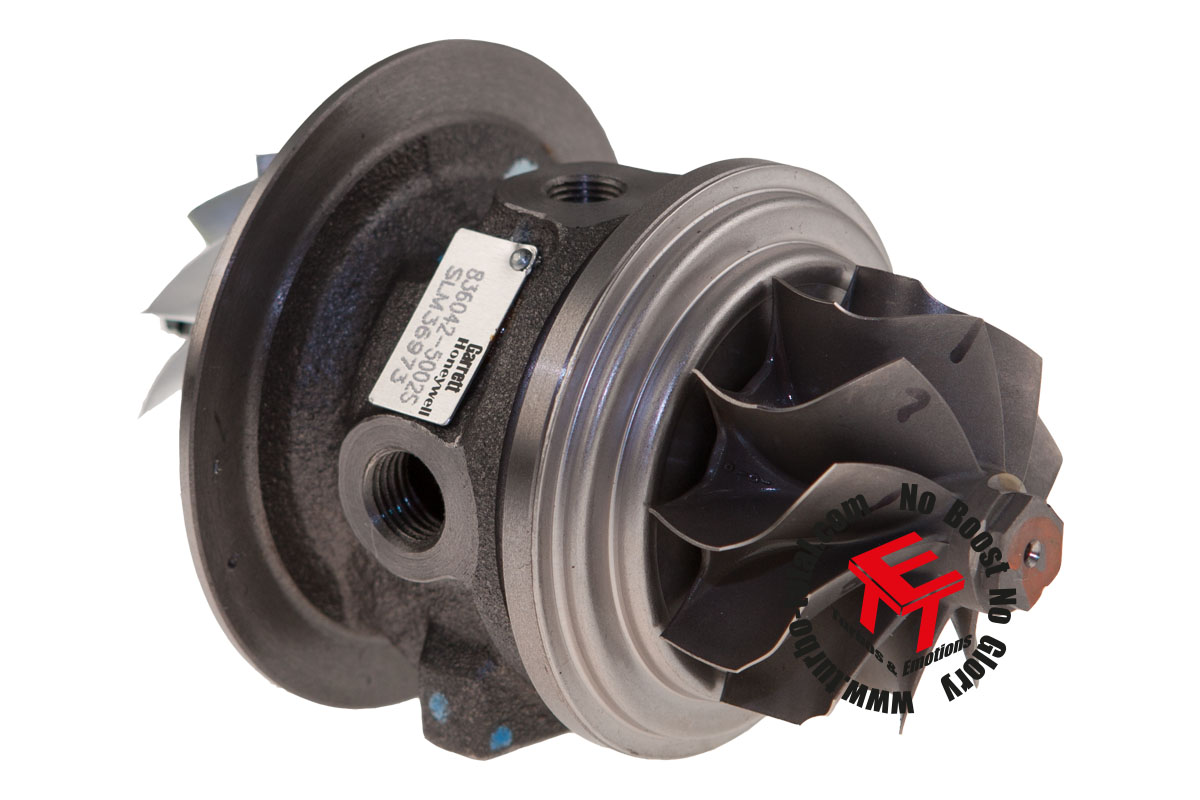

GTX3071R Garrett CHRA 836014-5002S - 700177-5046S

Power rating: 340 - 560 HP
Displacement: 1,8 - 3,0L

  • Dual ceramic ball bearing assembly with metal cage

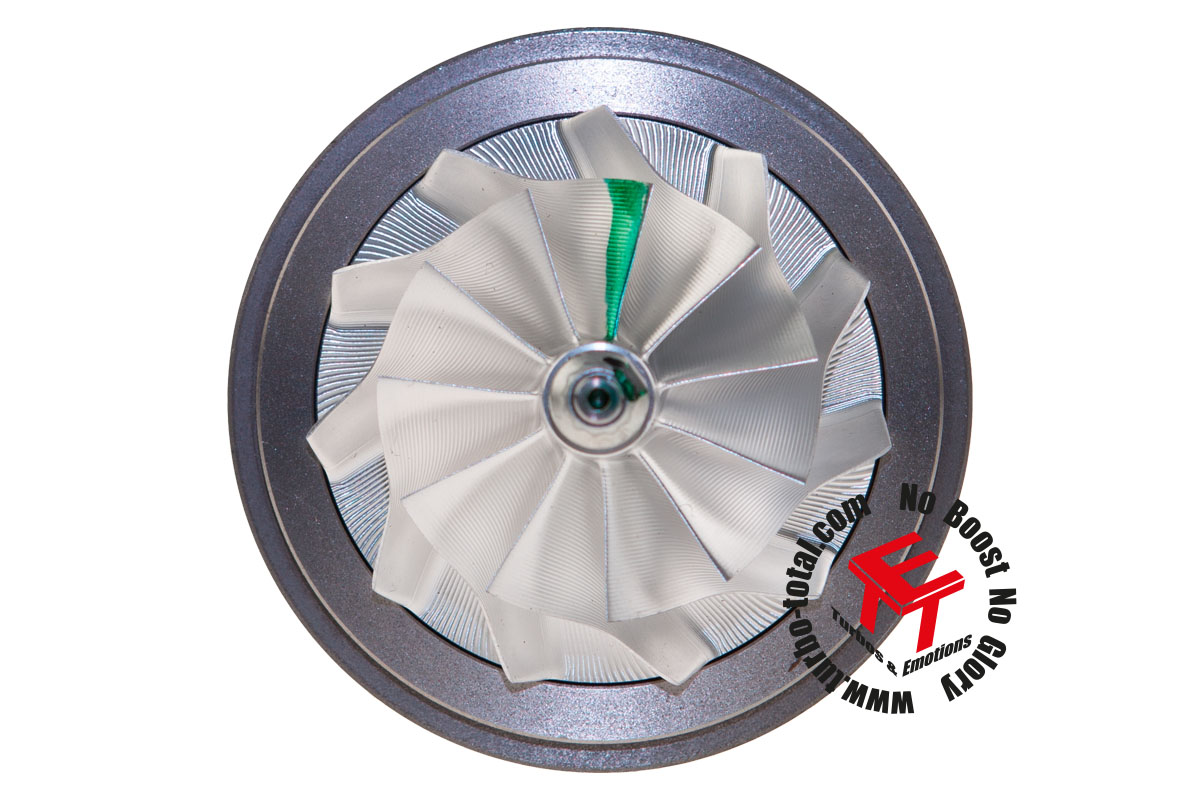

  • Forged Milled Compressor Wheel
  • Inconel Turbine Wheel
  • Water- and Oil cooled
  • Ohne Turbine Housing
Compressor side:
Inducer ø
54,10mm		 Exducer ø
71,40mm		 Trim
58		 A/R
--
Turbine side:
Inducer ø
60,00mm		 Exducer ø
55,00mm		 Trim
84		 A/R
--
