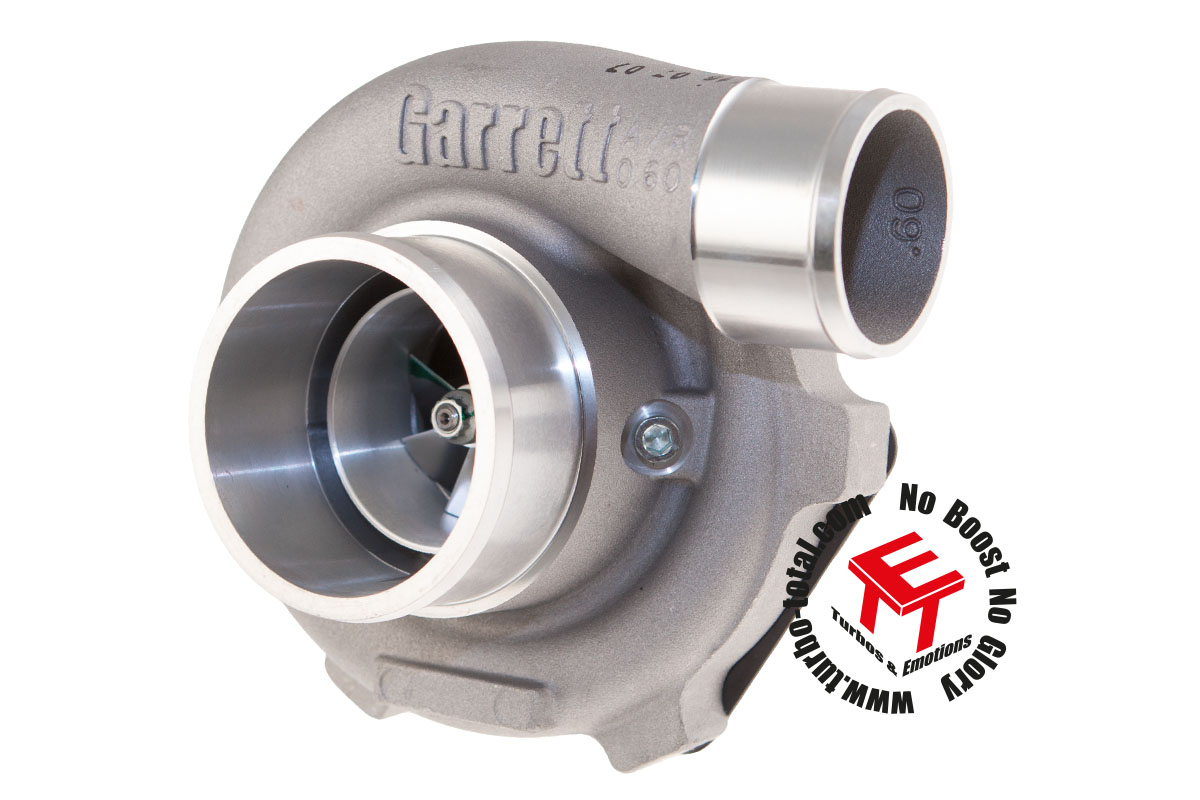

GTX2867R Garrett Gen II Turbocharger 856800-5008S

GARRETT
Preview: GTX2867R Garrett Gen II Turbolader 856800-5008S Preview: GTX2867R Garrett Gen II Turbolader 856800-5008S Preview: GTX2867R Garrett Gen II Turbolader 856800-5008S Preview: GTX2867R Garrett Gen II Turbolader 856800-5008S Preview: GTX2867R Garrett Gen II Turbolader 856800-5008S Preview: GTX2867R Garrett Gen II Turbolader 856800-5008S Preview: GTX2867R Garrett Gen II Turbolader 856800-5008S Preview: GTX2867R Garrett Gen II Turbolader 856800-5008S
GTX2867R Garrett Gen II Turbolader 856800-5008S
GTX2867R Garrett Gen II Turbolader 856800-5008S
GTX2867R Garrett Gen II Turbolader 856800-5008S
GTX2867R Garrett Gen II Turbolader 856800-5008S
GTX2867R Garrett Gen II Turbolader 856800-5008S
GTX2867R Garrett Gen II Turbolader 856800-5008S
GTX2867R Garrett Gen II Turbolader 856800-5008S
GTX2867R Garrett Gen II Turbolader 856800-5008S

€1,704.65
Content: 1 Stück

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 856800-5008S
Description Drawings Maps Evaluations 0
Description
Horsepower: 275 - 550 HP Displacement: 1.4 - 2.5 L T25 Inlet - 5-Bold Outlet - Single... more
Close menu
GTX2867R Garrett Gen II Turbocharger 856800-5008S

Horsepower: 275 - 550 HP
Displacement: 1.4 - 2.5 L
T25 Inlet - 5-Bold Outlet - Single Scroll - A/R 0.86

  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port

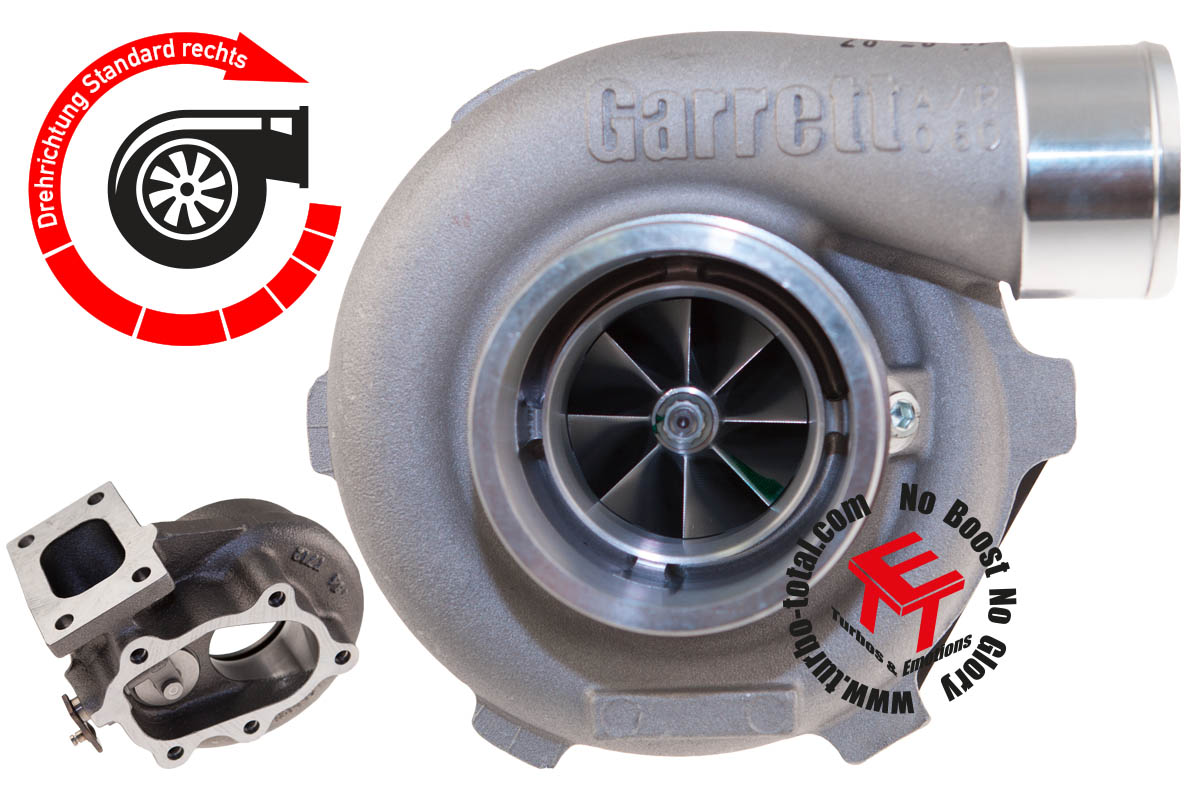

  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • Internal Wastegate
  • Replaces: 836040-5004S
Compressor side:
Inducer ø
50.00mm		 Exducer ø
67.00mm		 Trim
55		 A/R
0.60
Turbine side:
Inducer ø
54.00mm		 Exducer ø
47.00mm		 Trim
76		 A/R
0.86

This set contains the following items:

Available downloads:
Drawings
more
Zurück

GTX2860R_DIAGRAM

Maps
more
Zurück

GTX2867R_COMPKLGTX2867R_FLOWKL
