GTX2860R Garrett Gen II Turbocharger 856800-5004S

GARRETT
Preview: GTX2860R Garrett Gen II Turbolader 856800-5004S Preview: GTX2860R Garrett Gen II Turbolader 856800-5004S Preview: GTX2860R Garrett Gen II Turbolader 856800-5004S Preview: GTX2860R Garrett Gen II Turbolader 856800-5004S Preview: GTX2860R Garrett Gen II Turbolader 856800-5004S Preview: GTX2860R Garrett Gen II Turbolader 856800-5004S Preview: GTX2860R Garrett Gen II Turbolader 856800-5004S Preview: GTX2860R Garrett Gen II Turbolader 856800-5004S
GTX2860R Garrett Gen II Turbolader 856800-5004S
GTX2860R Garrett Gen II Turbolader 856800-5004S
GTX2860R Garrett Gen II Turbolader 856800-5004S
GTX2860R Garrett Gen II Turbolader 856800-5004S
GTX2860R Garrett Gen II Turbolader 856800-5004S
GTX2860R Garrett Gen II Turbolader 856800-5004S
GTX2860R Garrett Gen II Turbolader 856800-5004S
GTX2860R Garrett Gen II Turbolader 856800-5004S

€1,621.60
Content: 1 Stück

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 856800-5004S
Description Drawings Maps Evaluations 0
Description
Horsepower: 200 - 475 HP Displacement: 1.4 - 2.5 L T25 Inlet - 5-Bold Outlet - Single... more
Close menu
GTX2860R Garrett Gen II Turbocharger 856800-5004S

Horsepower: 200 - 475 HP
Displacement: 1.4 - 2.5 L
T25 Inlet - 5-Bold Outlet - Single Scroll - A/R 0.86

  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port
  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • External Wastegate
  • Replaces: 836040-5002S
Compressor side:
Inducer ø
46.00mm		 Exducer ø
60.00mm		 Trim
58		 A/R
0.60
Turbine side:
Inducer ø
54.00mm		 Exducer ø
47.00mm		 Trim
76		 A/R
0.86

This set contains the following items:

Available downloads:
Drawings
more
Zurück

GTX2860R_DIAGRAM

Maps
more
Zurück

GTX2860R_COMPKLGTX2860R_FLOWKL

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "GTX2860R Garrett Gen II Turbocharger 856800-5004S"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.

The fields marked with * are required.

Accessories 15 Similar products
Accessories 15
Universal Ölrücklauf Turbolader G GT GTX GTW EFR 5° Universal Ölrücklauf Turbolader G GT GTX GTW EFR 5°
Quick view
Universal Oil Return for Turbo G GT GTX EFR 5°
€14.35
T25 Edelstahl Anschweissflansch T25 Edelstahl Anschweissflansch
Quick view
T25 Edelstahl Anschweissflansch
€22.25
T25 Ölrücklauf Dichtung
Quick view
T25 Oelruecklaufdichtung
€1.10
Kupferdichtring 14mm Wasserleitung Anschluss
Quick view
Kupferdichtring 14mm Wasserleitung Anschluss
€0.35
Garrett retaining ring compressor housing GT/GTX 28/30 + T2/25/28 Garrett retaining ring compressor housing GT/GTX 28/30 + T2/25/28
Quick view
Garrett retaining ring compressor housing...
€5.85
Hohlschraube M14 x 1.5 für Wasseranschluss Hohlschraube M14 x 1.5 für Wasseranschluss
Quick view

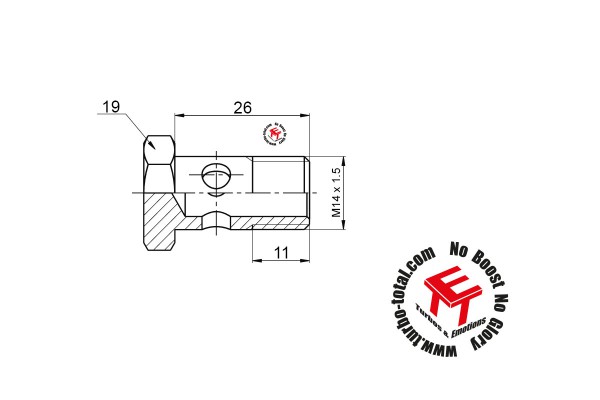

Banjo Bolt M14 x 1,5
