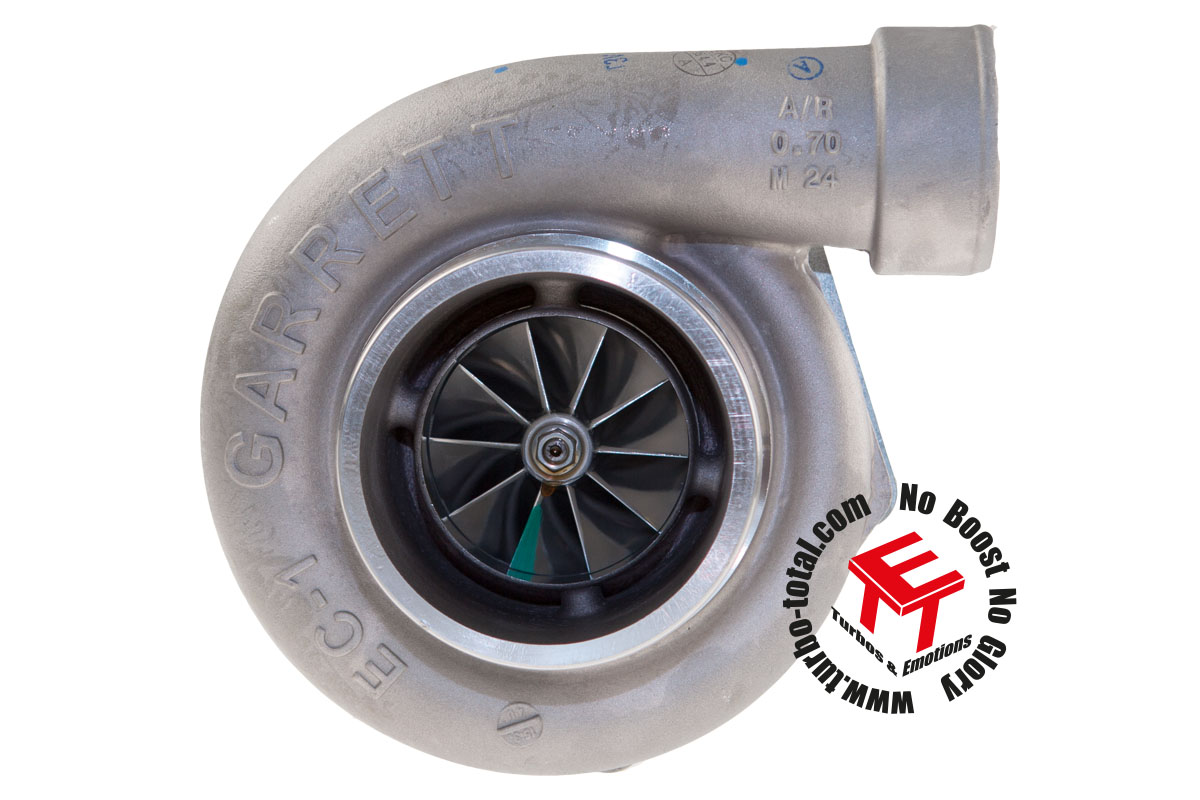

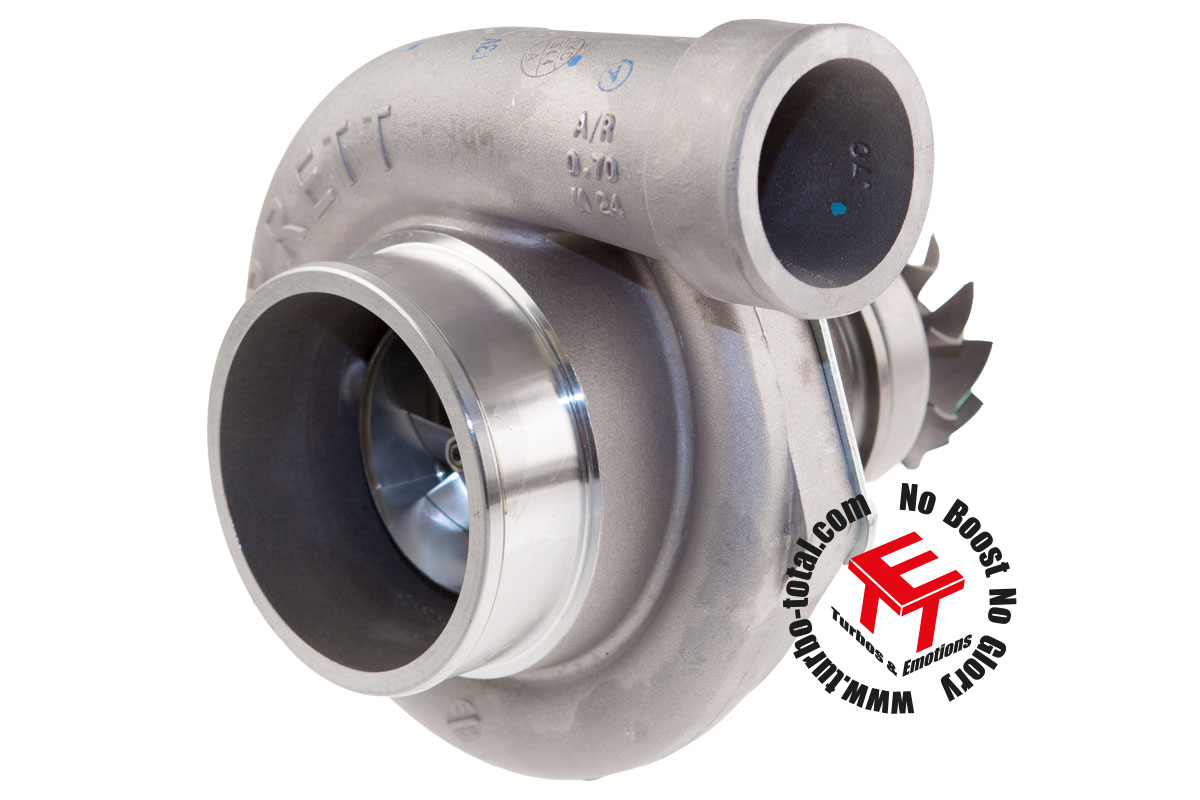

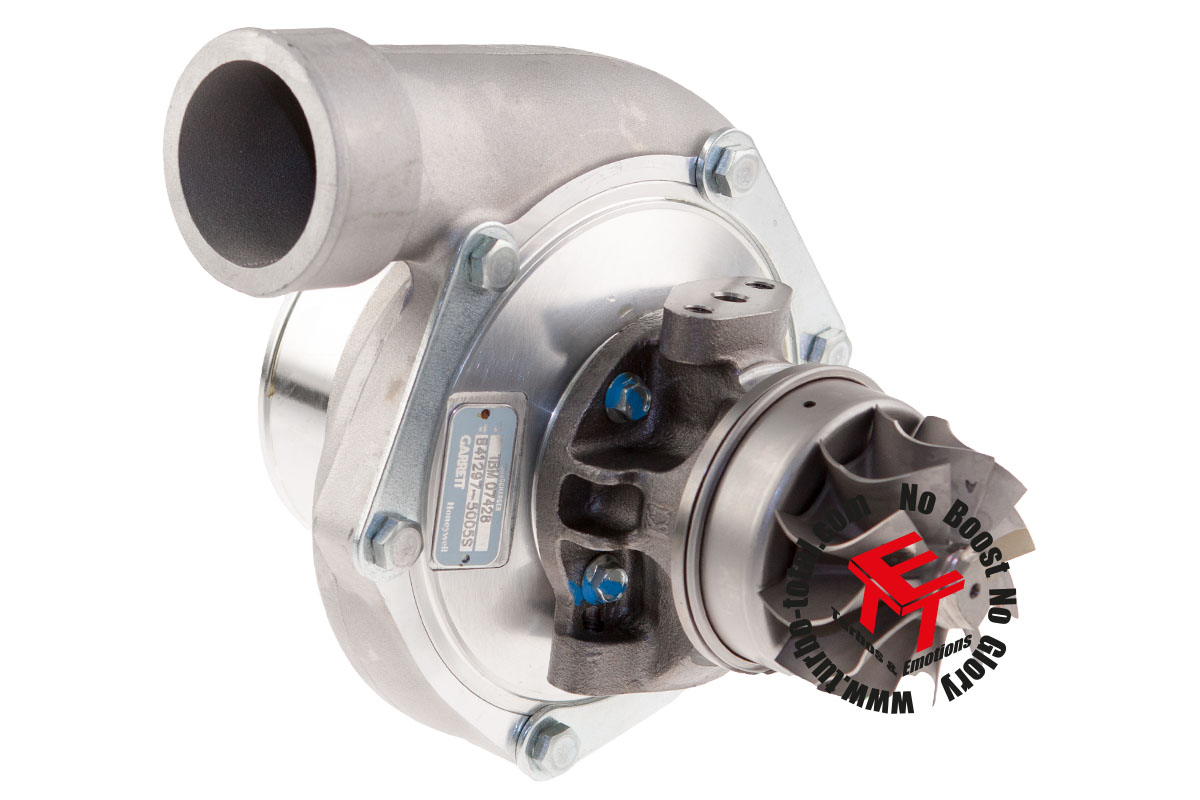

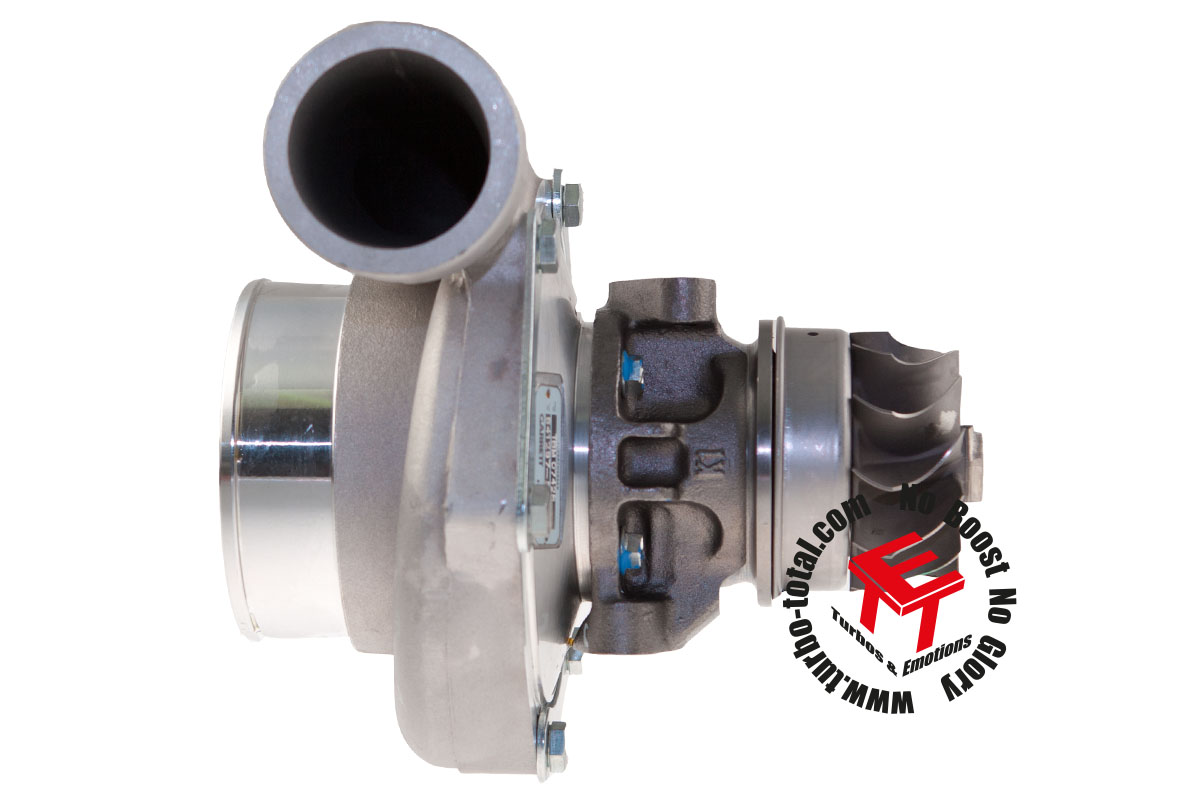

GTW3884 Garrett Turbocharger 841297-5005S 841297-5

GARRETT
Preview: GTW3884 Garrett Turbocharger 841297-5005S 841297-5 Preview: GTW3884 Garrett Turbocharger 841297-5005S 841297-5 Preview: GTW3884 Garrett Turbocharger 841297-5005S 841297-5 Preview: GTW3884 Garrett Turbocharger 841297-5005S 841297-5
GTW3884 Garrett Turbocharger 841297-5005S 841297-5
GTW3884 Garrett Turbocharger 841297-5005S 841297-5
GTW3884 Garrett Turbocharger 841297-5005S 841297-5
GTW3884 Garrett Turbocharger 841297-5005S 841297-5

€905.55

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 841297-5005S
Description Drawings Maps Evaluations 0
Description
Horsepower: 500 - 950 HP Displacement: 3.0 - 6.0 L Journal Bearing Option Latest... more
Close menu
GTW3884 Garrett Turbocharger 841297-5005S 841297-5

Horsepower: 500 - 950 HP
Displacement: 3.0 - 6.0 L

  • Journal Bearing Option
  • Latest CFD-optimized, forged milled compressor wheel
  • High-Flow compressor housing
  • Inconel turbine wheel
  • Oil cooled
Compressor side:
Inducer ø
67.30mm		 Exducer ø
84.40mm		 Trim
64		 A/R
0.70
Turbine side:
Inducer ø
74.20mm		 Exducer ø
64.50mm		 Trim
76		 A/R
--
Available downloads:
Drawings
more
Zurück

GTW3884R_DIAGRAMKL

Maps
more
Zurück

GTW3884R_COMPKLGTW3884R_FLOWKL

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "GTW3884 Garrett Turbocharger 841297-5005S 841297-5"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.

The fields marked with * are required.

Accessories 4 Similar products
Accessories 4

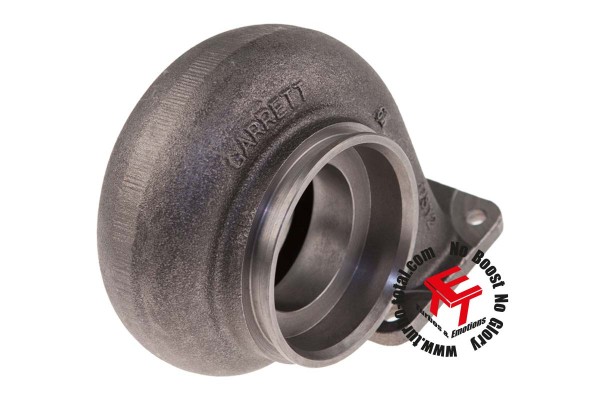

Turbinengehäuse GT/GTW38 - A/R 0.96 - 76 Trim T4 Eingang / V-Band Ausgang 844669-0009 Turbinengehäuse GT/GTW38 - A/R 0.96 - 76 Trim T4 Eingang / V-Band Ausgang 844669-0009 Turbinengehäuse GT/GTW38 - A/R 0.96 - 76 Trim T4 Eingang / V-Band Ausgang 844669-0009 Turbinengehäuse GT/GTW38 - A/R 0.96 - 76 Trim T4 Eingang / V-Band Ausgang 844669-0009
