GT3582R Garrett Turbocharger 836033-5002S / 815113-2

GARRETT
Preview: GT3582R Garrett Turbolader 836033-5002S / 815113-2 Preview: GT3582R Garrett Turbolader 836033-5002S / 815113-2 Preview: GT3582R Garrett Turbolader 836033-5002S / 815113-2 Preview: GT3582R Garrett Turbolader 836033-5002S / 815113-2
GT3582R Garrett Turbolader 836033-5002S / 815113-2
GT3582R Garrett Turbolader 836033-5002S / 815113-2
GT3582R Garrett Turbolader 836033-5002S / 815113-2
GT3582R Garrett Turbolader 836033-5002S / 815113-2

€1,017.45

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Buy at www.bartek.com
  • Order number: 836033-5003S
Description Drawings Maps Evaluations 0
Description
Horsepower: 400 - 675 hp Displacement:  2,0 - 4,5L Air-inlet Ø 103.60mm Dual ceramic... more
Close menu

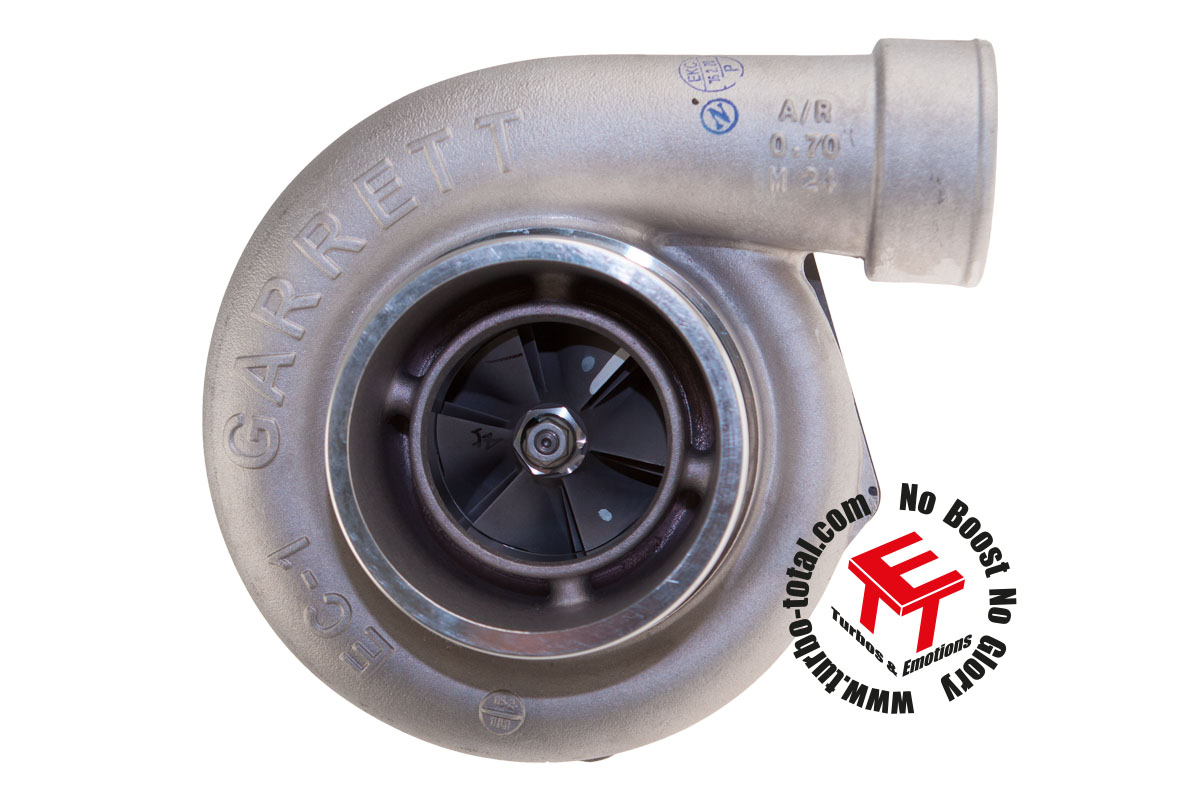

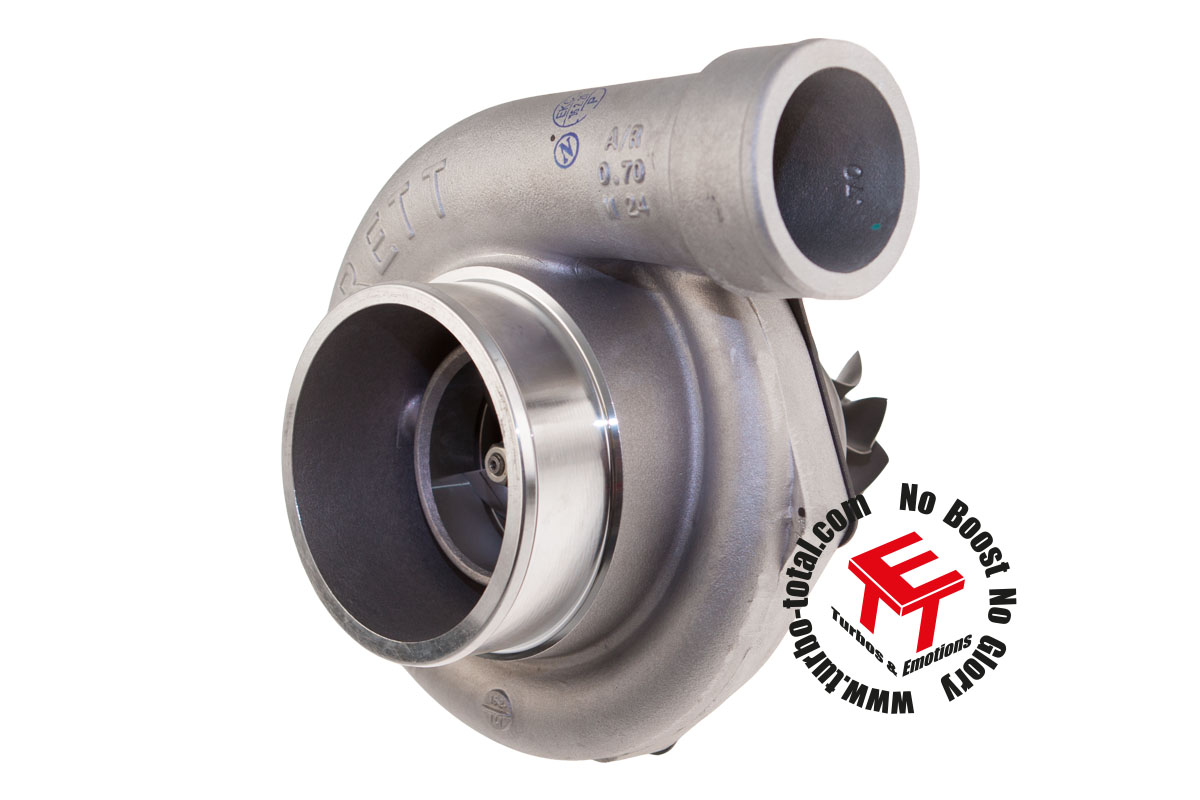

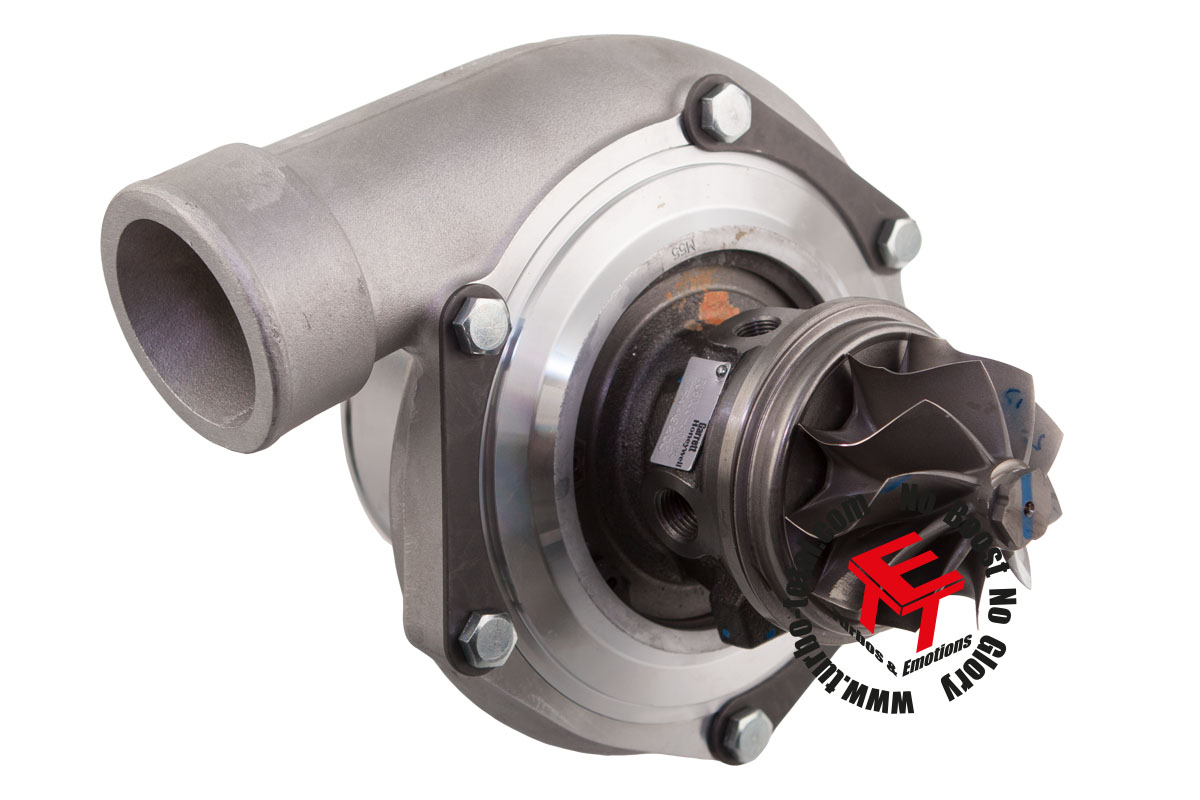

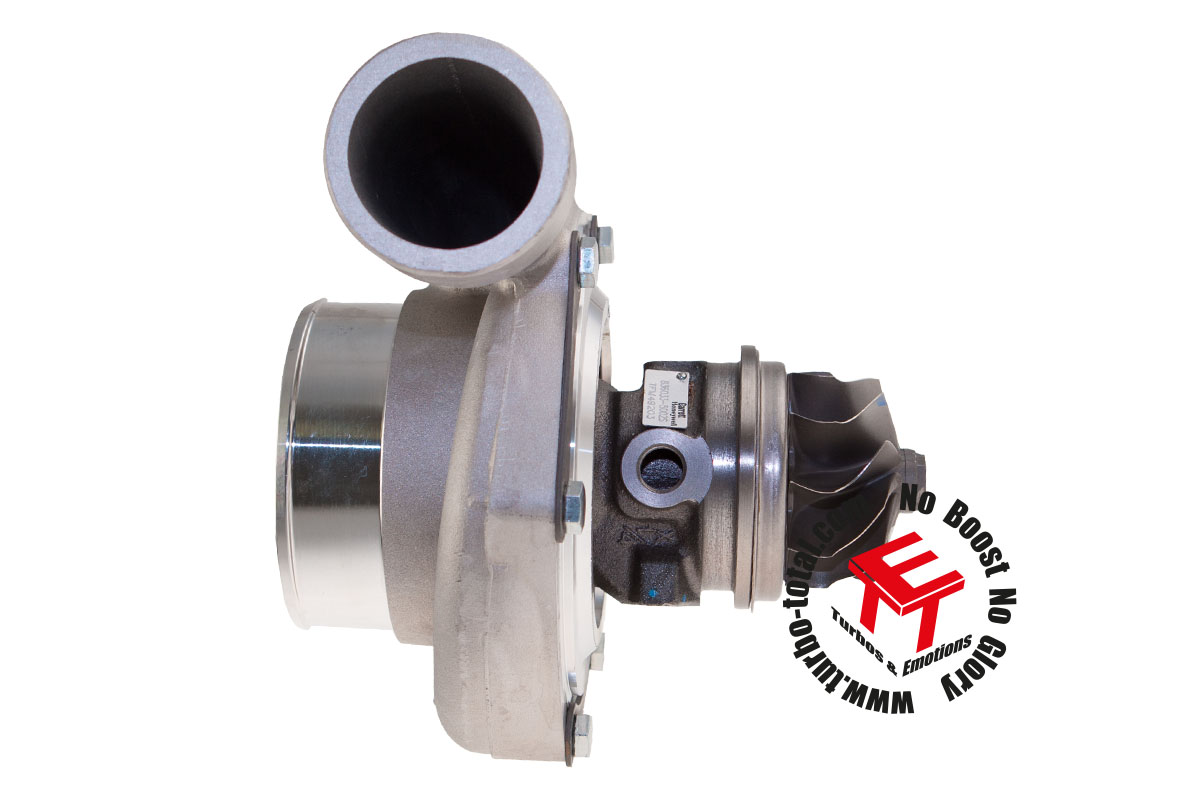

GT3582R Garrett Turbocharger 836033-5002S / 815113-2

Horsepower: 400 - 675 hp
Displacement: 2,0 - 4,5L

  • Air-inlet Ø 103.60mm
  • Dual ceramic ball bearing cartridges
  • Cast compressor wheel
  • High-Flow Verdichtergehäuse
  • Inconel turbine wheel
  • Water- and oil cooled
  • Delivery without actuator and turbine housing
  • Old number: 815113-5002S / 714568-7
Compressor side:
Inducer ø
61,40mm		 Exducer ø
82,00mm		 Trim
56		 A/R
0.70
Turbine side:
Inducer ø
68,00mm		 Exducer ø
62,30mm		 A/R
--
Available downloads:

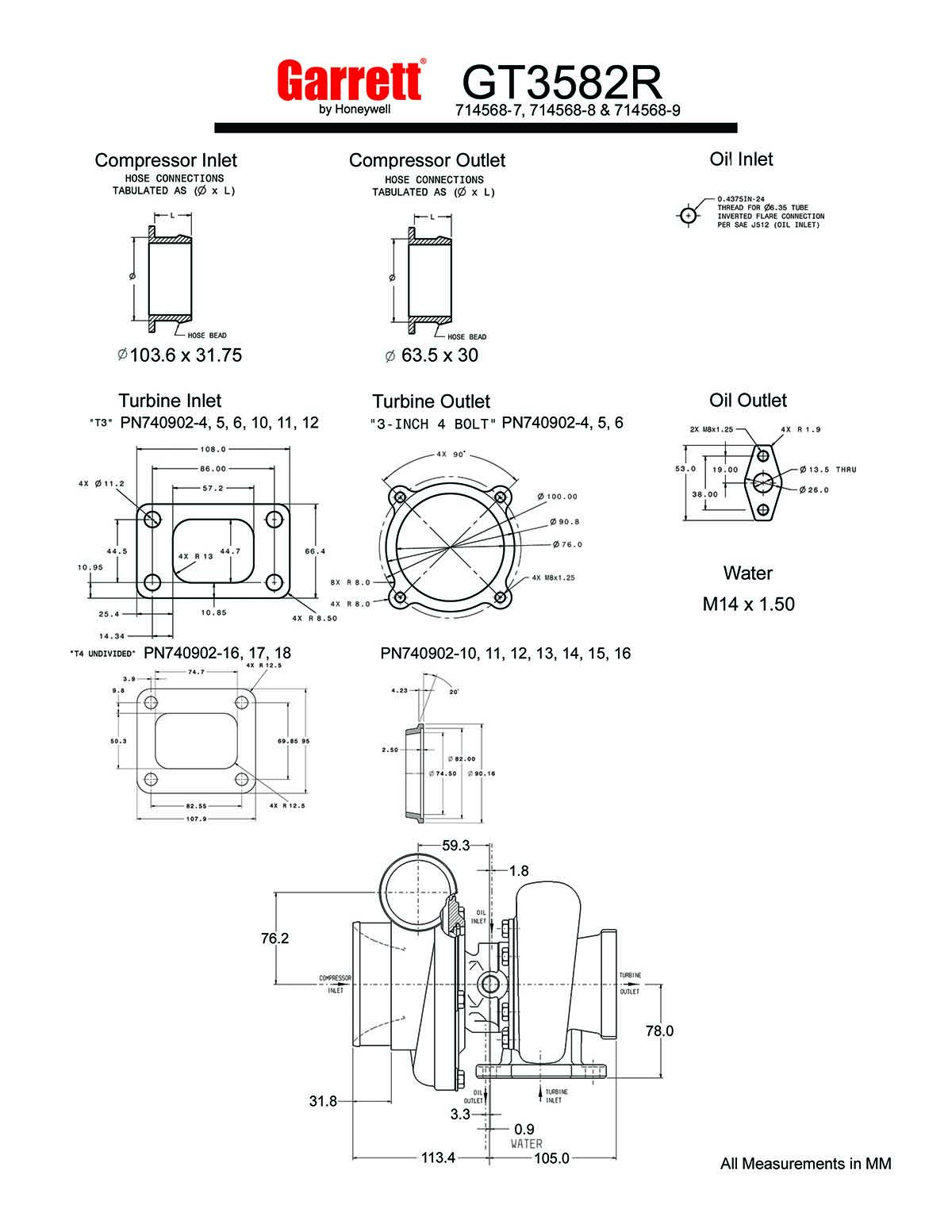

Drawings
Zeichnung als PDF öffnen more
Zurück

Zeichnung als PDF öffnen

GarrettGT3582R-714568_7_8_9-Zeichnung

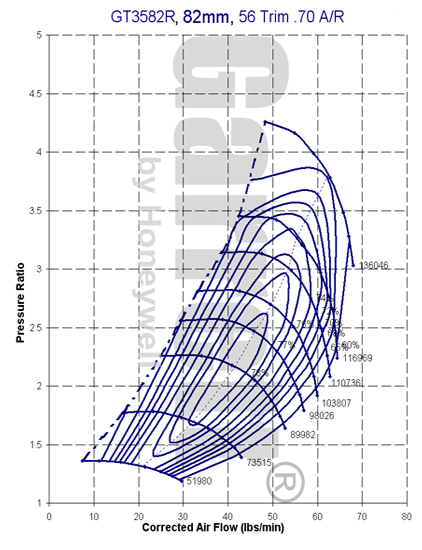

Maps
more
Zurück

714568-allcomp714568-allturb5783a25ba0383
