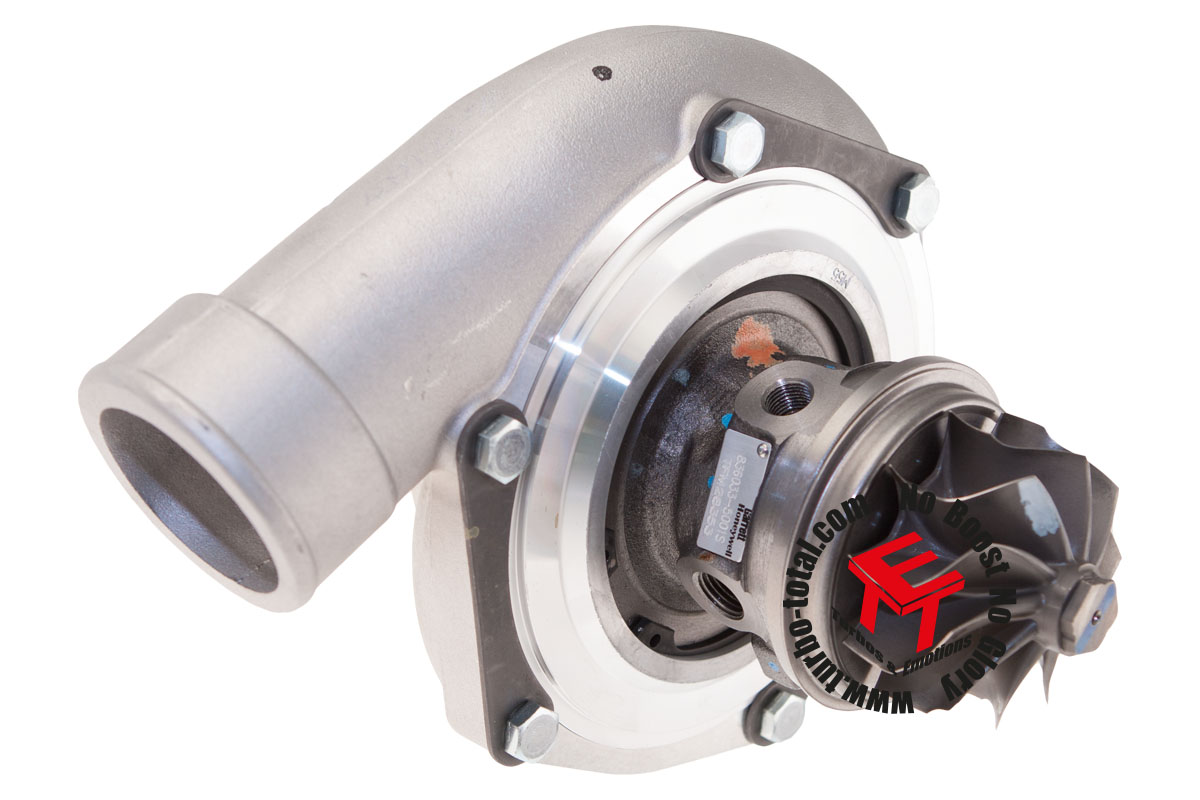

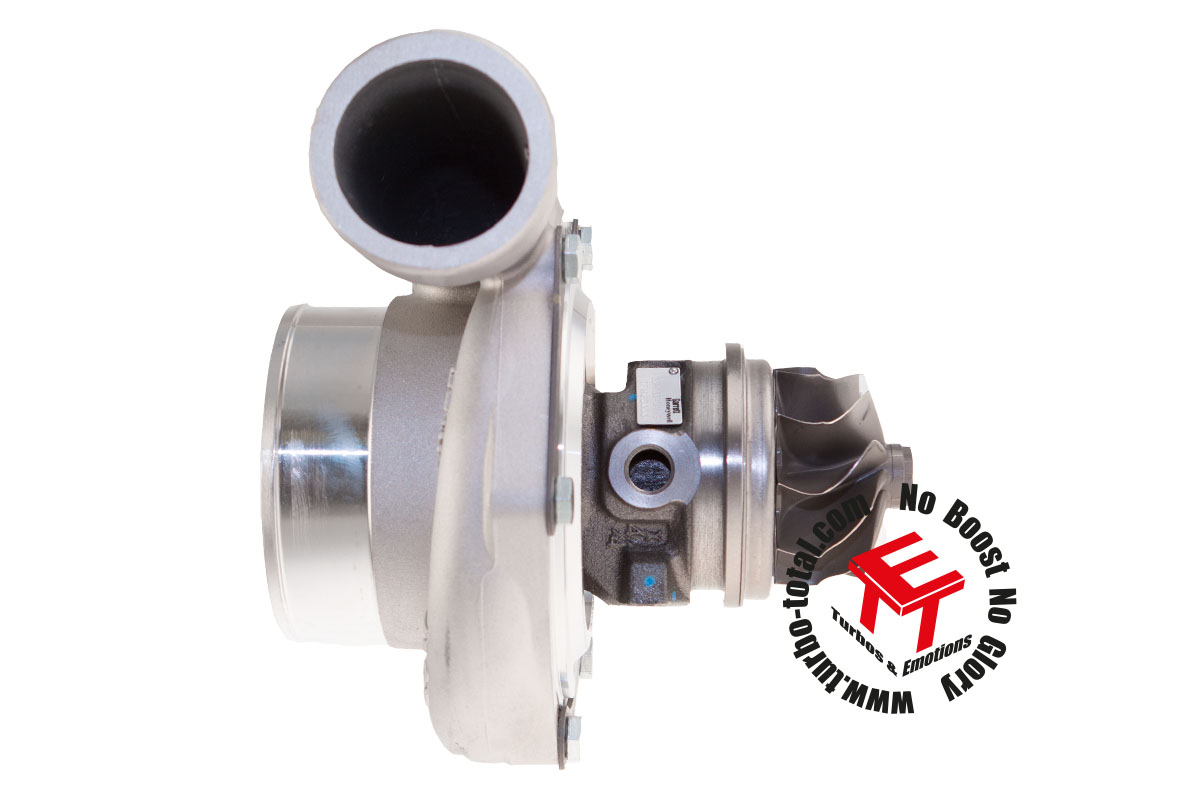

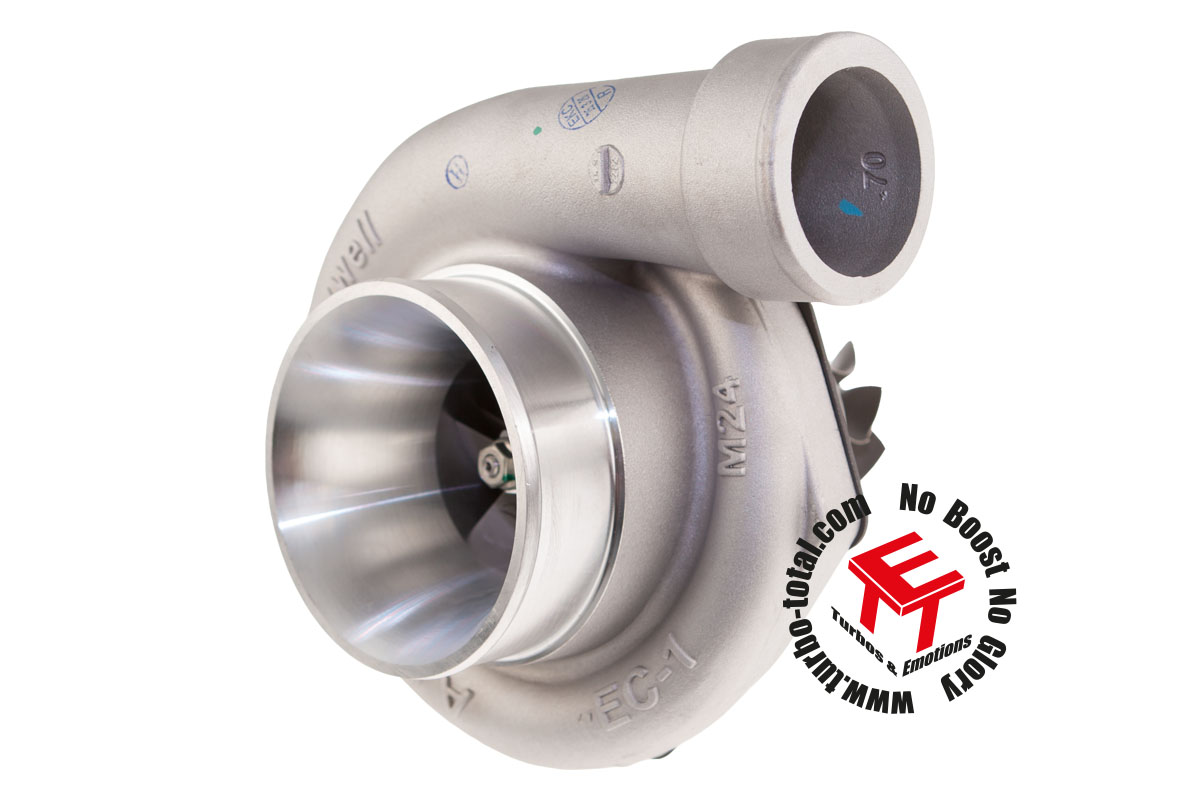

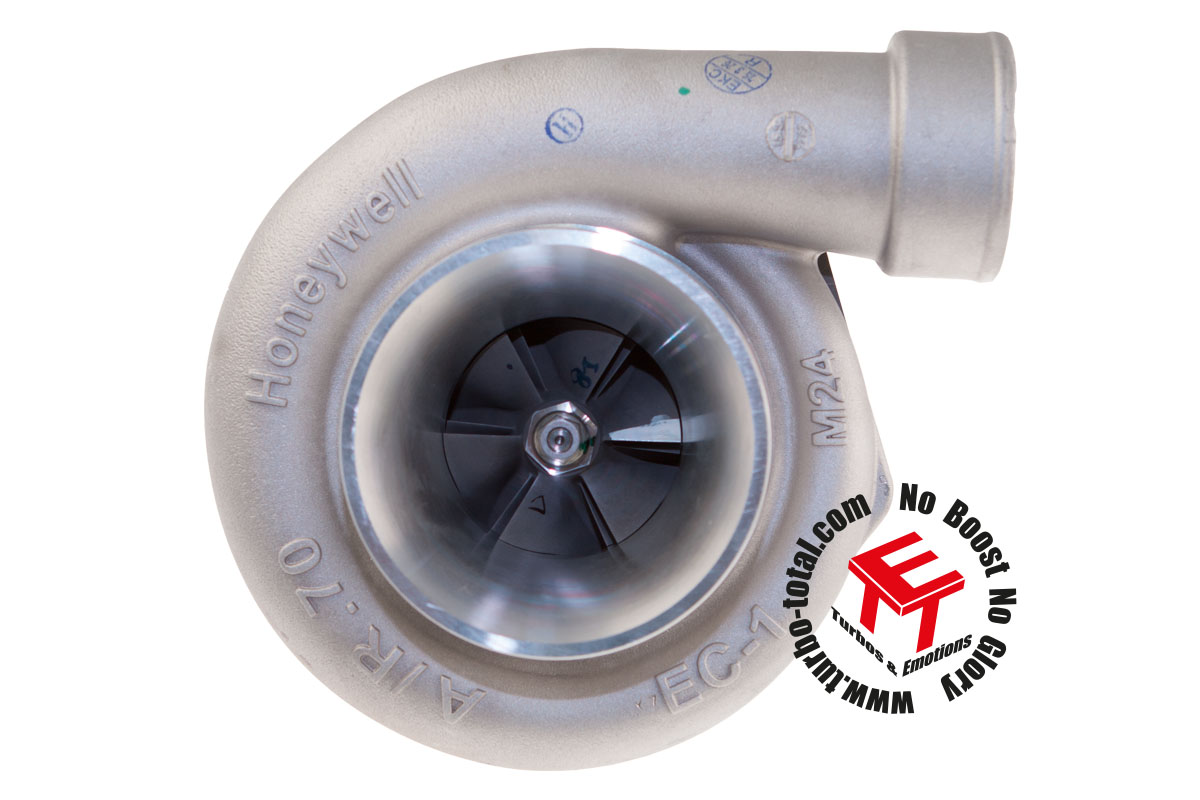

GT3582R Garrett Turbocharger 836033-5001S / 815113-1

GARRETT
Preview: GT3582R Garrett Turbolader 836033-5001S / 815113-1 Preview: GT3582R Garrett Turbolader 836033-5001S / 815113-1 Preview: GT3582R Garrett Turbolader 836033-5001S / 815113-1 Preview: GT3582R Garrett Turbolader 836033-5001S / 815113-1
GT3582R Garrett Turbolader 836033-5001S / 815113-1
GT3582R Garrett Turbolader 836033-5001S / 815113-1
GT3582R Garrett Turbolader 836033-5001S / 815113-1
GT3582R Garrett Turbolader 836033-5001S / 815113-1

€1,283.45

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

Buy at www.bartek.com
  • Order number: 836033-5001S
Description Drawings Maps Evaluations 0
Description
Horsepower: 400 - 600 hp Displacement:  2,0 - 4,5L Air-inlet Ø 101.60mm Dual ceramic... more
Close menu
GT3582R Garrett Turbocharger 836033-5001S / 815113-1

Horsepower: 400 - 600 hp
Displacement: 2,0 - 4,5L

  • Air-inlet Ø 101.60mm
  • Dual ceramic ball bearing cartridges
  • Cast compressor wheel
  • Inconel turbine wheel
  • Water- and oil cooled
  • Delivery without actuator and turbine housing
  • Old number:  815113-5001S / 714568-1
Compressor side:
Inducer ø
61,40mm		 Exducer ø
82,00mm		 Trim
56		 A/R
0.70
Turbine side:
Inducer ø
68,00mm		 Exducer ø
62,30mm		 A/R
--
Available downloads:

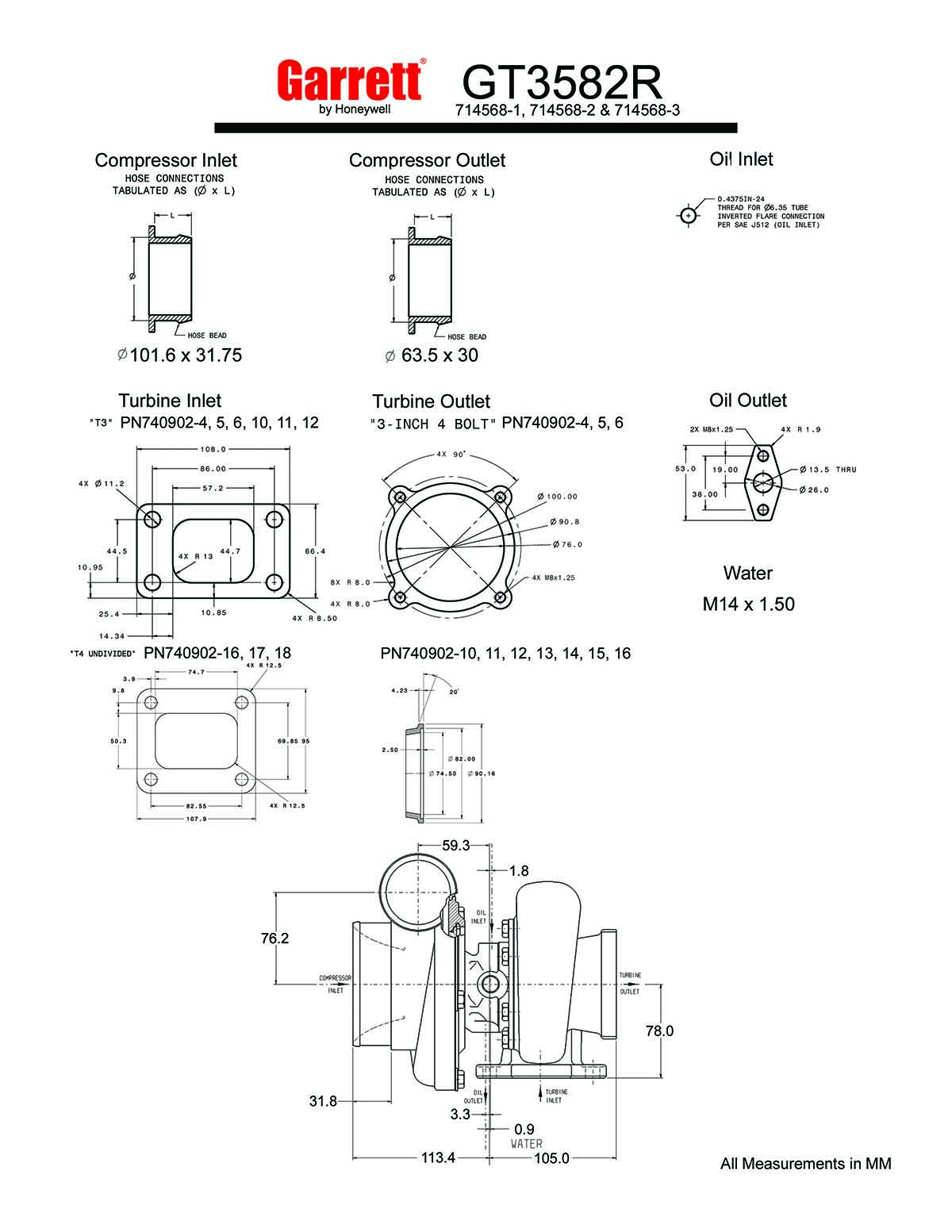

Drawings
Zeichnung als PDF öffnen more
Zurück

Zeichnung als PDF öffnenGarrett_GT3582R_714568_1Zeichnung

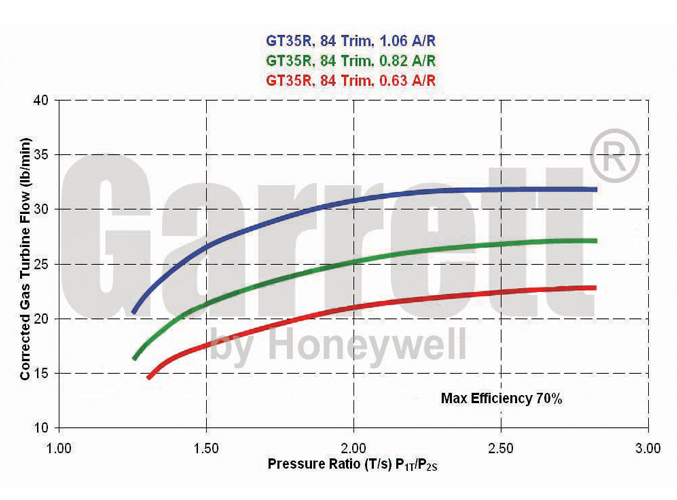

Maps
more
Zurück

714568-1-2-3714568-allturb5783844f7d614
