GT2876R Garrett Turbocharger 0.64 A/R 836026-5022S / 705330-5001S

GARRETT
Preview: GT2876R Garrett Turbolader 0.64 A/R 836026-5022S / 705330-5001S Preview: GT2876R Garrett Turbolader 0.64 A/R 836026-5022S / 705330-5001S Preview: GT2876R Garrett Turbolader 0.64 A/R 836026-5022S / 705330-5001S Preview: GT2876R Garrett Turbolader 0.64 A/R 836026-5022S / 705330-5001S
GT2876R Garrett Turbolader 0.64 A/R 836026-5022S / 705330-5001S
GT2876R Garrett Turbolader 0.64 A/R 836026-5022S / 705330-5001S
GT2876R Garrett Turbolader 0.64 A/R 836026-5022S / 705330-5001S
GT2876R Garrett Turbolader 0.64 A/R 836026-5022S / 705330-5001S

€1,245.00

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 836026-5022S
Description Drawings Maps Evaluations 0
Description
Horsepower:  280 - 480 hp Displacement:  1,8 - 3,0L Dual ceramic ball bearing cartridges... more
Close menu
GT2876R Garrett Turbocharger 0.64 A/R 836026-5022S / 705330-5001S

Horsepower: 280 - 480 hp
Displacement: 1,8 - 3,0L

  • Dual ceramic ball bearing cartridges
  • Cast compressor wheel
  • Inconel turbine wheel
  • Water- and oil cooled
  • Delivery without actuator
  • Old number: 705330-5001S
Compressor side:
Inducer ø
52,80mm		 Exducer ø
76,10mm		 Trim
48		 A/R
0,70
Turbine side:
Inducer ø
53,90mm		 Exducer ø
47,00mm		 Trim
76		 A/R
0,64
Available downloads:

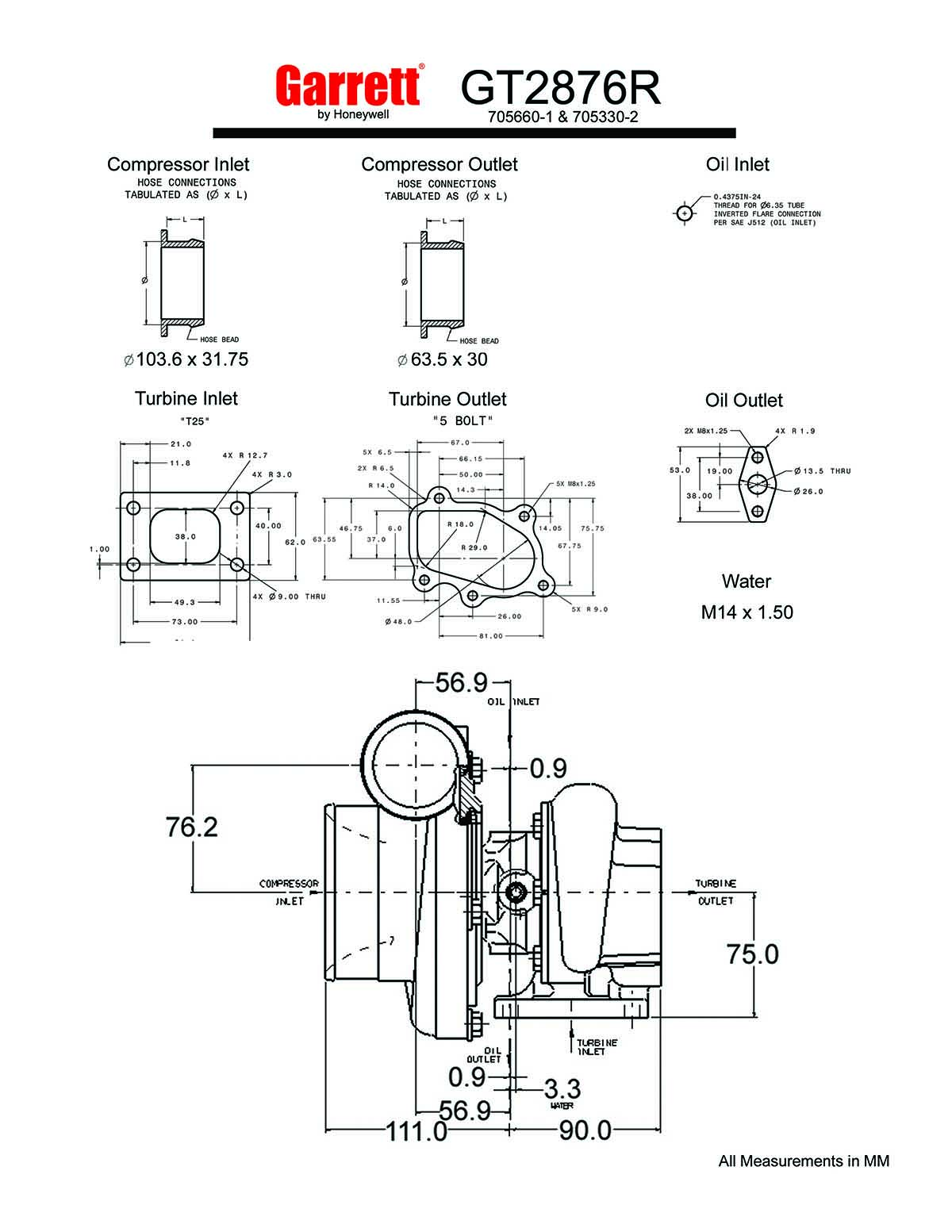

Drawings
Zeichnung als PDF öffnen more
Zurück

Zeichnung als PDF öffnenGarrett_GT2876R_705330_1_2_Zeichnung

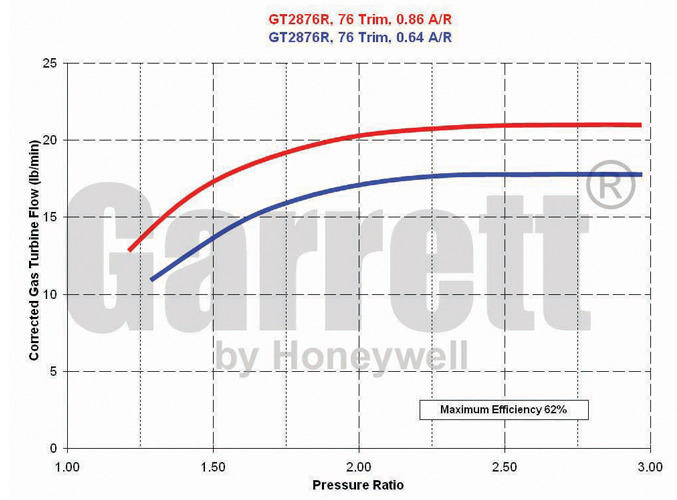

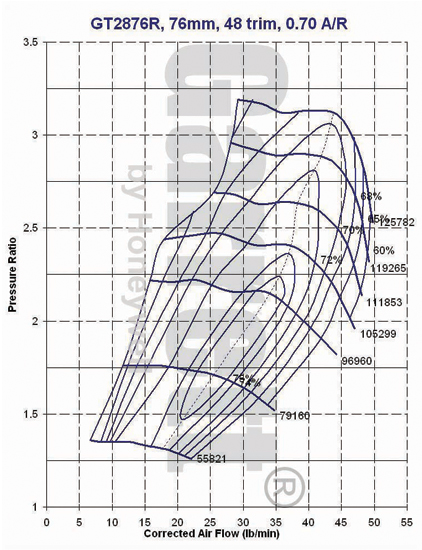

Maps
more
Zurück

750330-1-2comp750330-1-2turb
