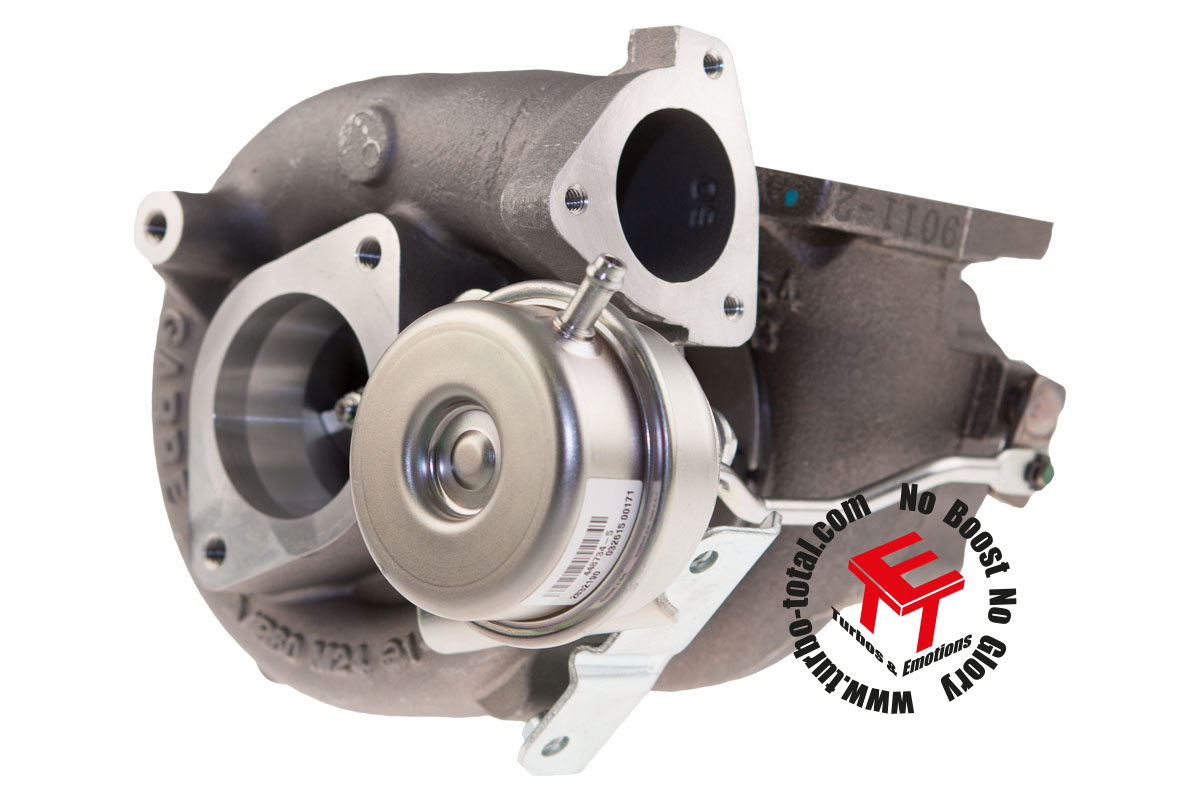

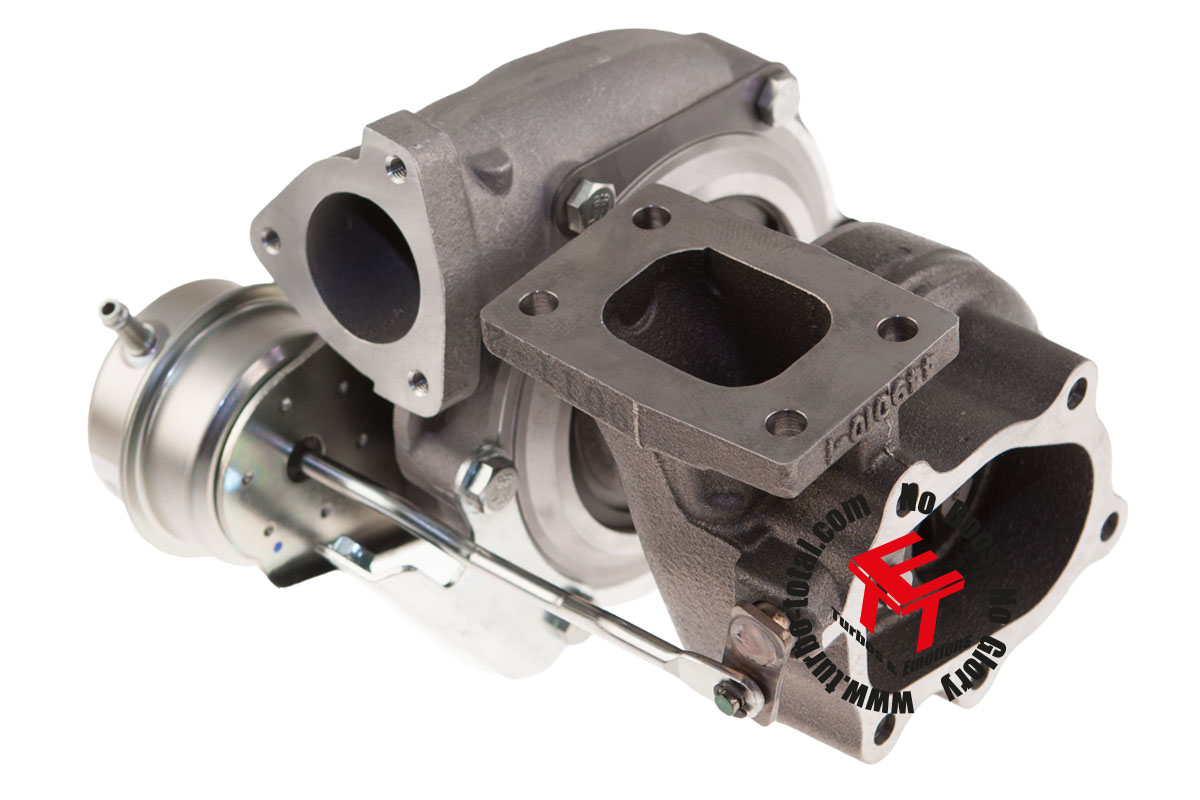

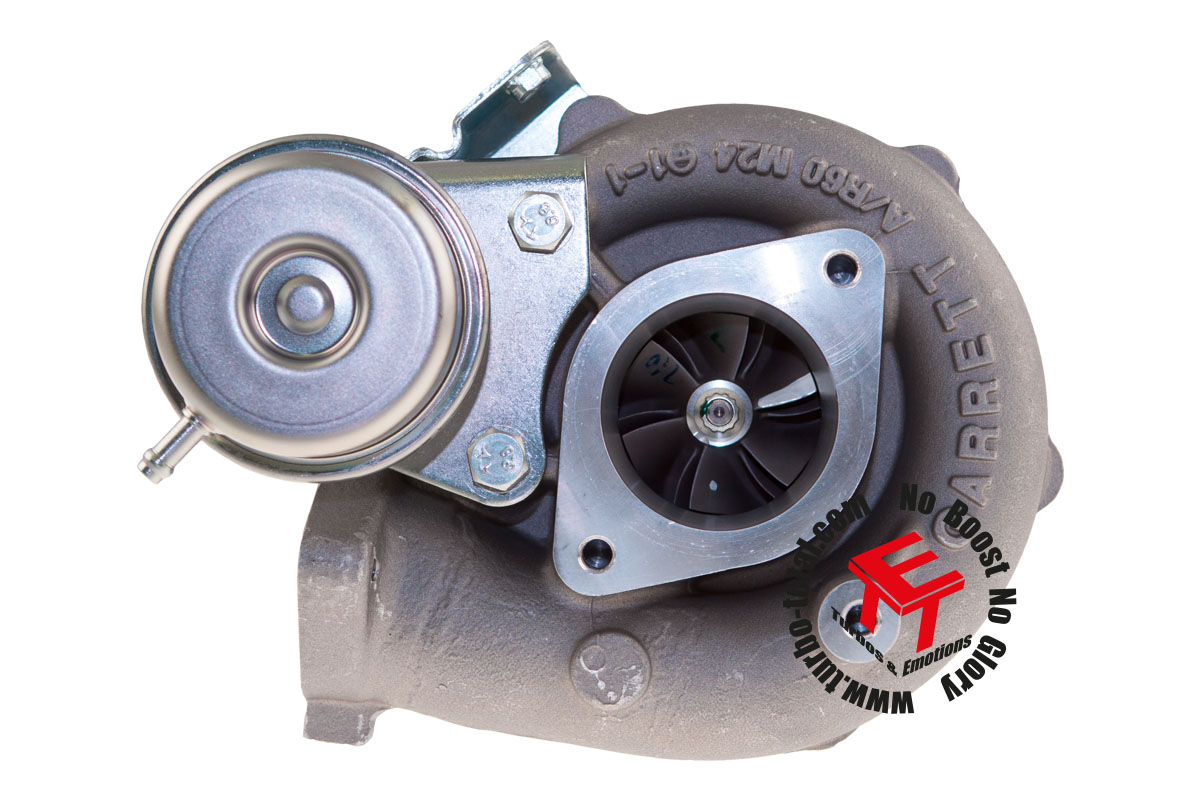

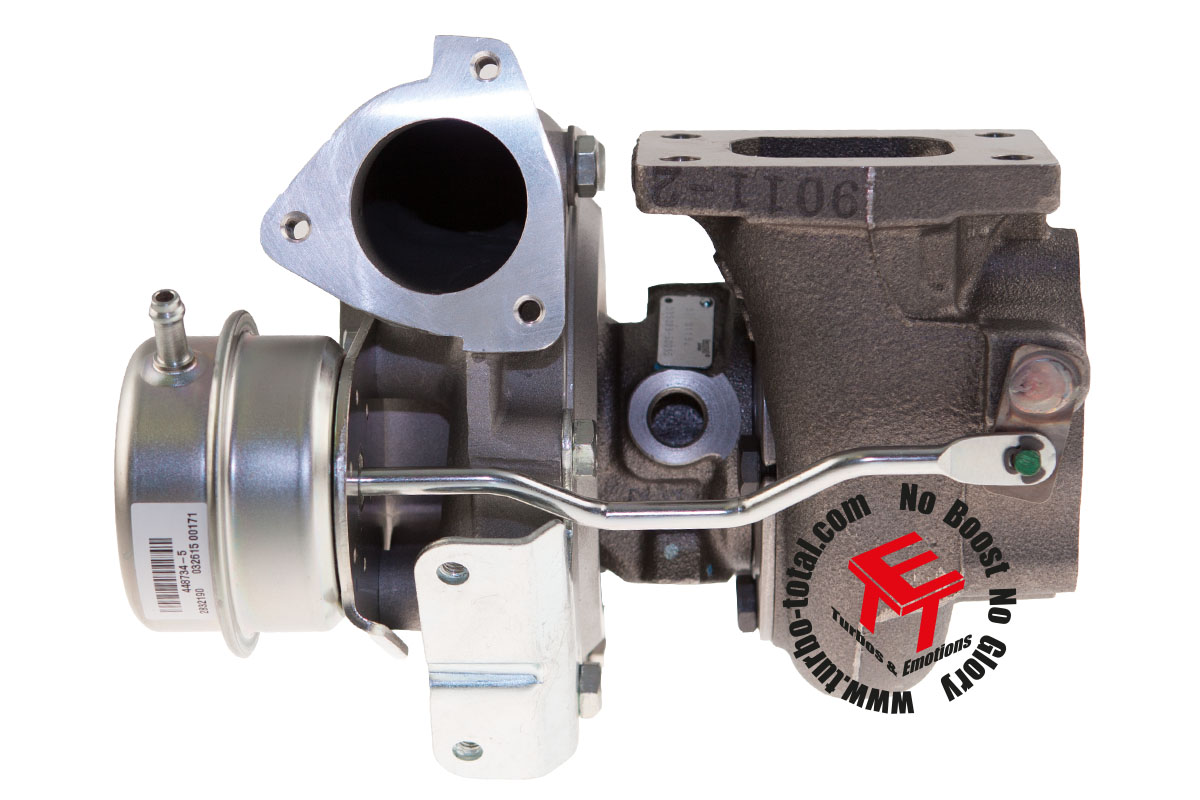

GT2860RS Garrett Turbocharger 836026-5009S / 836026-5010S

GARRETT
Preview: GT2860RS Garrett Turbolader 836026-5009S / 836026-5010S Preview: GT2860RS Garrett Turbolader 836026-5009S / 836026-5010S Preview: GT2860RS Garrett Turbolader 836026-5009S / 836026-5010S Preview: GT2860RS Garrett Turbolader 836026-5009S / 836026-5010S
GT2860RS Garrett Turbolader 836026-5009S / 836026-5010S
GT2860RS Garrett Turbolader 836026-5009S / 836026-5010S
GT2860RS Garrett Turbolader 836026-5009S / 836026-5010S
GT2860RS Garrett Turbolader 836026-5009S / 836026-5010S

€1,203.90

Prices incl. VAT plus shipping costs

Turbine Housing A/R:

  • Order number: 836026-5009S
Description Drawings Maps Evaluations 0
Description
Horsepower:  250 - 360 hp Displacement:  1,8 - 3,0L Dual ceramic ball bearing cartridges... more
Close menu
GT2860RS Garrett Turbocharger 836026-5009S / 836026-5010S

Horsepower: 250 - 360 hp
Displacement: 1,8 - 3,0L

  • Dual ceramic ball bearing cartridges
  • Cast compressor wheel
  • Inconel turbine wheel
  • Water- and oil cooled
  • Old number: 739548-5009S & 739548-5015S
Compressor side:
Inducer ø
47,20mm		 Exducer ø
60,10mm		 Trim
62		 A/R
0,60
Turbine side:
Inducer ø
53,90mm		 Exducer ø
47,00mm		 Trim
76		 A/R
0,86
Available downloads:

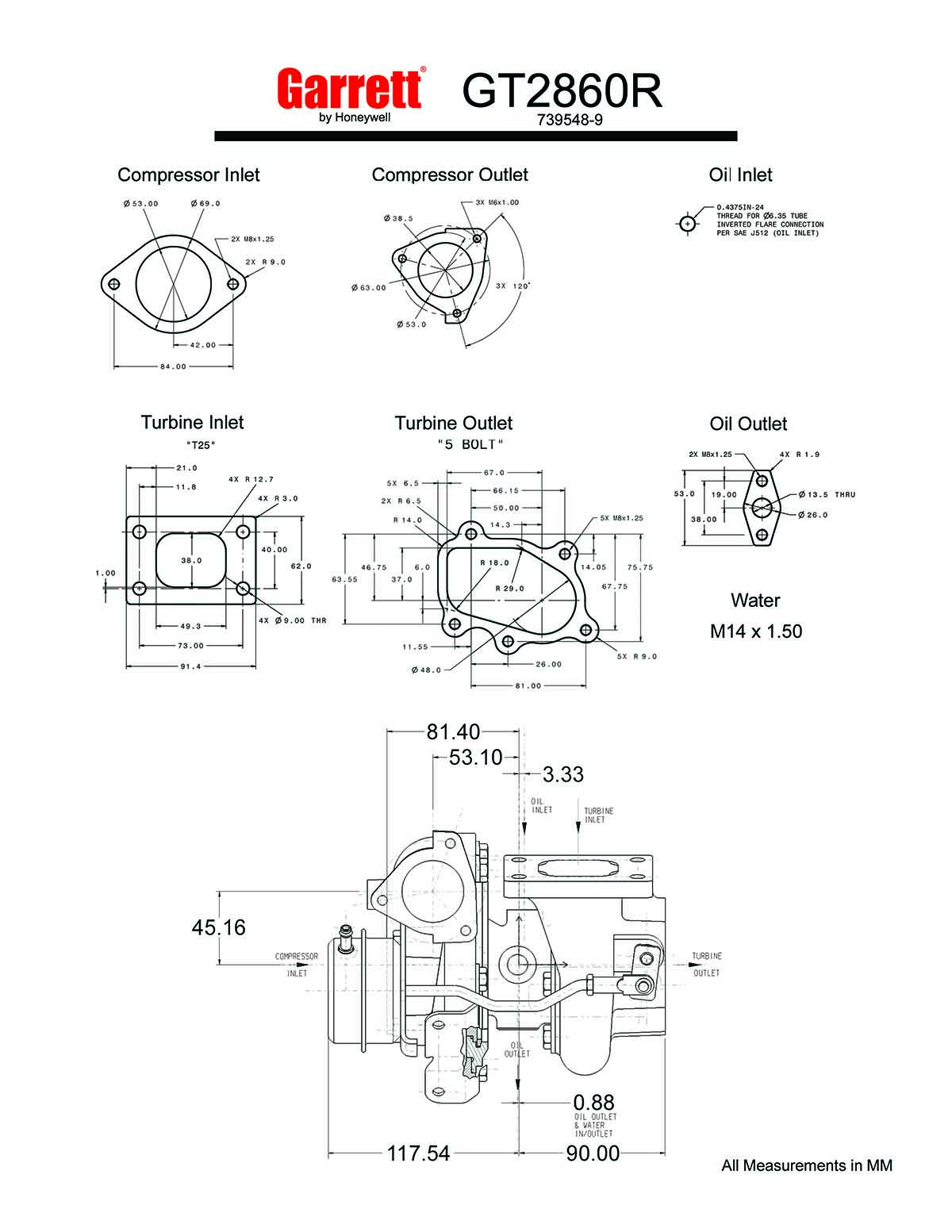

Drawings
Zeichnung als PDF öffnen more
Zurück

Zeichnung als PDF öffnen

Garrett_GT2860R_739548_9_Zeichnung

Maps
more
Zurück

739548-1comp739548-1-064turb
