GT2554R Garrett Turbocharger 836023-5001S / 471171-3

GARRETT
Preview: GT2554R Garrett Turbolader 836023-5001S / 471171-3 Preview: GT2554R Garrett Turbolader 836023-5001S / 471171-3 Preview: GT2554R Garrett Turbolader 836023-5001S / 471171-3 Preview: GT2554R Garrett Turbolader 836023-5001S / 471171-3
GT2554R Garrett Turbolader 836023-5001S / 471171-3
GT2554R Garrett Turbolader 836023-5001S / 471171-3
GT2554R Garrett Turbolader 836023-5001S / 471171-3
GT2554R Garrett Turbolader 836023-5001S / 471171-3

€875.15

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 836023-5001S
Description Drawings Maps Evaluations 0
Description
Horsepower:  170 - 270 hp Displacement:  1,4 - 2,2L T25 Inlet - Single Scroll - internal... more
Close menu
GT2554R Garrett Turbocharger 836023-5001S / 471171-3

Horsepower: 170 - 270 hp
Displacement: 1,4 - 2,2L

  • T25 Inlet - Single Scroll - internal Waste gate
  • 0.64 A/R 5-Loch Ausgang
  • Dual ceramic ball bearing cartridges
  • Cast compressor wheel
  • Inconel turbine wheel
  • Water- and oil cooled
  • Old number: 471171-5003S
Compressor side:
Inducer ø
42,10mm		 Exducer ø
54,30mm		 Trim
60		 A/R
0,80
Turbine side:
Inducer ø
53,00mm		 Exducer ø
41,70mm		 Trim
62		 A/R
0,64
Available downloads:

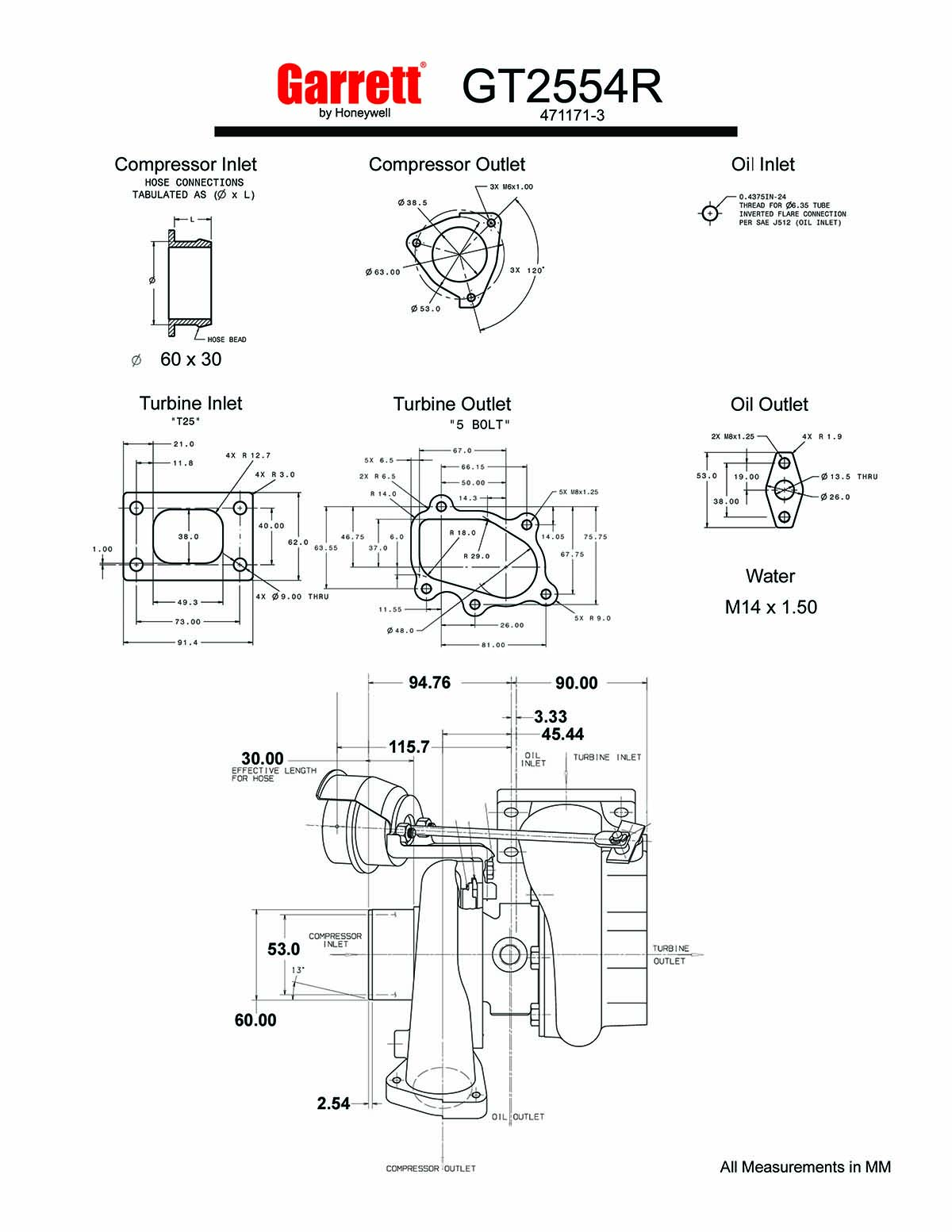

Drawings
Zeichnung als PDF öffnen more
Zurück

Zeichnung als PDF öffnen

Garrett_GT2554R

Maps
more
Zurück

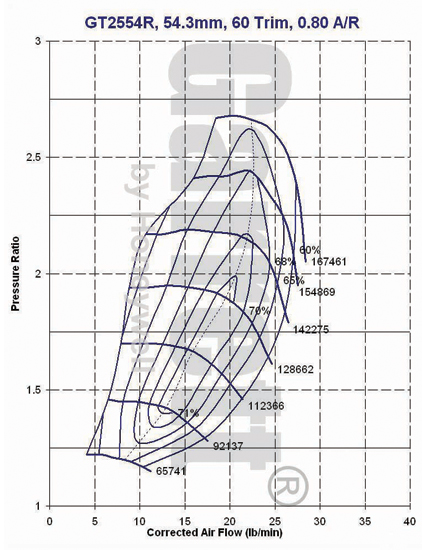

471171-3VK

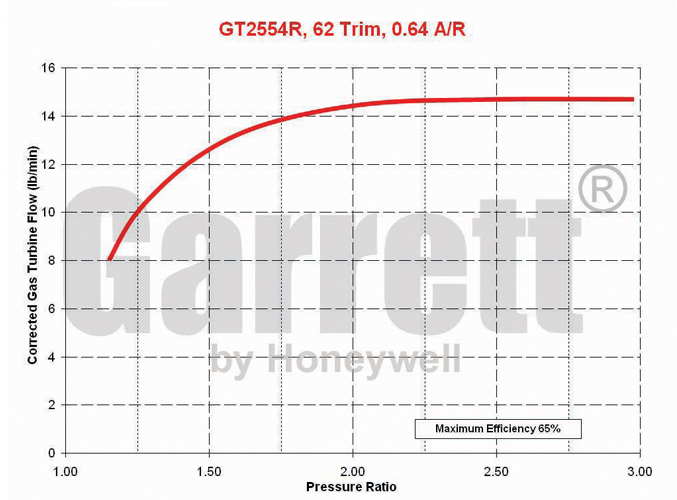

471171-3tk

Evaluations 0
Read, write and discuss reviews... more
Close menu
