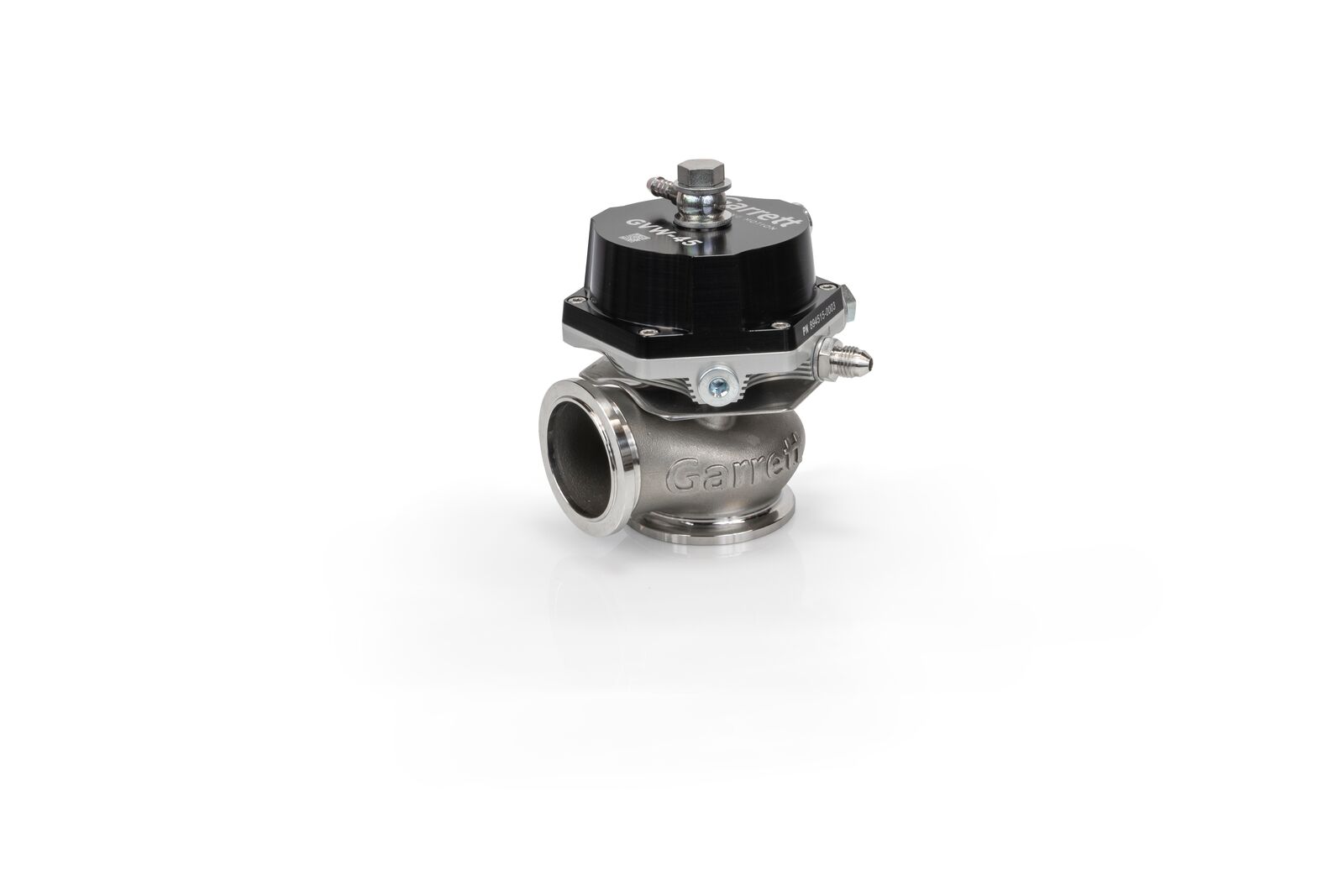

Garrett Vent GVW-45, 45 mm, 1.6 bar, black

Garrett Vent | External wastegates regulate the speed of the turbocharger shaft by venting the exhaust gas around the turbocharger's turbine stage. The CFD-optimized design maximizes flow and provides optimal boost pressure control. Advanced thermal optimization increases membrane durability. The cap design makes spring replacement and maintenance easier and more reliable across the GVW range.

Garrett External Wastegates: Features

• CFD tested for maximum flow and thermal efficiency
• Optimized actuation stability and temperature resistance for superior durability
• Replaceable valve and bushing components for longer life
• Robust construction for easy membrane replacement
• Liquid-cooled actuator ports for use in demanding applications (up to 52% reduction in case temperature)
• Drive cover made of anodized aluminum
• Color: Black
• Size: 45 mm
• Standard base pressure: 1 bar | 14.5 PSI
• Maximum base pressure: 23 PSI | 1.6 bar
• Minimum base pressure: 3 PSI | 0.2 bar

Material data

The valve housing is cast from high-temperature-resistant stainless steel and is designed for exhaust gas temperatures of up to 1050°. C designed. CFD optimized for maximum flow and thermal efficiency.

• Valve body: High temperature stainless steel, rated for temperatures up to 1050°C. C
• Membrane: high-temperature elastomer with Nomex reinforcement
• Actuator cover: Fully machined anodized 6061 aluminum
• Valve guide | Socket: Nitronic 60
• Valve: High temperature stainless steel with coated stem
• V-Band: CNC machined 304 stainless steel
• Flanges: Fully machined 304 stainless steel
• Springs: 17/7 PH stainless steel

Contents of the set

GVW wastegates contain all of the following parts:

• Feathers
• V-Band: Inlet | outlet
• Outlet flange
• Inlet flange
• valve seat
• Washers: M8 | M10
• Water connections
• Banjo bolts and banjo bolt connections
• Air plug
