Garrett Speed Sensor Kit with Gauge 781328-0001
- Order number: 781328-0001
Speed Sensor Kit for GT & GTX Turbocharger with Gauge
Display range: 0 - 180.000 rpm
Data logger output: Yes
Maximum value detection: Yes

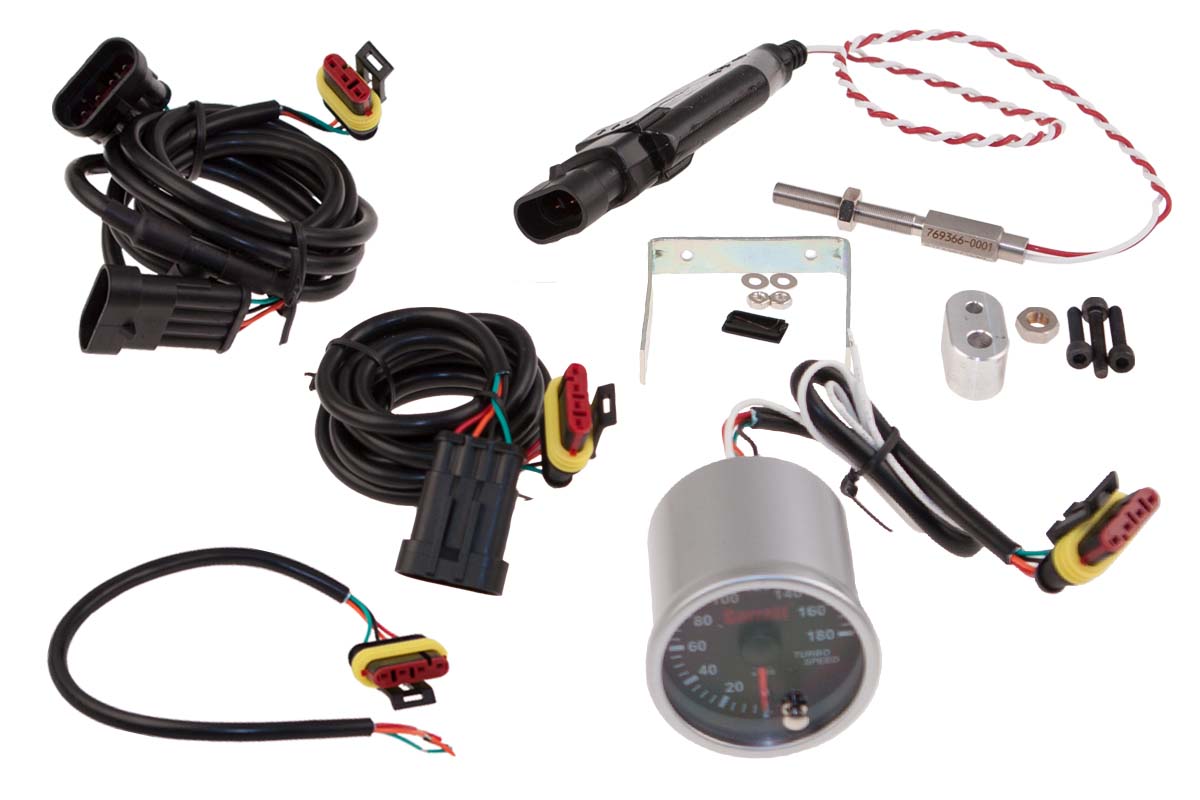

Delivery:

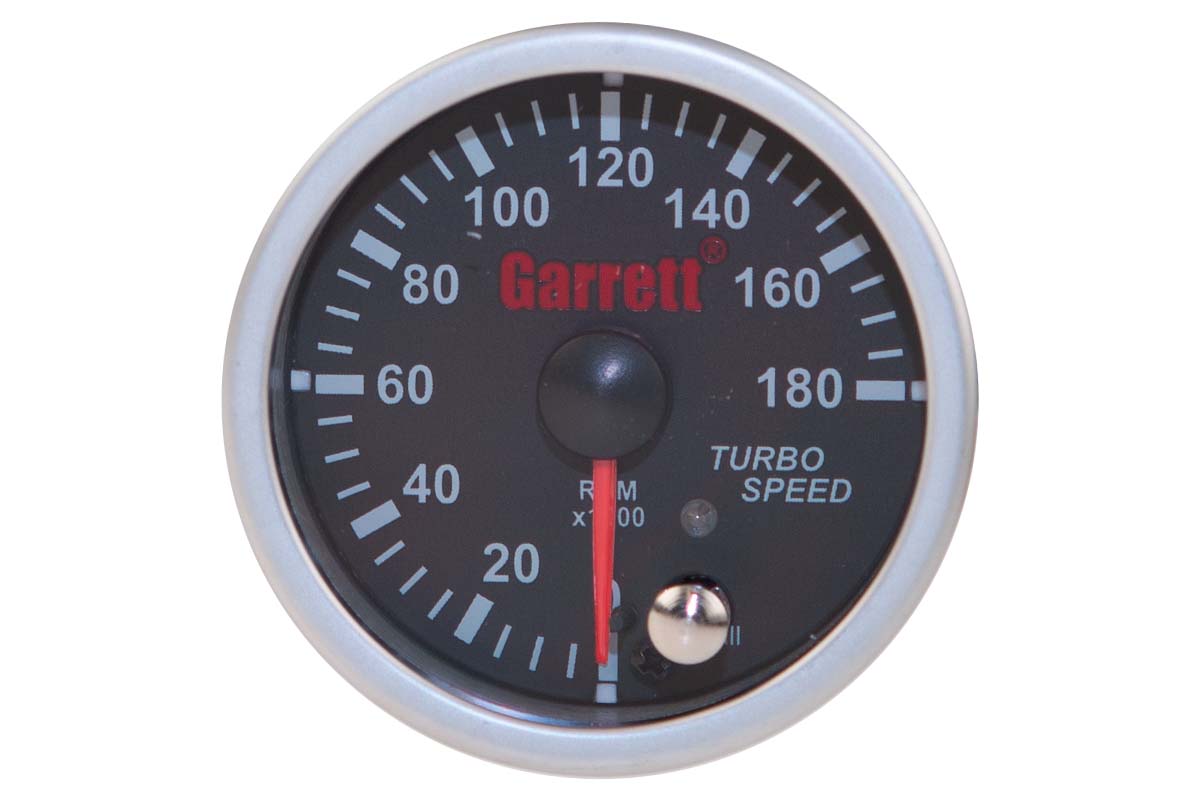

- Gauge
- Gauge Extension Harness

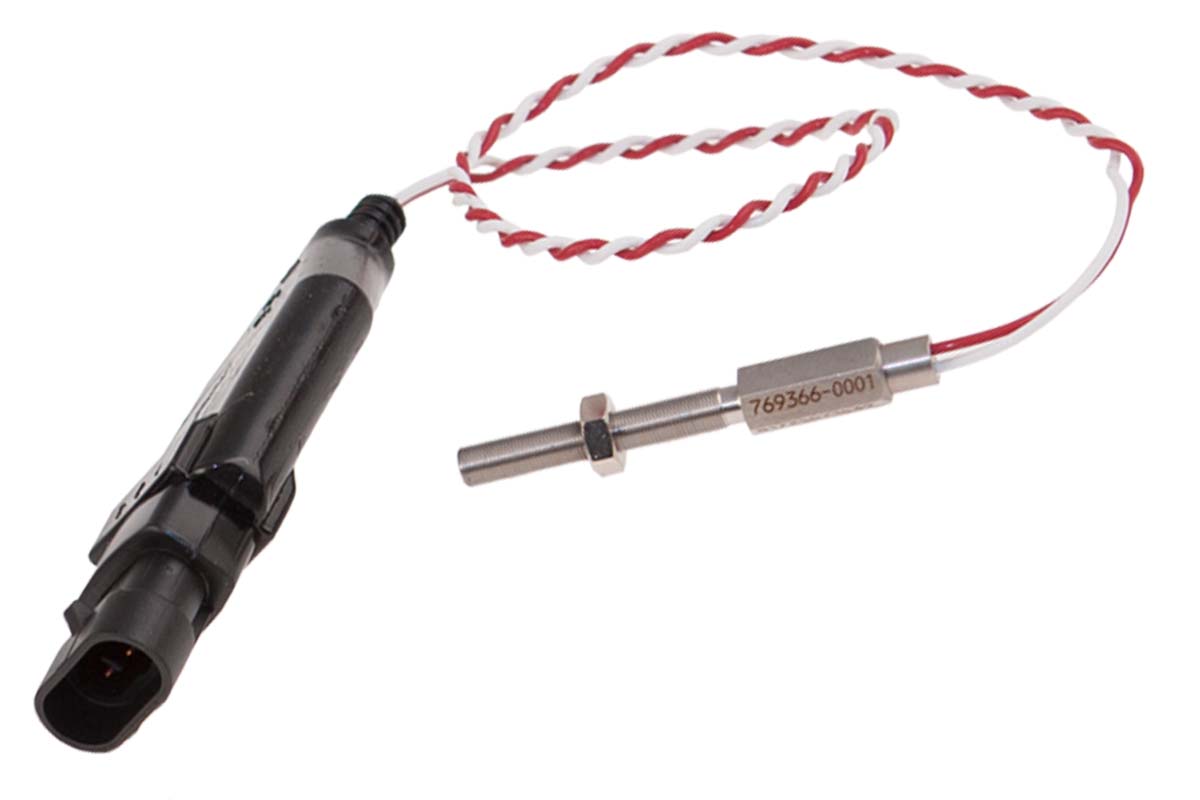

- Speed sensor for GT & GTX turbocharger
- Main Wiring Harness
- Power / Logger Pigtail
- Spacer block
- M4 x 0.70 x 18mm screw
- M4 x 0.70 x 20mm screw
- M4 x 0.70 x 22mm screw
- Drawung and Instructions
Select GTX turbochargers come standard with a fully machined speed sensor port. Just remove the bolt and screw in the appropriate kit for your applicaiton.

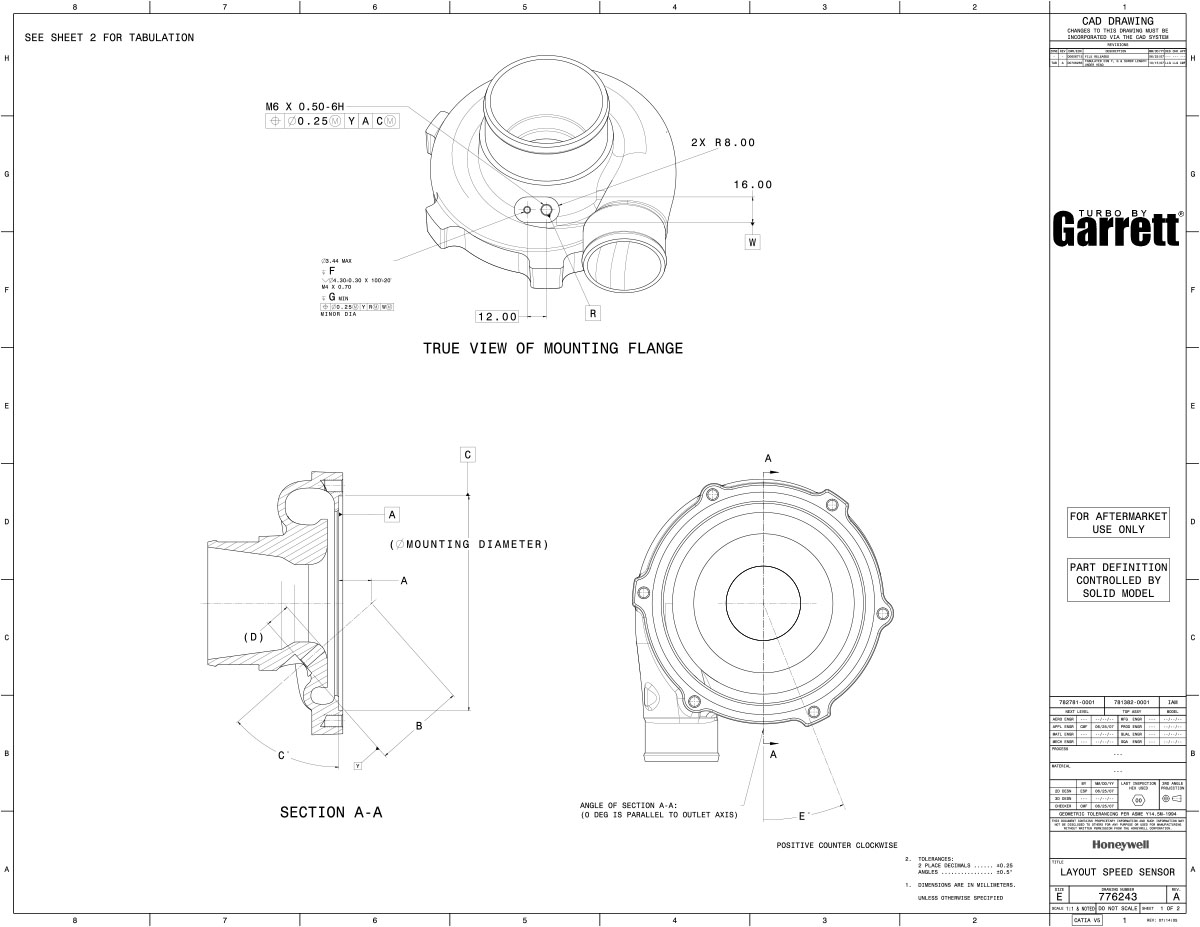

The Garrett® Turbocharger Speed Sensor works with any turbocharger to accurately determine compressor wheel speed. The instructions include detailed drawings of the exact machining specifications for all Garrett® GT catalog turbochargers as well as general guidelines for other compressor housing types. The Garrett® Turbocharger Speed Sensor Kit includes all necessary wiring for easy installation and simple data logging.
GT/GTX speed sensor kit not applicable with G Series turbochargers.
Comparing boost levels and shaft speed on a compressor map, you can determine the ideal operating conditions to insure peak power over a wider operating range. All Garrett® Turbocharger Speed Sensor Kits are compatible with datalogers to enhance engine tuning capability. In addition, the Garrett®-branded gauge’s maximum speed recall function will retain the highest wheel speed for five minutes for easy mapping.
The data gained from the Garrett® Turbocharger Speed Sensor Kit can be used to closely estimate the engine’s flow behavior without a flow bench. Flow information is invaluable for determining if the turbocharger is reaching its maximum performance, for validating the turbo match, and for insuring that it is not over-speeding, allowing you to avoid potentially damaging operating conditions.
This kit could even be used in conjunction with an aftermarket ECU to limit compressor speed. The Garrett® Turbocharger Speed Sensor Kit will help you be sure you’ve got the correct turbo for your needs!
