Garrett Performance Intercooler for Ford Mustang Upgrade 857564-6002

Garrett Performance Intercooler for the Ford Mustang with 2.3L EcoBoost Engine

• Rated up to 600 horsepower
• Higher cooling capacity, 60% larger core than stock
• For highest boost pressures and temperatures
• Extremely high fatigue protection
• Maximum heat dissipation with low pressure drop
• 100% leakage tested
• Aluminum core featuring advanced offset fin design and vacuum brazed bar-and-plate construction
• High manufacturing quality

The 857564-6002 Honeywell Garrett intercooler directly fits the 2015+ 2.3L Ecoboost Mustang in the stock location and can support up to 600 horsepower. This intercooler assembly leverages Honeywell Garrett’s extensive automotive and aerospace experience to offer the market a differentiated product.

The aluminum core features advanced offset fin design and vacuum brazed bar-and-plate construction resulting in superior thermal and fatigue performance. CFD optimized cast aluminum end tanks reduces recirculation and maximizes flow. The complete assembly results in up to a 30% reduction in pressure drop and up to a 40 degree reduction in charge air temperature.

The intercooler installs in two and a half hours using basic hand tools and can reuse the factory hoses, clamps, and bolts. Slightly elongated inlet and outlet ports create a secure surface for hose attachment reducing the chance of detachment on higher horsepower applications while maintaining compatibility with OEM hoses and aftermarket charge pipes.

* Engine power rating applies under normal operating conditions, the maximum engine power may be higher than specified here.

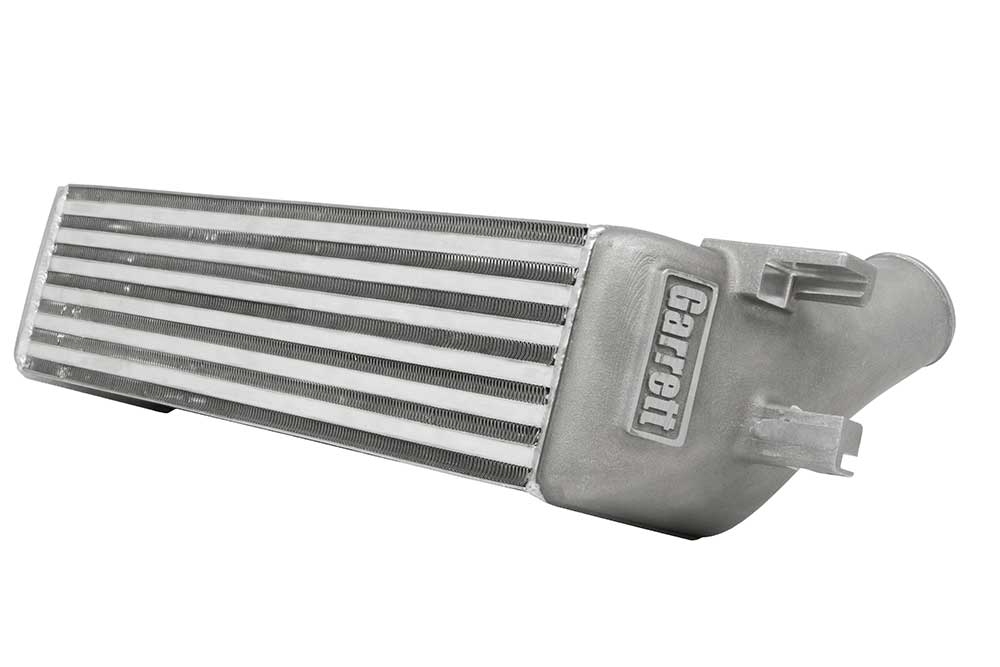

Sample Picture

• 2015+ 2.3L Mustang EcoBoost
• Core Length: 21”
• Core Height: 5.75”
• Core Width: 5.32”
• Inlet Dia: 2.75”
• Weight: 16.5 lbs
