Garrett GTX5533R 94mm Gen II Super Core 851285-5004S

GARRETT
Preview: GTX5533R Garrett 94mm Gen II Turbolader 851285-5004S Preview: GTX5533R Garrett 94mm Gen II Turbolader 851285-5004S Preview: GTX5533R Garrett 94mm Gen II Turbolader 851285-5004S Preview: GTX5533R Garrett 94mm Gen II Turbolader 851285-5004S
GTX5533R Garrett 94mm Gen II Turbolader 851285-5004S
GTX5533R Garrett 94mm Gen II Turbolader 851285-5004S
GTX5533R Garrett 94mm Gen II Turbolader 851285-5004S
GTX5533R Garrett 94mm Gen II Turbolader 851285-5004S

€4,014.25
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 851285-5004S
Description Drawings Maps Evaluations 0
Description
Horsepower: 1750 - 2450 HP Displacement: 3.0 - 12.0 L Gen II Aero forged milled... more
Close menu
Garrett GTX5533R 94mm Gen II Super Core 851285-5004S

Horsepower: 1750 - 2450 HP
Displacement: 3.0 - 12.0 L

  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port
  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • External Wastegate
Compressor side:
Inducer ø
94.00mm		 Exducer ø
133.00mm		 Trim
50		 A/R
0.96
Turbine side:
Inducer ø
112.00mm		 Exducer ø
102.00mm		 Trim
84		 A/R
--
Available downloads:
Drawings
Zeichnung als PDF öffnen more
Zurück

Zeichnung als PDF öffnen

GTX5533R_diagram

Maps
more
Zurück

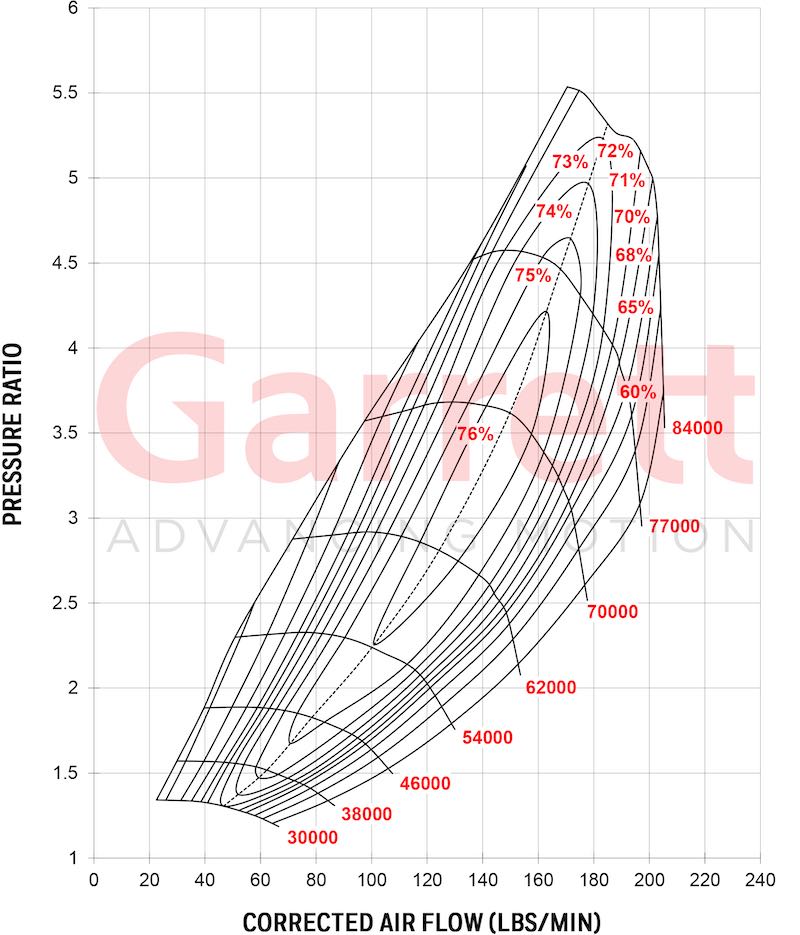

GTX553394mm_COMP

GTX5533_FLOW_1

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Garrett GTX5533R 94mm Gen II Super Core 851285-5004S"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.

The fields marked with * are required.
