Garrett GTX5533R 91mm Gen II Super Core 851285-5003S

GARRETT
Preview: GTX5533R Garrett 91mm Gen II Turbolader 851285-5003S Preview: GTX5533R Garrett 91mm Gen II Turbolader 851285-5003S Preview: GTX5533R Garrett 91mm Gen II Turbolader 851285-5003S Preview: GTX5533R Garrett 91mm Gen II Turbolader 851285-5003S

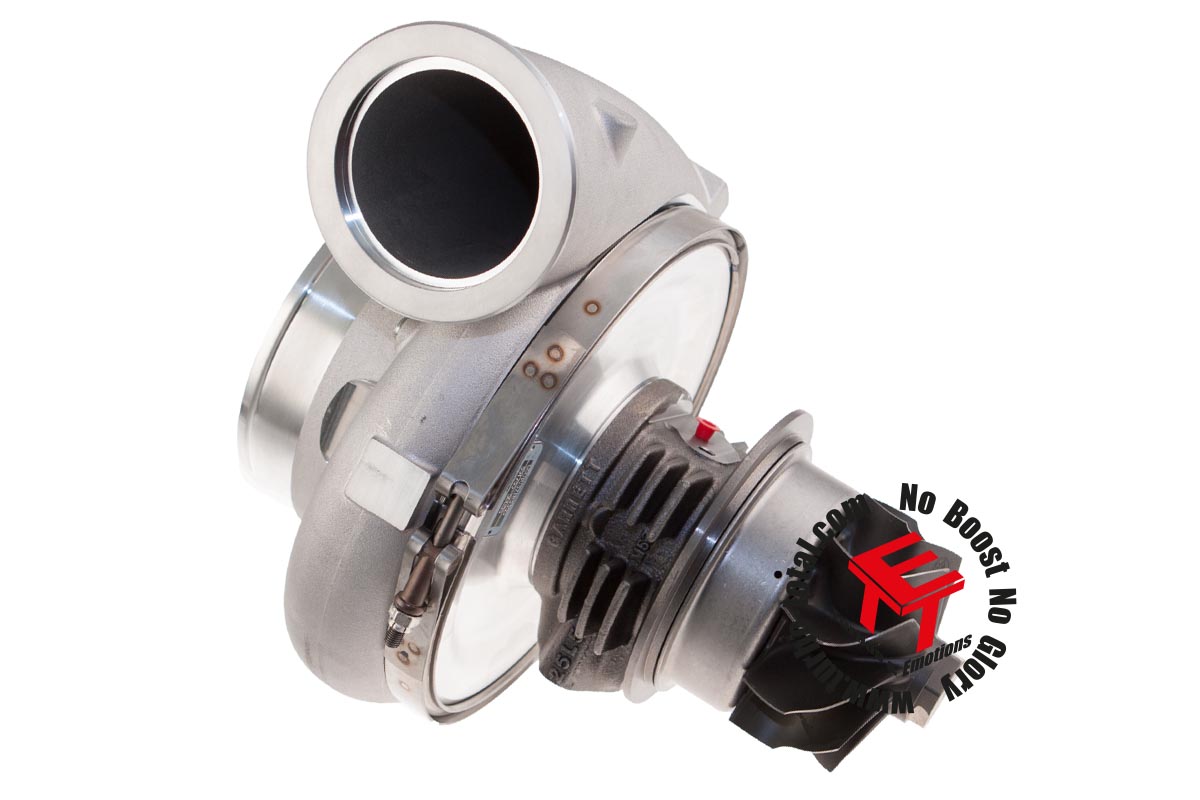

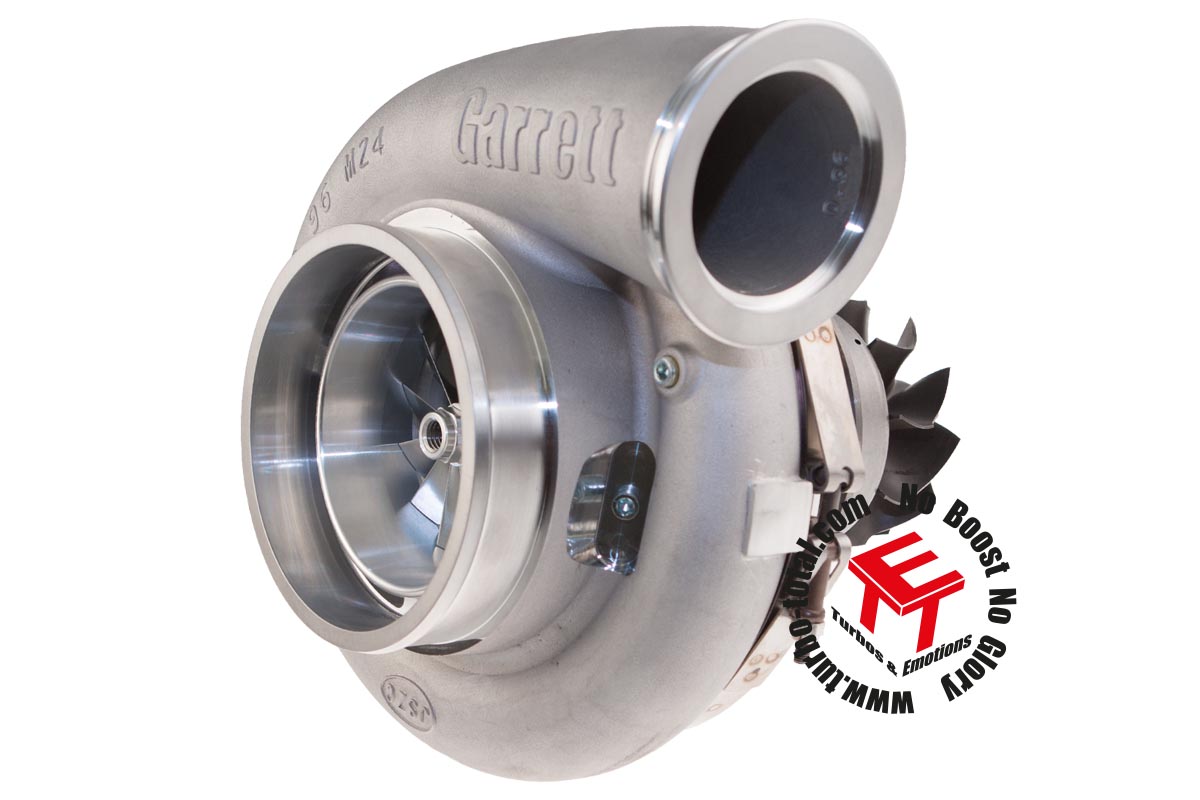

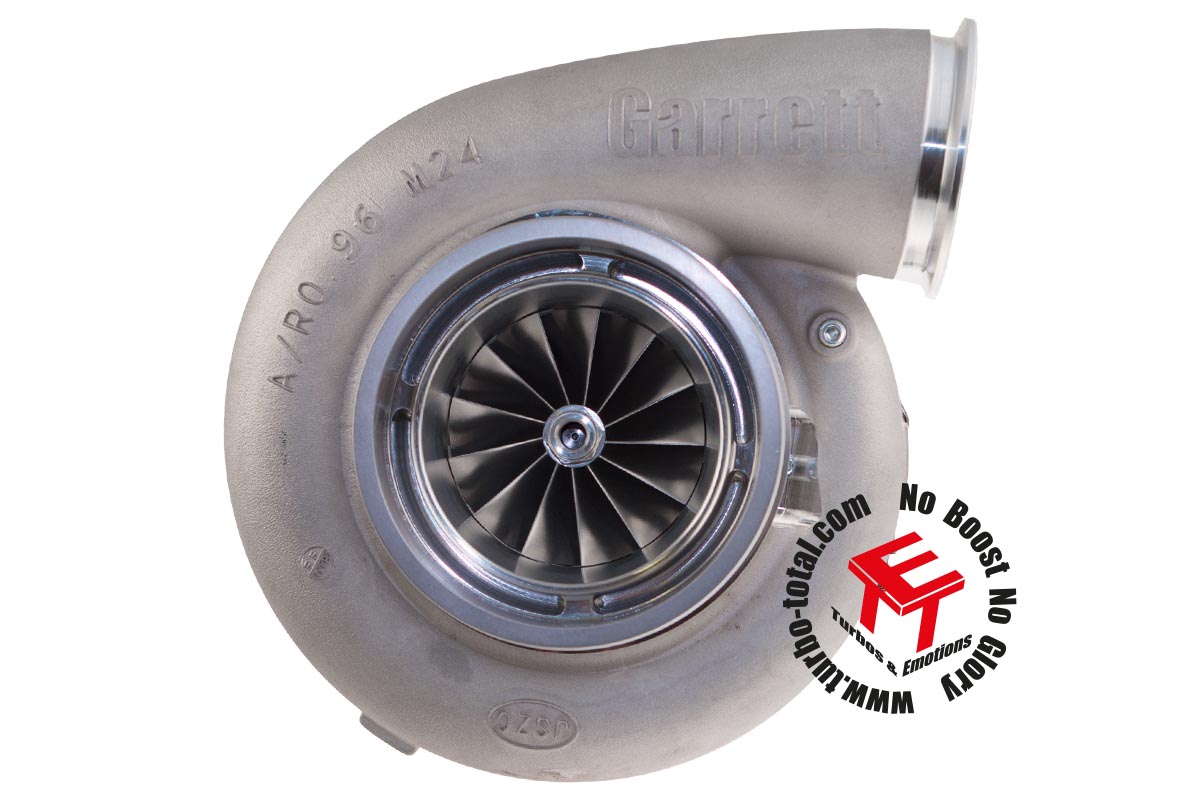

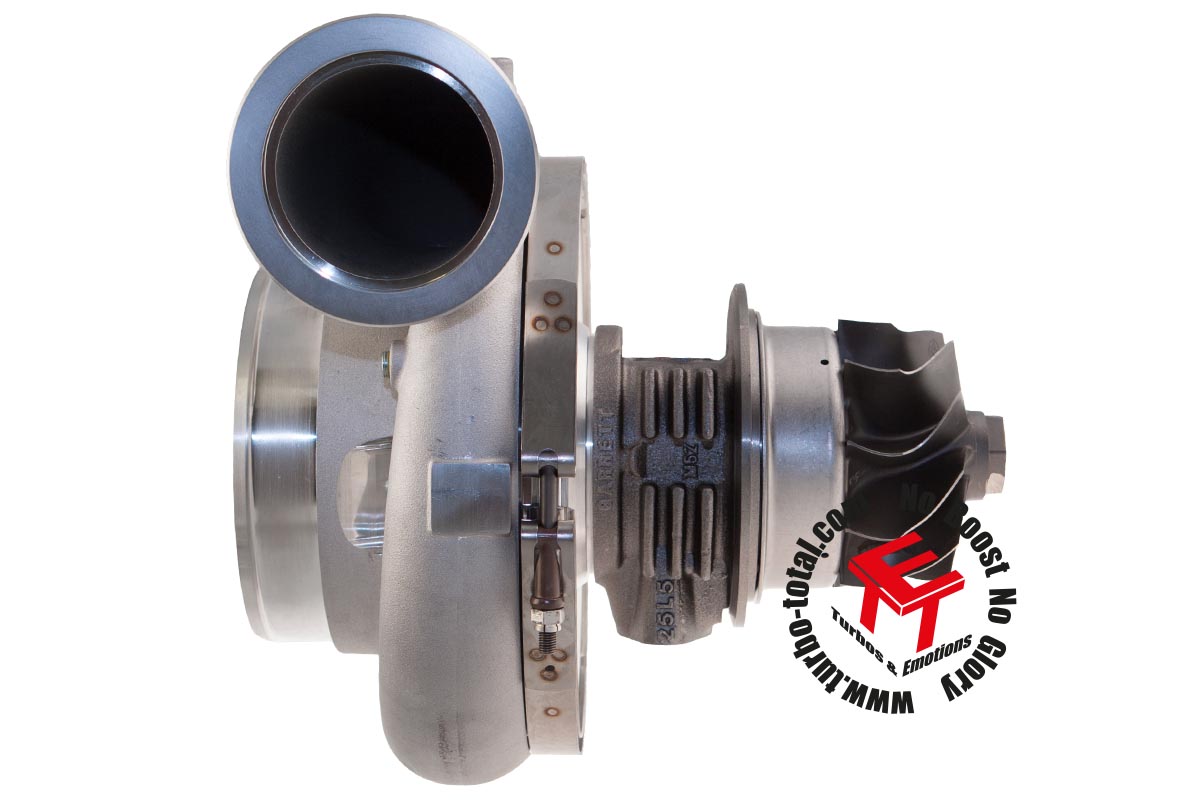

GTX5533R Garrett 91mm Gen II Turbolader 851285-5003S
GTX5533R Garrett 91mm Gen II Turbolader 851285-5003S
GTX5533R Garrett 91mm Gen II Turbolader 851285-5003S
GTX5533R Garrett 91mm Gen II Turbolader 851285-5003S

€3,905.45
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 851285-5003S
Description Drawings Maps Evaluations 0
Description
Horsepower: 1750 - 2450 HP Displacement: 3.0 - 12.0 L Gen II Aero forged milled... more
Close menu
Garrett GTX5533R 91mm Gen II Super Core 851285-5003S

Horsepower: 1750 - 2450 HP
Displacement: 3.0 - 12.0 L

  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port
  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • External Wastegate
Compressor side:
Inducer ø
91.00mm		 Exducer ø
133.00mm		 Trim
47		 A/R
0.96
Turbine side:
Inducer ø
112.00mm		 Exducer ø
102.00mm		 Trim
84		 A/R
--
Available downloads:
Drawings
Zeichnung als PDF öffnen more
Zurück

Zeichnung als PDF öffnen

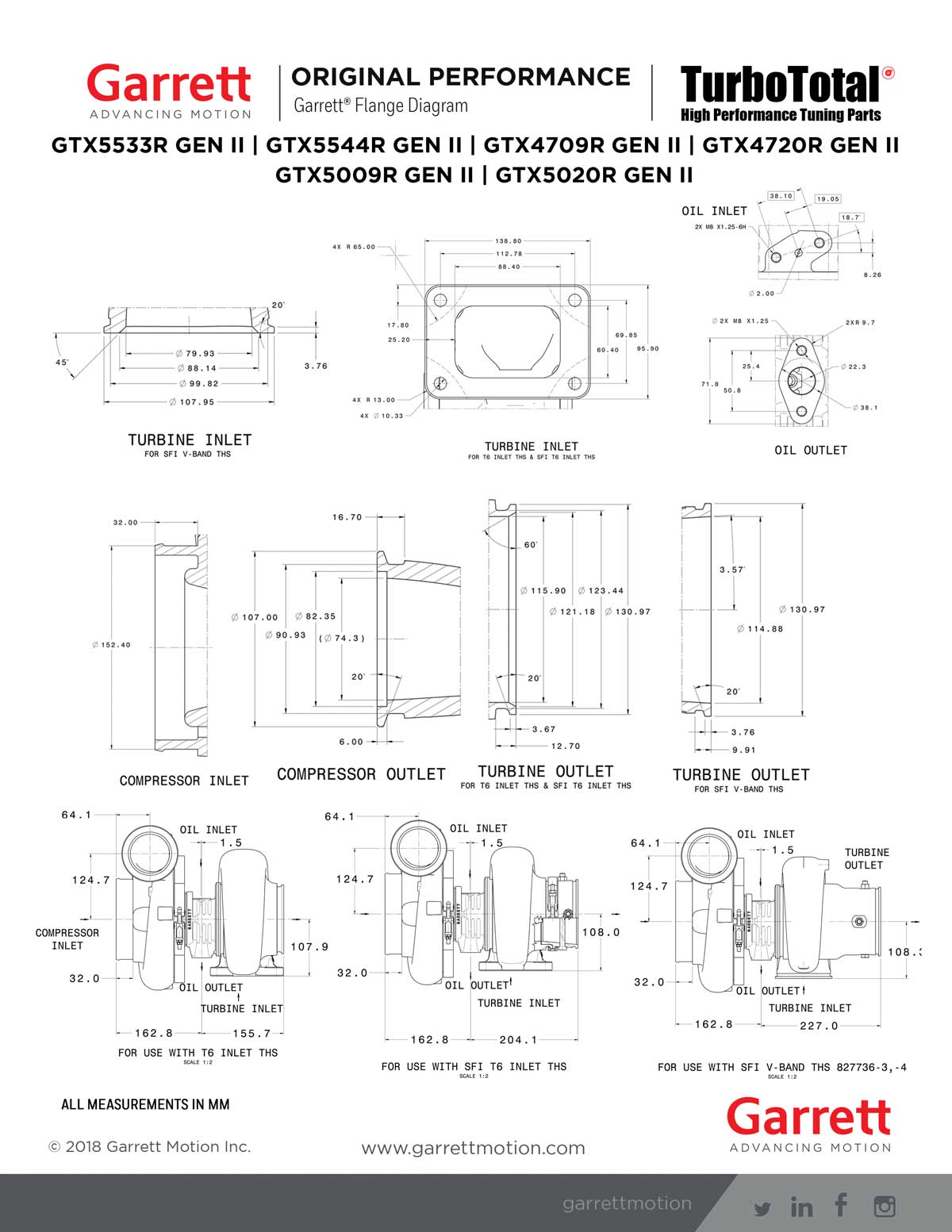

GTX5533R_diagram

Maps
more
Zurück

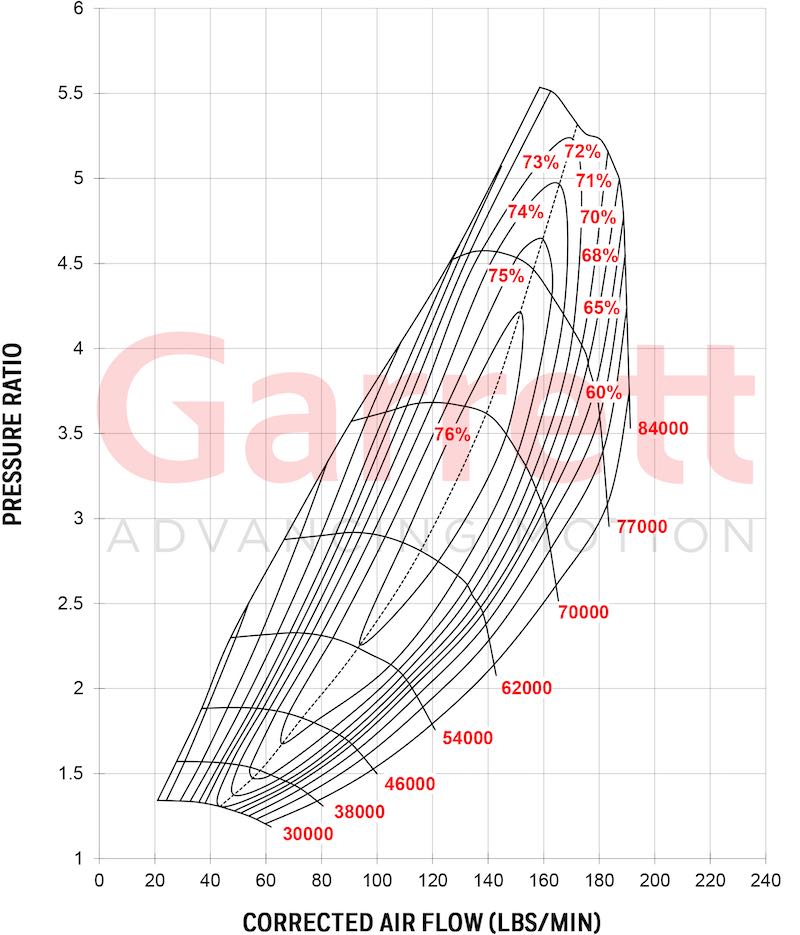

GTX553391mm_COMP

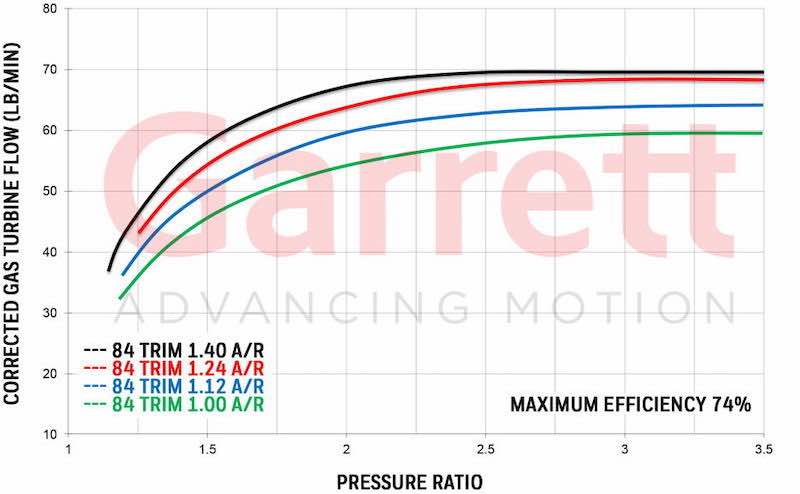

GTX5533_FLOW_1

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Garrett GTX5533R 91mm Gen II Super Core 851285-5003S"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.

The fields marked with * are required.

Accessories 10 Similar products
Accessories 10
Tial Edelstahl Abgasgehäuse GT55/GTX55 1.30 A/R Singlescroll V-Band Eingang / V-Band Ausgang Tial Edelstahl Abgasgehäuse GT55/GTX55 1.30 A/R Singlescroll V-Band Eingang / V-Band Ausgang Tial Edelstahl Abgasgehäuse GT55/GTX55 1.30 A/R Singlescroll V-Band Eingang / V-Band Ausgang
Quick view
Tial Stainless Steel Turbine Housing GT55/GTX55...
€1,299.45
Tial Edelstahl Abgasgehäuse GT55/GTX55 1.15 A/R Singlescroll V-Band Eingang / V-Band Ausgang Tial Edelstahl Abgasgehäuse GT55/GTX55 1.15 A/R Singlescroll V-Band Eingang / V-Band Ausgang Tial Edelstahl Abgasgehäuse GT55/GTX55 1.15 A/R Singlescroll V-Band Eingang / V-Band Ausgang
Quick view
Tial Stainless Steel Turbine Housing GT55/GTX55...
€1,051.95
Garrett Speed Sensor Kit G-Series with Gauge 781328-0003 Garrett Speed Sensor Kit G-Series with Gauge 781328-0003 Garrett Speed Sensor Kit G-Series with Gauge 781328-0003
Quick view
Garrett Speed Sensor Kit G-Series with Gauge...
€435.20
Garrett Speed Sensor Profi Kit G-Series without Gauge 781328-0004 Garrett Speed Sensor Profi Kit G-Series without Gauge 781328-0004
Quick view
Garrett Speed Sensor Profi Kit G-Series without...
€228.15
Turbine Housing GT/GTX55 - A/R 1.30 - V-Band Inlet / V-Band Outlet 761208-0029 Turbine Housing GT/GTX55 - A/R 1.30 - V-Band Inlet / V-Band Outlet 761208-0029
Quick view
Turbine Housing GT/GTX55 - A/R 1.30 - V-Band...
€1,796.40
AEM X-Series True Boost Digitaler Ladedruckregler 30-0352 30-4350 AEM X-Series True Boost Digitaler Ladedruckregler 30-0352 30-4350 AEM X-Series True Boost Digitaler Ladedruckregler 30-0352 30-4350 AEM X-Series True Boost Digitaler Ladedruckregler 30-0352 30-4350
Quick view
AEM X-Series Tru-Boost Controller Gauge
€441.55

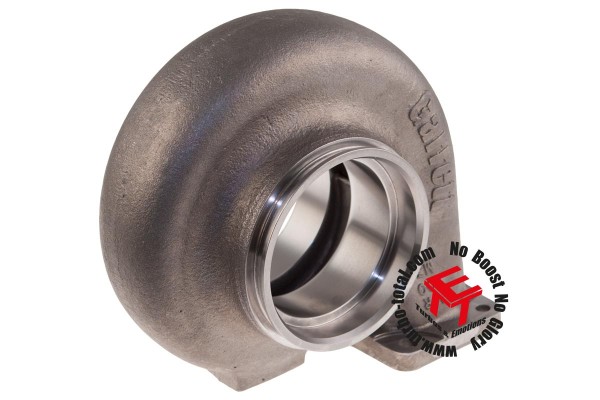

Turbinengehäuse GT55/GTX55 1.00 A/R Singlescroll T6 Eingang / V-Band Ausgang 761208-0014 Turbinengehäuse GT55/GTX55 1.00 A/R Singlescroll T6 Eingang / V-Band Ausgang 761208-0014 Turbinengehäuse GT55/GTX55 1.00 A/R Singlescroll T6 Eingang / V-Band Ausgang 761208-0014 Turbinengehäuse GT55/GTX55 1.00 A/R Singlescroll T6 Eingang / V-Band Ausgang 761208-0014
