Garrett G42-1200 Compact Turbocharger 1.28 A/R V-Band 879779-5003S
Prices incl. VAT plus shipping costs
Delivery time approx. 5 working days
- Order number: 879779-5003S
Design type: Compact version with High Flow Compressor Housing and V-Band Turbine Inlet Flange
Horsepower: 475 - 1200 HP
Displacement: 2.0 - 7.0 L
V-Band Inlet - V-Band Outlet - Single Scroll - A/R 1.28
Honeywell Garrett G-Series - The newest and most advanced generation turbocharger!
These very small turbocharger achieve extremely high performance with minimum space requirements.
- Latest CFD-optimized, forged milled compressor wheel
- High-Flow compressor housing with integrated easy plug speed sensor port
- Rotation: Standard (Clockwise)
- Dual ceramic ball bearing cartridges
- Twin piston rings at compressor and turbine site
- Inconel 950°C turbine wheel
- 950°C Stainless Steel turbine housing
- Water- and Oil cooled
- External Wastegate
- Delivery: Turbocharger with Turbine Housing, 2 X -6AN water fittings

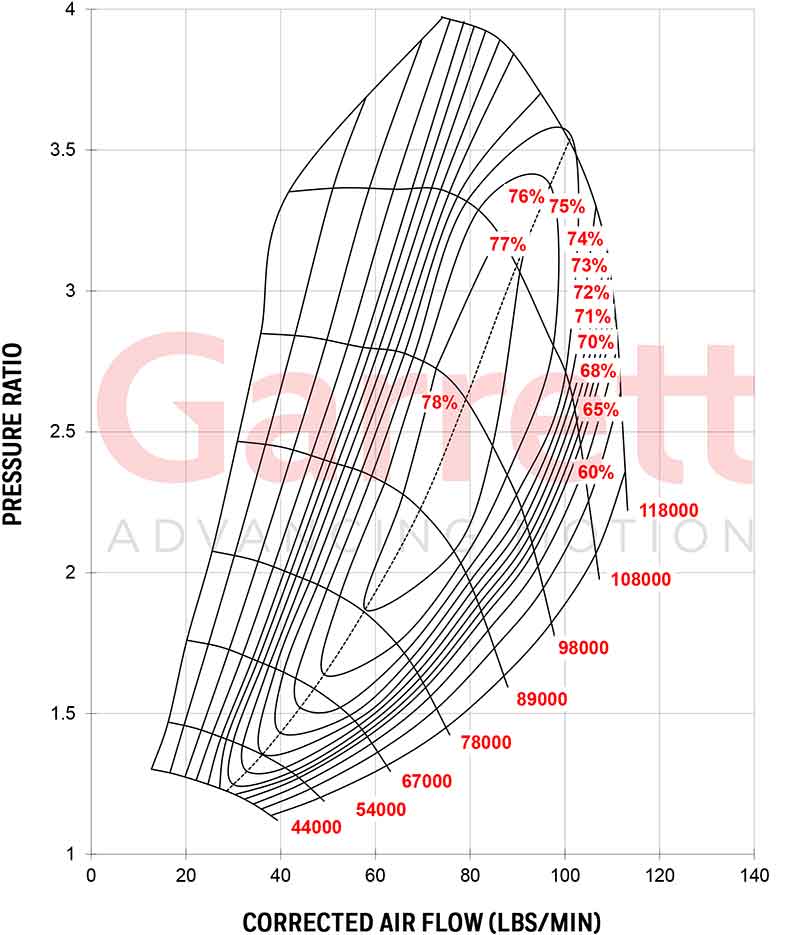

Compressor side:
It uses the latest generation of CFD-designed compressor wheels.
The optionally available speed sensor can now simply be plugged into the compressor housing and is sealed via an O-ring.
Center Housing:
The center section is attached to the exhaust housing over an V-band and can thus easily rotate 360° into any position.
Four large water connection options allow high cooling water throughput and easy installation of the supply and discharge lines via two supplied -6AN adapters.
For the first time the use of twin piston ring seals on the compressor and turbine side, which significantly reduce any oil leaks from the bearing housing.

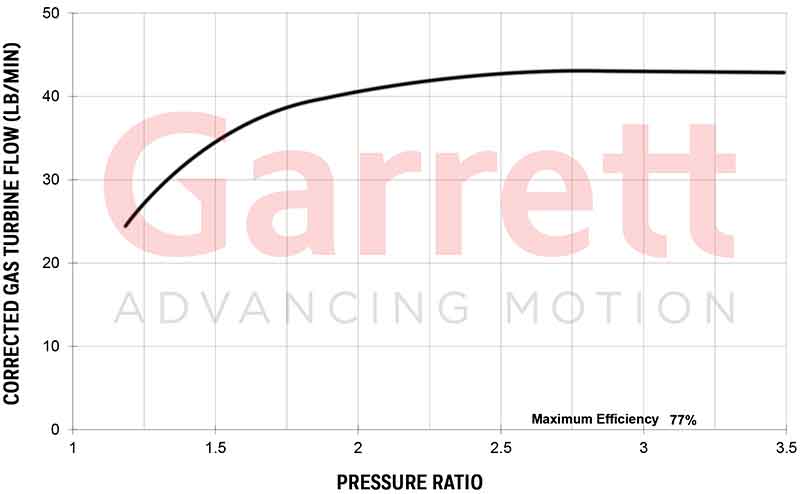

Turbine side:
The completely redesigned turbine wheel, made of the high-performance material Inconel, enables exhaust gas temperatures up to 950° C. The flow could also be increased by up to 10% compared to the GTX42 turbocharger. And that with an efficiency up to 77%.
All G-42 turbine housings are made of stainless steel and temperature-resistant up to 950° C.
We are the only Garrett Performance Distributor for Germany and will support you with any questions about these turbocharger or would help to design your project.
