Garrett G40-1150 Super Core 860777-5002S

Garrett G40-900 Super Core 860777-5003S
€2,014.70
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

Buy at www.bartek.com
  • 860777-5002S
Horsepower: 500 - 1150 HP Displacement: 2.0 - 6.0 L Honeywell Garrett G-Series - The... more
Garrett G40-1150 Super Core 860777-5002S

Horsepower: 500 - 1150 HP
Displacement: 2.0 - 6.0 L

Honeywell Garrett G-Series - The newest and most advanced generation turbocharger!
These very small turbocharger achieve extremely high performance with minimum space requirements.

      • G Series compressor aero increases flow up to 35% (compared to GTX4088R)
      • High-Flow compressor housing with integrated easy plug speed sensor port
      • Rotation: Standard (Clockwise)
      • Dual ceramic ball bearing with steel cages
      • Lightweight aluminum backplate
      • Water fittings included with super core
      • Twin piston rings at compressor and turbine site
      • Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
      • G Series turbine aero increases flow 16% (compared to GTX4088R)
      • Delivery: Super Core, 2 X -6AN water fittings

G-series turbochargers feature the latest innovations in turbocharger technology. Advanced compressor and turbine aero provide a wide range of performance boosting solutions for 2.0L - 6.0L engine platforms. Offered in standard rotation, with T4 twin scroll inlet turbine housing configurations making it easy to select the right turbocharger for your application.

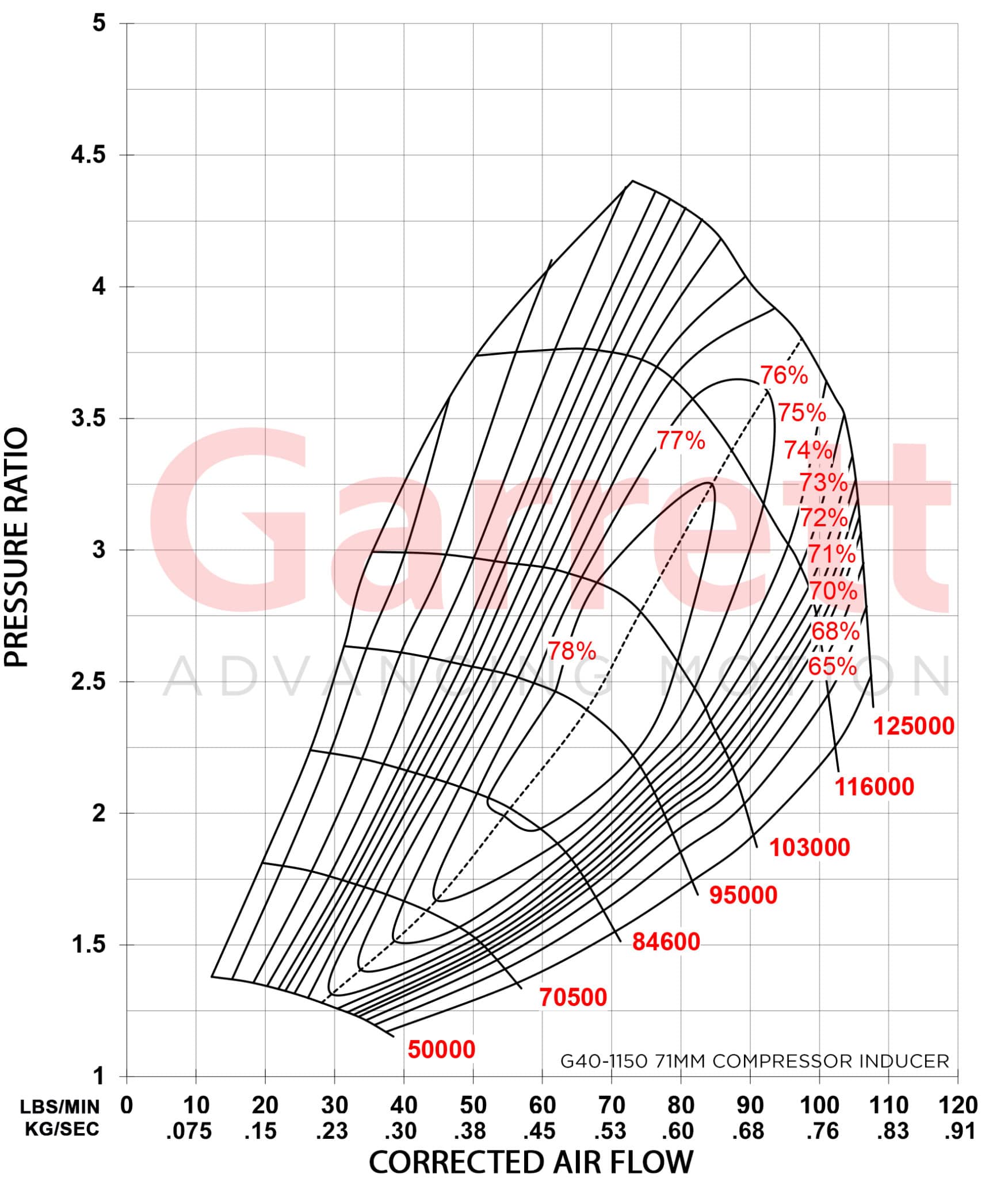

Compressor side:
Inducer ø
71.00mm
Exducer ø
88.00mm
Trim
65
A/R
0.80
Turbine side:
Inducer ø
77.00mm
Exducer ø
70.00mm
Trim
84
A/R
N/A

We are the Garrett Performance Distributor for Germany and will support you with any questions about these turbocharger or would help to design your project.

Available downloads:
