- Order number: 30-2206

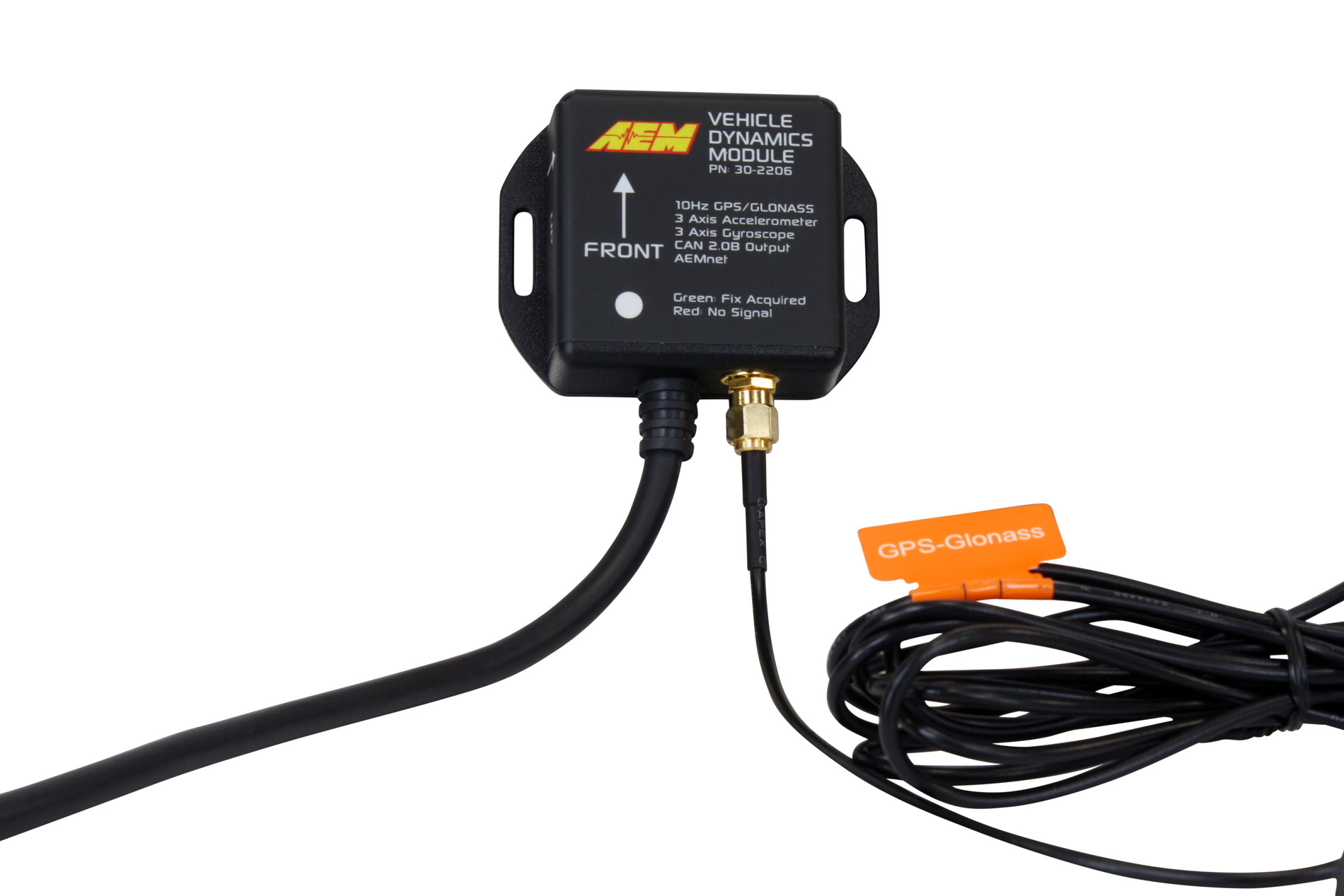

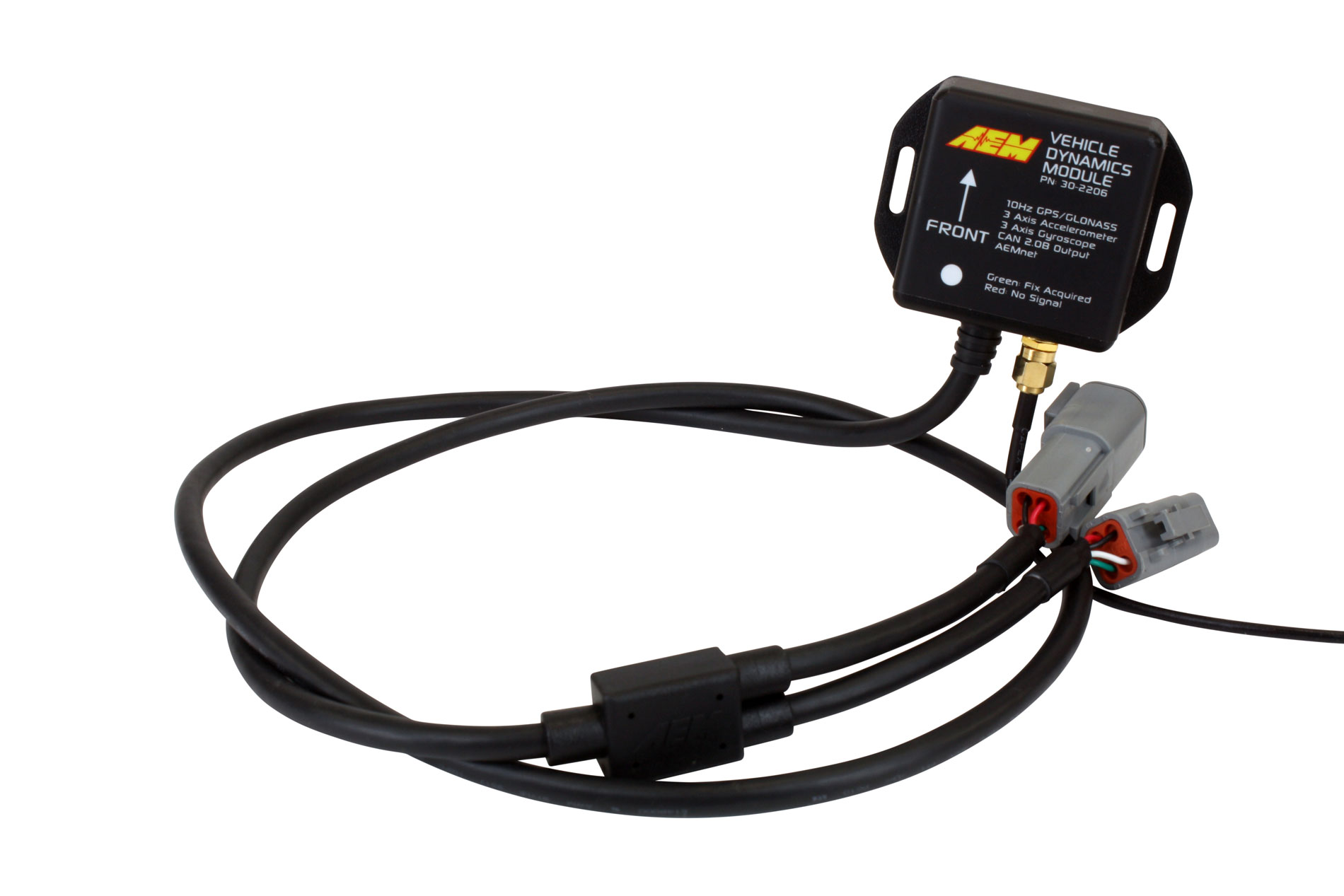

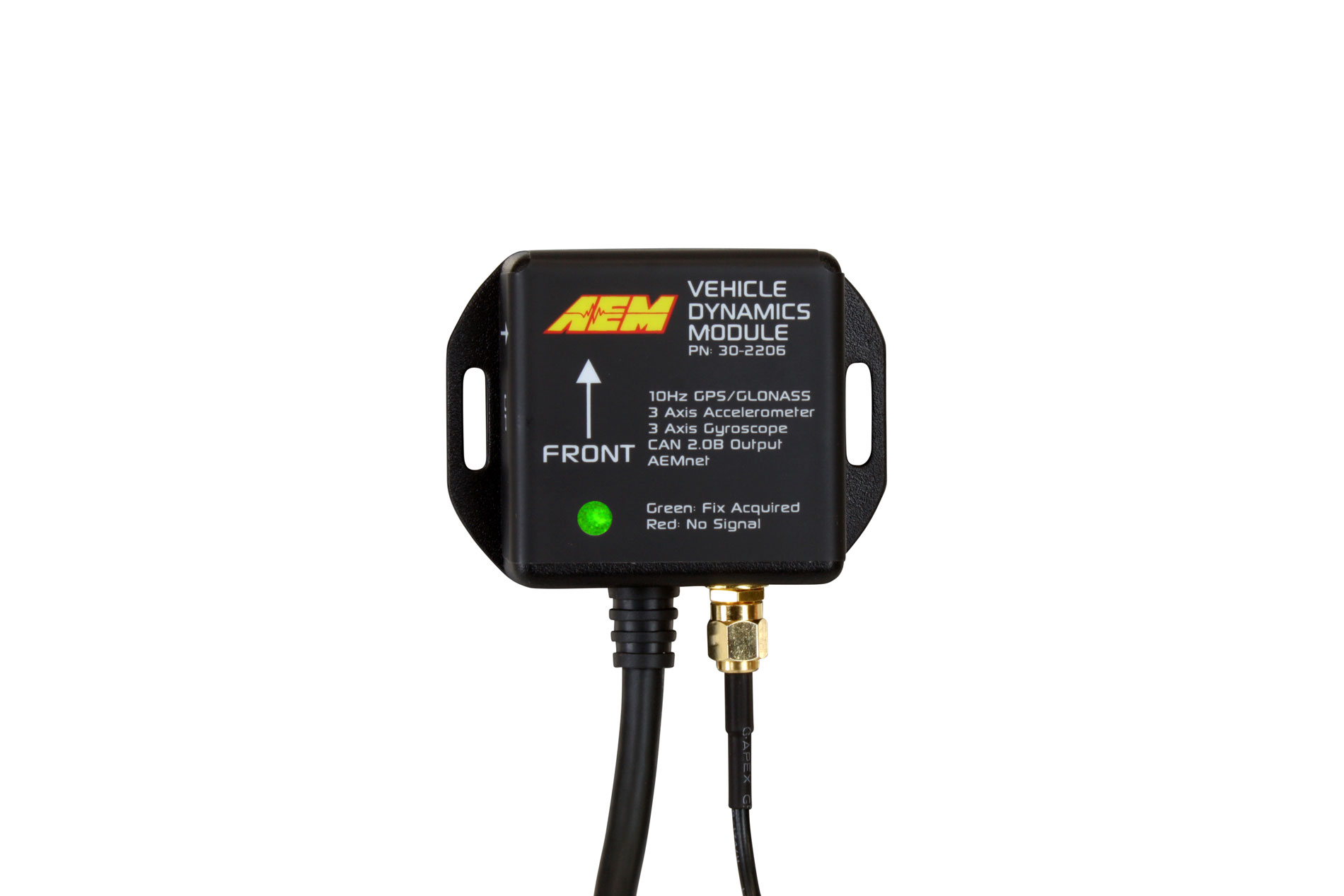

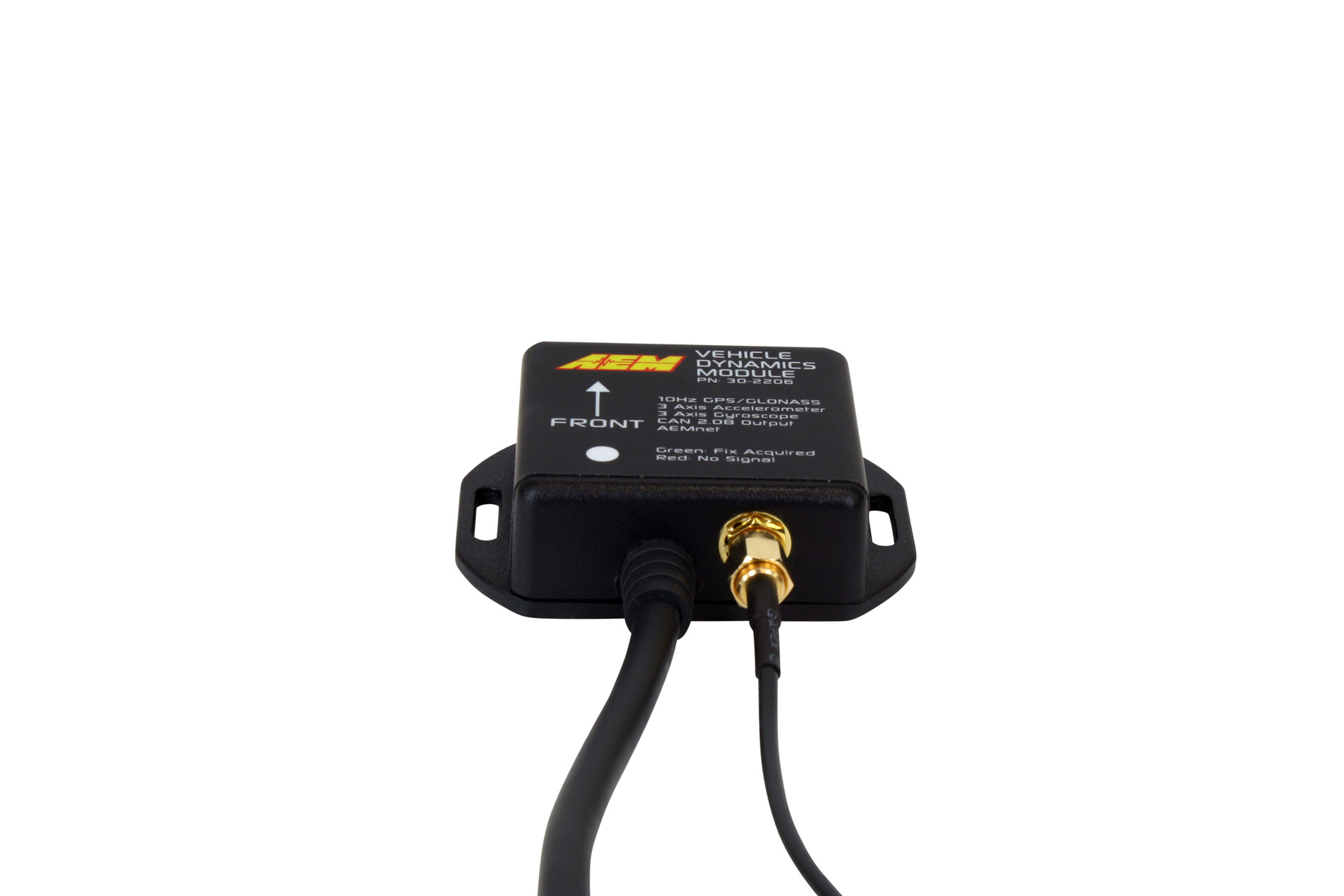

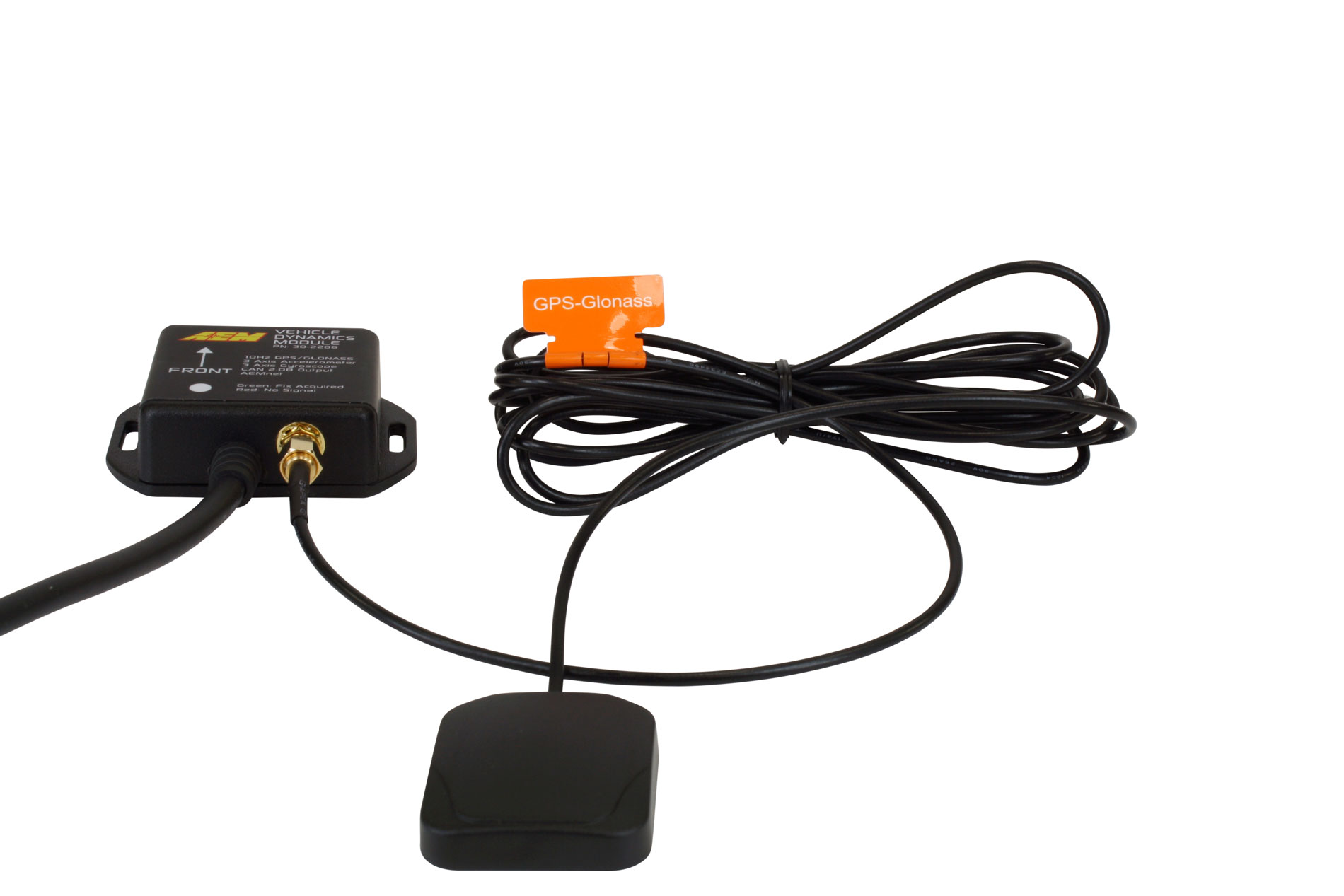

The AEM Vehicle Dynamics Module (VDM) is a compact unit that sends ground speed, heading, altitude, G-loads, roll, pitch and yaw to CD Carbon Digital Dashes independent of an EV CAN bus network. It's an easy way to add MPH and an odometer reading to EV vehicles, and it provides a ton of data for motorsports EV vehicles that can be used for improving vehicle performance.
The VDM is an AEMnet CANbus enabled device with an on-board 50Hz 3-axis accelerometer, 50 Hz 3-axis gyroscope and fast, highly accurate 20Hz GPS + GLONASS that provides pinpoint position accuracy. The VDM’s GPS + GLONASS delivers vehicle speed, position, heading, and altitude, enabling you to create track maps using AEMdata’s track mapping software, while the accelerometer and gyroscope provide critical data for chassis tuning thanks to their fast, 50Hz sampling rate. There has never been a more affordable way to capture highly accurate position data for track mapping and roll, pitch and yaw for evaluating chassis dynamics!

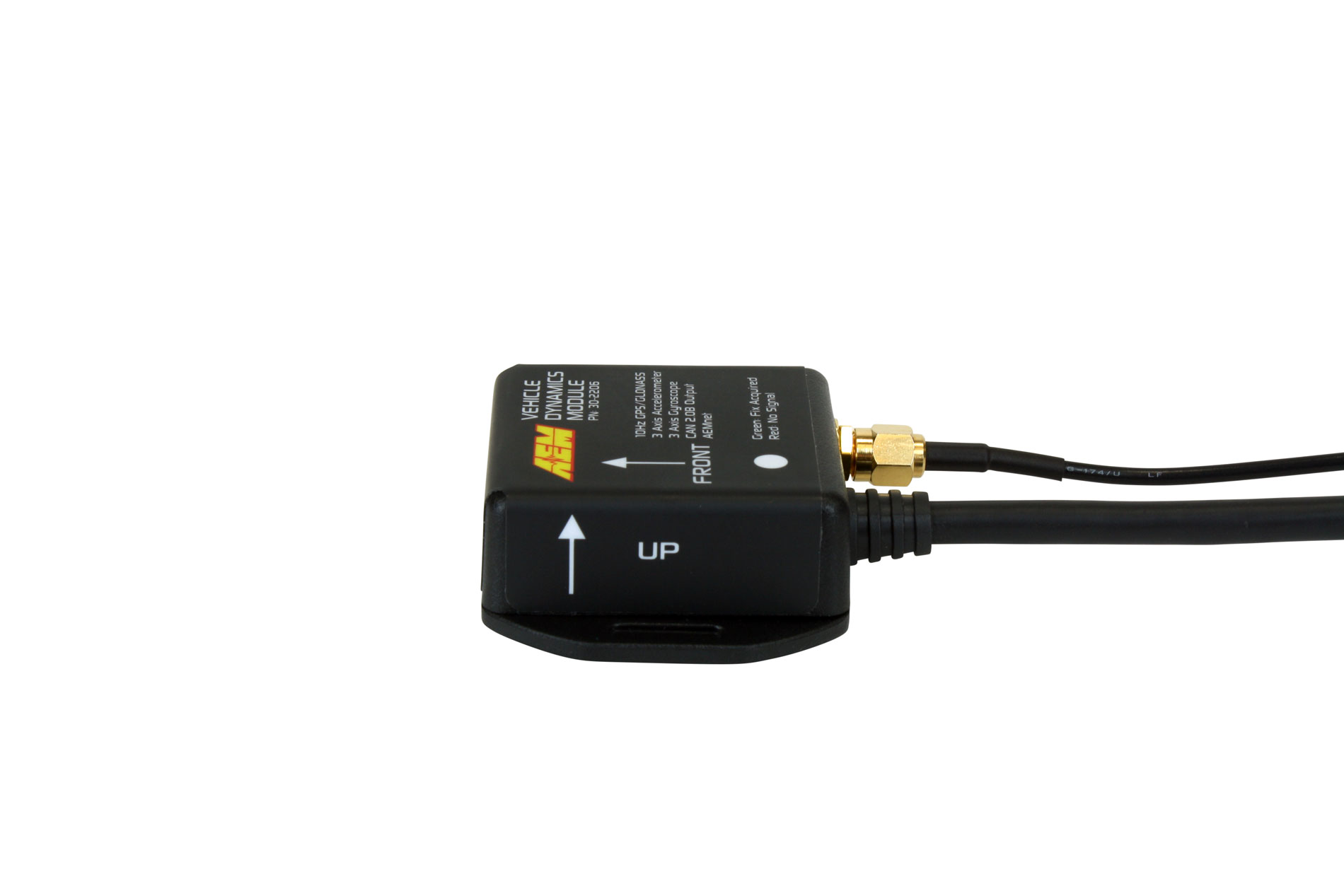

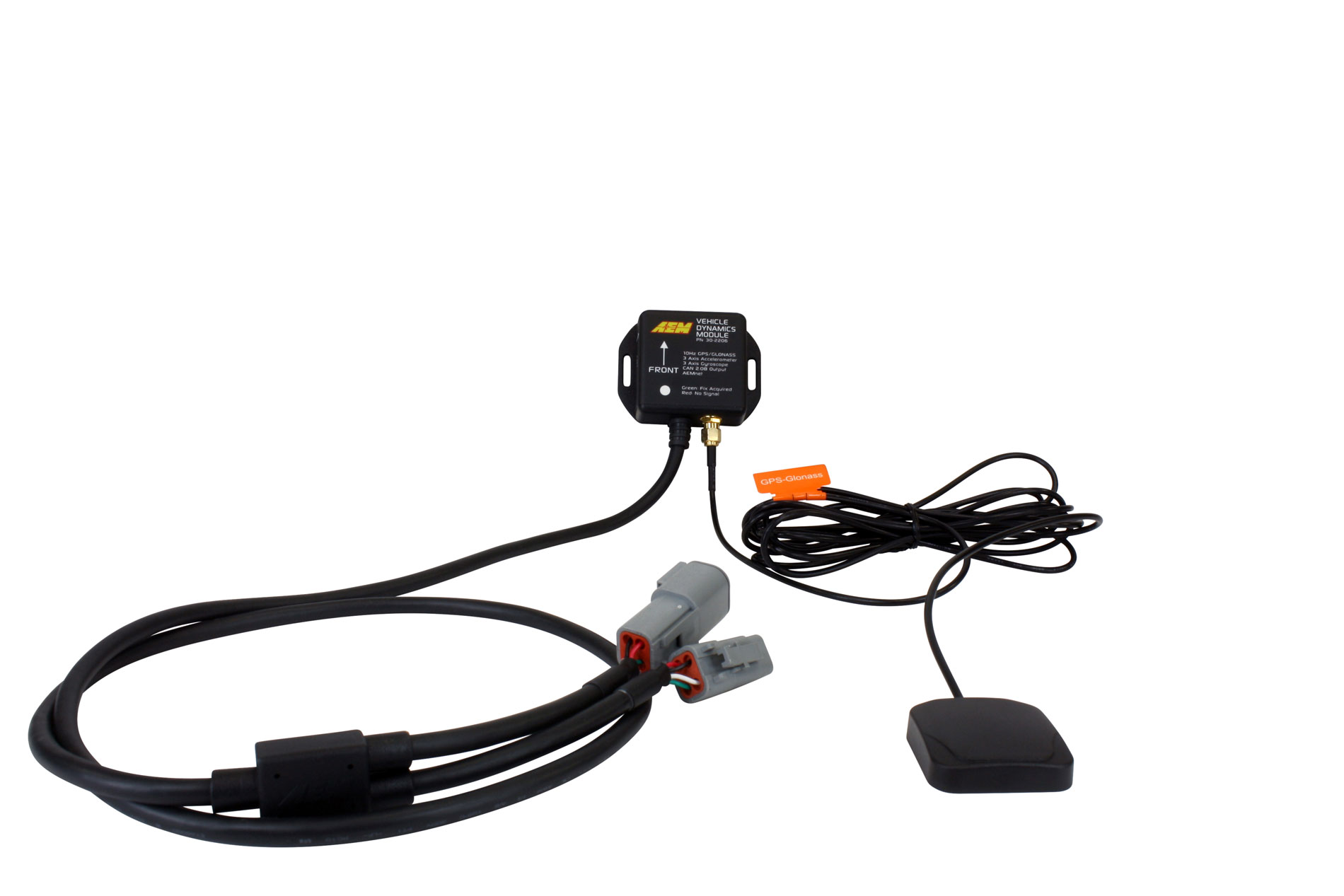

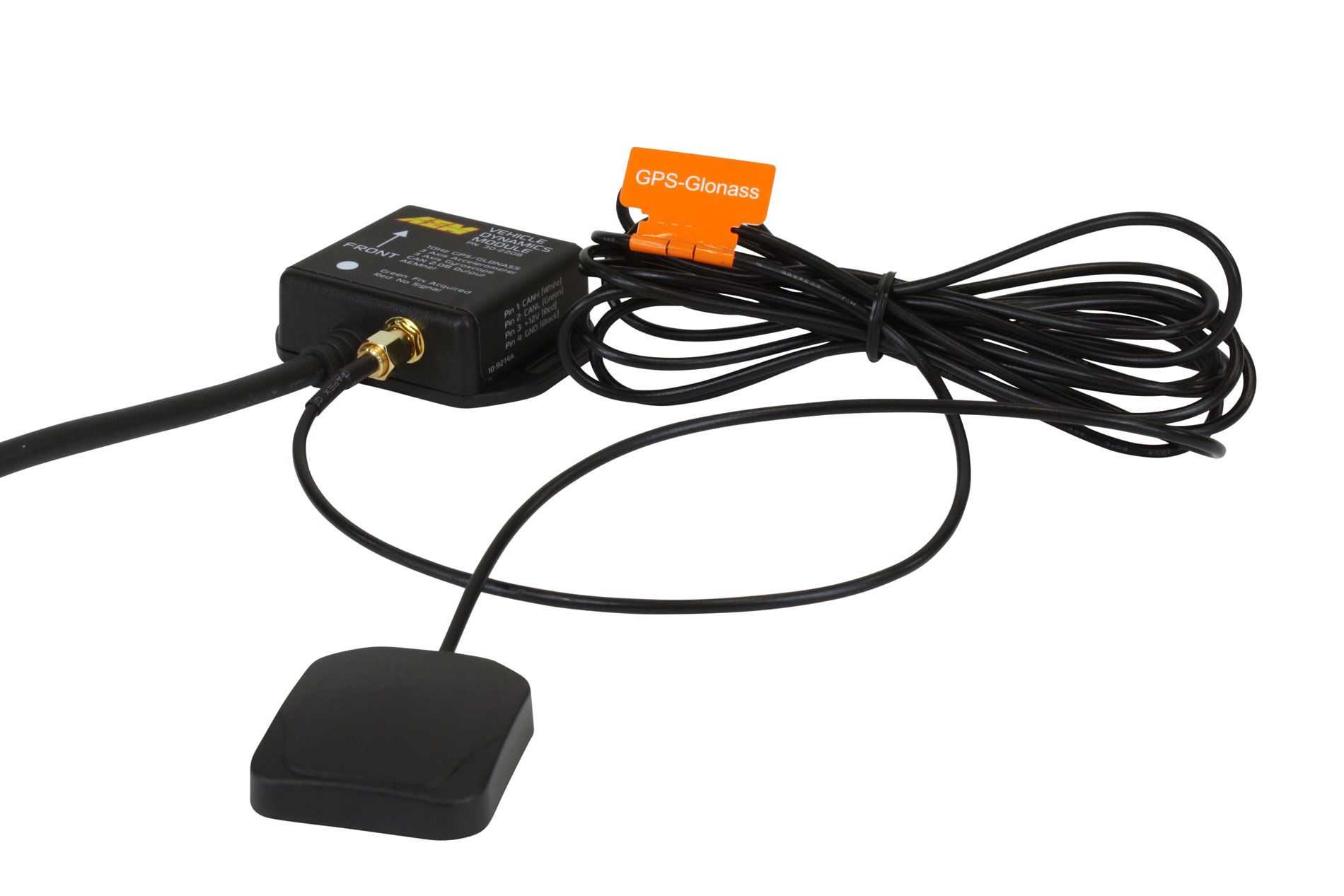

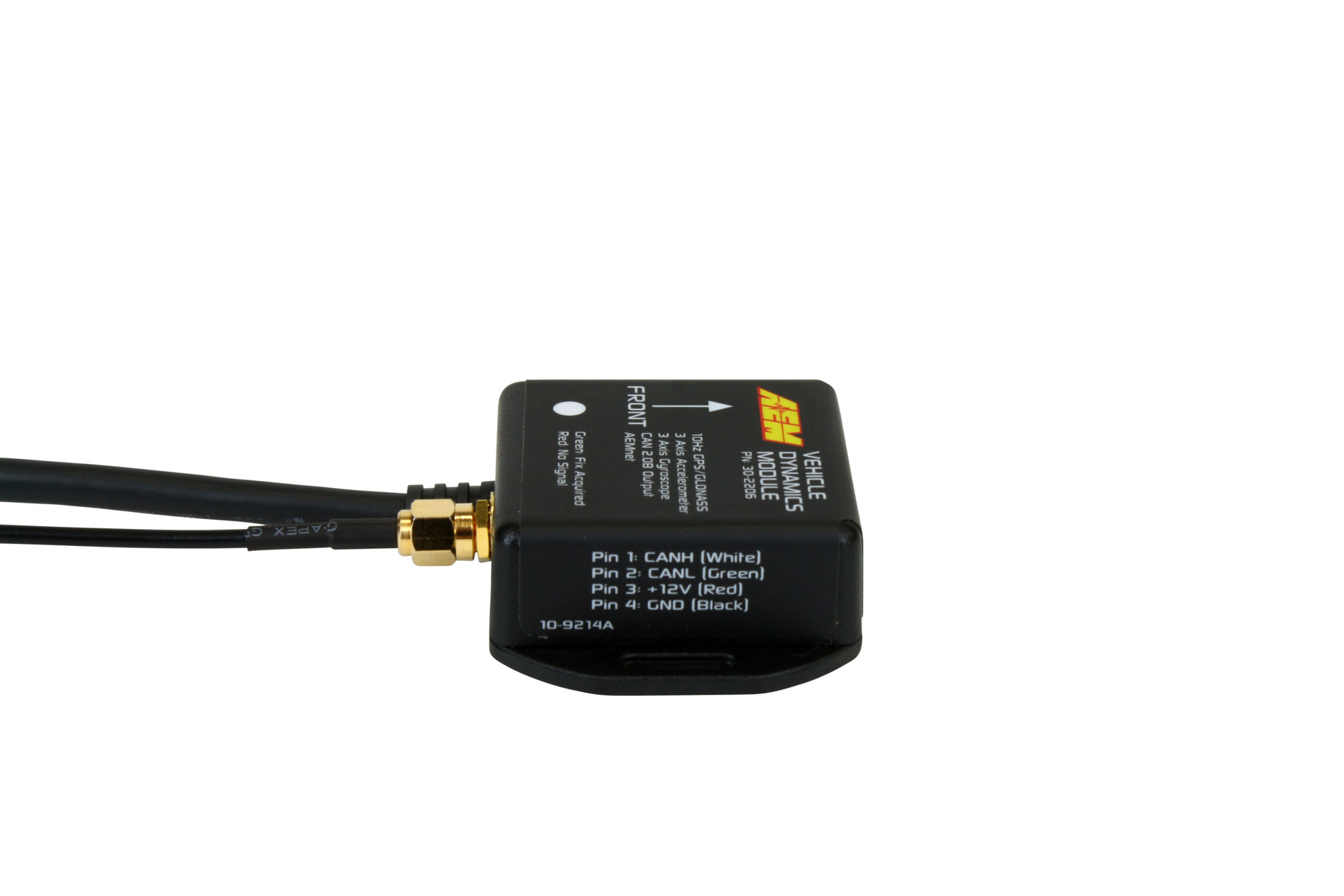

Installation is simple and virtually no set up is required. It is powered by the AEMnet connection, so you simply mount the weather resistant-module in the correct orientation at the correct angle and connect it to the AEMnet input on a CD Carbon Digital Dash Display. The GPS + GLONASS antenna is IP67 rated (completely dustproof, waterproof to 1m) for mounting on the outside of the vehicle.
If you need additional AEMnet cable length to mount your VDM in the center of your vehicle, click here to see our: AEMnet Extension Cables
