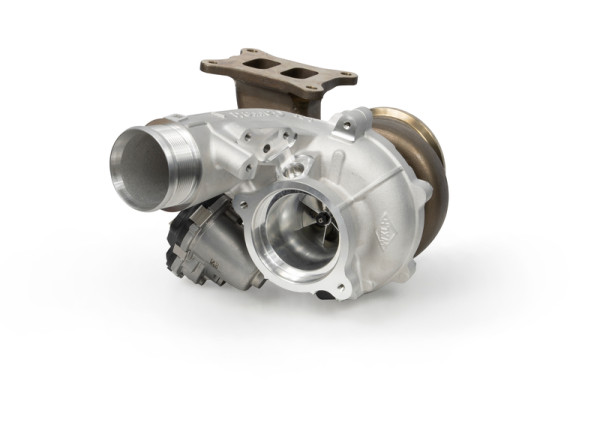

550 PS Garrett Stage-1 Powermax turbocharger for 2.0L VW EA888 EVO 4
This original Garrett-made turbocharger is for Audi A3, Golf 8 R oder Cupra Formentor.
The ultimate performance upgrade for the 2.0L TSI EA888 EVO4 engine from 2020 onwards.
Performance: up to 550 HP
Model: GT2563
Engine: 2.0 L TSI EA888 EVO4
Vehicles:
- VW Golf 8 GTI Clubsport
- VW Golf 8 R 4Motion
- VW T-ROC R 4Motion
- VW 8 Variant TSI R 4Motion
- VW Tiguan TSI R 4Motion
- Audi A3 Limosine S3 Quattro
- Audi A3 Sportback S3 Quattro
- Audi SQ2
- TTS Quattro
- Roadster TTS Quattro
- Cupra Formentor 2.0 TSI 4Drive
- Cupra Leon Sportstourer 2.0 TSI 4Drive
- Cupra Leon Sportstourer 2.0 TSI
- Cupra Leon 2.0 TSI
- Cupra Ateca 2.0 TSI 4Drive
- 06Q145703C (EU)
- 06Q145703F
- 06Q145703G
- 06Q145703H
- Complete assembly with calibrated electric actuator for OE fitment
- 550BHP | 410kW turbo capability (on-vehicle results 520BHP | 383kW - with conservative tune)
- +20% compressor flow compared to OE turbo
- +37% turbine flow compared to OE turbo
- Customized modern compressor wheel aero for application
- Modern gasoline turbine wheel aerodynamics constructed of Mar-M alloyrated for up to 1050°C
- Stainless steel turbine housing rated for up to 1050°C
- Fully machined speed sensor port
- Integrated thrust bearing - reinforced for application
- Compressor side: Inducer Ø 51mm / Exducer Ø 63mm
- Turbine side: Inducer Ø 58mm / Exducer Ø 50mm
- Max. turbocharger speed: 177,800 rpm
All rights reserved. The figures have no claim to completeness or accuracy...
WARNING: Maximum allowable turbocharger speed is 177.800krpm (Stage 1). The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), and 781328-0004 (includes speed sensor). Speed sensors sold separately.
