450 HP Garrett Stage-1 Powermax Turbocharger for 2.0L EA888 Gen4
Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: 917056-5002S

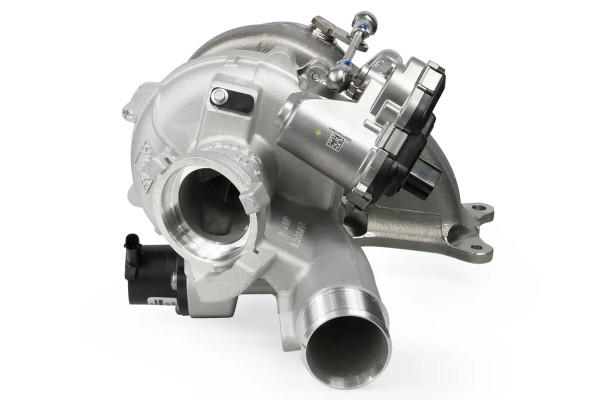

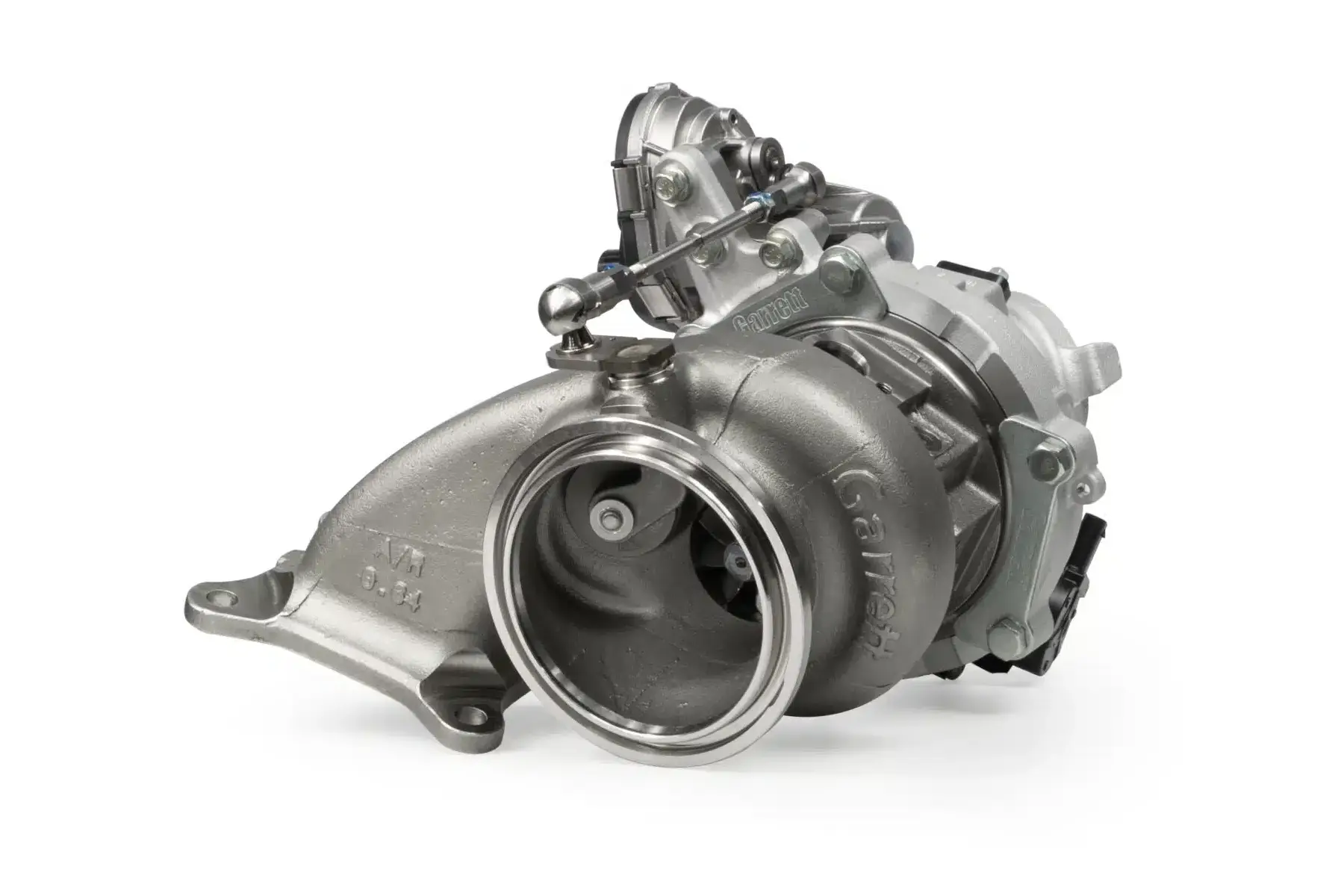

Garrett Stage 1 Plug & Play Turbocharger for the VW-Group EA888 Gen 4 Engine
This original Garrett made turbocharger is suitable for all Golf 8 GTI, Audi TT, Skoda Octavia RS, Seat Leon 2.0 TSI and most other 2.0 TFSI engines.
Power rating: up to 450 HP
Stage 1 for maximum driving pleasure;
Engine: 2.0 L GEN4 EA888
- VW Golf 8 GTI
- VW Tiguan 2.0 TSI
- Audi Q3 45 TFSI 2.0
- Audi TT 45 TFSI 2.0
- Skoda Kodiaq RS TSI 4x4
- Skoda Octavia RS
- Cupra Leon 2.0 TSI
- Cupra Formentor 2.0 TSI
- Seat Tarraco 2.0 TSI
- 06Q145702B
- Direct-fit Bolt-on Turbocharger-Kit with all connections
- Electronic actuator
- Gen II GTX Aero milled forged compressor wheel

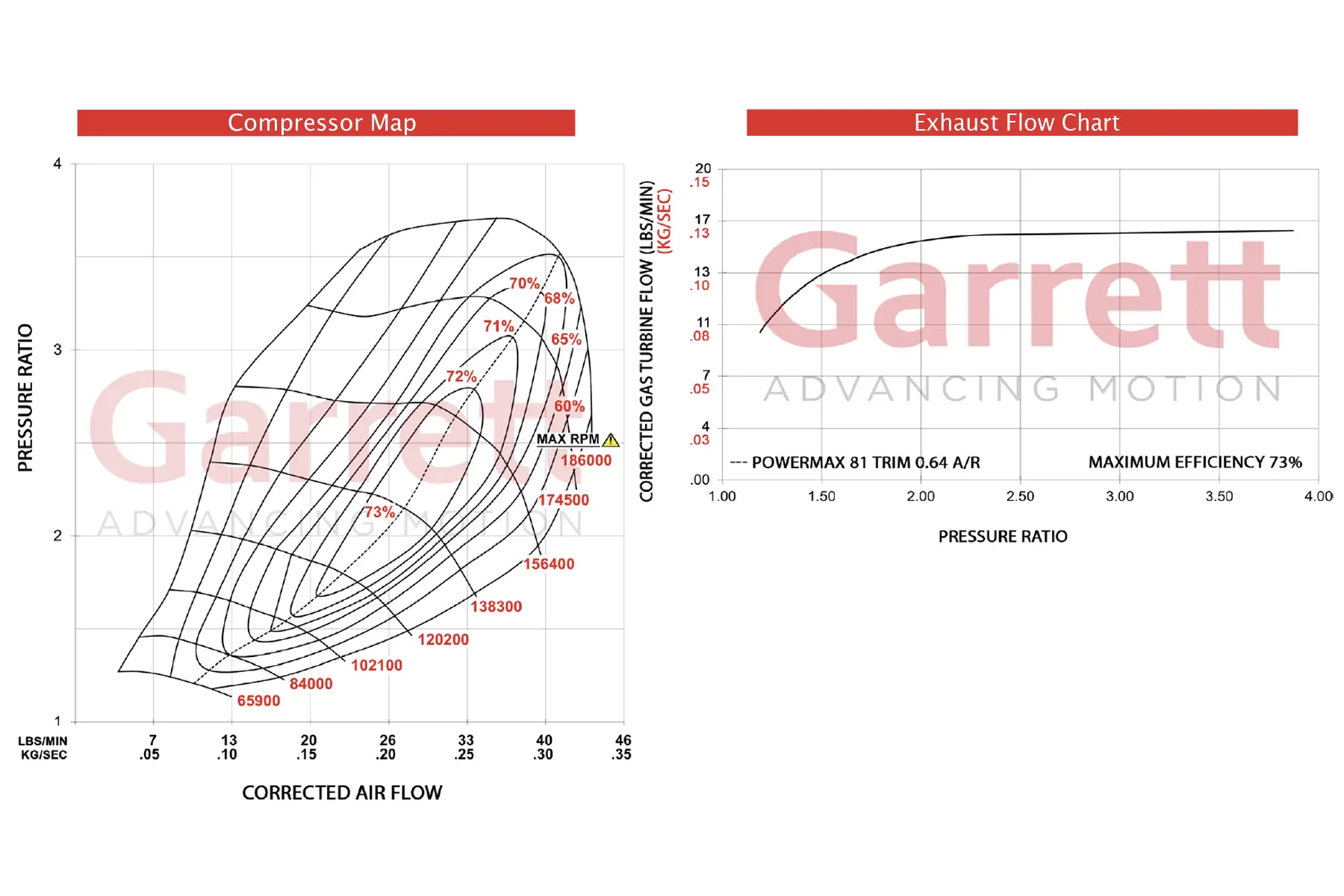

- +32% Compressor flow compared to the standard turbocharger
- +50% Turbine flow compared to the standard turbocharger
- State-of-the-art turbine wheel design made of high-performance material MAR-M for 1050 °C
- Stainless steel exhaust housing for 1050 °C
- Speed sensor connection port
- 360 ° Thrust bearing
- Journal bearing version
- max. Turbocharger speed: 186.000 rpm
- Rotation direction: Reverse Left
The turbocharger is also at the cutting edge of technology underneath the housings: here you will find the extremely high-quality reverse rotating Garrett GT2260S hull assembly with a MAR-M exhaust wheel designed for exhaust temperatures of up to 1050 °C.
A 1050 °C stainless steel was chosen as the material here. The duct routing is adapted to the power and flow-optimised. Another advantage: all downpipes fit at the outlet of the exhaust housing.
Special feature: You can keep your old turbocharger. This allows you to restore the vehicle to its original condition if necessary. This ultimately saves a lot of time and money, because you then do not have to buy a new turbocharger.
Click here to see a direct comparison between the Powermax Stage 1 and the OEM Turbo!

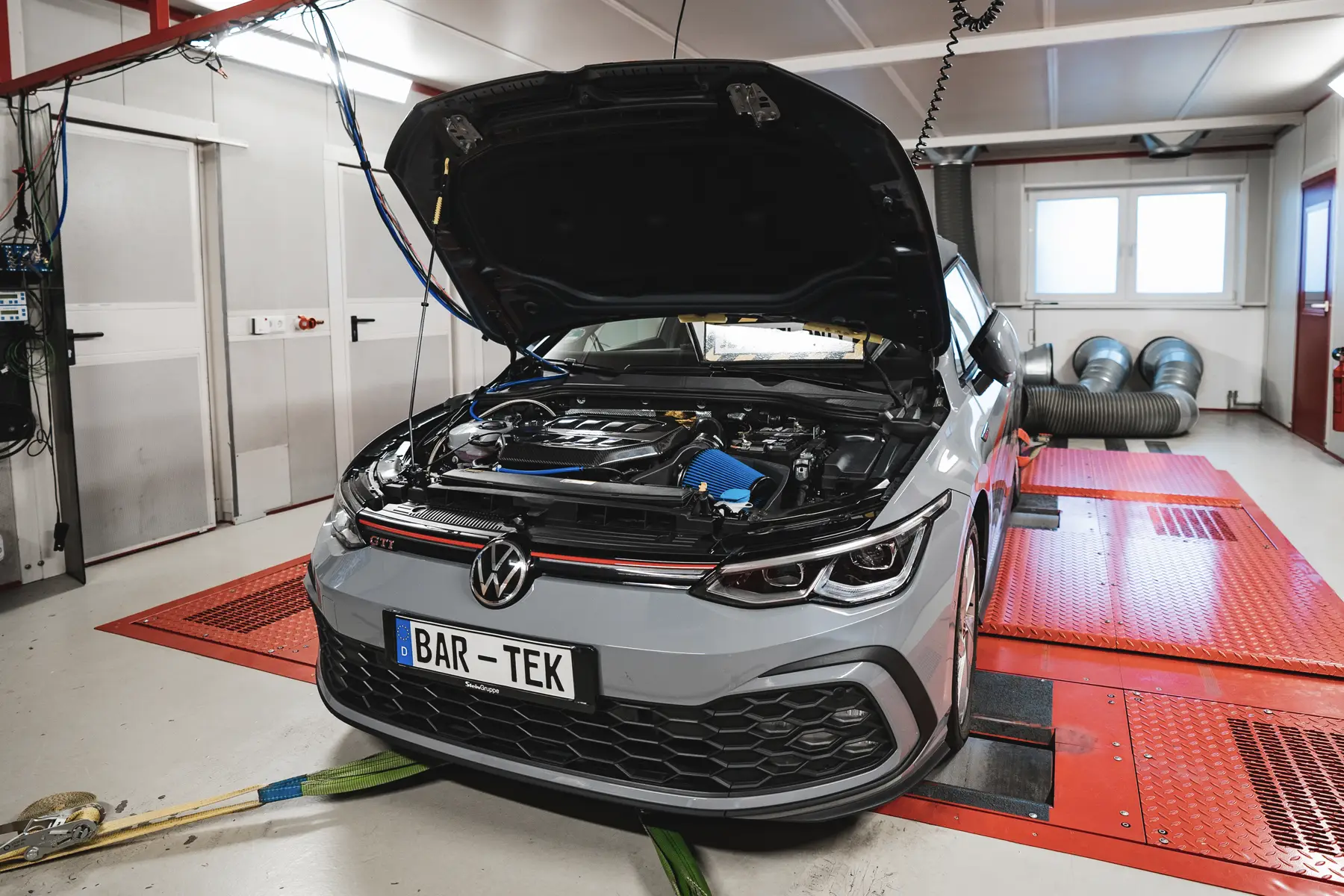

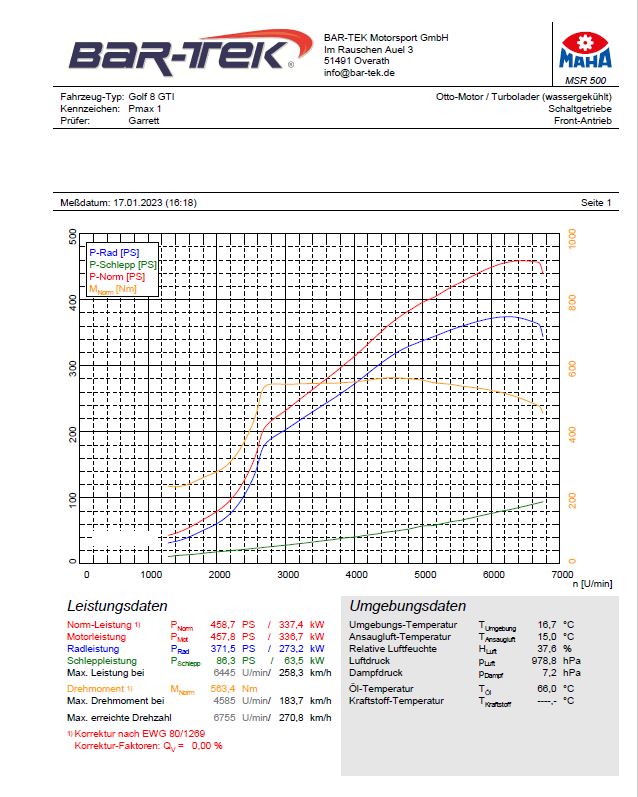

Due to the longstanding cooperation with the manufacturer Garrett, we were chosen as performance distributor to develop the new Powermax turbocharger in cooperation with Garrett. The turbocharger was installed in our shop and tested on our in-house test bench. Test vehicle: Golf 8 GTI.
Warning:
Maximum allowable turbocharger speed ist 186krpm. The use of this product above max turbocharger speed is at the owner´s risk and canresult in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor. Part numbers 781328-0003 (includes sensor and gauge) and 781328-0004 (includes speed sensor).
